Heavy-Duty Connectors
Type 310

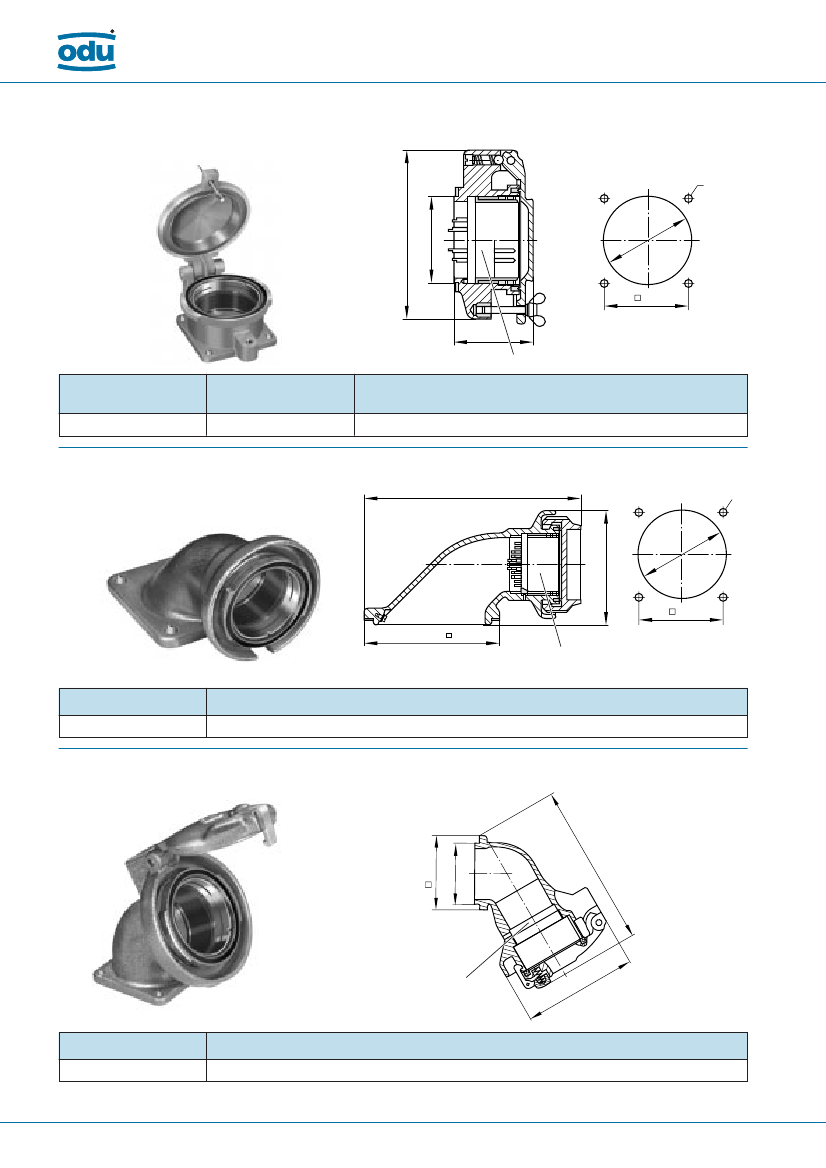

Straight Receptacle with Snap Cover for Bayonet Coupling
(mated and locked IP 55)
Ø9
Ø 87
170
88
84
86
Shown in typical mounting position
Contact inserts see page 43 - 44
Part Number
with Lock Screw
Alu-cast, painted
Part Number
with Snap Lock
Alu-cast, painted
Comments
310.010.000.642.000
310.011.000.642.000
Right-Angle Receptacle for Bayonet Coupling (when mated and locked IP 55)
ca. 303
Ø 17
16
6
159
150
190
Contact inserts see page 43 - 44
Part Number
Alu-cast, painted
Comments
310.012.000.642.000
60° Receptacle, with Snap Cover for Bayonet Coupling
(when mated and locked IP 55 *)
ca.
105
0
20
Ø 87
Contact inserts see page 43 - 44
0
15
* only for socket inserts (otherwise contact factory)
Part Number
Alu-cast, painted
Comments
310.013.000.642.000
Assembly instructions see page 47
