Specifications

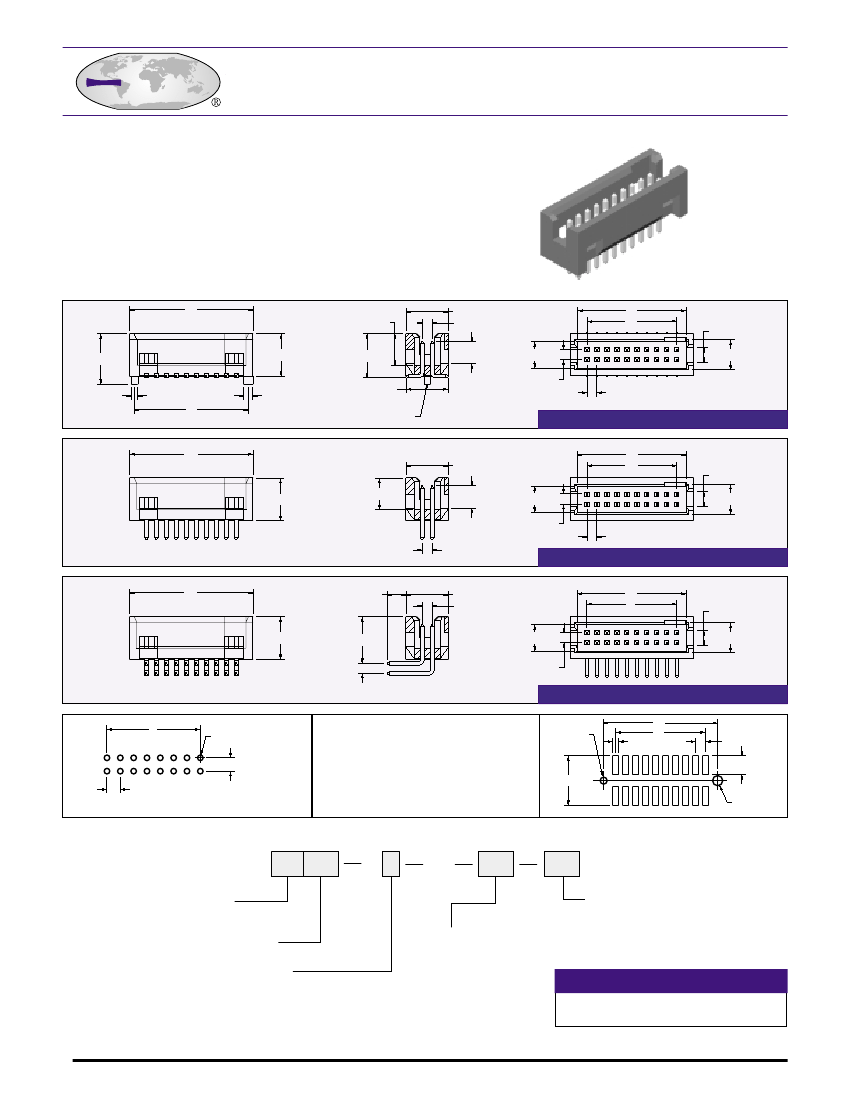

9600 Series Headers
.050 x.050 Box Headers
Insulator Material: Glass filled polyester, Thermoplastic,
94V-O Nylon-6T, UL Recognized.
Contact Material: Copper Alloy
Contact Plating: Gold or Tin over .000050” Ni
(See contact plating options).
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 500 VAC
Current Rating:
1 AMP
Operating Temperature:
-40°C To +105°C
Max Operating Temp:
230°C for 60 seconds
UL File Numbers:
E146967 & E176234
A
.157 [4.00]
.211 [5.35]
.050 [1.27]
.118 [3.00]
C
B
.073 [1.85]
.152 [3.85]
.252 [6.40]
.213 [5.40]
.220 [5.60]
.132 [3.35]
.050 [1.27]
.050 [1.27]
Ø .032 [0.8]
D
Ø .047 [1.20]
.217 [5.50]
LOCATING PEGS (OPTIONAL)
STRAIGHT SMT
C
B
A
.211 [5.35]
.157 [4.00]
.118 [3.00]
.132 [3.35]
.050 [1.27]
.073 [1.85]
.152 [3.85]
.213 [5.40]
.050 [1.27]
.050 [1.27]
STRAIGHT PCB MOUNT
C
B
A
.095 [2.40]
.211 [5.35]
.050 [1.27]
.132 [3.35]
.050 [1.27]
.073 [1.85]
.152 [3.85]
.213 [5.40]
.233 [5.91]
.050 [1.27]
RIGHT ANGLE PCB MOUNT
B
Ø.035 [.90]
D
B
.030 [.76]
Ø.028±.002 [.70]
.050 [1.27]
.050 [1.27] TYP
.
STRAIGHT/RIGHT ANGLE SOLDER PCB LAYOUT
A
= .118 + .050 x No. of Pos.
B
= .050 x (No. of Cont./2 -1)
C
= .074 + .050 x (No. of Cont./2 -1)
D
= .120 + .050 x (No. of Cont./2 -1)
.050 [1.27]
.094 [2.40]
.248 [6.30]
Ø.051 [1.30]
SMT PCB LAYOUT
PART NUMBERING
96 XX
SERIES CODE
.050 HEADERS
I
X
00
XX
XX
PACKAGING
TR
= TAPE & REEL PACKAGING
PP
= PICK AND PLACE PAD
BLANK = STANDARD PACKAGING
NO. OF CONTACTS
06 - 98
100 =
01
CONTACT PLATING
.000050” Nickel underplate
CONTACT
TAIL
03
= Au Flash
Au Flash
80
= 10µ”Au
10µ”Au
90
= 30µ”Au
30µ”Au
CONSULT FACTORY FOR
TR
AND
PP
PACKAGING
AVAILABILITY
BODY STYLE
1
= STRAIGHT
2
= RIGHT ANGLE
3
= SMT WITHOUT PEGS
4
= SMT WITH PEGS
SUGGESTED MATING CONNECTORS
96XXS-DX-XX-XX-XX (PAGE F-19)
96XXS-EX-XX-XX-XX (PAGE F-20)
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
