364-10-102-00-580 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 364-10-102-00-580

364-10-102-00-580: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

364-10-102-00-580 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

364-10-102-00-580 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	unknown
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	364
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

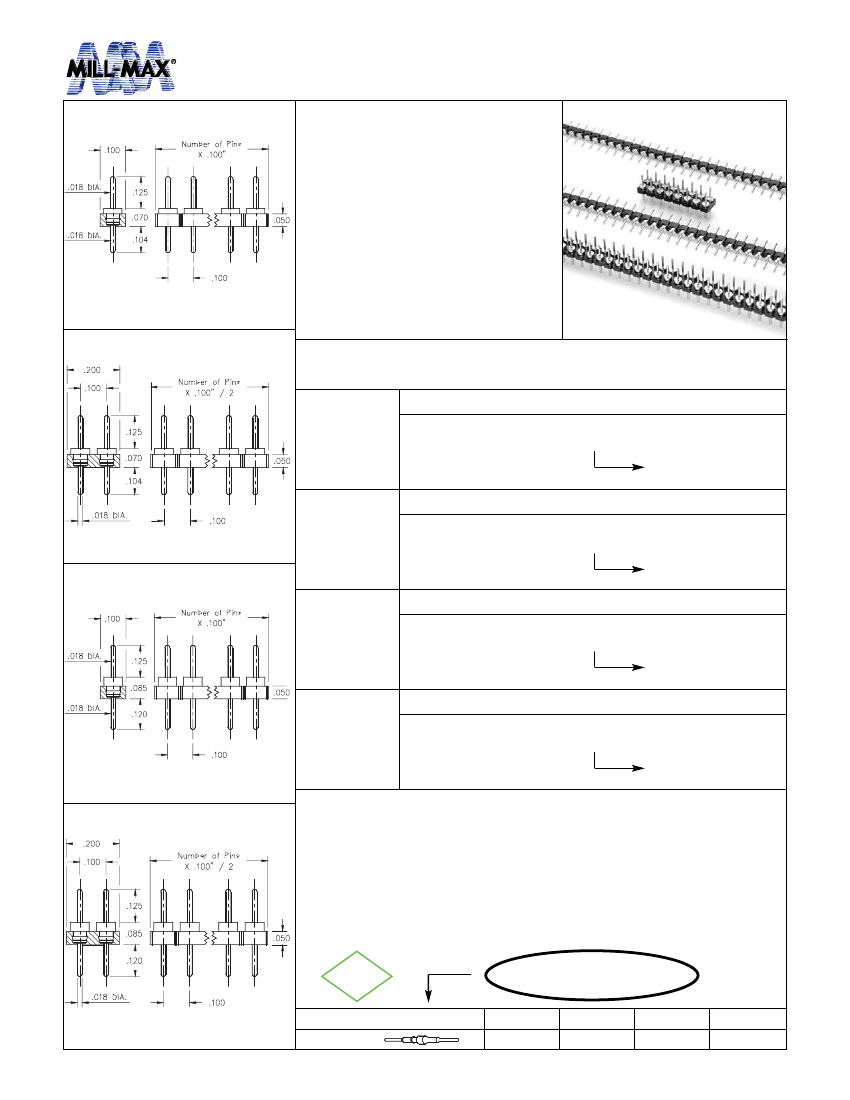

INTERCONNECTS

Low Profile, .018” dia. Pins

Single and Double Row

•

Series 335 and 435 single and

double row PCB interconnects

offer lowest profile available .070”.

•

Series 364 and 464 single and

double row PCB interconnects

offer .085” profile above board.

•

Series 335 and 435 use M-M# 3516

pins. (See page 170 for details)

•

Series 364 and 464 use MM# 6458

pins. (See page 171 for details)

Fig. 1

•

Insulators are high temp. thermo-

plastic.

Series 335, 364

435, 464

Ordering Information

Single Row

.070” Profile Pin Header

335-XX-1_ _-00-160000

Specify # of pins

Double Row

Fig. 2

Fig. 1

01-32

.070” Profile Pin Header

Fig. 2

Single Row

435-XX-2 _ _-00-160000

Specify # of pins

02-72

.085” Profile Pin Header

364-XX-1_ _-00-580000

Specify # of pins

Double Row

01-32

.085” Profile Pin Header

464-XX-2 _ _-00-580000

Specify # of pins

02-72

Fig. 3

Fig. 4

Fig. 3

XX= Plating Code

See Below

Fig. 4

SPECIFY PLATING CODE XX=

10μ” Au

200μ” Sn/Pb

200μ” Sn

Pin Plating

w w w. m i l l - m a x . c o m

516-922-6000

364-10-102-00-580 Related Products

	364-10-102-00-580	364-10-104-00-580	364-10-103-00-580	364-10-105-00-580	364-10-109-00-580	364-10-110-00-580	364-10-108-00-580
Description	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal
Maker	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL	GOLD (10) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	364	364	364	364	364	364	364
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	2	4	3	5	9	10	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
