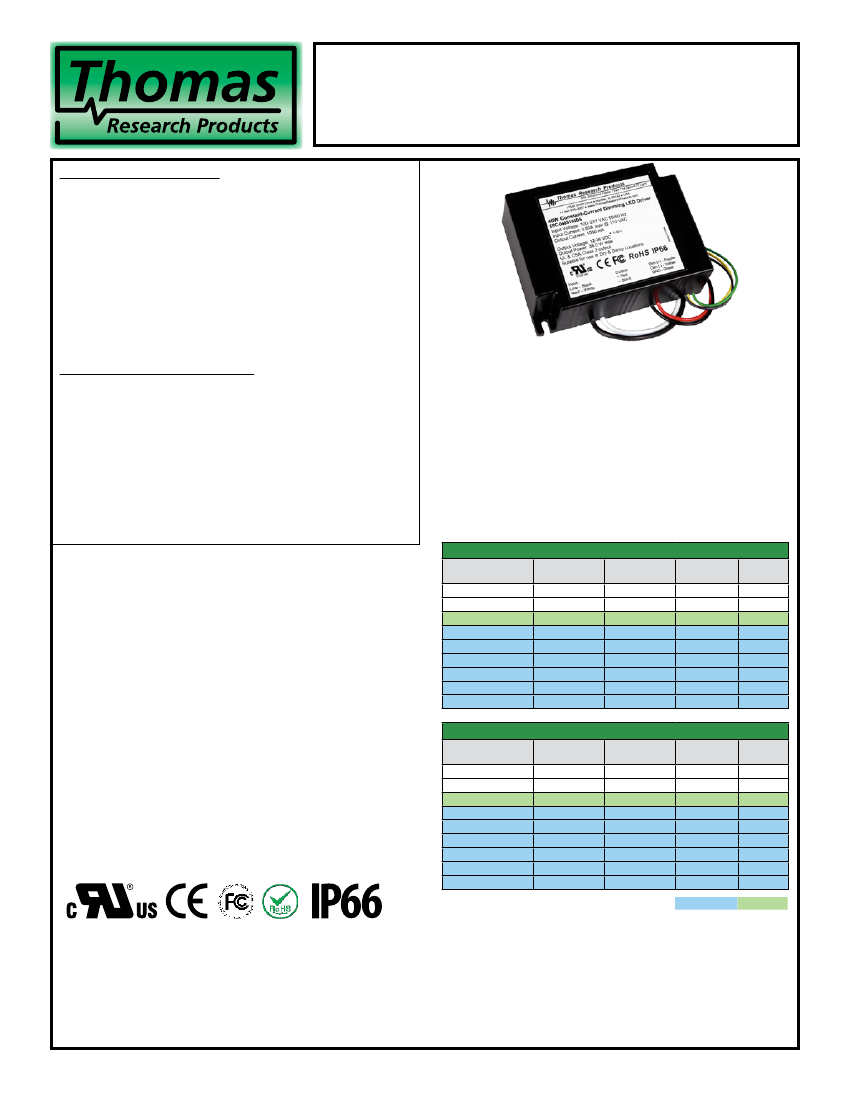

TRC-040DS Series–Fixed Output and Dimmable
40W Switch Mode LED Drivers
Constant Current, Long Life
Electrical Specifications
Input Voltage Range:
Frequency:
Power Factor:
Inrush Current:
Input AC Current:
Line Regulation:
Load Regulation:
Typical Efficiency
Protection:
100 - 277 Nom. Vac (90 - 305 V Min/Max)
50/60 Hz Nom. (47-63 Hz Min/Max)
>0.90 @ full load 100-220V,
>0.80 @ full load 277V
60.0 Amps max @ 230Vac
0.48 A max 100Vac, 0.23 A max 220Vac
± 2% Vac
± 5%
85-88% typical @ maximum load
Over-Voltage, Output Over-Current,
Output Short Circuit Protection with Auto Recovery
Environmental Specifications
Minimum Starting Temp:
Maximum Case Temp.
Storage Temperature:
Humidity:
Cooling:
Sound Rating:
MTBF:
Lifetime:
Weight:
-35ºC
87.5°C for 350 & 450 mA, 83°C for all others
-40ºC to +85ºC
10% to 100%
Convection
Class A
487,000 Hours @ 25ºC, 80% load, 110Vac input on
3330 mA output model (MIL-HDBK-217F)
77,000 Hours @ 25ºC, 80% load, 110Vac input on
3330 mA output model
0.79 lbs (360 g)
• Total Power: 40 Watts
• Input Voltage: 100-277 Vac Nom.
• UL Dry & Damp Location Rated
• IP66
• High Efficiency
• High Power Factor
Constant Current Versions - Product Specifications
Model Number
TRC-040S035PS
TRC-040S045PS
TRC-040S070PS
TRC-040S105PS
TRC-040S128PS
TRC-040S140PS
TRC-040S166PS
TRC-040S222PS
TRC-040S333PS
Output Current
(mA ±5%)
350
450
700
1050
1280
1400
1660
2220
3330
Output Voltage
Range
(Vdc)
38-114
30-89
18-54
12-36
10-29
10-25
8-23
6-16
4-11
Max. Output
Power
(W)
40
38
37.8
38
36
38
38
36
35
Typical
Efficiency
88%
88%
87%
87%
87%
87%
86%
85%
84%
Dimmable Versions - Product Specifications
Model Number
TRC-040S035DS
TRC-040S045DS
TRC-040S070DS
TRC-040S105DS
TRC-040S128DS
TRC-040S140DS
TRC-040S166DS
TRC-040S222DS
TRC-040S333DS
Output Current
(mA ±5%)
350
450
700
1050
1280
1400
1660
2220
3330
Output Voltage
Range
(Vdc)
38-114
30-89
18-54
12-36
10-29
10-25
8-23
6-16
4-11
Class 2:
E332160
Max. Output
Power
(W)
40
38
37.8
38
36
38
38
36
35
US/Canada
Typical
Efficiency
88%
88%
87%
87%
87%
87%
86%
85%
84%
US Only
Sign Components Manual
Note:
LED drivers are designed and intended to operate LED loads only.
Non-LED loading may be outside the specified design limits of our
LED drivers, and therefore cannot be covered by any warranty.
If you desire to use our LED drivers to operate non-LED loads
please contact us to discuss compatibility.
Specifications subject to change without notice.
Rev 8-31-15
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
TRC-040 Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 2 of 4

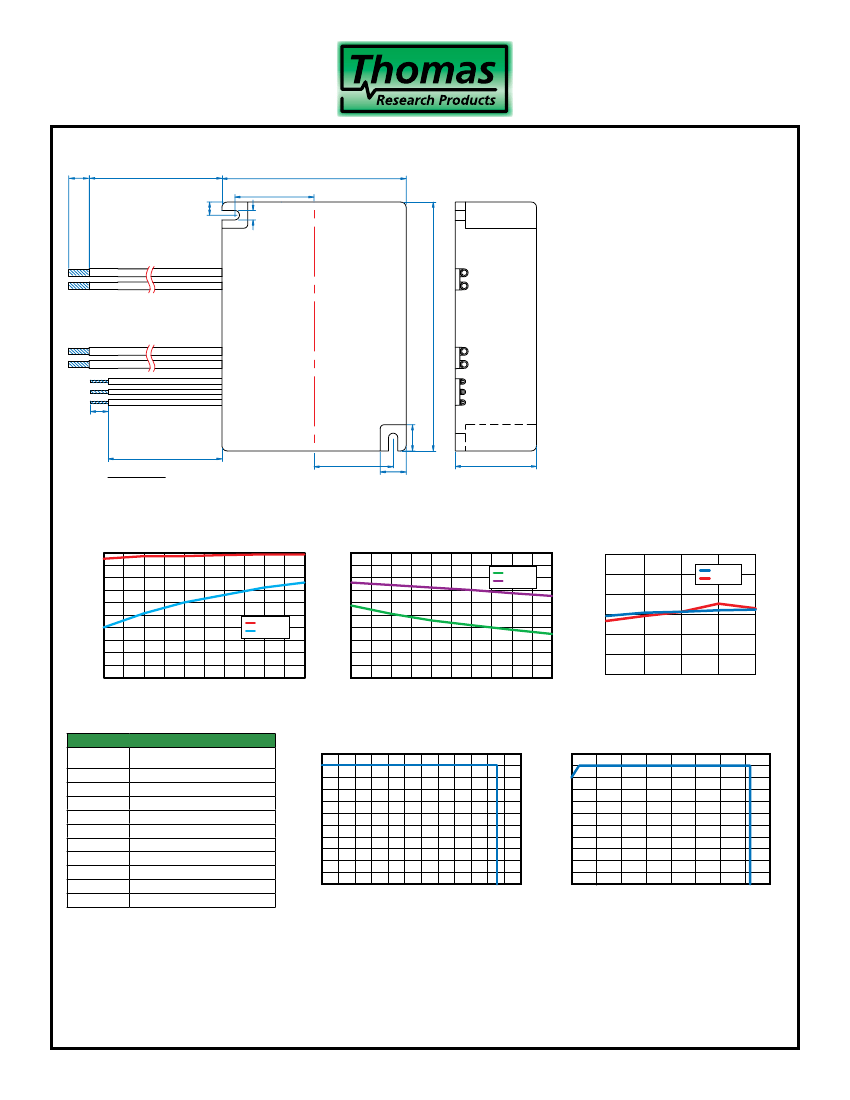

10.63±0.79 [270±20]
0.39±0.08 [10.0±2]
PF
CUL
CE
EN 55015
EN 61000-3-2
EN 61000-3-3
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-6
EN 61000-4-8
EN 61547
0.2 [5.0]
INPUT
White (N)
Black (L)
2.76 [70.0]
1.18 [30.0]
0.14 [3.6]
3.74 [95.0]
OUTPUT
Red (+)
Black (-)
Efficiency
THD
Load
(%)
Electrostatic discharge
RFE Field Susceptibility test
Electrical Fast Transient
Conducted Radio Frequency
Power Frequency Magnetic Field Test
Electromagnetic Immunity
60
40
20
0
-20
Load
(%)
EN 61000-4-11 Voltage Dips
0.39±0.04 [10.0±1]
1.00
0.95
0.90
0.85
0.80
0.75
0.70
0.65
0.60
0.55
0.50
50%
0.39 [10.0]
Dimming
Yellow (10V out)
Purple (0-10V in)
Green (GND)
7.87±0.79 [200±20]
WIRE SPECS:
AC Input:
#18AWG
DC Output:
#18AWG
Dimming Control:
#26AWG
1.18 [30.0]
0.39 [10.0]
1.26 [32.0]
Power Factor / Load
25%
20%
15%
10%
5%
0%
50%
THD / Load
120Vac
277Vac
Typical Efficiency / Load
100%
95%
90%
85%
80%
75%
70%
60%
120Vac
277Vac
120Vac
277Vac
60%
70%
Load
80%
90%
100%
60%
70%
Load
80%
90%
100%
Normalized Output Voltage
70%
80%
90%
100%
Safety and EMC Compliance
UL 8750
EN 61347-1, EN61347-2-13
Conducted emission
Harmonic current emissions
Voltage fluctuations and flicker
100
80
Derating Curve
100
80
60
40
20
0
Derating Curve
-5
Ambient Temperature
(°C)
10
25
40
55
70
90
120
150
Input Voltage
(V)
180
210
240
270
300
330
Thomas Research Products • 1225 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
TRC-040 Series
SSL Solutions Faster Than The Speed Of Light
®
Pg 3 of 4
Dimming Control Details
Parameters
10V output voltage
10V output source current
Absolute maximum voltage on the 0-10V input pin
Source current on 0-10V input pin
Minimum
9.8 V
-10 mA
-2 V
0 mA
Typical
10 V
—
—
—
Maximum
10.2 V
2 mA
15 V
1 mA
The dimmer control is operated from either a potentiometer or from an input signal of 1 – 10 Vdc.
Recommended implementations are provided below.
10V Output (Yellow)
Normalized Output Current
Option 1 - Potentiometer Control
Output Current / Potentiometer
100%
80%
60%
40%
20%
0%
TRC-040SxxxDS
1-10V Input (Purple)
20K
GND (Green)
0
1
2
3
4
Vdim
(V)
5
6
7
8
9
10
1-10V Input (Purple)
Normalized Output Current
Option 2 - DC Input
Output Current / Dimming Voltage
100%
80%
60%
40%
20%
0%
TRC-040SxxxDS
1-10Vdc V
GND (Green)
0
1
2
3
4
Vdim
(V)
5
6
7
8
9
10
Notes:
1. For the driver to operate properly, the load voltage must be maintained above the minimum voltage threshold
(approx. 33% of the max. output voltage for any given model).
2. If the dimming voltage is varied from 10V down to 0V, the output current can be varied from 100% Io down to 20-30% Io.
3. Do not connect the GND of dimming to V(-) or earth ground; otherwise the LED driver will not work properly.
4. If dimming is not required, connect yellow and purple leads together to get full current output (100%).
5. It is permissible to parallel driver outputs to achieve higher output currents. However, when doing so, it is not permissible to connect
dimming control leads in parallel.
6. It is permissible to connect dimming control leads of multiple drivers in parallel to allow them to operate from a single 0-10V control.
However, when doing so, it is not permissible to interconnect output leads (red and black) across drivers.
