2025-89-9: DescriptionRF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size555KB，1 Pages; ManufacturerKings Electronics

Download Datasheet Parametric Compare View All

2025-89-9 Overview

RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug

2025-89-9 Parametric

Parameter Name	Attribute value
Maker	Kings Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	APPLICABLE CABLES: BELDEN 1694A; BELDEN 1695A
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PTFE
MIL compliance	NO
Manufacturer's serial number	2025
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	3 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.53
Base Number Matches	1

Preview

Download Datasheet

View All

TRUE

75 Ohm

BNC Connectors

Plugs

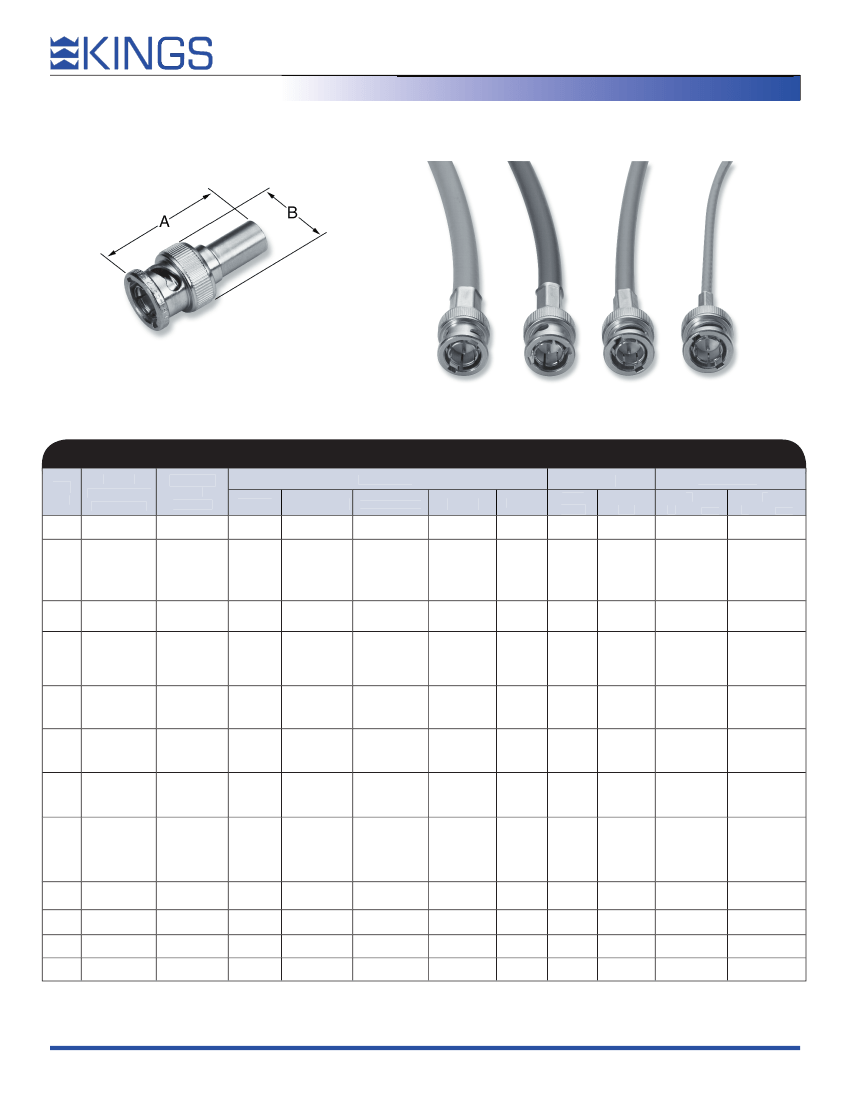

Figure 1

BNC 75 Ohm Plugs

Fig.

No.

1

KINGS

Part Number

(True 75 Ohm)

Replaces

Part

Number

2025-38-9

2025-51-9

2025-53-9

2025-57-9

2025-58-9

For Cables

Belden

9209A

1505A

1506A

9259

1520A

8281

7505

P806

VP618PE

VP6000

VP618TK

VJ59U

VHD1100

6350

256350

WP6355

HD825

HD25825

WP8255

WP258255

7210

257210

CBL1288

CBL1235

VSD2001

VSD2001TS

VDM230

VDM250

VHD7000

5565

2065

819

25819

815

VPM2000

VE61859M

VPM2000TS

CommScope

West Penn/CDT

Gepco

Others

2065-1-9

2065-2-9

2065-5-9

2065-6-9

Cabling

Dimensions

Crimp

Trim

A

B

Die

Code

In

mm

In

mm

3-661-1 KTH-2261 1.22 31.0 0.57D 14.5D

3-661-1 KTH-2261 1.21

30.7

28.0

0.57D 14.5D

RG-179

3-661-4 KTH-2258 1.21

RG-187

WE 724 3-661-1 KTH-2119 1.10

RG-59

3-661-1 KTH-2261 1.21

RG-210

3-661-3 KTH-2004 1.78

3-661-1 KTH-2255 1.22

1

2065-7-9

2065-8-9

2065-10-9

2025-59-9

2025-60-9

2025-79-9

2025-89-9

2025-47-9

2025-90-9

8241

7731A

8231

1694A

1695A

1855A

1865A

7855A

9231

735A1

734D1

5563

5906

5765

2279 V

30.7

45.2

31.0

0.57D 14.5D

1

2065-11-9

2065-12-9

2065-17-9

2025-44-9

2025-76-9

7538

7530

3-661-1 KTH-2025 1.22

3-661-3 KTH-2260 1.78

3-661-1 KTH-2119 1.21

31.0

45.2

30.7

30.5

0.57D 14.5D

7301

734C1, 734S1

735

734

3-661-5 KTH-2185 1.20

3-661-5 KTH-2186 1.20

Reference Chart on page 47 for Die Set Dimensions.
