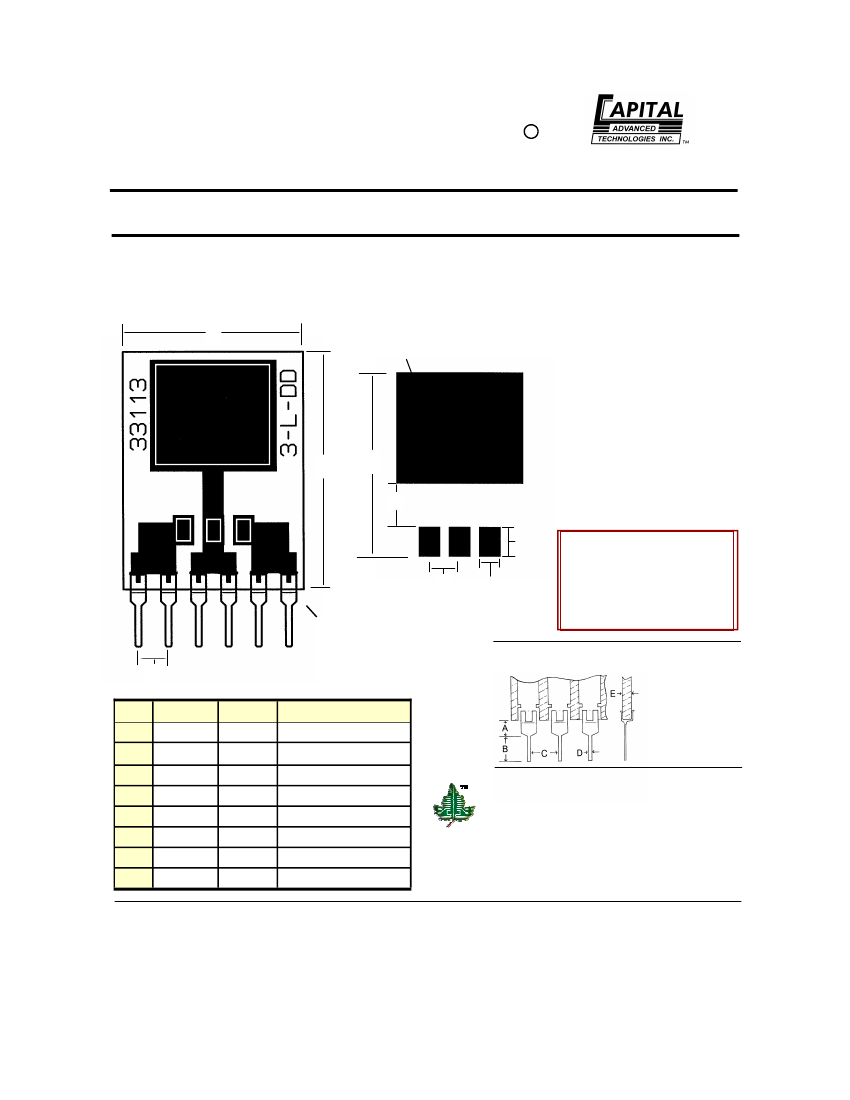

SURFBOARDS
THE BREADBOARDING MEDIUM FOR
R
TM
SURFACE MOUNT
33000 SERIES APPLICATION SPECIFIC ADAPTERS
IDS33113
REV 1-2012
MODEL
33113
B
TO-263AB
3-LEAD D PACKAGE
FOR
ALWAYS CONSULT DEVICE DATA SHEET TO INSURE PROPER FIT
GND PAD .420 in. (10.66 mm) Wide
.375 in. (9.52 mm ) High
A
D
H
F
PINS ON .1 in.
CENTERS PROVIDE
COMPATIBILITY WITH
BREADBOARDS AND
SOCKETS. TWO PINS
ARE PROVIDED FOR
EACH DEVICE LEAD
FOR GREATER
CURRENT CAPACITY.
E
SINGLE-IN-LINE ( SIP ) PINS
ON .1 in. CENTERS. TWO
PER DEVICE LEAD. SEE PIN
SPECS.
G
NOTE:
CIRCUIT FOILS AND
OUTPUT PINS MAY NOT BE
SUITABLE FOR OPERATION AT
HIGHEST RATED DEVICE
CURRENT LEVELS. EXTREME
TEMPERATURE RISE MAY
RESULT IN FAILURE.
PIN SPECIFICATIONS / TOLERANCES
In Inches
A = .062 +- .006
B = .130 +- .010
C =.100 +- .005
D = .020 +- .004
E = .031 +-.005
C
FIG.
A
B
C
D
E
F
G
H
INCHES
.800
.600
.100
.625
.100
.100
.070
.150
MM
20.32
15.24
2.54
15.87
2.54
2.54
1.77
3.81
NOTE:
BOARD HEIGHT
+-
.5mm .020in.
BOARD WIDTH
+- .
5mm .020in
.
SIP PIN SPACE
+- .20mm .008in.
PAD ( DEVICE) MAX
BOARD
SPECIFICATIONS
DEVICE LEAD PITCH
PAD LENGTH
PAD WIDTH
GAP
RoHS
Compliant
EC 2002/95
BOARD MATERIAL:
.8mm, +-.13mm .031in+-..005 in.
Thick G-10 FR-4 Glass Epoxy or equivalent.
CIRCUITS:
1 oz. Copper with RoHS compliant Lead
Free solder coating. Patten Position on board +-
.5mm .020in.
TOLERANCES:
If not noted are +- 20%. Nominal values are given.
Controlling unit is Millimeters. Values rounded to nearest decimal. Slight
Variations due to manufacturing process can occur.
Copyright 1997-2012 by Capital Advanced Technologies, Inc. All rights reserved.
Surfboards is a registered trademark of Capital Advanced Technologies, Inc. The Breadboarding medium for surface mount, and the
Leaf Circuit Logo are trademarks of Capital Advanced Technologies, Inc. All other trademarks are the property of their respective owners. Specifications, availability, and price is subject to change without notice. All
information given is believed to be accurate but is not guaranteed. The user of information given or products represented by such information is responsible for determining the suitability of said information or products for
a given purpose. No inducement is intended or permission granted for infringement of any patent or unauthorized use of any intellectual property of Capital Advanced Technologies or others.
CAPITAL ADVANCED TECHNOLOGIES, INC.
CAROL STREAM, ILLINOIS. USA.
PHONE 630-690-1696
WWW.CapitalAdvanced.Com
FAX 630-690-2498
