SURFBOARDS
THE BREADBOARDING MEDIUM FOR
R
TM
SURFACE MOUNT
33000 SERIES APPLICATION SPECIFIC ADAPTERS
IDS33117
REV 1-2012
MODEL
33117
B
ACCEPTS
THESE
DEVICES
PARTIAL
LISTING
TO-263 7 LEAD
7- LEAD DD PKG.
MICREL SPAK-07L
ON SEMI D2PAK 7 LEAD
ALWAYS CONSULT DEVICE DATA SHEET TO INSURE PROPER FIT

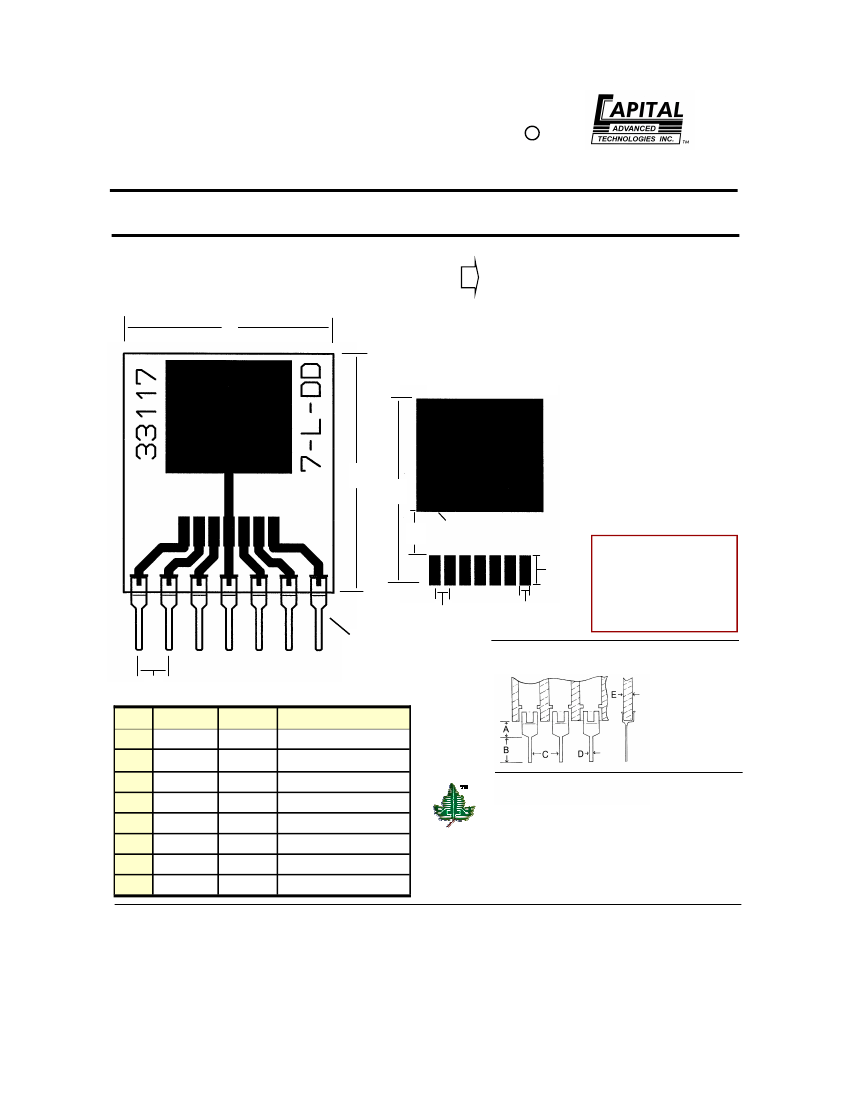

DEVICE FOOTPRINT
PINS ON .1 in. CENTERS
PROVIDE COMPATIBILITY
WITH BREADBOARDS AND
SOCKETS.
USE FOR PROTOTYPING,
DEVICE EVALUATION OR
TEST, SMD TO THROUGH
HOLE CONVERSION.
A
D
H
GND PAD .420 in.(10.66 mm) W
.375 in.(9.52 mm) H
F
E
SINGLE-IN-LINE
( SIP ) PINS ON .1 in
CENTERS. SEE PIN
SPECIFICATIONS
G
NOTE: CIRCUIT FOILS AND
OUTPUT PINS MAY NOT BE
SUITABLE FOR OPERATION
AT HIGHER RATED DEVICE
CURRENTS. EXTREME
TEMPERATURE RISE MAY
CAUSE FAILURE.
PIN SPECIFICATIONS / TOLERANCES
In Inches
A = .062 +- .006
B = .130 +- .010
C =.100 +- .005
D = .020 +- .004
E = .031 +-.005
C
FIG.
A
B
C
D
E
F
G
H
INCHES
.800
.700
.100
.625
.050
.100
.035
.150
MM
20.32
17.78
2.54
15.87
1.27
2.54
.889
3.81
NOTE:
BOARD HEIGHT
+-
.5mm .020in.
BOARD WIDTH
+- .
5mm .020in
.
SIP PIN SPACE
+- .20mm .008in.
PAD ( DEVICE) MAX
BOARD
SPECIFICATIONS
DEVICE LEAD PITCH
PAD LENGTH
PAD WIDTH
GAP
RoHS
Compliant
EC 2002/95
BOARD MATERIAL:
.8mm, +-.13mm .031in+-..005 in.
Thick G-10 FR-4 Glass Epoxy or equivalent.
CIRCUITS:
1 oz. Copper with RoHS compliant Lead
Free solder coating. Patten Position on board +-
.5mm .020in.
TOLERANCES:
If not noted are +- 20%. Nominal values are given.
Controlling unit is Millimeters. Values rounded to nearest decimal. Slight
Variations due to manufacturing process can occur.
Copyright 1997-2012 by Capital Advanced Technologies, Inc. All rights reserved.
Surfboards is a registered trademark of Capital Advanced Technologies, Inc. The Breadboarding medium for surface mount, and the
Leaf Circuit Logo are trademarks of Capital Advanced Technologies, Inc. All other trademarks are the property of their respective owners. Specifications, availability, and price is subject to change without notice. All
information given is believed to be accurate but is not guaranteed. The user of information given or products represented by such information is responsible for determining the suitability of said information or products for
a given purpose. No inducement is intended or permission granted for infringement of any patent or unauthorized use of any intellectual property of Capital Advanced Technologies or others.
CAPITAL ADVANCED TECHNOLOGIES, INC.
CAROL STREAM, ILLINOIS. USA.
PHONE 630-690-1696
WWW.CapitalAdvanced.Com
FAX 630-690-2498
