SURFBOARDS
THE BREADBOARDING MEDIUM
FOR
R
SURFACE MOUNT
TM
IDS33410
REV A- 10-2011
33000
SERIES
APPLICATION SPECIFIC ADAPTERS
MODEL
33410
ACCEPTS
INFINEON
ON SEMI
PARTIAL LISTING
TSLP9-1
UDFN10 2.5x1,0.5P
WLCSP10, 2.46x0.96
DQA (R-PSON-N10
10 LEAD
.5 mm
PITCH DEVICES
DEVICE LEAD WIDTH 1.0 To Max 2.6 MM
TEXAS INST.
ALWAYS CONSULT DEVICE DATA SHEET TO INSURE PROPER FIT
Feature Pins on .1 in. Centers designed for use with Solderless
breadboards, Conventional Breadboards, and Sockets with
standard .1 in. centers.
Use For Prototyping, Device Test or Evaluation and SMD to
Through Hole Conversion.
JUST ADD PARTS
AND
PLUG-IN
FIG.
MM
25.4
10.16
2.54
1.65
.5
1.4
.25
.45
.25
2.6
1.0
3.3
1.57
.5
IN.
1.0
.400
.100
.065
.020
.055
.010
.018
.010
.102
.039
.130
.062
.020
TM
NOTE:
BOARD WIDTH
+- .5mm .020in.
BOARD HEIGHT
+-.5mm .020in.
SIP PIN SPACE
+-.20mm .008in.
PAD CENTERLINE
DEVICE LEAD PITCH
PAD LENGTH
PAD WIDTH
CENTER PAD WIDTH
GAP
MAX LEAD WIDTH
TYPICAL LEAD WIDTH
LENGTH FROM SHOULDER
+-
.5mm .020in.
SINGLE-IN-LINE ( SIP ) PINS
ON .100 in. CENTERS
PAD SET
EXAMPLE DEVICE ( J )
AND MAX WIDTH ( I )
A
B
C
D
E

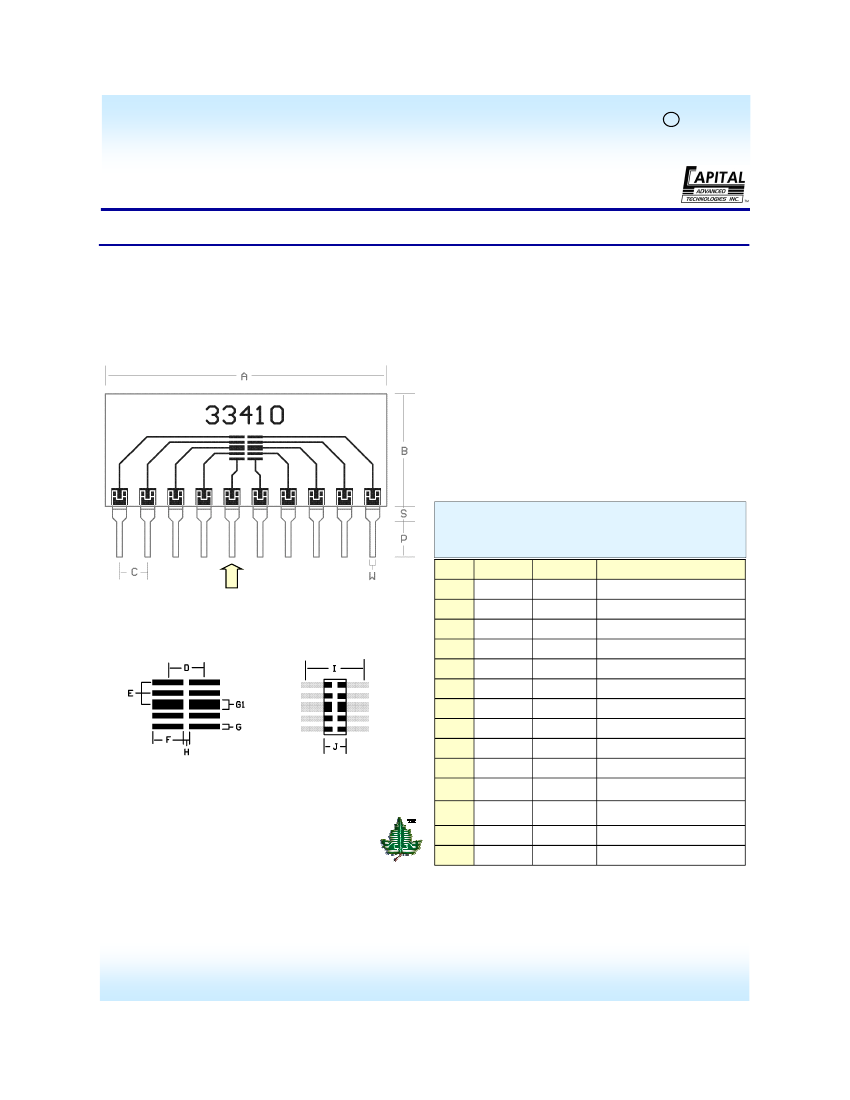

DRAWINGS
NOT TO
SCALE
F
G
G1
H
MOUNTING PADS ARE OVERSIZED IN LENGTH TO
ACCEPT A WIDER RANGE OF DEVICE WIDTHS AND
TOLERANCES AND TO PERMIT HAND SOLDERING.
SEE WEBSITE FOR SOLDERING SUGGESTIONS
BOARD SPECIFICATIONS
BOARD MATERIAL:
.8mm, +-.13mm .031in+-..005 in.
Thick G-10 FR-4 Glass Epoxy or equivalent.
CIRCUITS:
1 oz. Copper with RoHS compliant Lead Free
solder coating. Patten Position on board +- .5mm .020in.
I
J
P
S
W
PIN SHOULDER HEGHT
PIN WIDTH
RoHS
Compliant
EC 2002/95
TOLERANCES:
If not noted are +- 20%. Nominal values are given. Controlling unit is Millimeters.
Values rounded to nearest decimal. Slight Variations due to manufacturing process can occur.
Copyright 2011
by
Capital Advanced Technologies, Inc.
All rights reserved. Surfboards is a registered trademark of Capital Advanced Technologies, Inc. The Breadboarding medium for surface mount, Just add parts and plug-
in., and the Leaf Circuit Logo are trademarks of Capital Advanced Technologies, Inc. All other trademarks are the property of their respective owners. Specifications, availability, and price is subject to change without notice. All
information given is believed to be accurate but is not guaranteed. The user of information given or products represented by such information is responsible for determining the suitability of said information or products for a given
purpose. No inducement is intended or permission granted for infringement of any patent or unauthorized use of any intellectual property of Capital Advanced Technologies or others.
CAPITAL ADVANCED TECHNOLOGIES, INC.
CAROL STREAM, ILLINOIS. USA
PHONE 630-690-1696
FAX 630-690-2498
MADE
IN
WWW.CapitalAdvanced.Com
