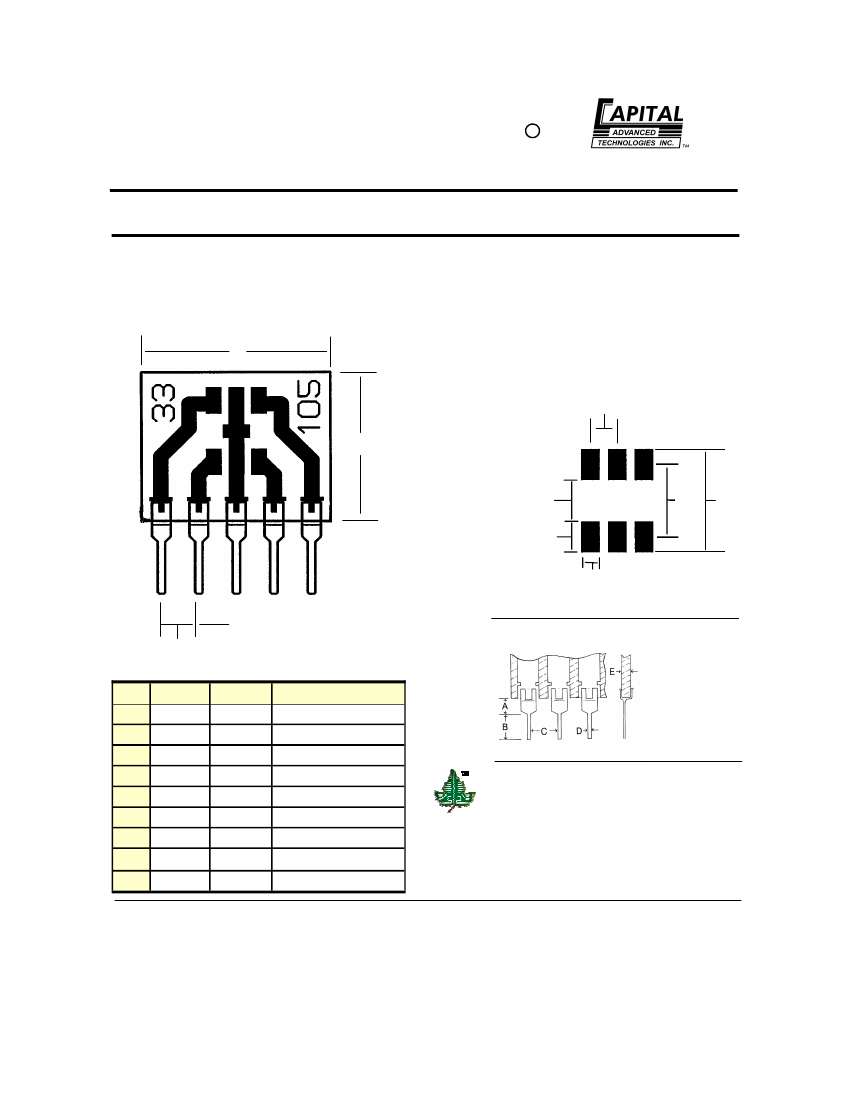

SURFBOARDS

THE BREADBOARDING MEDIUM FOR

SURFACE MOUNT

33000 SERIES APPLICATION SPECIFIC ADAPTERS

IDS33105

REV 1-2012

MODEL

FOR

1.5 MM

PITCH DEVICES

33105

ACCEPTS

SOT-89-5L

ANALOG PKG. RK-5

ALWAYS CONSULT DEVICE DATA SHEET TO INSURE PROPER FIT

SOT-89-5

PROTOTYPING AND DEVICE

EVALUATION TEST ADAPTER

NOTE*

PINS 2 AND 5

OF DEVICE

FOOTPRINT

ARE COMMON

GROUND AND

CENTER SIP

PIN OF

ADAPTER

DEVICE FOOTPRINT

FIG.

SINGLE-IN-LINE ( SIP ) PINS ON .100 .IN

CENTERS PROVIDE COMPATIBILITY WITH

BREADBOARDS AND SOCKETS. SEE PIN

SPECIFICATIONS TABLE.

PIN SPECIFICATIONS / TOLERANCES

In Inches

A = .062 +- .006

B = .130 +- .010

C =.100 +- .005

D = .020 +- .004

E = .031 +-.005

INCHES

.400

.500

.100

.165

.060

.070

.040

.095

.235

10.16

12.70

2.54

4.19

1.50

1.77

1.01

2.41

5.96

NOTE:

BOARD HEIGHT

.5mm .020in.

BOARD WIDTH

+- .

5mm .020in

SIP PIN SPACE

+- .20mm .008in.

PAD CENTERLINE

BOARD

SPECIFICATIONS

DEVICE LEAD PITCH

PAD LENGTH

PAD WIDTH

GAP

MAX LEAD WIDTH

RoHS

Compliant

EC 2002/95

BOARD MATERIAL:

.8mm, +-.13mm .031in+-..005 in.

Thick G-10 FR-4 Glass Epoxy or equivalent.

CIRCUITS:

1 oz. Copper with RoHS compliant Lead

Free solder coating. Patten Position on board +-

.5mm .020in.

TOLERANCES:

If not noted are +- 20%. Nominal values are given.

Controlling unit is Millimeters. Values rounded to nearest decimal. Slight

Variations due to manufacturing process can occur.

Surfboards is a registered trademark of Capital Advanced Technologies, Inc. The Breadboarding medium for surface mount, and the

Leaf Circuit Logo are trademarks of Capital Advanced Technologies, Inc. All other trademarks are the property of their respective owners. Specifications, availability, and price is subject to change without notice. All

information given is believed to be accurate but is not guaranteed. The user of information given or products represented by such information is responsible for determining the suitability of said information or products for

a given purpose. No inducement is intended or permission granted for infringement of any patent or unauthorized use of any intellectual property of Capital Advanced Technologies or others.

CAPITAL ADVANCED TECHNOLOGIES, INC.

CAROL STREAM, ILLINOIS. USA.

PHONE 630-690-1696

WWW.CapitalAdvanced.Com

FAX 630-690-2498
