H
14.2 mm (0.56 inch)
Seven Segment Displays
Technical Data
HDSP-530X Series
HDSP-532X Series
HDSP-550X Series
HDSP-552X Series
HDSP-560X Series
HDSP-562X Series
HDSP-570X Series
HDSP-572X Series
HDSP-H15X Series
Features
• Industry Standard Size
• Industry Standard Pinout
15.24 mm (0.6 in.) DIP Leads
on 2.54 mm (0.1 in.) Centers
• Choice of Colors
Red, AlGaAs Red, High
Efficiency Red, Yellow, Green
• Excellent Appearance
Evenly Lighted Segments
Mitered Corners on Segments
Gray Package Gives Optimum
Contrast
±
50° Viewing Angle
•
Design Flexibility
Common Anode or Common
Cathode
Single and Dual Digits
Right Hand Decimal Point
±
1. Overflow Character
• Categorized for Luminous
Intensity
Yellow and Green Categorized
for Color
Use of Like Categories Yields a
Uniform Display
• High Light Output
• High Peak Current
• Excellent for Long Digit
String Multiplexing
• Intensity and Color
Selection Option
See Intensity and Color
Selected Displays Data Sheet
• Sunlight Viewable AlGaAs
Description

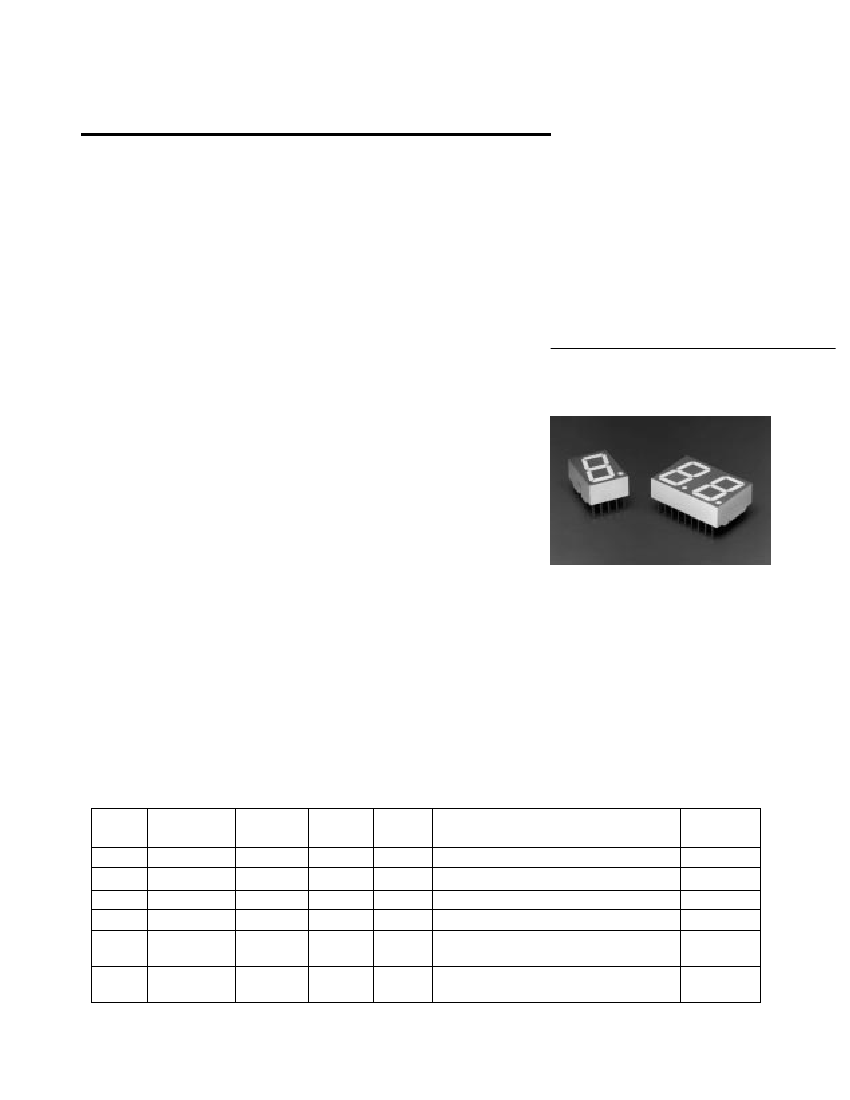

The 14.2 mm (0.56 inch) LED
seven segment displays are
designed for viewing distances up
to 7 metres (23 feet). These
devices use an industry standard
size package and pinout. Both the
numeric and
±
1 overflow devices
feature a right hand decimal
point. All devices are available as
either common anode or common
cathode.
Devices
Red
HDSP-
5301
5303
5307
5308
5321
5323
AlGaAs Red
HDSP-
[1]
H151
H153
H157
H158
HER
HDSP-
[1]
5501
5503
5507
5508
5521
5523
Yellow
HDSP-
5701
5703
5707
5708
5721
5723
Green
HDSP-
5601
5603
5607
5608
5621
5623
Description
Common Anode Right Hand Decimal
Common Cathode Right Hand Decimal
Common Anode
±
1. Overflow
Common Cathode
±
1. Overflow
Two Digit Common Anode Right Hand
Decimal
Two Digit Common Cathode Right Hand
Decimal
Package
Drawing
A
B
C
D
E
F
Note:
1. These displays are recommended for high ambient light operation. Please refer to the HDSP-H10X/K12X AlGaAs and HDSP-555X HER
data sheet for low current operation.
3-84
5963-7388E
These displays are ideal for most
applications. Pin for pin
equivalent displays are also
available in a low current design.
The low current displays are ideal
for portable applications. For
additional information see the
Low Current Seven Segment
Displays data sheet.

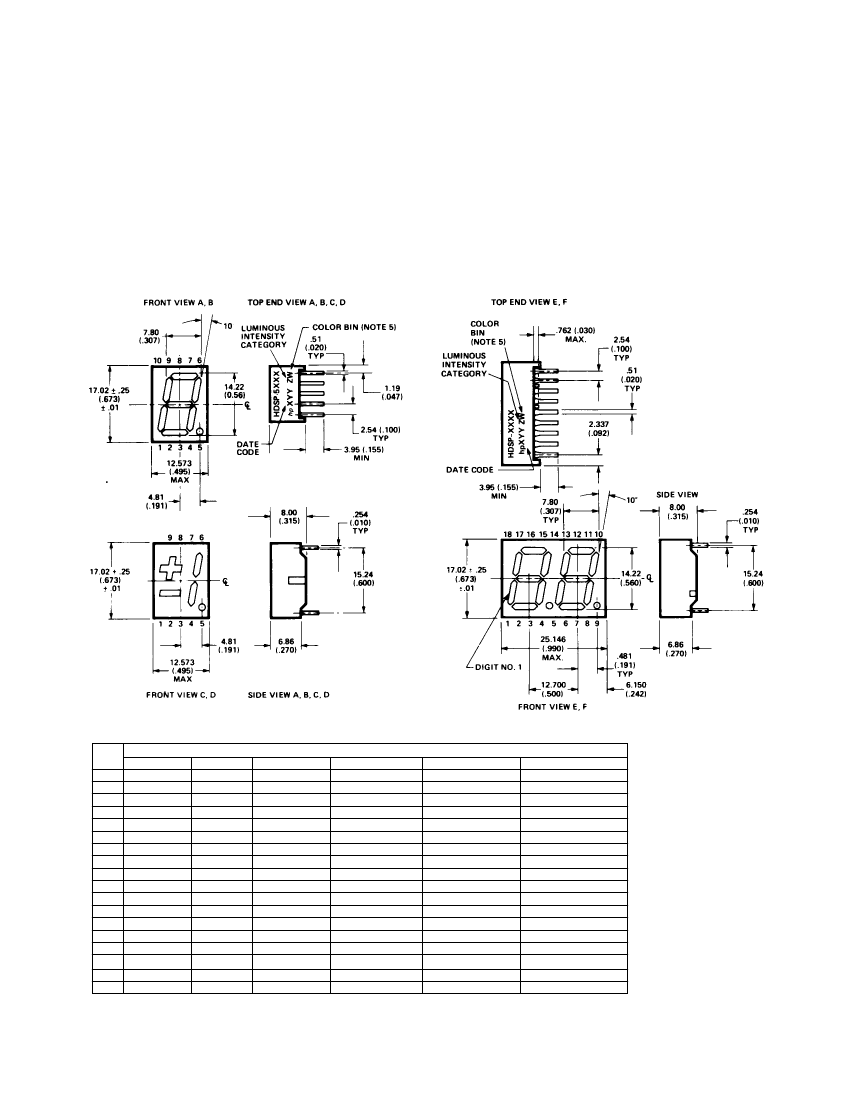

Package Dimensions
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
A
CATHODE e
CATHODE d
ANODE
[3]
CATHODE c
CATHODE DP
CATHODE b
CATHODE a
ANODE
[3]
CATHODE f
CATHODE g
B
ANODE e
ANODE d
CATHODE
[4]
ANODE c
ANODE DP
ANODE b
ANODE a
CATHODE
[4]
ANODE f
ANODE g
C
CATHODE c
ANODE c, d
CATHODE b
ANODE a, b, DP
CATHOPDE DP
CATHODE a
ANODE a, b, DP
ANODE c, d
CATHODE d
NO PIN
FUNCTION
D
ANODE c
CATHODE c, d
ANODE b
CATHODE a, b, DP
ANODE DE
ANODE a
CATHODE a, b, DP
CATHODE c, d
ANODE d
NO PIN
E
E CATHODE NO. 1
D CATHODE NO. 1
C CATHODE NO. 1
DP CATHODE NO. 1
E CATHODE NO. 1
D CATHODE NO. 2
G CATHODE NO. 2
C CATHODE NO. 2
DP CATHODE NO. 2
B CATHODE NO. 2
A CATHODE NO. 2
F CATHODE NO. 2
DIGIT NO. 2 ANODE
DIGIT NO. 1 ANODE
B CATHODE NO. 1
A CATHODE NO. 1
G CATHODE NO. 1
F CATHODE NO. 1
F
E ANODE NO. 1
D ANODE NO. 1
C ANODE NO. 1
DP ANODE NO. 1
E ANODE NO. 2
D ANODE NO. 2
G ANODE NO. 2
C ANODE NO. 2
DP ANODE NO. 2
B ANODE NO. 2
A ANODE NO. 2
F ANODE NO. 2
DIGIT NO. 2 CATHODE
DIGIT NO. 1 CATHODE
B ANODE NO. 1
A ANODE NO. 1
G ANODE NO. 1
F ANODE NO. 1
NOTES:
1. ALL DIMENSIONS IN MILLIMETRES (INCHES).
2. ALL UNTOLERANCED DIMENSIONS ARE FOR REFERENCE ONLY.
3. REDUNDANT ANODES.
4. REDUNDANT CATHODES.
5. FOR HDSP-5600/-5700 SERIES PRODUCT ONLY.
3-85

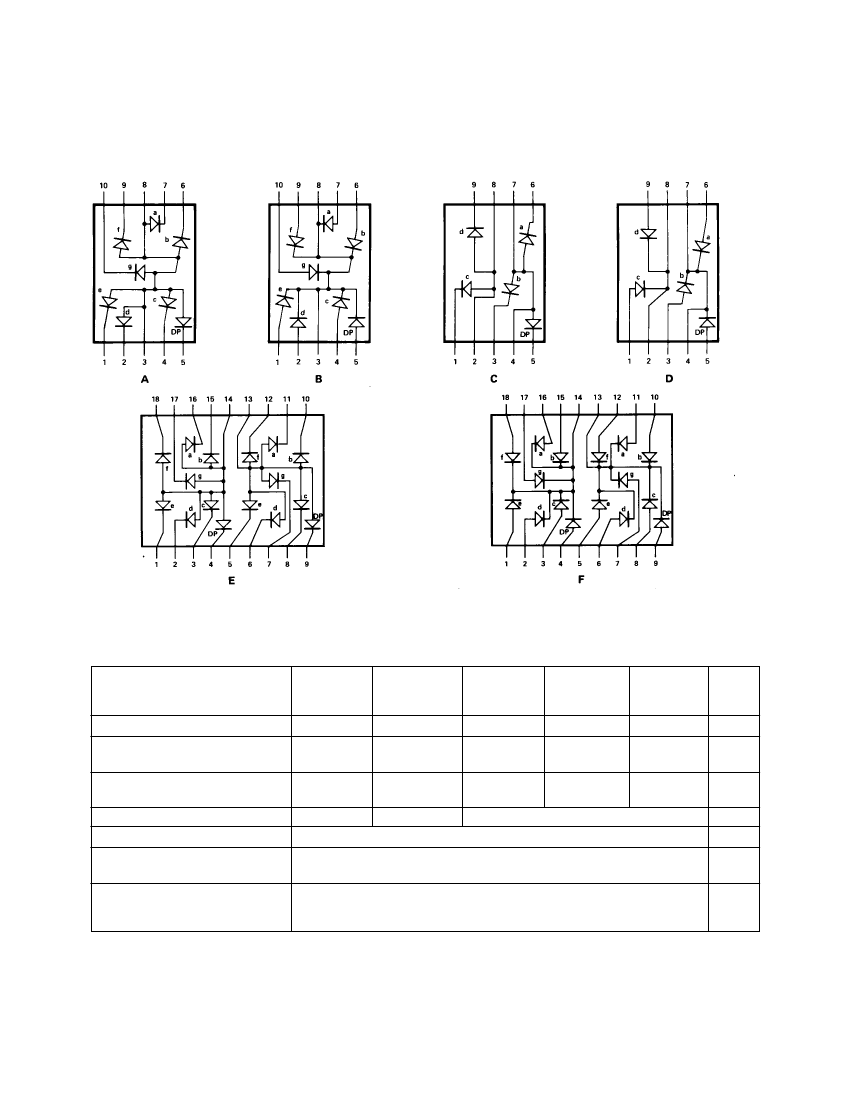

Internal Circuit Diagram
Absolute Maximum Ratings
Description
Average Power per Segment or DP
Peak Forward Current per
Segment or DP
DC Forward Current per
Segment or DP
Operating Temperature Range
Storage Temperature Range
Reverse Voltage per
Segment or DP
Lead Solder Temperature for
3 Seconds (1.60 mm [0.063 in.]
below seating plane)
Notes:
1. See Figure 1 to establish pulsed conditions.
2. Derate above 80°C at 0.63 mA/°C.
3. See Figure 2 to establish pulsed conditions.
4. Derate above 46°C at 0.54 mA/°C.
5. See Figure 7 to establish pulsed conditions.
6. Derate above 53°C at 0.45 mA/°C.
Red
HDSP-5300
Series
82
150
[1]
25
[2]
-40 to +100
AlGaAs Red
HDSP-H150
Series
96
160
[3]
40
[4]
-20 to +100
[11]
HER
HDSP-5500
Series
105
90
[5]
30
[6]
Yellow
HDSP-5700
Series
80
60
[7]
20
[8]
-40 to +100
Green
HDSP-5600
Series
105
90
[9]
30
10]
Units
mW
mA
mA
°C
°C
V
-55 to +100
3.0
260
°C
7. See Figure 8 to establish pulsed conditions.
8. Derate above 81°C at 0.52 mA/°C.
9. See Figure 9 to establish pulsed conditions.
10. Derate above 39°C at 0.37 mA/°C.
11. For operation below -20°C, contact your local HP
components sales office or an authorized distributor.
3-86
Electrical/Optical Characteristics at T
A
= 25
°
C
Red
Device
Series
HDSP-
Parameter
Luminous Intensity/Segment
[1,2]
(Digit Average)
Forward Voltage/Segment or DP
Symbol
I
V
Min.
600
Typ.
1300
1400
Max.
Units
µcd
Test Conditions
I
F
= 20 mA
I
F
= 100 mA Peak:
1 of 5 df
V
F
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-Pin
3.0
1.6
655
640
12
-2
345
2.0
V
nm
nm
V
mV/°C
°C/W/
Seg
I
F
= 20 mA
53XX
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED Junction-
to-Pin
I
R
= 100
µA
AlGaAs Red
Device
Series
HDSP-
Parameter
Luminous Intensity/Segment
[1,2,5]
(Digit Average)
Forward Voltage/Segment or DP
Symbol
I
V
Min.
9.1
Typ.
16.0
1.8
Max.
Units
mcd
Test Conditions
I
F
= 20 mA
I
F
= 20 mA
V
F
2.0
3.0
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-Pin
3.0
V
I
F
= 100 mA
nm
nm
V
mV/°C
°C/W/
Seg
I
R
= 100
µA
H15X
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED Junction-
to-Pin
645
637
15
-2
400
3-87
High Efficiency Red
Device
Series
HDSP-
Parameter
Luminous
(Digit Average)
Intensity/Segment
[1,2,6]
Symbol
I
V
Min.
900
Typ.
2800
3700
Max.
Units
µcd
Test Conditions
I
F
= 10 mA
I
F
= 60 mA Peak:
1 of 6 df
Forward Voltage/Segment or DP
55XX
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED Junction-
to-Pin
V
F
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-Pin
3.0
2.1
635
626
30
-2
345
2.5
V
nm
nm
V
mV/°C
°C/W/
Seg
I
F
= 20 mA
I
R
= 100
µA
Yellow
Device
Series
HDSP-
Parameter
Luminous
(Digit Average)
Intensity/Segment
[1,2]
Symbol
I
V
Min.
600
Typ.
1800
2750
Max.
Units
µcd
Test Conditions
I
F
= 10 mA
I
F
= 60 mA Peak:
1 of 6 df
Forward Voltage/Segment or DP
57XX
Peak Wavelength
Dominant Wavelength
[3,7]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of
V
F
/Segment or DP
Thermal Resistance LED Junction-
to-Pin
V
F
λ
PEAK
λ
d
V
R
∆V
F
/°C
Rθ
J-Pin
581.5
3.0
2.1
583
586
40
-2
345
2.5
V
nm
I
F
= 20 mA
592.5
nm
V
mV/°C
°C/W/
Seg
I
R
= 100
µA
3-88
