LA5-100V222MS35# datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> LA5-100V222MS35#

LA5-100V222MS35#: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 2200uF,; CategoryPassive components capacitor; File Size204KB，2 Pages; ManufacturerELNA; Environmental Compliance

Download Datasheet Parametric View All

LA5-100V222MS35# Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 2200uF,

LA5-100V222MS35# Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	262586938
package instruction	,
Reach Compliance Code	unknown
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	7.35
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	25 mm
dielectric materials	ALUMINUM (WET)
ESR	113 mΩ
length	40 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	Snap-in
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	100 V
ripple current	3200 mA
Terminal pitch	10 mm

Preview

Download Datasheet

View All

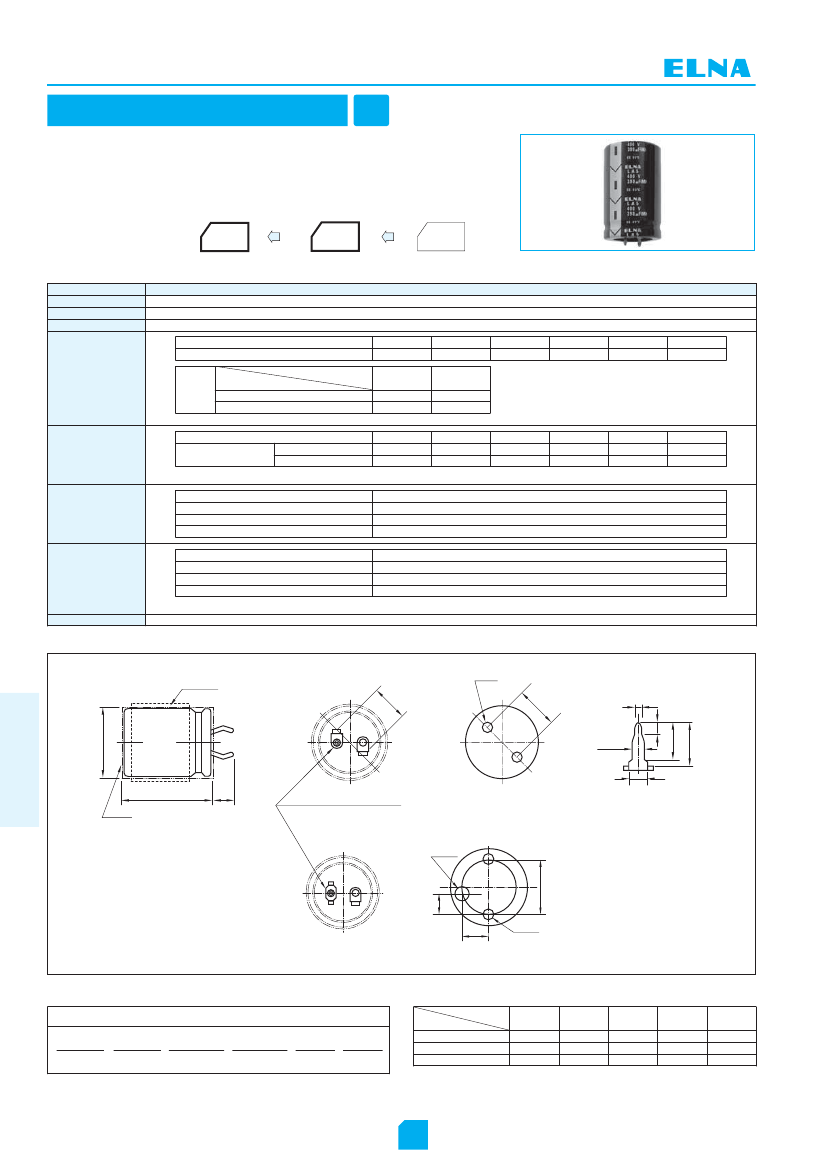

LA5

●

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS

20mm-tall products for every diameter of φ22 to φ35 are now oﬀered in series.

As many as 4 case sizes available for the same rating.

Miniaturized, High ripple

Miniaturized, High ripple, Long life

Marking color : White print on a black sleeve

Speciﬁcations

Item

Category temperature range (℃)

Tolerance at rated capacitance (%)

Performance

−40 to ＋85 (450V is at −25 to ＋85)

±20

Less than 0.01CV or 1.5mA whichever is smaller (after 5 minutes) C : Rated capacitance (µF) ; V : Rated voltage (V)

Rated voltage (V)

tanδ (max.)

0.80

160 to 250

0.10

0.15

0.60

315 to 450

0.15

0.50

0.40

0.30

(20℃,120Hz)

(20℃)

63 to 100

0.20

Leakage current (µA)

Tangent of loss angle

Rated voltage (V)

tanδ

(max.)

φD

22 to 30

(20℃,120Hz)

50 to 100

160 to 200

250 to 400

450

(120Hz)

Characteristics at high

and low temperature

Rated voltage (V)

Ｚ

−25℃/Ｚ＋20℃

Impedance ratio (max.)

Ｚ

−40℃/Ｚ＋20℃

16 to 35

Endurance (85℃)

(Applied ripple current)

Test time

Leakage current

Percentage of capacitance change

Tangent of the loss angle

Test time

Leakage current

Percentage of capacitance change

Tangent of the loss angle

Voltage application treatment

2000 hours

The initial speciﬁed value or less

Within ±20% of initial value

200% or less of the initial speciﬁed value

1000 hours

The initial speciﬁed value or less

Within ±15% of initial value

150% or less of the initial speciﬁed value

JIS C5101-1, -4 1998 (IEC 60384-1 1992, -4 1985)

Unit : mm

2‒φ2

‒

Shelf life (85℃)

Applicable standards

Outline Drawing

Sleeve

Lug terminal details

Thickness : 0.8t

0.9±0.1

3.3±0.1

Three terminals type

2−

φ2

4.75±0.1

Coeﬃcient of Frequency for Rated Ripple Current

Part numbering system (example : 400V220µF)

LA5

Series code

Frequency (Hz)

Rated voltage (V)

0.95

0.87

0.80

10±0.1

Large Capacitance

Aluminum Electrolytic Capacitors

φD＋1max.

0.9

4.7

Markings

1.5±0.1

L＋2max.

Vent

4.0±0.5

(‒) Negative terminal indicated by

cross notching

Position of PC board holes

2.1

(For 4.0±0.5)

φ2.5

120

1.10

1.11

1.14

10k

1.15

1.18

1.19

5.4

20k

1.15

1.20

̶ 400

Rated voltage

symbol

221

Rated capacitance

symbol

Capacitance

tolerance symbol

S43 #

Casing

symbol

Optional

symbol

100 or less

160 to 250

315 or more

In the case of three terminals type, a series name is LT5 .

CAT.No.2013/2014E

128

NOTE

Design, Speciﬁcations are subject to change without notice.

Ask factory for technical speciﬁcations before purchase and/or use.
