CO4710-FREQ1-TR-OUT23 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> CO4710-FREQ1-TR-OUT23

CO4710-FREQ1-TR-OUT23: DescriptionCMOS/TTL Output Clock Oscillator, 50MHz Min, 100MHz Max; CategoryPassive components oscillator; File Size40KB，1 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

CO4710-FREQ1-TR-OUT23 Overview

CMOS/TTL Output Clock Oscillator, 50MHz Min, 100MHz Max

CO4710-FREQ1-TR-OUT23 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Raltron
Reach Compliance Code	compliant
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	CO47
Installation features	SURFACE MOUNT
Maximum operating frequency	100 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS/TTL
Output load	10 TTL, 25 pF
physical size	7.5mm x 5mm x 1.8mm
longest rise time	3 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %
Base Number Matches	1

Preview

Download Datasheet

View All

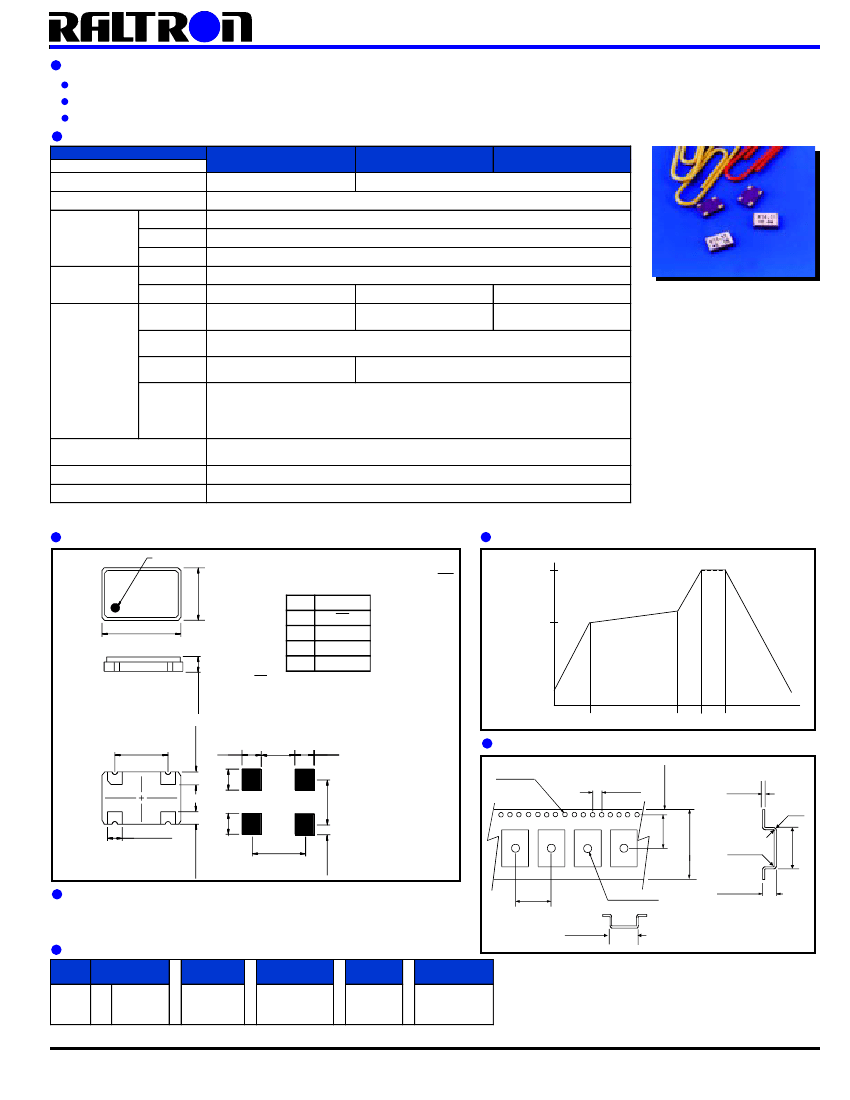

SURFACE MOUNT CLOCK OSCILLATORS

FEATURES

ULTRA SMALL PACKAGE

EXCELLENT FOR HIGH DENSITY PACKAGING

SUITABLE FOR WAVE SOLDERING

SPECIFICATIONS

S ERIES

P ARAM ETER

FREQUENCY RANGE

FREQUENCY S TABILITY *

OP ERATING

TEM P ERATURE

RANGE

EX TENDED

S TORAGE

V OLTAGE

INP UT

CURRENT

LOAD

S YM M ETRY

LEV EL

LOGIC "0": 0.5 V DC M A X

LOGIC "1": 4.0 V DC M IN

50 m A M A X

50 TO 100 M Hz : 10 TTL OR 25 pF

101 TO 125 M Hz : 5 TTL OR 15 pF

25 m A M A X

10 LS TTL M A X OR 15 pF

NORM A L: 40% TO 60%

TIGHT: 45% TO 55%

LOGIC "0": 0.5 V DC M A X

LOGIC "1": 0.9 x V c c M IN

1.00 M Hz TO 10.00 M Hz : 5 ns

10.10 M Hz TO 30.00 M Hz : 4 ns

30.10 M Hz TO 50.00 M Hz : 3 ns

50.10 M Hz TO 80.00 M Hz : 2.5 ns

80.10 M Hz TO 125.00 M Hz : 2 ns

P IN 1: HIGH (+ 2.2 V DC M IN) P IN 3: E NA B LE D

P IN 1: LOW (+ 0.8 V DC M A X) P IN 3: DIS A B LE D (HIGH IM P E DA NCE )

10 m s M A X

1000 g, 0.35 m s , ‰ S INE W A V E , 3 S HOCK S IN 3 A XE S

45 m A M A X

10 TTL M A X OR 50 pF

CO47

50.00 M Hz TO 125.00 M Hz

CO48

1.8432 M Hz TO 50.00 M Hz

±20 P P M , ±50 P P M O R ±100 P P M

-10” C TO + 70”C

-40” C TO + 85”C

-55” C TO + 125”C

+ 5.0 V DC ±10%

CO49

SERIES CO47, 48 AND 49

OUTP UT

RIS E/FALL

TIM E

(20% to 80%)

ENABLE / DIS ABLE

FUNCTION

S TART-UP TIM E

S HOCK

† INCLUSIVE OF 25 C TOLERANCE, OPERATING TEMPERATURE RANGE, VOLTAGE OR LOAD CHANGES, AGING, SHOCK AND VIBRATION

* EXCLUDES AGING

OUTLINE DRAWING

P IN 1 LO C AT IO N

.197 ± 0.008

5.0 ± 0.2

Scale none Dimension in

FUNCTION

INH

GROUND

OUTPUT

VDD

inch

REFLOW SOLDERING PROFILE

240 C

REFLOW

TEMPERATURE

M A R K IN G

AREA

7.5 M A X

0.295 M A X

PREHEATING

150 C

COOLING

1.8 M A X

.070 M A X

INH: HI OR OPEN-Fout LOW-OSCILLATION STOPS

25 C

100 s TYPICAL

TIME (SECONDS)

10 s

1.1 ± 0.12

.043 ± .005

S O LD E R N PAT TE R N

5.08 ± 0.12

.200 ± .005

1.8

.071

.082

2.1

3.28

.129

1.8

.071

CARRIER TAPE DIMENSIONS

1.5 ± 0.1

.059 ± .004

4.0 ± 0.1

.157 ± .004

1.75 ± 0 .1

.069 ± .004

0.3±.06

.012 ± .002

R 0 .3

R .012

.630 ± .012

7.65 ±0.1

.301 ± .004

1.1 ± 0.12

.043 ± .005

5.08

.200

1.05 T Y P

.041 T Y P

1.4 ± 0.12

.055 ± .005

7.5 ± 0.1

.082

2.1

.295 ± .004

16.0 ± 0 .3

4.2

.165

5 MAX

.2 M A X

PACKAGING

254 mm REEL DIAMETER, 16mm TAPE WIDTH, 8mm PITCH

QUANTITY: 1000 or 3000 PIECES PER REEL

PART NUMBERING SYSTEM

SERIES

FREQUENCY

STABILITY

±100 PPM

±50 PPM

±20 PPM

IN MHz

FREQUENCY

EXT

EXTENDED

TEMPERATURE

TIGHT

SIMMETRY

TAPE AND REEL

8.0±0.1

.315 ± .004

5.75 ± 0.1

0.22 6±.004

2.0 ± 0.1 D IA

.078 ± .004 D IA

2.2 ± 0.1

.086 ± .004

CO43

CO46

EXAMPLE: CO4305-32.000-TR, CO4610-50.00-T-TR

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
