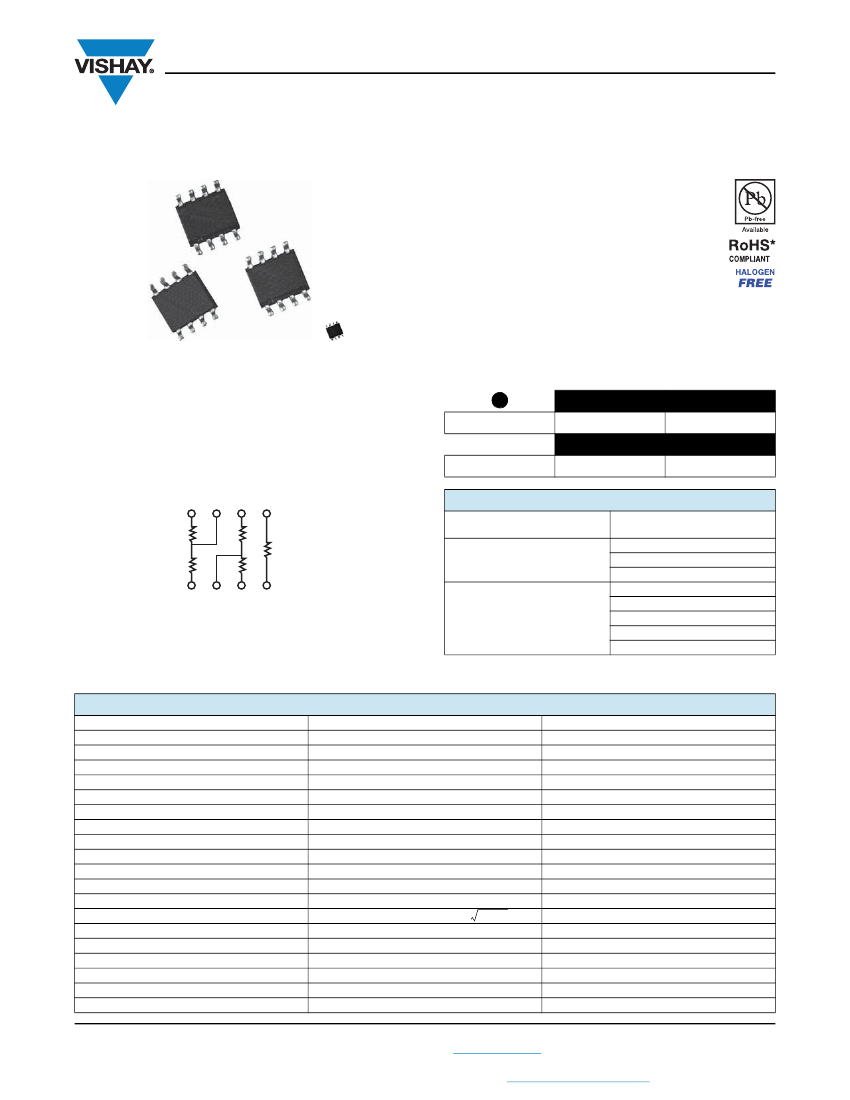

ORNV (Divider)
www.vishay.com
Vishay Dale Thin Film
Molded, 50 mil Pitch, Dual-In-Line Thin Film Divider,
Surface Mount Resistor Network
FEATURES
Close ratio tolerance (0.05 %)
Tight TCR tracking ± 5 ppm/°C
0.068" (1.73 mm) maximum seated height
Rugged molded case construction with no
internal solder (JEDEC MS-012 variation AA
package)
• Compliant to RoHS Directive 2002/95/EC
• Halogen-free according to IEC 61249-2-21 definition
Actual Size
Note
*
Pb containing terminations are not RoHS compliant, exemptions
may apply
•
•
•
•
Vishay Dale Thin Film ORNV series voltage dividers provide
optimum ratio precision, small size and exceptional stability
for most applications. They offer a wide ratio range that is
listed in the selection guide and are available for immediate
delivery. The tight ratio tolerance offered on the standard
ratios will provide exceptional performance throughout life.
TYPICAL PERFORMANCE
ABSOLUTE
TCR
25
ABSOLUTE
TOL.
0.1
TRACKING
5
RATIO
0.05
SCHEMATIC
8
R
1
R
1
1
2
3
7
6
R
1
R
2 (REF)
R
1
4
5
STANDARD RESISTANCE OFFERING
R
1
()
(4 Voltage Divider Resistors)
2K
R
2
()
(Reference)
2K
5K
10K
5K
10K
20K
25K
50K
5K, 10K, 20K, 25K, 50K
Note
• Consult factory for additional values and schematics
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Pin/Lead Number
Resistance Range
TCR: Absolute
TCR: Tracking
Tolerance: Absolute
Tolerance: Ratio
Power Rating: Resistor
Power Rating: Package
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Thermal EMF
Shelf Life Stability: Absolute
Shelf Life Stability: Ratio
Revision: 01-Sep-11
SPECIFICATIONS
Passivated nichrome
8
2 k to 50 k
± 25 ppm/°C
± 5 ppm/°C
± 0.1 %
± 0.05 %
100 mW
400 mW
R
± 0.05 %
R
± 0.015 %
< 0.1 ppm/V
100 V max. not to exceed
P
x
R
- 55 °C to + 125 °C
- 55 °C to + 150 °C
< - 30 dB
0.08 μV/°C
R
± 0.01 %
R
± 0.002 %
1
For technical questions, contact:
thinfilm@vishay.com
CONDITIONS
-
-
-
- 55 °C to + 125 °C
- 55 °C to + 125 °C
+ 25 °C
+ 25 °C
Maximum at + 70 °C
Maximum at + 70 °C
2000 h at + 70 °C
2000 h at + 70 °C
-
-
-
-
-
-
1 year at + 25 °C
1 year at + 25 °C
Document Number: 60112
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
ORNV (Divider)
www.vishay.com
Vishay Dale Thin Film
DIMENSIONS AND IMPRINTING
in inches and millimeters
B
C
Part
Number
F
G
Date
Code
D
ø
H
I
E
DIMENSION
A
B
C
D
E
F
G
H
I
Ø
INCHES
0.157
0.0165 ± 0.005
0.050
0.195 max.
0.008 ± 0.001
0.028 ± 0.001
0.239 ± 0.005
0.068 max.
0.008 ± 0.002
2° to 6°
MILLIMETERS
3.99
0.4 ± 0.06
1.27
4.93
0.20 ± 0.03
0.71 ± 0.02
6.07 ± 0.13
1.73
0.22 ± 0.06
2° to 6°
A
ORNV x-x
Note
• Marking - Vishay symbol, part number from ordering information
MECHANICAL SPECIFICATIONS
Resistive Element
Substrate Material
Body
Terminals
Lead (Pb)-free Option
Tin Lead Option
Tin Lead and Lead (Pb)-free Finish
Passivated nichrome
Silicon
Molded epoxy
Copper alloy
100 % matte tin
Sn90
Plated
DERATING CURVE
100
Precent of Rated Power
100 % = 0.40 W
80
60
40
20
0
0
70
125
150
Ambient Temperature °C
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: ORNV50015001UF
O
O
R
R
N
N
T
V
V
5
5
0
0
0
0
1
1
5
5
0
0
0
0
1
1
U
U
F
F
GLOBAL MODEL
(4 or 5 digits)
ORNV
(Tin/lead)
ORNTV
(Lead (Pb)-free)
(e3)
RESISTANCE
R
1
The first 3 digits are
significant figures and
the last digit specifies
the number of zeros.
Example:
5001
= 5 k
(REF.) RESISTANCE
R
2
The first 3 digits are
significant figures and
the last digit specifies
the number of zeros.
Example:
5001
= 5 k
PACKAGING
TAPE AND REEL
T0
= 100 min., 100 mult
T1
= 1000 min., 1000 mult
T3
= 300 min., 300 mult
T5
= 500 min., 500 mult
TF
= Full reel 3000
TS
= 100 min., 1 mult
UF
= TUBED
Revision: 01-Sep-11
2
For technical questions, contact:
thinfilm@vishay.com
Document Number: 60112
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
