TT-SMDC-12.999-S-F-5030-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> TT-SMDC-12.999-S-F-5030-TR

TT-SMDC-12.999-S-F-5030-TR: DescriptionSeries - Fundamental Quartz Crystal, 12.999MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size277KB，3 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

TT-SMDC-12.999-S-F-5030-TR Overview

Series - Fundamental Quartz Crystal, 12.999MHz Nom, SMD, 4 PIN

TT-SMDC-12.999-S-F-5030-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145062823961
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	6.47
Other features	AT-CUT
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	50 ppm
JESD-609 code	e2
Installation features	SURFACE MOUNT
Nominal operating frequency	12.999 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	12.5mm X 4.6mm X 3.7mm
Series resistance	60 Ω
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)

Preview

Download Datasheet

View All

SURFACE MOUNT

MICROPROCESSOR CRYSTAL

Page 1 of 3

SERIES TT-SMDC



FEATURES



AT CUT CRYSTAL PERFORMANCE

THERMOPLASTIC PACKAGE SUITED FOR REFLOW SOLDERING



SPECIFICATIONS

PARAMETER

VALUE

3.579545 MHz TO 60.000 MHz

3.579545 MHz TO 40.000 MHz

32.000 MHz TO 60.000 MHz

±50 PPM MAXIMUM

(±30 PPM AVAILABLE)

±50 PPM MAXIMUM

(±30 PPM AVAILABLE)

-20°C TO +70°C STANDARD

-40°C TO +85°C EXTENDED

-40°C TO +85°C

±5 PPM PER YEAR MAXIMUM

12 pF to 32 pF OR SERIES

SEE TABLE 1

5.0 pF MAXIMUM

100 µW MAX

±5 PPM MAXIMUM 75 cm DROP TEST IN

3 AXES ON TO A HARD SURFACE

260°C FOR 10s MAXIMUM

TABLE 1

FREQUENCY RANGE

MODE OF OSCILLATION

FUNDAMENTAL

THIRD OVERTONE

FREQUENCY TOLERANCE AT 25°C

FREQUENCY STABILITY OVER TEMPERATURE

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

AGING

LOAD CAPACITANCE

EQUIVALENT SERIES RESISTANCE

SHUNT CAPACITANCE

DRIVE LEVEL

SHOCK RESISTANCE

REFLOW CONDITIONS

FREQUENCY

(MHz)

3.579545 to 3.999

4.000 to 4.999

5.000 to 5.999

6.000 to 6.999

7.000 to 8.999

MODE

FUND

MAXIMUM ESR

(OHMS)

200

150

120

100

FREQUENCY (MHz)

9.000 to 12.999

13.000 to 19.999

20.000 to 32.000

32.000 to 40.000

40.000 to 60.000

MODE

FUND

FUND / 3OT

3OT

MAXIMUM ESR

(OHMS)

40 / 100

100



PART NUMBERING SYSTEM

TYPE

FREQUENCY

IN MHz

LOAD CAPACITANCE

12 TO 32 pF FOR PARALLEL

S FOR SERIES

MODE

Blank FOR < 24.576 MHz

F FOR ≥ 24.576 MHz

3OT THIRD OVERTONE

TT-SMDC

TOLERANCE/STABLITY

(PPM/PPM)

Blank FOR MAXIMUM TOLERANCE/STABILITY

PPMPPM for OTHER VALUES

Example: 3050, 3030

EXTENDED

TEMPERATURE

Blank FOR STANDARD

EXT FOR EXTENDED

TAPE & REEL

EXAMPLE: TT-SMDC-24.000-18-TR

Surface Mount Microprocessor Crystal, 12.4 x 4.3 mm, 24.000 MHz, Fundamental mode, 18 pF load, ±50 ppm

Tolerance, ±50 ppm Stability, from -20°C to +70°C, Tape and reel packaging

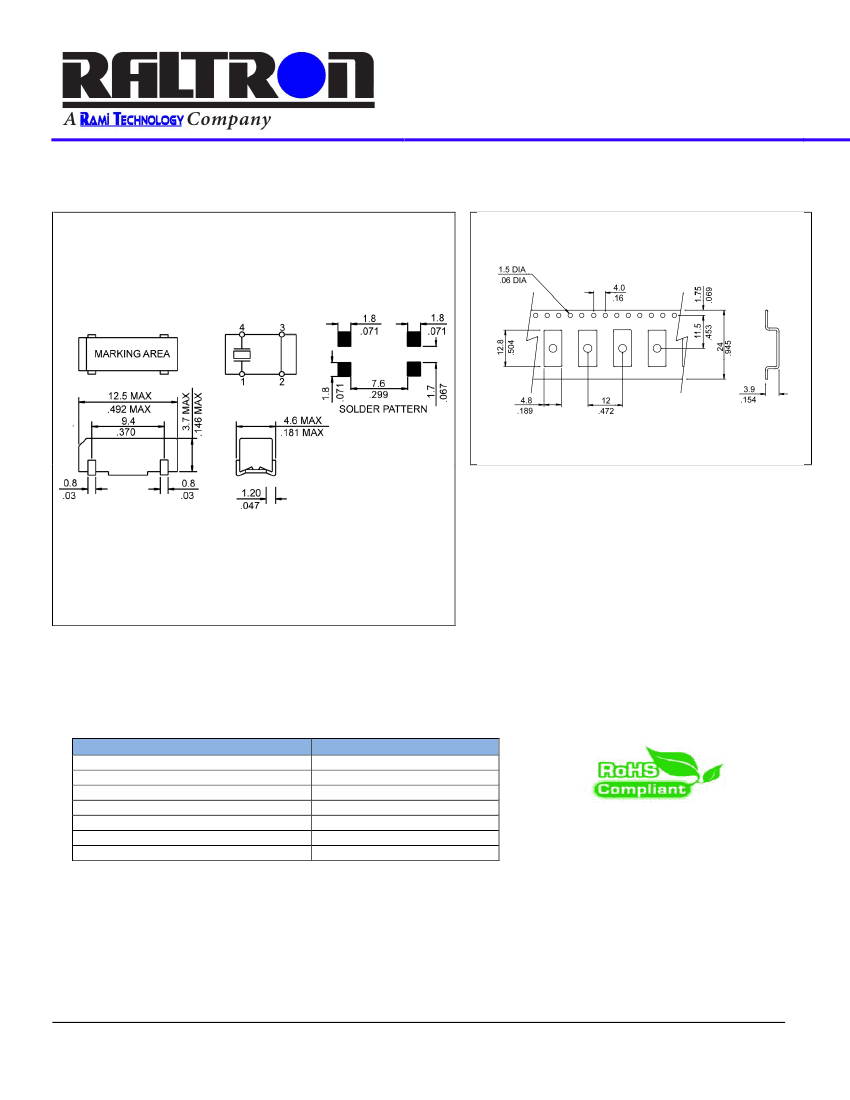

R A L T R O N E L E C T R O N I C S



1 0 4 0 0 N .W . 3 3

STREET



Miami, Florida 33172



U.S.A.

Telephone: 305-593-6033



Fax: 305-594-3973



e-mail: sales@raltron.com



web site: http://www.raltron.com
