FEATURES AND SPECIFICATIONS
Features and Benefits
s
Intermateable, intermountable and interchangeable with
industry-standard versions
s
Cross tested to assure industry compatibility
s
Positive locks
s
Fully isolated contacts
Electrical
Voltage: 600V*
Current: 13.5A*
Circuit
Amperes
2
13.5
3
13.5
4
13.5
6
11.0
9
11.0
12
11.0
15
11.0

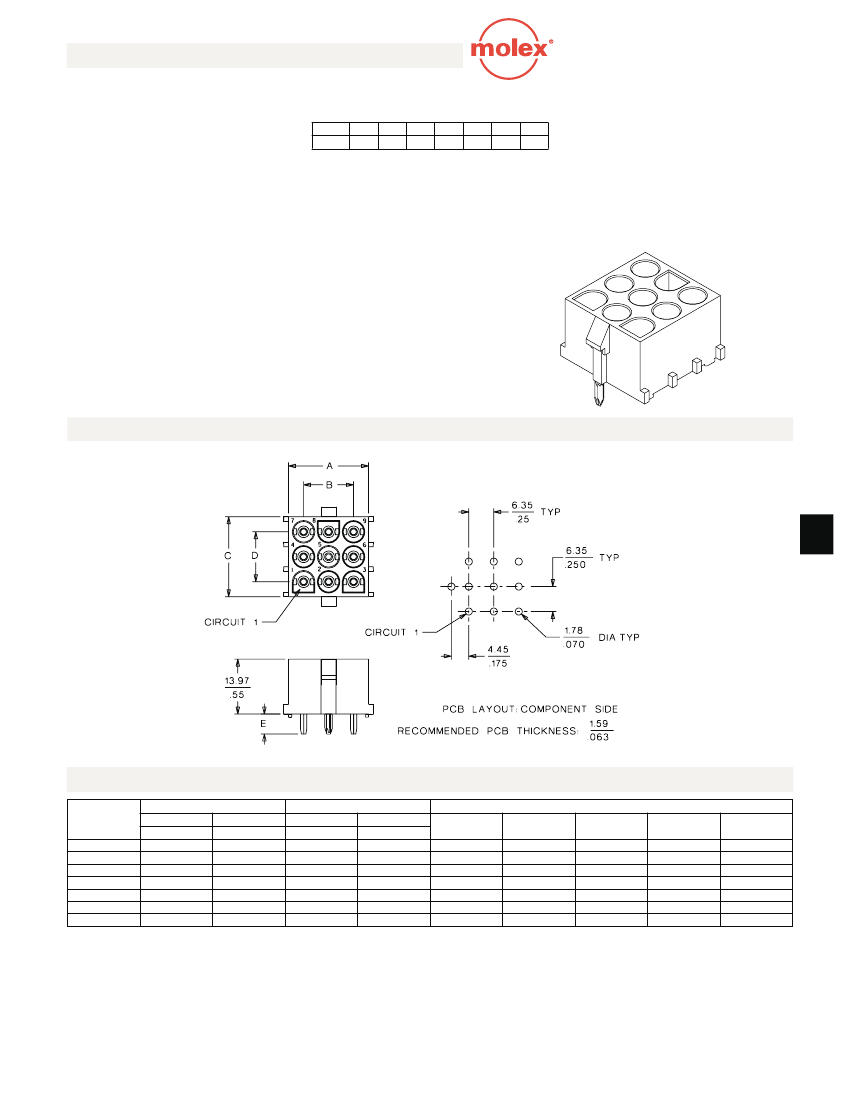

2.13mm (.084") Diameter
MLX
Power Connector
Header
43255
Vertical
Polarizing Peg
Reference Information
Product Specification: PS-42022-0001
Packaging: Bag
UL File No.: E29179
CSA File No.: LR19980
Designed In: Inches
Contact Resistance: 3.5mΩ max.
Dielectric Withstanding Voltage: 2900V
Insulation Resistance: 1000 MΩ min.
Physical
Header Housing: Polyester, UL 94V-0
Header Contact: Brass or Phosphor Bronze
Plating: Tin or Gold
Temperature: -55 to +105˚C

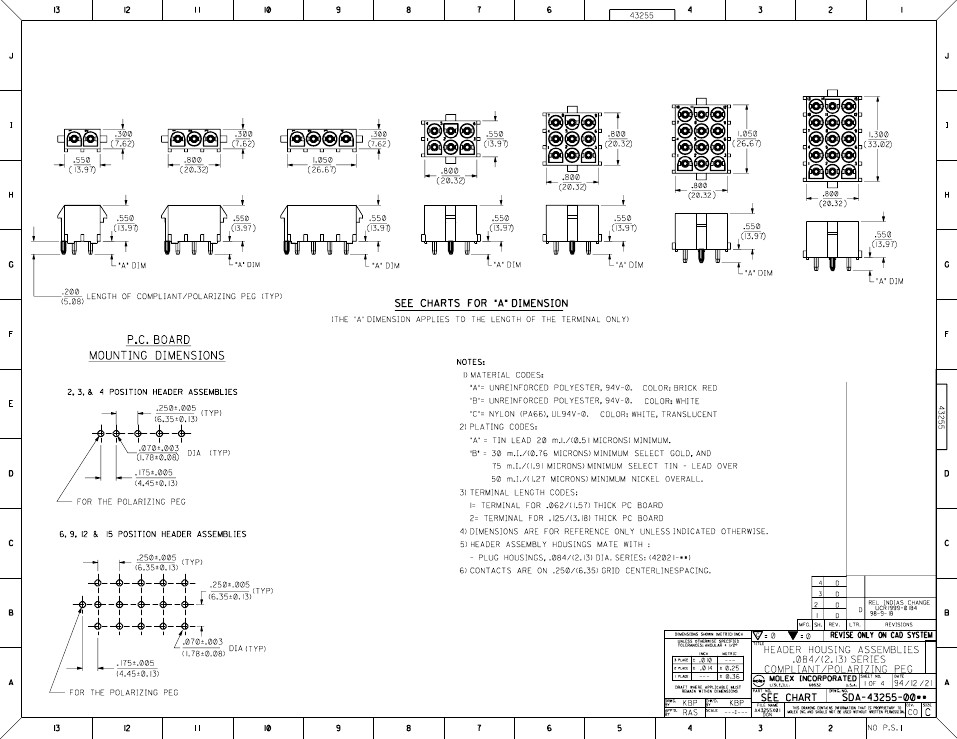

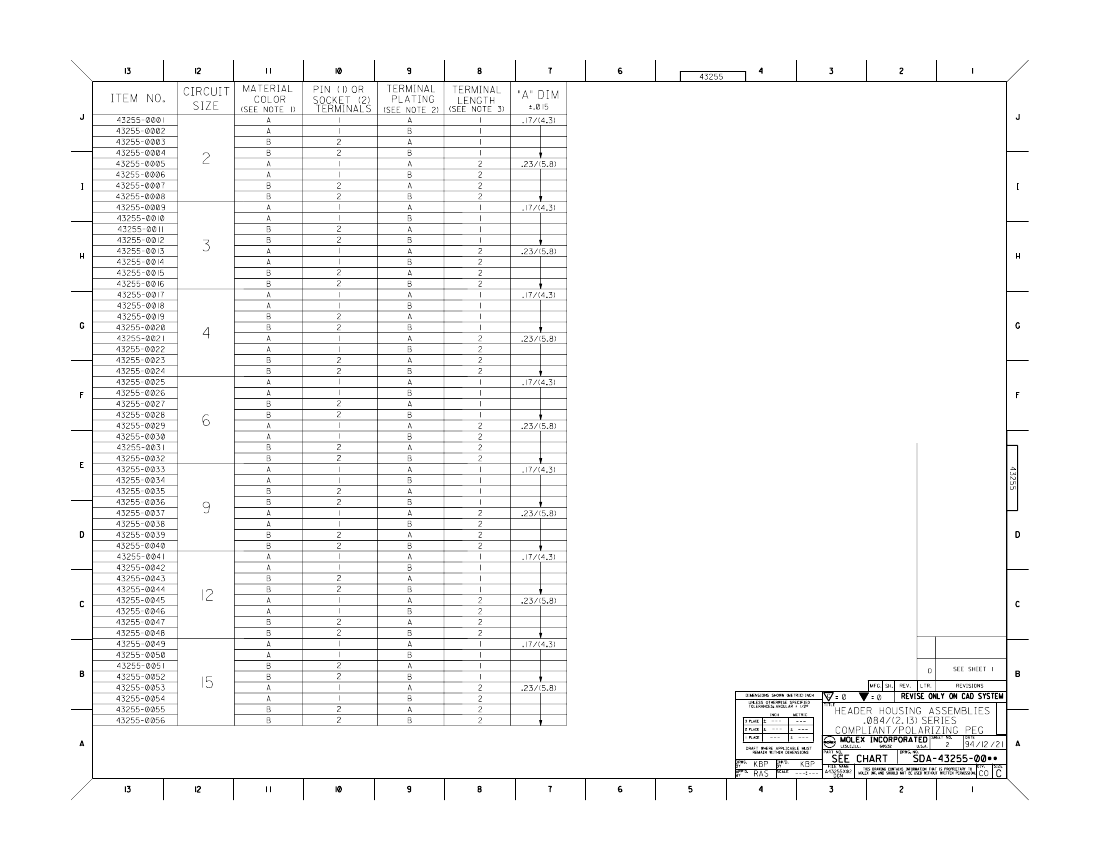

ORDERING INFORMATION AND DIMENSIONS
Brick Red
Circuits
2
3
4
6
9
12
15
Tin
Female
43255-0003
43255-0011
43255-0019
43255-0027
43255-0035
43255-0043
43255-0051
Select Gold
Female
43255-0004
43255-0012
43255-0020
43255-0028
43255-0036
43255-0044
43255-0052
Tin
Male
43255-0001
43255-0009
43255-0017
43255-0025
43255-0033
43255-0041
43255-0049
White
Select Gold
Male
43255-0002
43255-0010
43255-0018
43255-0026
43255-0034
43255-0042
43255-0050
A
7.62
7.62
7.62
20.32
20.32
20.32
20.32
(.300)
(.300
(.300)
(.800)
(.800)
(.800)
(.800)
13.97
20.32
26.67
12.70
12.70
26.67
33.02
B
(.550)
(.800)
(1.050)
(.500)
(.500)
(1.050)
(1.300)
Dimension
C
D
4.30
4.30
4.30
4.30
4.30
4.30
4.30
E
(.170)
(.170)
(.170)
(.170)
(.170)
(.170)
(.170)
20.32 (.800)
26.67 (1.050)
6.35 (.250)
12.70 (.500)
• US Standard Product, available through Molex franchised distributors
* Ratings are per circuit, based on fully loaded housings
