EH2620TS-2.500M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EH2620TS-2.500M

EH2620TS-2.500M: DescriptionCMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD); CategoryPassive components oscillator; File Size123KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EH2620TS-2.500M Overview

CMOS, Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD) Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD)

EH2620TS-2.500M Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1279048542
Parts packaging code	SMD 5.0mm x 7.0mm
Contacts	4
Manufacturer packaging code	SMD 5.0mm x 7.0mm
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e4
Manufacturer's serial number	EH26
Installation features	SURFACE MOUNT
Nominal operating frequency	2.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVCMOS
Output load	30 pF
physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	6 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

EH26

Series

• Crystal Clock Oscillators

• LVCMOS Output

• +3.3V Supply Voltage

• Tri-State Output Function

• 4 Pad Ceramic SMD Package

• RoHS Compliant (Pb-Free)

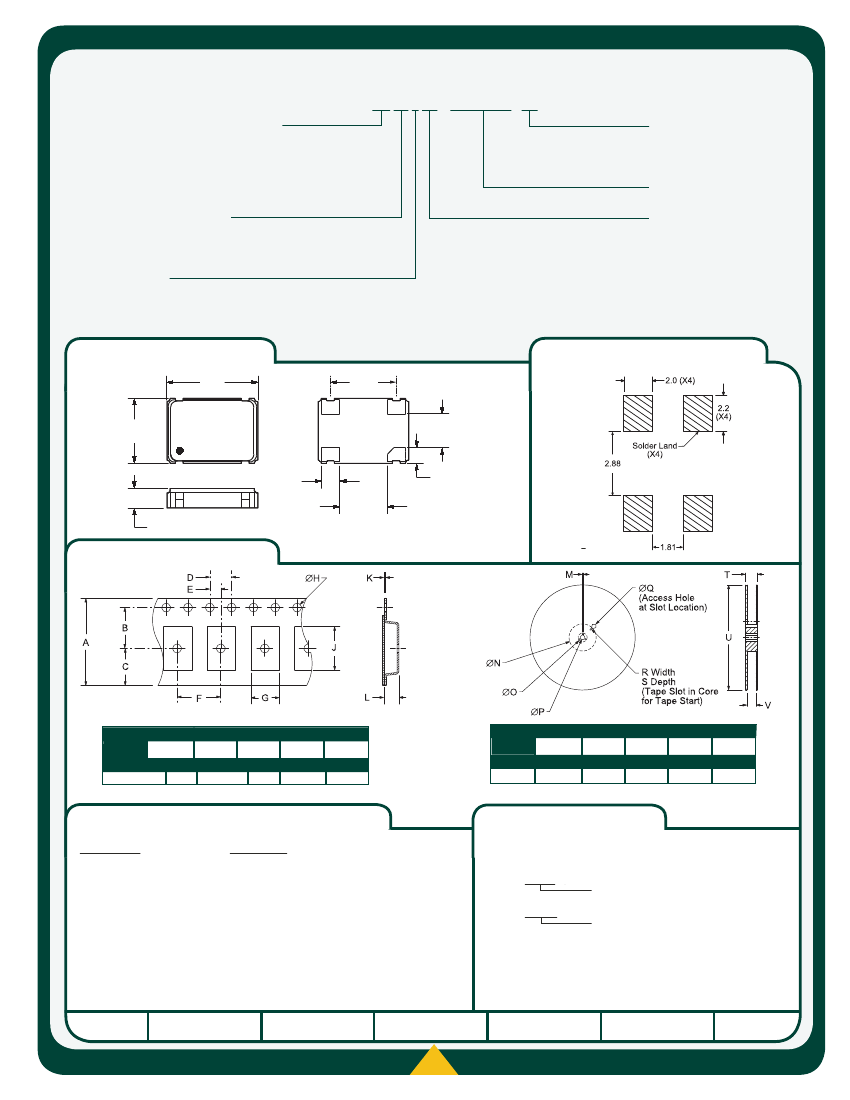

EH26

H 1.6

L 7.0

W 5.0

OSCILLATOR

NOTES

______________________________________________________

______________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Operating Temperature Range

Storage Temperature Range

Supply Voltage (V

)

Input Current

Frequency Tolerance / Stability

Inclusive of all conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, First Year Aging

at 25°C, Shock, and Vibration

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time

Load Drive Capability

Duty Cycle (at V

=3.3V

)

Tri-State Input Voltage

Aging (at 25°C)

Start Up Time

Period Jitter: Absolute

Period Jitter: One Sigma

MANUFACTURER
