EP14 Series Oscillator
Quartz Crystal Clock Oscillators XO (SPXO) HCMOS/TTL (CMOS) 5.0Vdc J-Lead 9.8mm x 14.0mm Plastic Surface Mount (SMD)
2011/65 +
2015/863
168 SVHC
Revision F 03/25/2014
Electrical Specifications
Nominal Frequency
1.000MHz to 125.000MHz
Some frequencies within this range may not be available.
Frequency Tolerance/Stability
(Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency
Stability over the Operating Temperature Range, Supply Voltage
Change, Output Load Change, First Year Aging at 25°C, Shock, and
Vibration)
±100ppm Maximum
±50ppm Maximum
-20°C to +70°C
-40°C to +85°C
5.0V
DC
±10%
45mA Maximum (Unloaded)
2.4V
DC
Minimum with TTL Load, V
DD
-0.4V
DC
Minimum with HCMOS
Load, IOH = -16mA
0.4V
DC
Maximum, IOL = +16mA
Measured at 1.4V
DC
with TTL Load; Measured at 50% of waveform
with HCMOS Load
50 ±10(%)
50 ±5(%) (Not available with Output Logic Type of TTL over Nominal
Frequency of 27.000001MHz to 125MHz; Not available with Output
Logic Type of CMOS over Nominal Frequency range of 50.000001MHz
to 125MHz)
4nSec Maximum (Measured at 20% to 80% of waveform) at Output
Logic Type of CMOS
4nSec Maximum (Measured at 0.8V
DC
to 2.0V
DC
) at Output Logic Type
of TTL
50pF HCMOS Load Maximum over Nominal Frequency of 1MHz to
50MHz at Output Logic Type of CMOS
15pF HCMOS Load Maximum over Nominal Frequency of
50.000001MHz to 125MHz at Output Logic Type of CMOS
10TTL Load Maximum over Nominal Frequency of 1MHz to 40MHz at
Output Logic Type of TTL
5TTL Load Maximum over Nominal Frequency of 40.000001MHz to
125MHz at Output Logic Type of TTL
CMOS
TTL
Power Down (Disable Output: Logic Low)
Tri-State (Disabled Output: High Impedance
+2.0V
DC
Minimum to enable output, +0.8V
DC
Maximum to disable
output, No Connect to enable output.
50 A Maximum (Pin 1 = Ground)
Operating Temperature Range
Supply Voltage (V
DD
)
Input Current
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Duty Cycle
Rise Time/Fall Time
Load Drive Capability
Output Logic Type
Pin 1 Connection
Tri-State Input Voltage (Vih and Vil)
Standby Current
1 of 9
28-Jan-2016 2:01 PM
Ecliptek | EP14 Series Oscillator
http://www.ecliptek.com/oscillators/EP14/
Disable Current
Absolute Clock Jitter
30mA Maximum (Pin 1 = Ground)
±250pSec Maximum, ±100pSec Typical over Nominal Frequency of
1MHz to 33MHz
±100pSec Maximum, ±50pSec Typical over Nominal Frequency of
33.000001MHz to 125MHz
±50pSec Maximum over Nominal Frequency of 1MHz to 33MHz
±30pSec Maximum over Nominal Frequency of 33.000001MHz to
125MHz
±5ppm/year Maximum
-55°C to +125°C
10mSec Maximum
One Sigma Clock Period Jitter
Aging (at 25°C)
Storage Temperature Range
Start Up Time
2 of 9
28-Jan-2016 2:01 PM
Ecliptek | EP14 Series Oscillator
http://www.ecliptek.com/oscillators/EP14/

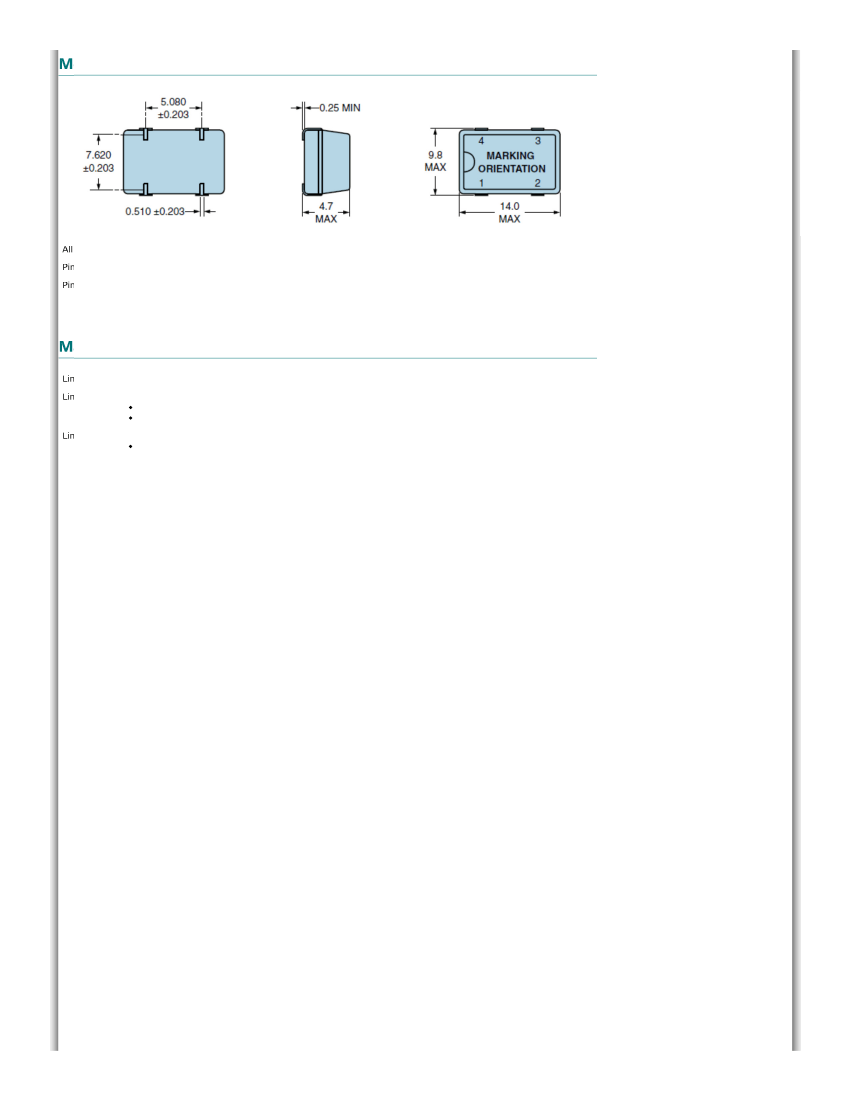

Mechanical Dimensions
All Dimensions in Millimeters
Pin 1: Power Down (Logic Low) or Tri-State (High Impedance)
Pin 2: Ground
Pin 3: Output
Pin 4: Supply Voltage
Marking Specifications
Line 1:
Line 2:
ECLIPTEK
XXXXXXM
XXXXXX = Nominal Frequency (5 Digits + Decimal)
M = Frequency unit of measure (MHz)
XXXXX
XXXXX = Ecliptek Manufacturing Identifier
Line 3:
3 of 9
28-Jan-2016 2:01 PM
Ecliptek | EP14 Series Oscillator
http://www.ecliptek.com/oscillators/EP14/
Environmental and Mechanical Specifications
Fine Leak Test
Gross Leak Test
Mechanical Shock
Resistance to Soldering Heat
Resistance to Solvents
Solderability
Temperature Cycling
Vibration
Thermal Resistance (θ
JA
)
Thermal Resistance (θ
JC
)
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-202, Method 210
MIL-STD-202, Method 215
MIL-STD-883, Method 2003
MIL-STD-883, Method 1010
MIL-STD-883, Method 2007, Condition A
81°C/W (degrees Celsius per Watt)
31°C/W (degrees Celsius per Watt)
4 of 9
28-Jan-2016 2:01 PM
