KJ3T22N53PB Overview

MIL Series Connector, 53 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle

KJ3T22N53PB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1640616503
Reach Compliance Code	compliant
YTEOL	8.25
Other features	STANDARD: MIL-DTL-38999, LOW PROFILE, POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/FLUID/IMMERSION RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	ALUMINUM ALLOY
Housing size	22
Termination type	CRIMP
Total number of contacts	53

Preview

Download Datasheet

View All

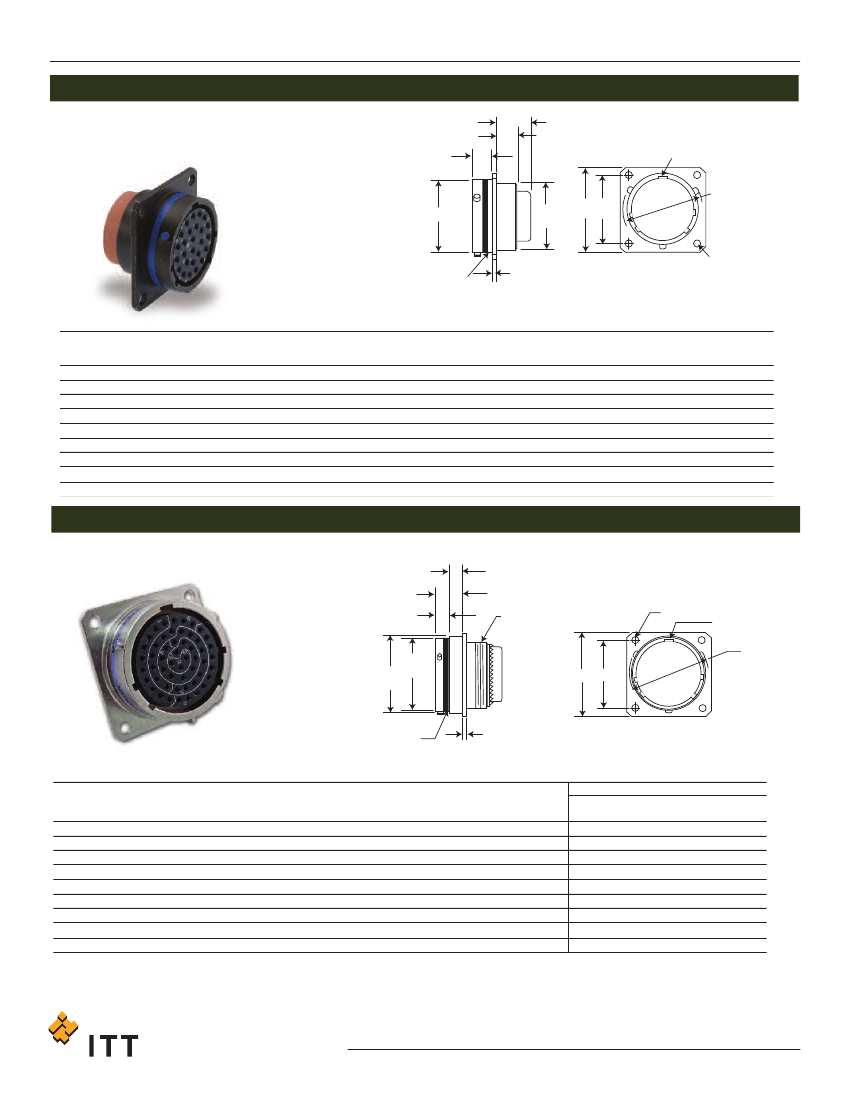

Cannon KJ

MIL-DTL-38999 Series II Connectors

Box Mounting Receptacle

MS27513E

(MS service class E)

KJ2R

L

.322 (8.17)

MAX.

.463

(11.76)

MAX.

POLARIZING

KEYWAY

J MAX.

A DIA.

G

DIA.

M

N

BLUE BAND

(INDICATES REAR

RELEASE CONTACT

RETENTION SYSTEM)

.069

(1.74) MAX.

P DIA.

NOTE: This connector does not accommodate backshells

Shell

Size

8

10

12

14

16

18

20

22

24

A

Dia. Max.

.474 (12.04)

.591 (15.01)

.751 (19.08)

.876 (22.25)

1.001 (25.43)

1.126 (28.60)

1.251 (31.78)

1.376 (33.95)

1.501 (38.13)

G

Dia. Max.

.421 (10.69)

.542 (13.77)

.667 (16.94)

.791 (20.09)

.916 (23.27)

1.034 (26.26)

1.158 (29.41)

1.283 (32.59)

1.408 (35.76)

J

Dia. Max.

.563 (14.30)

.680 (17.27)

.859 (21.82)

.984 (24.99)

1.108 (28.14)

1.233 (31.32)

1.358 (34.49)

1.483 (27.67)

1.610 (40.89)

L

Max.

.312 (7.92)

M

Max.

.828 (21.03)

.954 (24.23)

1.047 (26.59)

1.141 (28.98)

1.234 (31.34)

1.328 (33.73)

1.453 (36.81)

1.578 (40.08)

1.703 (43.26)

N

T.P.

.594 (15.09)

.719 (18.26)

.812 (20.62)

.906 (23.01)

.969 (24.61)

1.062 (26.97)

1.156 (27.36)

1.250 (31.75)

1.375 (34.93)

P

+.005 (0.13)

-.010 (0.25)

.125 (3.18)

.152 (3.85)

Wall Mounting Receptacle

MS27497

(MS service class E, P, T)

KJ3

.142 (3.01)

MAX. PANEL

THICKNESS (including mounting hardware)

.477 (11.35) MAX.

.322 (8.17) MAX.

T THREAD

P DIA.

POLARIZING

KEYWAY

J DIA.

M

N

C

DIA.

A

DIA.

BLUE BAND

(INDICATES REAR

RELEASE CONTACT

RETENTION SYSTEM)

.069 (1.74) MAX.

NOTE: For backshell dimensions and configurations, see pages A-30, A-32.

P

T

+.005 (0.13)

Thread

-.010 (0.25)

.125 (3.18)

7/16-28UNEF-2A

.125 (3.18)

9/16-24UNEF-2A

.125 (3.18) 11/16-24UNEF-2A

.125 (3.18) 13/16-20UNEF-2A

.125 (3.18) 15/16-20UNEF-2A

.125 (3.18) 1-1/16-18UNEF-2A

.125 (3.18) 1-3/16-18UNEF-2A

.125 (3.18) 1-5/16-18UNEF-2A

.152 (3.86) 1-7/16-18UNEF-2A

Overall Length With Backshells

E

Straight

.855 (21.72)

F

Cable Clamp

1.570 (39.88)

1.780 (45.21)

1.960 (49.78)

P

Potting Max.

1.020 (25.91)

1.080 (27.43)

Shell

Size

8

10

12

14

16

18

20

22

24

A

Dia. Max.

.474 (12.04)

.591 (15.01)

.751 (19.08)

.876 (22.25)

1.001 (25.43)

1.126 (28.60)

1.251 (31.78)

1.376 (34.95)

1.501 (38.13)

C

Dia. Max.

.522 (13.26)

.639 (16.23)

.808 (20.52)

.935 (23.75)

1.058 (26.87)

1.183 (30.05)

1.308 (33.22)

1.433 (36.40)

1.568 (39.83)

J

Dia. Max.

.563 (14.30)

.680 (17.27)

.859 (21.82)

.984 (24.99)

1.108 (28.14)

1.233 (31.32)

1.358 (34.49)

1.483 (37.67)

1.610 (40.89)

M

Max.

.828 (21.03)

.954 (24.23)

1.047 (26.59)

1.141 (28.98)

1.234 (31.34)

1.328 (33.73)

1.453 (36.91)

1.578 (40.08)

1.703 (43.26)

N

T.P

.594 (15.09)

.719 (18.26)

.812 (20.62)

.906 (23.01)

.969 (24.61)

1.062 (26.97)

1.156 (29.36)

1.250 (31.75)

1.375 (34.93)

Performance Specifications-Pages 3 and 4.

Contacts, Sealing Plugs, Assembly Tools - Pages 22, 28, and 29.

Contact Arrangements - Pages 20 and 21.

Dimensions shown in inches (mm)

Specifications and dimensions subject to change
