PCF-W1206R-12-1273-B-P-LT datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PCF-W1206R-12-1273-B-P-LT

PCF-W1206R-12-1273-B-P-LT: DescriptionRESISTOR, THIN FILM, 0.125W, 0.1%, 10ppm, 127000ohm, SURFACE MOUNT, 1206, CHIP; CategoryPassive components The resistor; File Size52KB，1 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/

Download Datasheet Parametric View All

PCF-W1206R-12-1273-B-P-LT Overview

RESISTOR, THIN FILM, 0.125W, 0.1%, 10ppm, 127000ohm, SURFACE MOUNT, 1206, CHIP

PCF-W1206R-12-1273-B-P-LT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1803165021
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
Other features	PRECISION
structure	Chip
JESD-609 code	e0
Manufacturer's serial number	PCF
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.508 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.6 mm
method of packing	TR, PAPER
Rated power dissipation(P)	0.125 W
Rated temperature	70 °C
resistance	127000 Ω
Resistor type	FIXED RESISTOR
series	PCF1206(10 PPM, B)
size code	1206
surface mount	YES
technology	THIN FILM
Temperature Coefficient	10 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

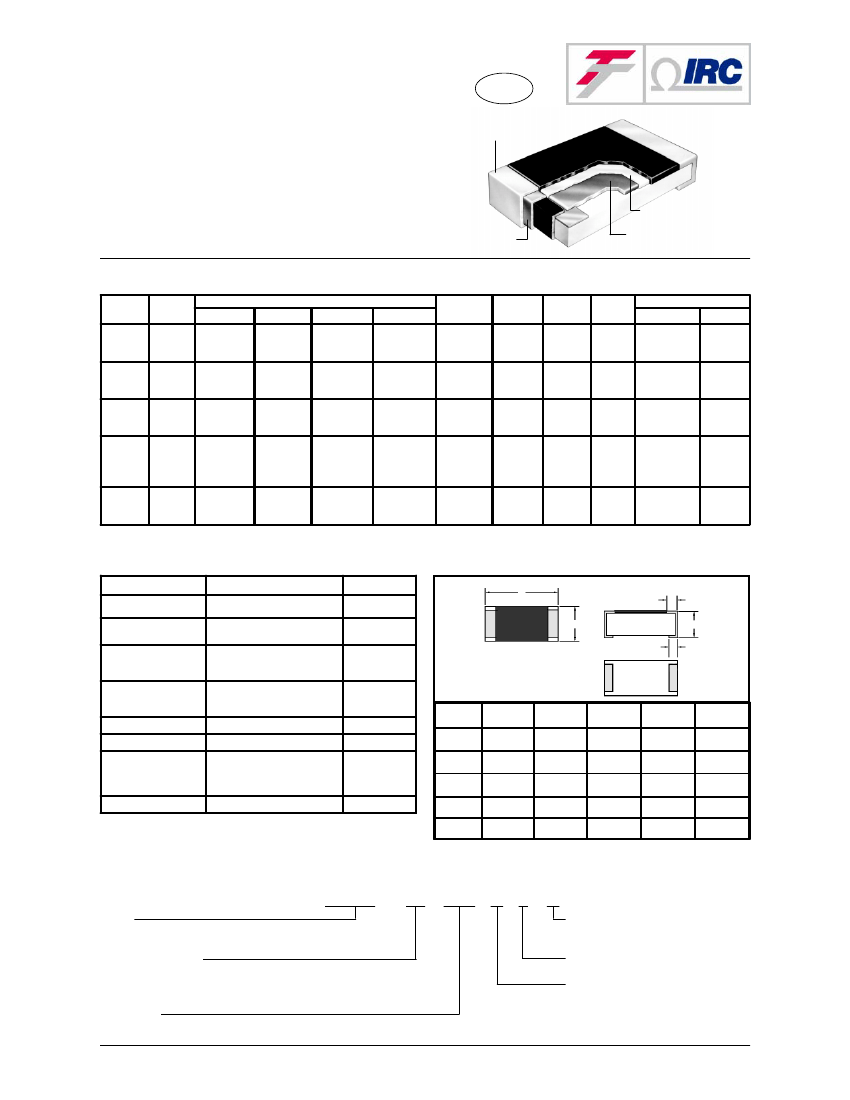

PRECISION CHIP RESISTOR

NICHROME THIN FILM

ISO-9001

Registered

PCF

SERIES

•

Wide ohmic range 10S to 250KS

Tolerances to ±0.1%

TCR to

ppm/°C

Available in five standard sizes

Solder Plating

Glass Passivation

Nickel Barrier

Resistive Element

SPECIFICATIONS

P/N

TCR

(ppm/°C)

"100

PCF0402

"25

"100

PCF0603

"25

PCF0805

"25

PCF1206

"25

±5

"25

PCF1210

N/A

100-130K

N/A

100-130K

10-150K

10-100K

N/A

10-360K

10-130K

N/A

10-130K

N/A

Ohmic Range (S )

0.5%

10-100K

10-10K

100-10K

36K-330K

10-33K

100-33K

10-150K

10-100K

100-100K

10-360K

10-130K

100-130K

10-130K

N/A

51-100K

100-100K

51-360K

100-100K

N/A

100-100K

N/A

100-33K

N/A

51-100K

100-100K

N/A

51-130K

100-130K

51-130K

250

200

400

125

100

200

100

200

62.5

150

3-Digit

E-24

Values

3-Digit

E-24

Values

4-Digit

E-96

Values

Available*

4-Digit

E-96

Values

Available*

N/A

62.5

100

N/A

0.25%

0.1%

Rated Power

at 70°C

(milliwatts)

M ax

Working

Voltage

M ax

Overload

Voltage

Packaging

M arking

Carrier Tape

Cardboard

Plastic

Cardboard

Plastic

Cardboard

Plastic

Cardboard

Plastic

Cardboard

Plastic

Qty

10,000

5,000

Consult factory for specific values.

ENVIRONMENTAL PERFORMANCE

Test Conditions

Short Time Overload

Temperature Cycling

Humidity

DIMENSIONS (Inches)

SIDE

Test Method

5 Seconds at 2.5 X Rated Power

MIL-STD-883 Method 1010

Test Condition B

1000 Hours 70°C ±2°C 90-95% RH

1.5 Hours On / 0.5 Hours Off

Rated Voltage

MIL-STD-202 Method 108

Rated Voltage, Rated Power

1000 Hours 70°C ±3°C

1000 Hours @ 125°C ±3°C

1000 Hours @ -55°C ±3°C

10 ±1 Seconds @ 270°C ±5°C

40 ±1 Seconds @ 240°C ±5°C

3 ±1 Seconds @ 300°C ±5°C

3 ±0.5 Seconds @ 235°C ±5°C

Max Change

±0.1% (+0.05S)

±0.25% (+0.05S)

TOP

BOTTOM

±0.25% (+0.05S)

Load Life

Model

±0.25% (+0.05S)

±0.1% (+0.05S)

95% Min Coverage

High Temperature Exposure

Low Temperature Exposure

Effects of Solder Heat

Dip Method

Reflow Method

Hand Solder

Solderability

PCF0402

PCF0603

PCF0805

PCF1206

PCF1210

0.039"0.002 0.020"0.002 0.014"0.002 0.008"0.004 0.010"0.002

0.063"0.008 0.031"0.008 0.016"0.004 0.012"0.008 0.012"0.008

0.079"0.008 0.049"0.008 0.016"0.004 0.016"0.008 0.016"0.008

0.126"0.008 0.063"0.008 0.020"0.004 0.020"0.012 0.016"0.008

0.126"0.008 0.10"0.008

0.024"0.008 0.020"0.012 0.016"0.008

HOW TO ORDER

Sample Part Number: PCF - W1206 R - 03 - 1001 - B - P - LT

Model

W0402, W0603, W0805, W1206, W1210

TCR Characteristic

01 = ±100 ppm/

C, 02 = ±50 ppm/

03 = ±25 ppm/

C, 12 = ±10 ppm/

Resistance

Standard 4-digit resistance code. Examples: 1003 = 100KS, 51R0 = 51S

ADVANCED FILM DIVISION

4222 South Staples Street

•

Corpus Christi, Texas 78411

092998

•

Tape & Reel Packaging

Tape Type

(P=Paper, E=Plastic)

Tolerance

B=±0.1%, C=±0.25%, D=±0.5%

Tel: 512-992-7900

•

Fax: 512-992-3377

•

www.irctt.com
