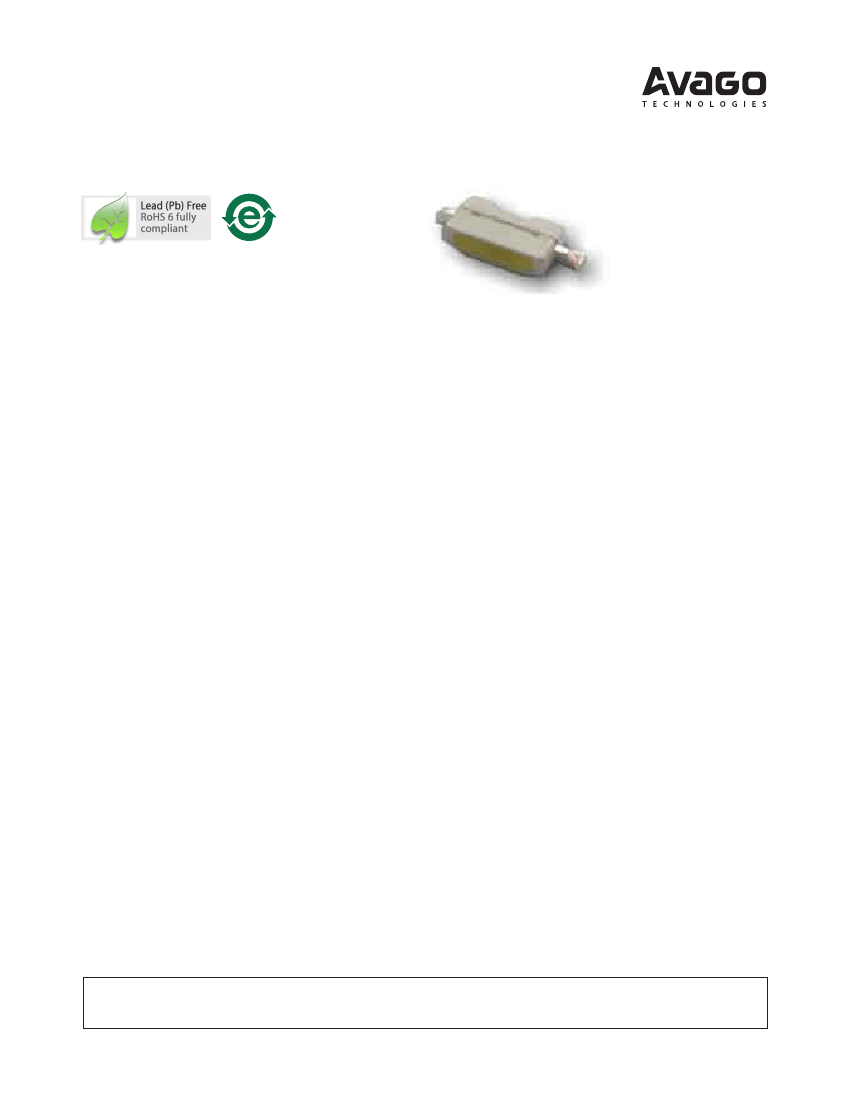

The ASMT-Vx00 is a right angle package with the dimension
of 4.0 (L) x 1.4 (W) x 0.8 (H) mm where it is developed ideal
for general purpose backlighting application. The package
is compatible with IR reflow solder processes. The small
size and wide viewing angle makes this LED compatible
for application where space is a premium.
To facilitate easy surface mount process during pick and
place assembly, the parts are packed in EIA-compliant
tape and reel which is further sealed in a moisture barrier
bag. Every reel of parts will be shipped in the single color
and single intensity bin formation to provide the customer
with close uniformity. The LEDs are available with 3500
units / reel.
Features
•
Right angle emitting configuration
•
110° View Angle
•
Slim Package formation
•
High reliability package
•
Good Intensity Output
•
Compatible with IR Solder Reflow
Specifications
•
InGaN Technology
•
3.2V, 20mA (typical)
•
110 viewing angle
Applications
•
LCD Backlighting
•
General purpose lighting
•
Status indicator
CAUTION:
ASMT-Vx00 is Class x ESD sensitive. Please observe appropriate precautions during handling
and processing. Refer to Avago Technologies Application Note AN-1142 for additional details.

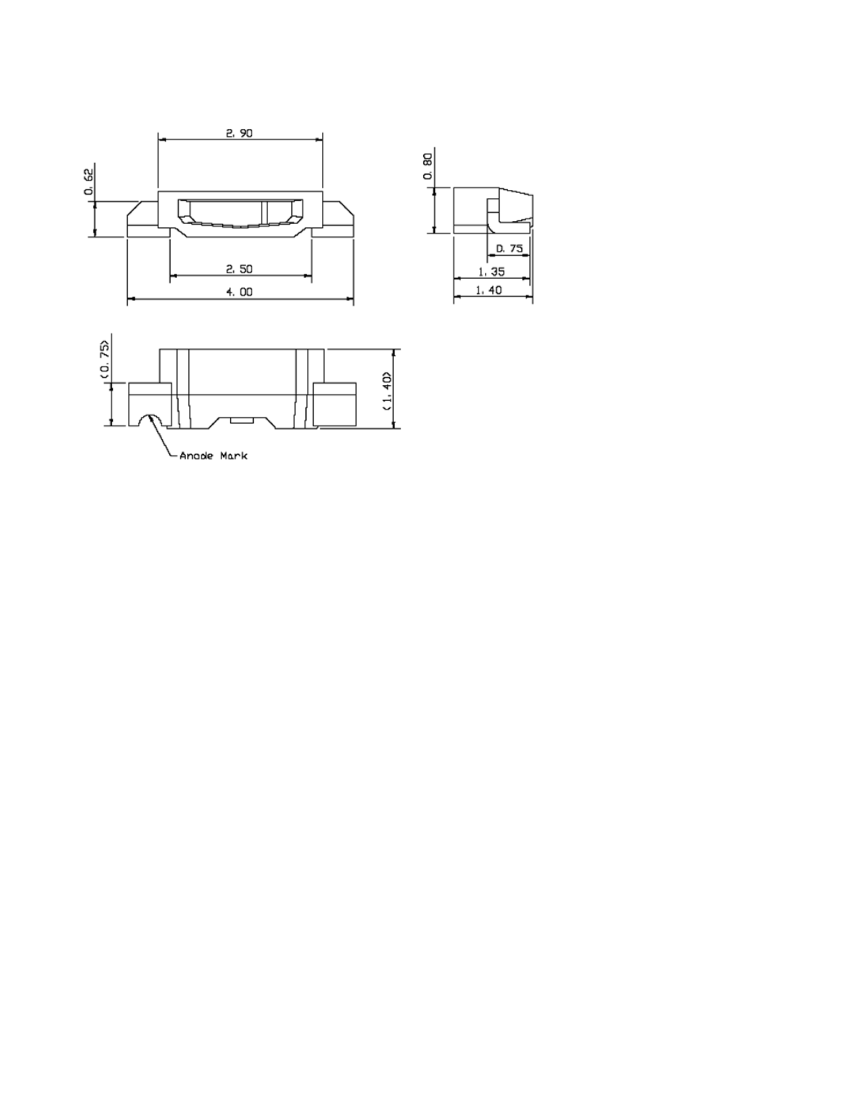

Package Dimensions
Notes:
1. All upper dimensions are in millimeters.
2. Tolerance = ±0.1 mm unless otherwise specified.
2
Part Numbering System
ASMT–V x 00 – N x
1
x
2
x
3
1
Color Bin Selection
Max IV Bin Selection
Min IV Bin Selection
Color
W - White
Absolute Maximum Ratings (T
A
= 25°C)
Parameter
DC Forward Current
[1]
Power Dissipation
Reverse Voltage (I
R
= 100
µ
A)
LED Junction Temperature
Operating Temperature Range
Storage Temperature Range
Soldering Temperature
Storage Temperature Range
Note:
1. Derate linearly as shown in Figure 5.
ASMT-Vx00
30
117
5
125
-40 to 85
-40 to 100
-40 to +100
Refer to Figure 8 & 9
Units
mA
mW
V
°C
°C
°C
°C
Optical Characteristics (T
A
= 25°C)
Testing Current
I
F
(mA)
20
Luminous Intensity
I
V [1]
(mcd)
Min.
1000
Chromaticity Coordinates
[2]
Max.
1800
Part Number
ASMT-VW00
Typ.
1400
x
0.29
y
0.28
Viewing Angle
2θ
1/2 [3]
(Degrees)
Typ.
110
Notes:
1. The luminous intensity I
V
is measured at the on axis to the LED package which may not be aligned with the peak of the spatial radiation pattern.
2. The Chromaticity Coordinate is derived from the CIE Chromaticity Diagram and represents the perceived color of the device.
3. 2θ
1/2
is the off-axis angle where the luminous intensity is ½ the peak intensity.
Electrical Characteristics (T
A
= 25°C)
Forward Voltage
V
F
(Volts)
[1]
Typ.
3.2
Part Number
ASMT-VW00
Note:
Testing Current
I
F
(mA)
20
Reverse Breakdown
V
R
(Volts)
@ I
R
= 100µA
Max.
3.7
Thermal Resistance,
Rθj-p
(°C/W)
[2]
Typ.
170
Min.
5
1. V
F
tolerance: ±0.1V.
2. R
θj-p
is Thermal Resistance from LED junction to pin.
3
V
F
Bin Limit (for reference only)
Forward Voltage (V
F
) Bin Limits
[1]
Forward Voltage (V) at 20mA
Min.
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
Note:
1. Tolerance : ±0.1V
I
V
Bin Limit (for reference only) [x
1
x
2
]
Light Intensity (I
V
) Bin Limits
[1,2]
Intensity (mcd) at 20mA
Bin ID
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
R
Max.
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
Min.
1000
1051
1101
1151
1201
1251
1301
1351
1401
1451
1501
1551
1601
1651
1701
1751
Max.
1050
1100
1150
1200
1250
1300
1350
1400
1450
1500
1550
1600
1650
1700
1750
1800
Notes:
1. I
V
Bins at T
A
=25°C, I
F
= 20 mA
2. Tolerance : ±10%
Notes: Bin categories are established for classification of products. Products may not be available in all categories. Please contact your Avago repre-
sentative for information on current available bins.
4
Color Bin Selections [X
3
]
Individual reel will contain parts from one full bin only.
0
A
B
C
D
E
F
Z
Y
W
V
U
Q
P
N
M
J
1
3
4
5
6
Full Distribution
A only
B only
C only
D only
E only
F only
A and B only
B and C only
C and D only
D and E only
E and F only
A, B and C only
B, C and D only
C, D and E only
D, E and F only
Special Color Bin
A, B, C and D only
B, C, D and E only
C, D, E and F only
A, B, C, D and E only
B, C, D, E, and F only
White
Bin A
Bin B
Bin C
Bin D
Bin E
Bin F
Color Limits
(Chromaticity Coordinates)
X
Y
X
Y
X
Y
X
Y
X
Y
X
Y
0.296
0.276
0.301
0.265
0.288
0.262
0.295
0.253
0.280
0.248
0.287
0.240
0.291
0.287
0.296
0.276
0.282
0.272
0.288
0.262
0.272
0.258
0.280
0.248
0.299
0.294
0.302
0.283
0.291
0.287
0.296
0.276
0.282
0.272
0.288
0.262
0.302
0.283
0.305
0.272
0.296
0.276
0.301
0.265
0.288
0.262
0.295
0.253
Tolerances ± 0.01
0.32
0.30
Y-COORDINATE
0.28
0.26
0.24
0.22
E
F
A
C
D
B
0.26
0.27
0.28
0.29
0.30
X-COORDINATE
0.31
0.32
Notes:
1. Chromaticity Bins at T
A
= 25°C, I
F
= 20mA
2. Tolerance on chromaticity bins is ±0.01
Notes: Color bin selection is not available until further notice. Only bin 0 can be ordered as of now.
