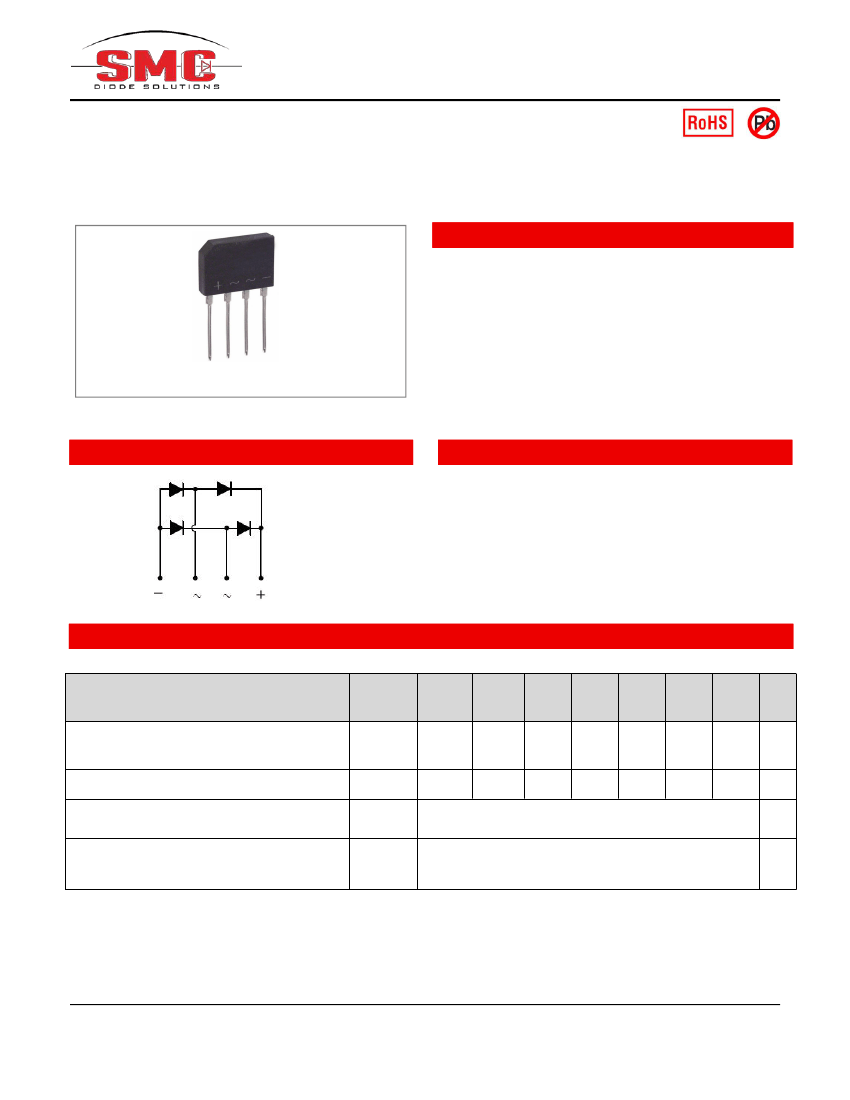

KBP3005G
THRU
KBP310G
Technical Data
Data Sheet N1917 Rev. A
KBP3005G THRU KBP310G
SINGLE PHASE 3.0AMP GLASS PASSIVATED BRIDGE RECTIFIER
Features
Glass passivated die construction
Low forward voltage drop
High current capability
High surge current capability
Plastic material-UL flammability 94V-0
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
KBP
Circuit Diagram
Mechanical Data
Case: KBP, molded plastic
Terminals: plated leads solderable per MIL-STD-202,
Method 208
Polarity: as marked on case
Mounting position: Any
Weight: 1.4gram
Lead Free: For RoHS / Lead Free Version
Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Type number
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
@ T
A
=50℃
Peak forward surge current 8.3ms single half
sine-wave superimposed on rated load (JEDEC
Method)
Symbol
V
RRM
V
RMS
I
o
I
FSM
KBP
3005G
50
35
KBP
301G
100
70
KBP
302G
200
140
KBP
304G
400
280
3.0
80
KBP
306G
600
420
KBP
308G
800
560
KBP
Units
310G
1000
700
V
V
A
A
Maximum Ratings:
@T
A
=25°C unless otherwise specified
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
KBP3005G
THRU
KBP310G
Technical Data
Data Sheet N1917 Rev. A
Electrical Characteristics:
@T
A
=25°C unless otherwise specified
Type Number
Forward Voltage per element
*
@I
F
=3.0A
Peak Reverse Current
*
@T
A
=25℃
At Rated DC Blocking Voltage @T
A
=125℃
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F
I
R
KBP
3005G
KBP
301G
KBP
302G
KBP
304G
1.1
5.0
500
KBP
306G
KBP
308G
KBP
Units
310G
V
µA
Thermal-Mechanical Specifications:
@T
A
=25°C unless otherwise specified
Type Number
Typical Thermal Resistance Junction to Ambient
(Note 1)
Typical Thermal Resistance Junction to Lead
(Note 1)
Junction Temperature
Storage Temperature Range
Symbol
R
θJA
R
θJL
T
J
T
STG
KBP
3005G
KBP
301G
KBP
302G
KBP
304G
30
11
-55 to +150
-55 to +150
KBP
306G
KBP
308G
KBP
Units
310G
°C/W
°C
°C
Note: 1. Mounted on glass epoxy PC board with 1.3mm
2
solder pad.

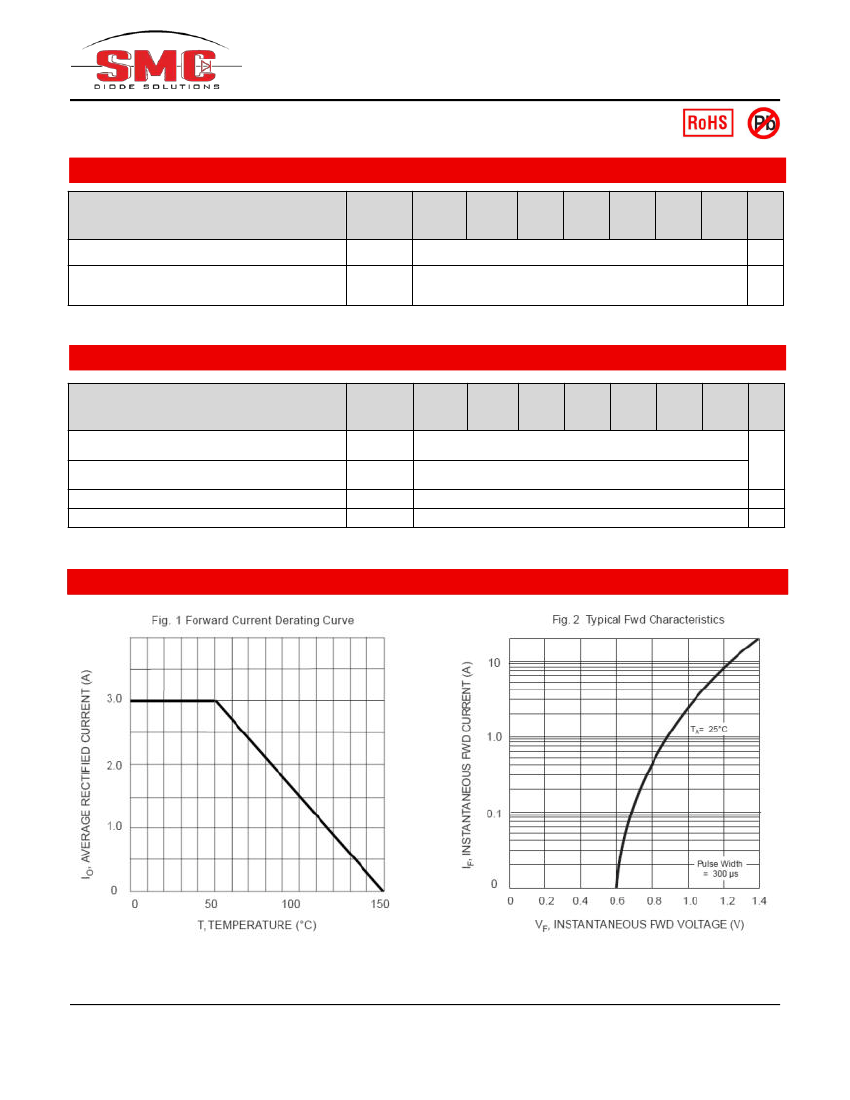

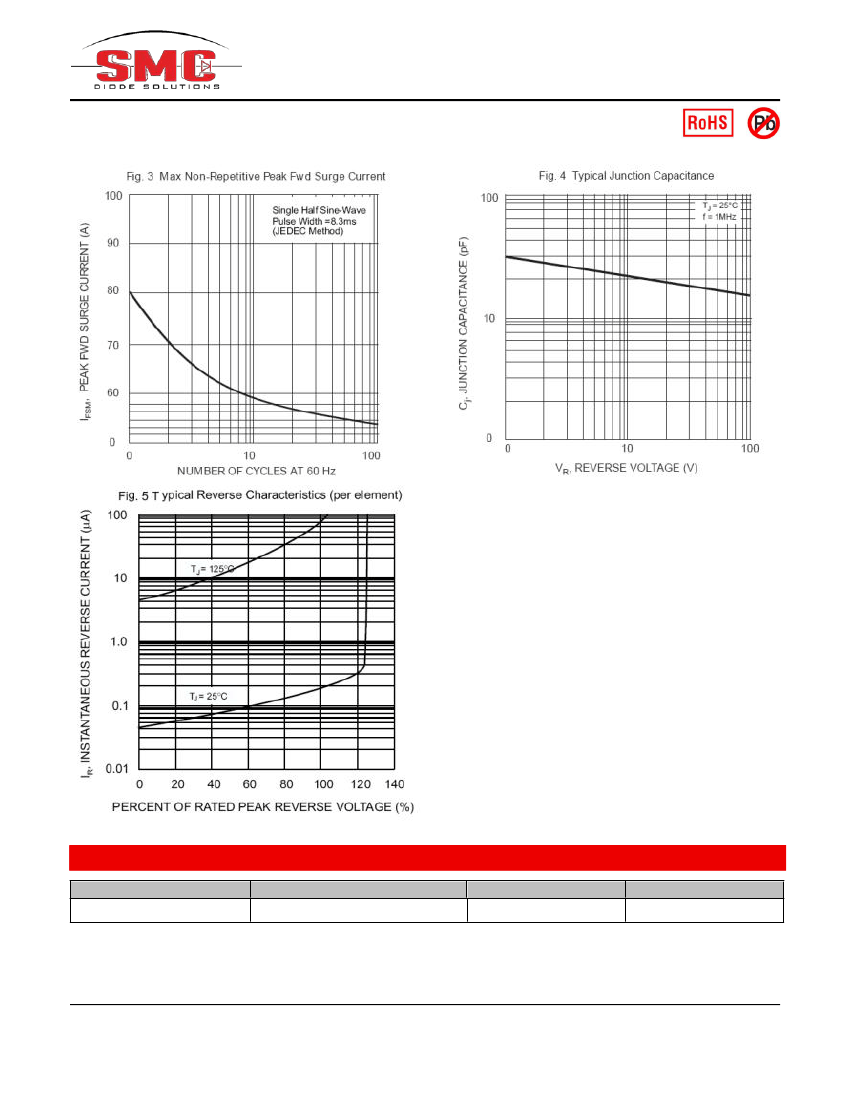

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
KBP3005G
THRU
KBP310G
Technical Data
Data Sheet N1917 Rev. A
Ordering Information
Device
KBP3005G THRU KBP310G
Package
KBP(Pb-Free)
Plating
Pure Sn
Shipping
35pcs / tube
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel packaging
specification.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
KBP3005G
THRU
KBP310G
Technical Data
Data Sheet N1917 Rev. A

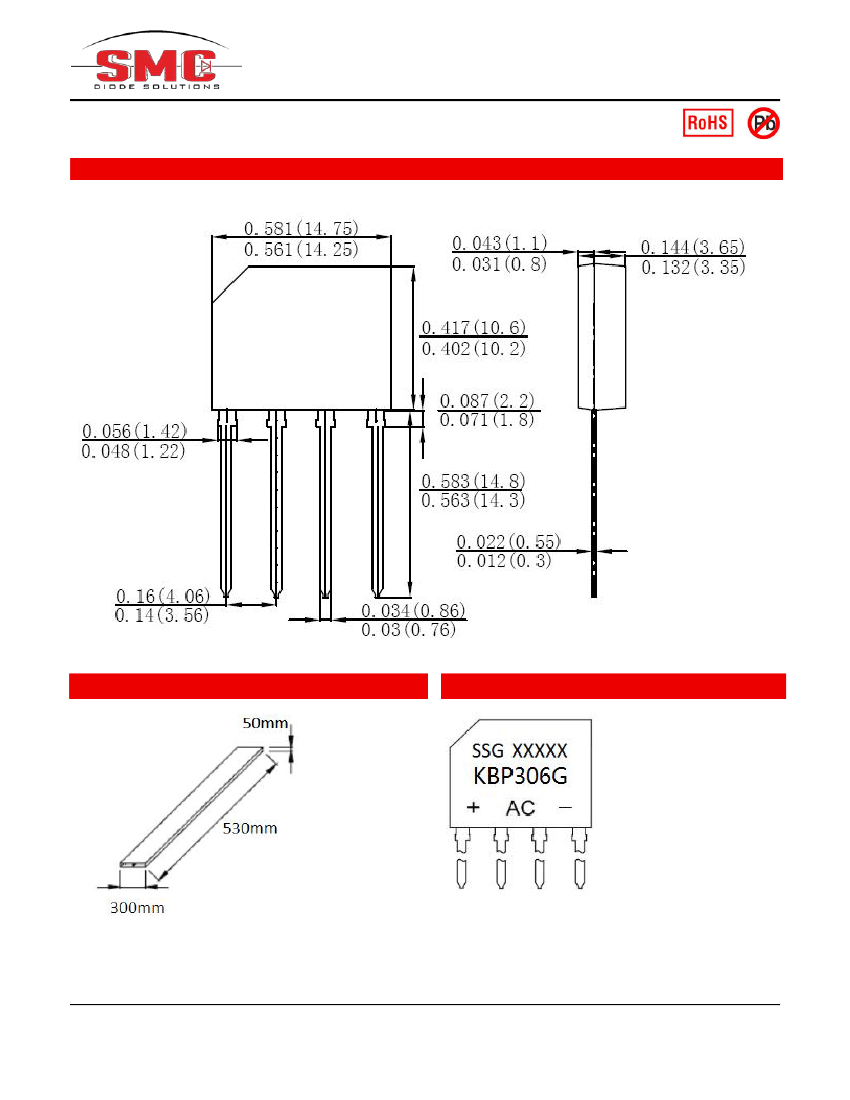

Mechanical Dimensions KBP (Inches/Millimeters)
Tube Specification
Marking Diagram
Where XXXXX is YYWWL
SSG
YY
WW
L
KBP306G
= SSG
= Year
= Week
= Lot Number
= Type Number
Cautions：Molding
resin
Epoxy resin UL:94V-0
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
KBP3005G
THRU
KBP310G
Technical Data
Data Sheet N1917 Rev. A
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of
the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall
SMC Diode Solutions
be liable for any damages that may result from an accident or any other cause during
operation of the user’s units according to the datasheet(s).
SMC Diode Solution
assumes no responsibility for any intellectual property
claims or any other problems that may result from applications of information, products or circuits described in the datasheets.
4- In no event shall
SMC Diode Solutions
be liable for any failure in a semiconductor device or any secondary damage resulting from use
at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or
SMC Diode Solutions.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of
SMC
Diode Solutions.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
