801-343M07-162AAV

Description
Rectangular Connector
CategoryThe connector    The connector
File Size396KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

801-343M07-162AAV Overview

Rectangular Connector

801-343M07-162AAV Parametric

Parameter NameAttribute value
Objectid7098604726
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresBODY DIAMETER: 1.264, POLARISED
subject depth1.02 inch
Body/casing typeRECEPTACLE
Connector typeRECTANGULAR CONNECTOR
Contact point genderFEMALE
Installation typeCABLE AND PANEL
Number of rows loaded1
OptionsGENERAL PURPOSE
Shell materialALUMINUM ALLOY
Total number of contacts4
USB 2.0
Series 801, 804 and 805 Mighty Mouse
801-342 PC tail or 801-343 solder cup receptacles with
USB 2.0 Type A female mating interface

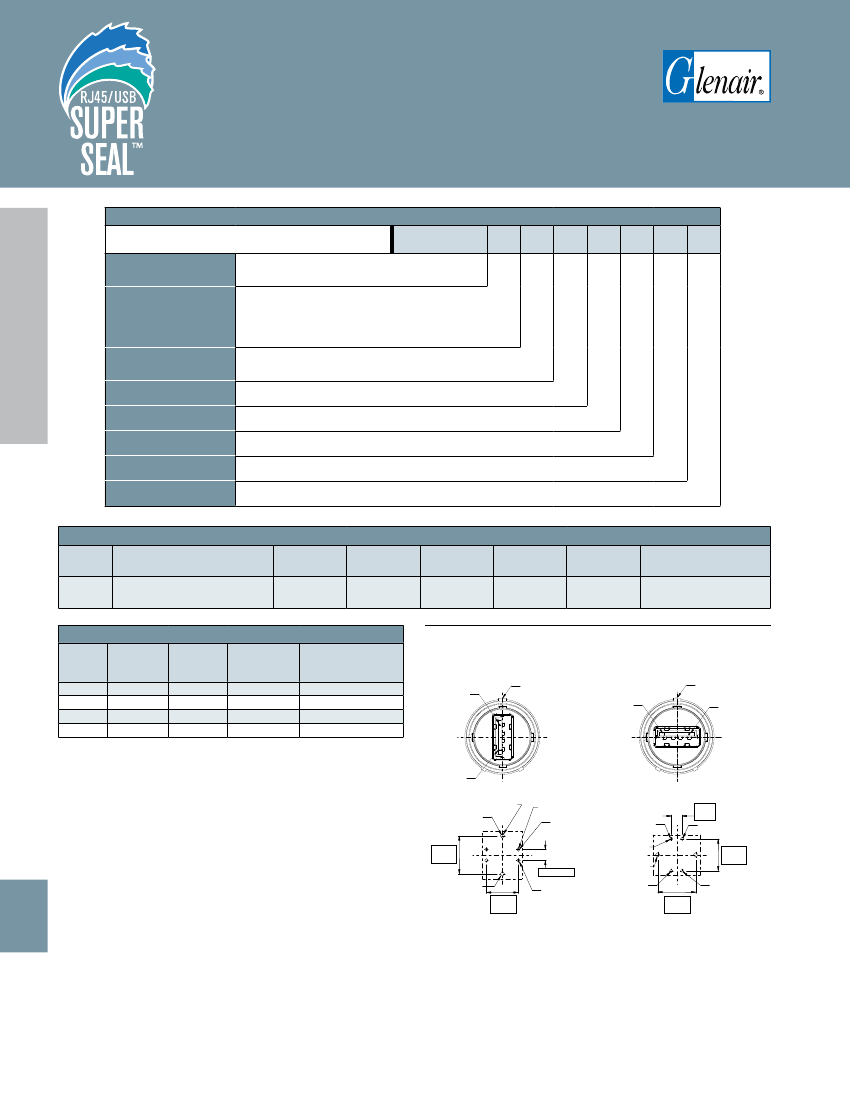

How To Order
Series 801 Mighty Mouse
Size
Shell
16
Pin
1
2
3
4
Sample Part Number
Series
801-342
= PC Tail
801-343
= Solder Cup
NF
= Cadmium Olive Drab
M
= Electroless Nickel
MT
= Nickel PTFE
ZNU
= Black Zinc Nickel
801-342
NF
07
-16
2
A
A
H
Material and Finish
1
Shell Style
1
Shell Size
USB Performance
USB Type
Aternate Key Positions
1
USB Orientation
02
= Front or Rear, Square Flange Panel Mount Receptacle
07
= Jam Nut Receptacle, Rear Panel Mount
16
= Shell Size 16
2
= USB 2.0
A
= Type A
A, B, C, D, E, F;
Omit for single keyway (non polarized)
H
= Horizontal
V
= Vertical

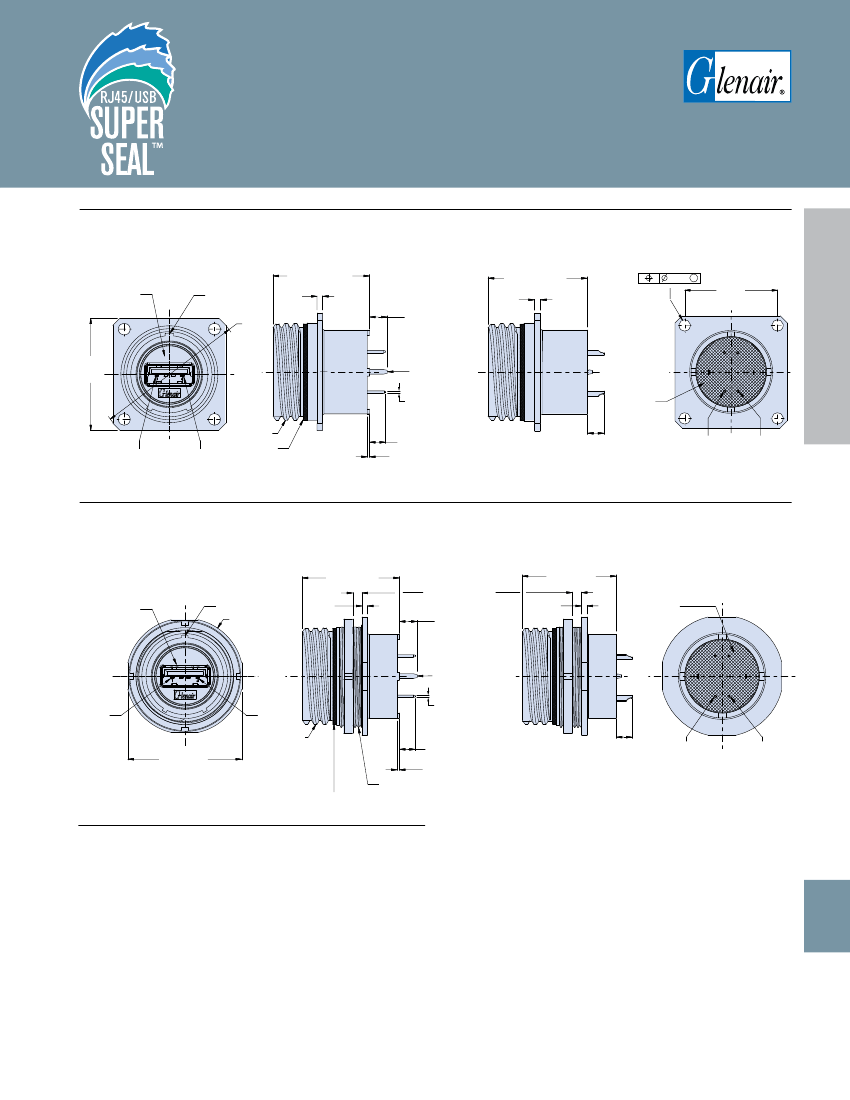

Dimensions
C Threads
1.0000-.1P-.2L-DS-2A
ØE
1.625
(41.28)
F Sq
1.219
(30.96)
G Bsc
0.981
(24.92)
ØJ
1.264
(32.11)
K Flat
1.230
(31.24)
M Threads
1.0625-20 UN-2A
USB 2.0 Wiring
Name
(V Bus)
(D-)
(D+)
(GND)
Cable
Color
(USB)
Red
White
Green
Black
Description
+5 V
Data -
Data +
Ground
Recommended Wire
Size (AWG)
22
28
28
22
USB 2.0 ORIENTATION OPTIONS
V (Vertical)
Pin 4
Master Keyway
Pin 1
H (Horizontal)
Master Keyway
Pin 4
Pin 1
2x Ø.060
(1.52)
Pin 4
4x Ø.039
(.99)
Pin 3
.150
(3.81)
Pin 2
.440
(11.18)
Pin 1
.526
(13.36)
Pin 3
4x Ø.039
(.99)
2x Ø.060
(1.52)
Pin 4
.526
(13.36)
.150 (3.81)
Pin 1
Pin 2
.440
(11.18)
K
PCB Layout
(Solder Side)
PCB Layout
(Solder Side)
PCB layouts apply to 801-342. USB orientation applies to 801-342 and 801-343
K-6
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • SuperSeal™ Catalog
Dimensions in Inches (millimeters) are subject to change without notice.
