6062034500000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 6062034500000

6062034500000: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size156KB，2 Pages; ManufacturerW+P Products GmbH

Download Datasheet Parametric View All

6062034500000 Overview

Board Connector, 34 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug

6062034500000 Parametric

Parameter Name	Attribute value
Maker	W+P Products GmbH
Reach Compliance Code	compliant
body width	0.118 inch
subject depth	0.091 inch
body length	0.866 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	6062
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	34
Base Number Matches	1

Preview

Download Datasheet

View All

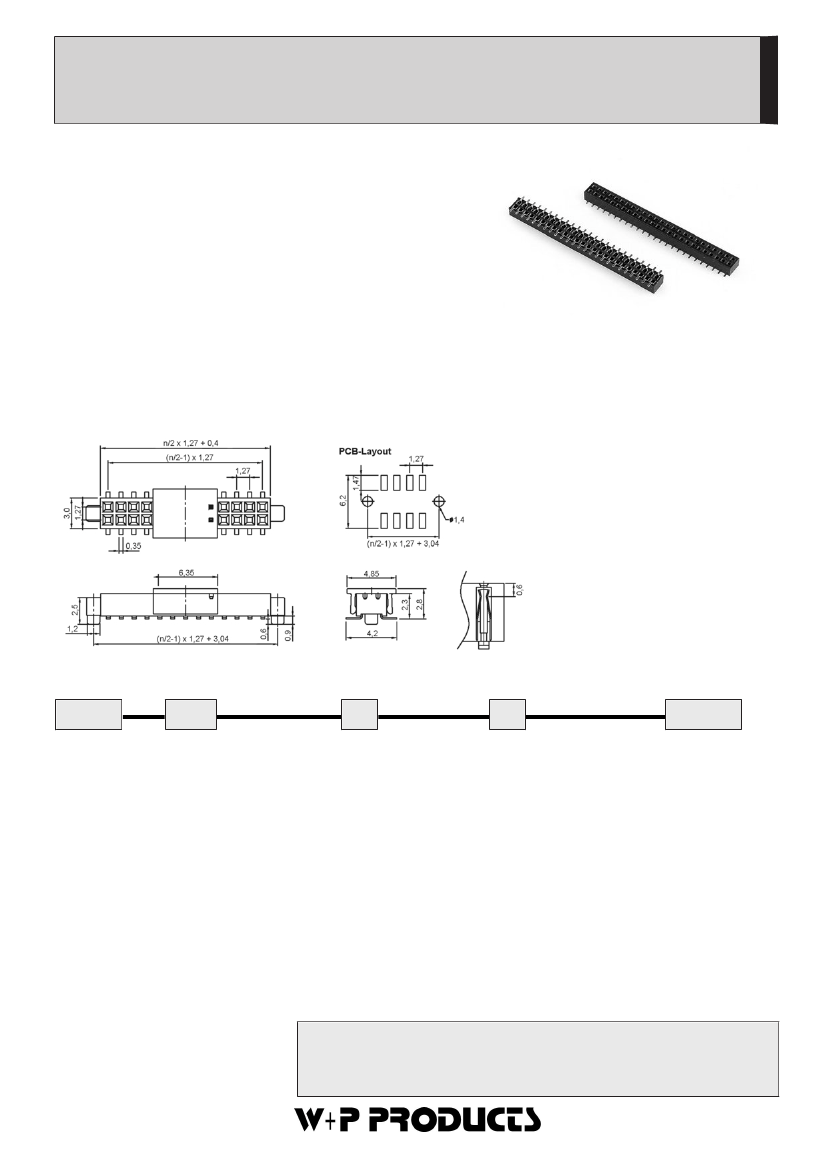

6062

SMT-Buchsenleiste RM 1,27mm - 2-reihig - flache Bauform

SMT Female Header - 1,27mm Pitch - Double Row - Low Profile

Technische Daten /Technical

Data

Isolierkörper

Thermoplastischer Kunststoff, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Kupferlegierung

Contact Material

Copper alloy

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1,3 ... 2,5µm)

Lötbarkeit

IEC512-12A

Solderability

IEC512-12A

Durchgangswiderstand

< 20mΩ

Contact Resistance

< 20mΩ

Isolationswiderstand

> 10

Ω

Insulation Resistance

> 10

Ω

Spannungsfestigkeit

500V

Test Voltage

500V

Nennstrom

Current Rating

Temperaturbereich

-40°C ... +105°C

Temperature Range

-40°C ... +105°C

Verarbeitung

Reflow-Lötverfahren; weitere Informationen in Kapitel T

Processing

Reflow-soldering, detailed information in ch. T

Passende Stiftleisten Serien:

Mates with Male Headers Series:

7072

7073

7075

oder 0,40mm

Vierkantstift /

0,40mm square pin

Series

Contacts

Plating

Locating Peg

Packing

6062

020

010-100

Zweireihig

Double row

Vergoldet

Gold plated

Verzinnt

Tin plated

Ohne Pos.hilfe

W/o locating peg

Mit Pos.hilfe

With locating peg

PPST

PPTR

(

Bestellbeispiel - Bitte durch Ihre

Spezifikationen ersetzen.

Order example - To be replaced by your

specifications.)

TEL.: +49 5223 98507-0

FAX.: +49 5223 98507-50

Lieferformen /

Packing Options:

= Schüttgut ohne PP-Pad /

Bulk good w/o PP-Pad

= In Stangen ohne PP-Pad /

In tubes w/o PP-Pad

PPST

= In Stangen mit PP-Pad /

In tubes with PP-Pad

PPTR

= Tape & Reel mit PP-Pad /

Tape & Reel packing with PP-Pad

E-MAIL: sales@wppro.com

INTERNET: www.wppro.com
