MADP-007448-0287FT datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> MADP-007448-0287FT

MADP-007448-0287FT: DescriptionPin Diode, 100V V(BR), Silicon, ROHS COMPLIANT, PLASTIC, CASE 287, 3 PIN; CategoryDiscrete semiconductor diode; File Size147KB，9 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric View All

MADP-007448-0287FT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MADP-007448-0287FT	-	-	View	Buy Now

MADP-007448-0287FT Overview

Pin Diode, 100V V(BR), Silicon, ROHS COMPLIANT, PLASTIC, CASE 287, 3 PIN

MADP-007448-0287FT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MACOM
package instruction	R-PDSO-G3
Contacts	3
Manufacturer packaging code	CASE 287
Reach Compliance Code	compliant
Other features	LOW DISTORTION
application	ATTENUATOR; SWITCHING
Minimum breakdown voltage	100 V
Configuration	COMMON CATHODE, 2 ELEMENTS
Maximum diode capacitance	0.25 pF
Diode component materials	SILICON
Maximum diode forward resistance	2 Ω
Diode resistance test current	10 mA
Diode type	PIN DIODE
frequency band	S BAND
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Minority carrier nominal lifetime	0.4 µs
Number of components	2
Number of terminals	3
Maximum operating temperature	175 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.25 W
Certification status	Not Qualified
surface mount	YES
technology	POSITIVE-INTRINSIC-NEGATIVE
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SMPP Series

Surface Mount Plastic PIN Diodes

Features

•

Industry Standard Surface Mount Packages

•

Lead-Free (RoHS Compliant) Equivalents

•

Available with 260

°C

Reflow Compatibility

Low Loss, High Isolation Switching Diodes

Low Distortion Attenuator Diodes

Single and Dual Diode Configurations

Tape and Reel Packaging

SOT-23

Rev. V19

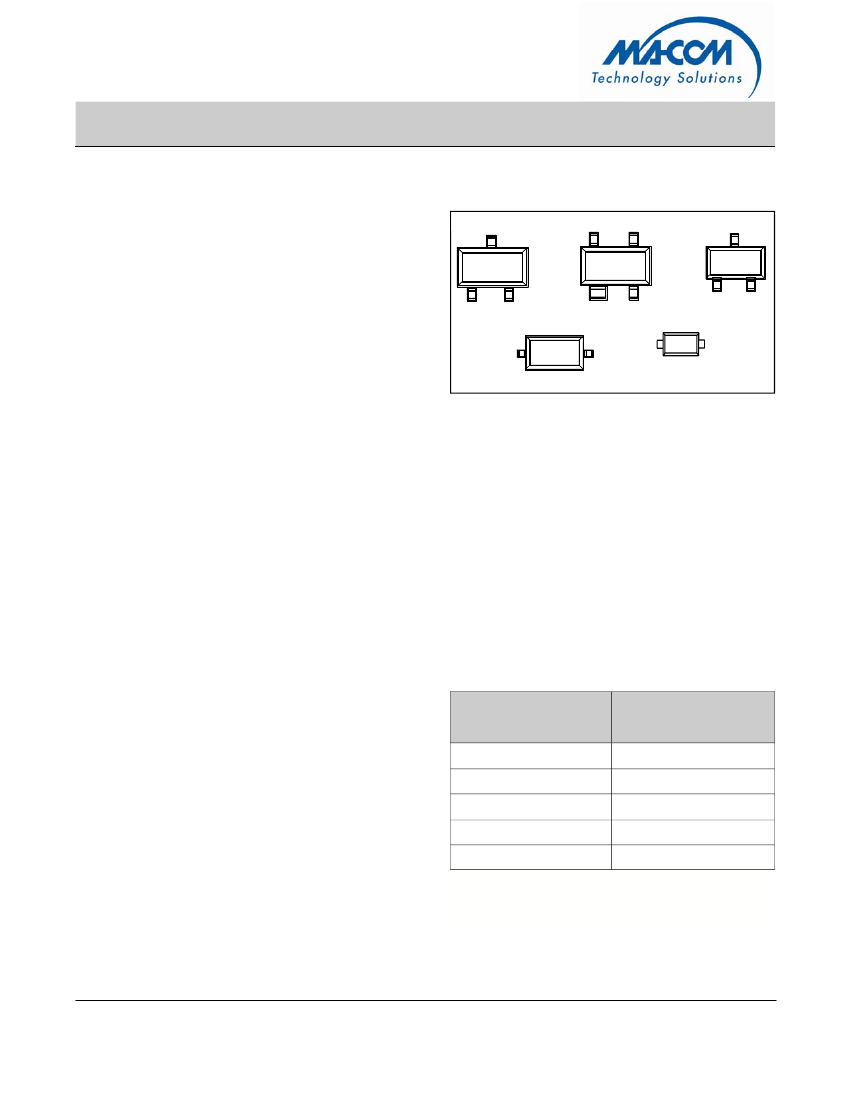

Package Outlines

SOT-143

SOT-323

SOD-323

SC-79

Description and Applications

M/A-COM Technology Solutions offers silicon PIN diodes

in five standard, low cost, surface mount plastic packages

for use as switches and attenuators. The diodes are

offered with standard Sn/Pb plating, as well as with 100%

matte Sn plating on our RoHS compliant devices. These

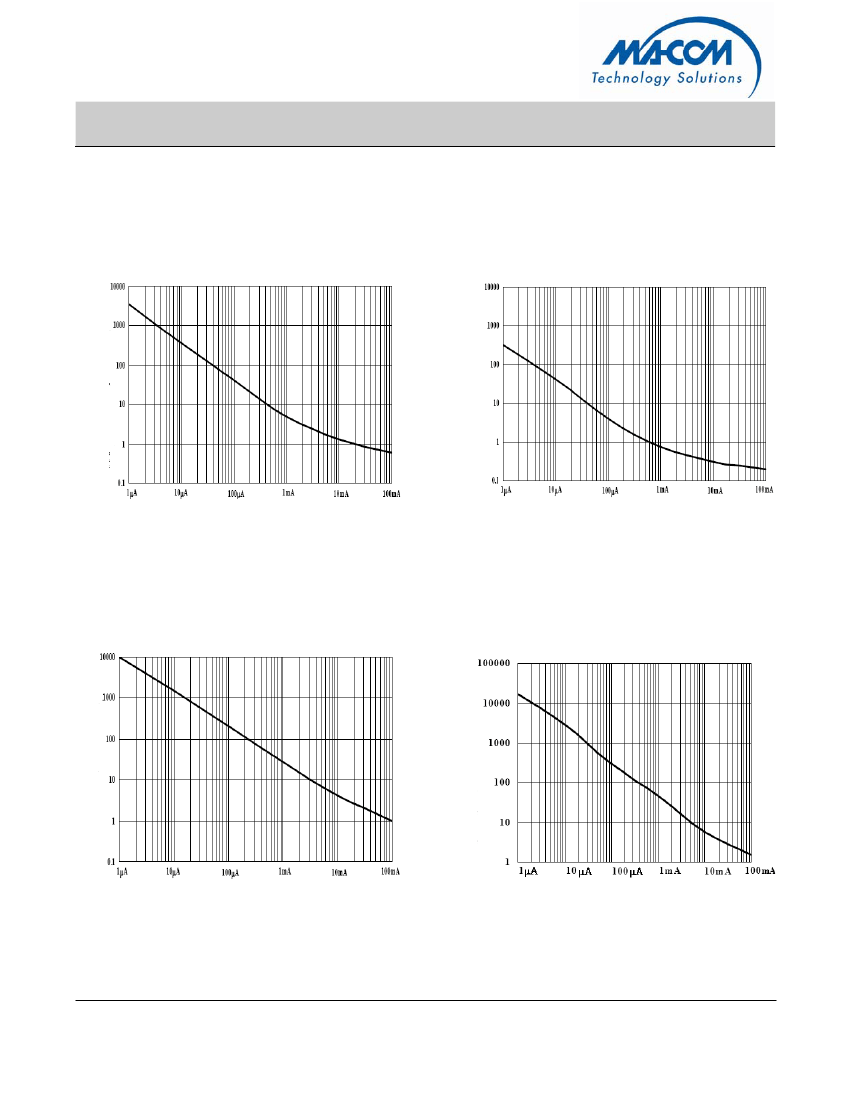

PIN diodes feature a variety of I-region lengths resulting in

lower resistance, and lower capacitance devices for

various microwave control circuit applications.

The

MA4P275 / MA4P7436 / MADP-007436

series offer

the lowest series resistance for best performance as low

loss series switches and high isolation shunt switches.

The

MA4P789 / MA4P7433 / MADP-007433

series have

the lowest capacitance and offers the highest isolation in

series and series-shunt switches through 3GHz.

The

MA4P282 / MA4P7447 / MADP-007155

series, the

MA4P274 / MA4P7455 / MADP-007455

series and the

MADP-007448

series are general purpose PIN diodes

useful as either switches or attenuators.

The

MA4P277 / MA4P7437 / MADP-007437

series and

MA4P278 / MA4P7438 / MADP-007438

series device

have thicker intrinsic regions to provide lower distortion in

attenuator circuits.

The

MA4P290/MADP-007167

series devices have the

thickest I-Region, offering the lowest distortion and highest

IP3 for current controlled attenuator circuits. These

devices are ideal for AGC functions for infrastructure and

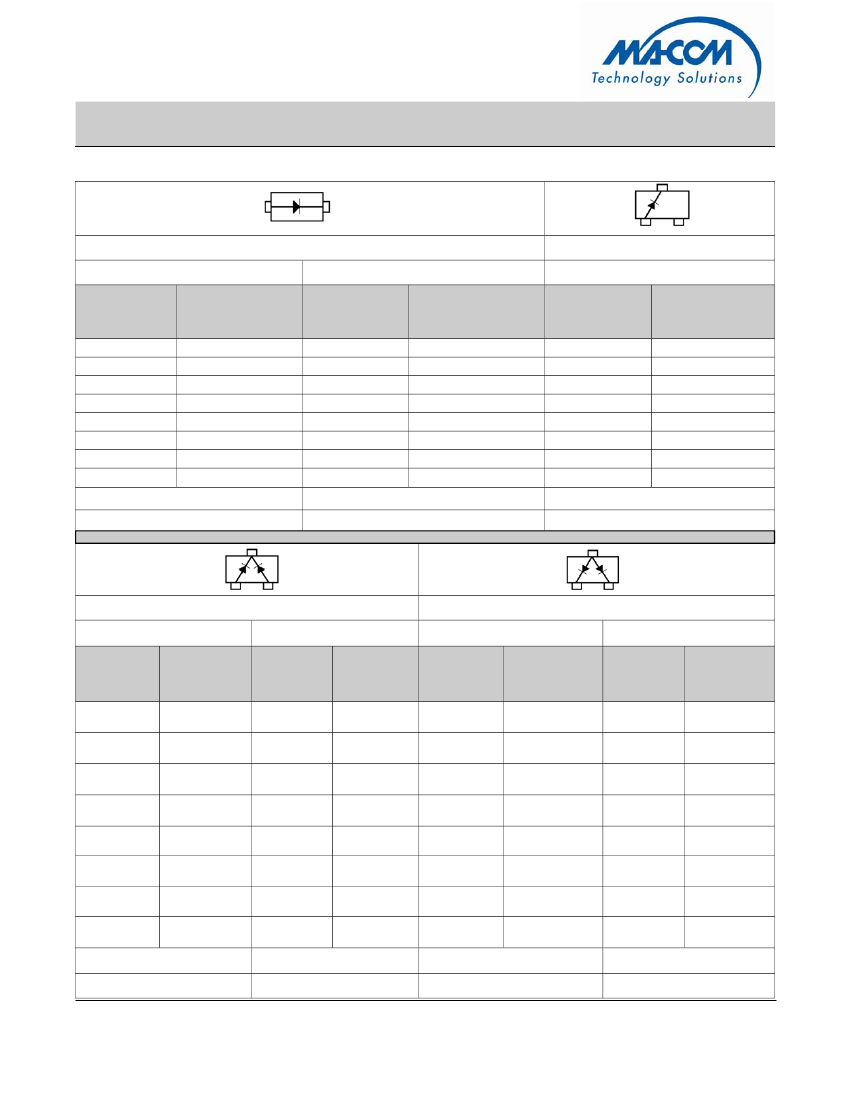

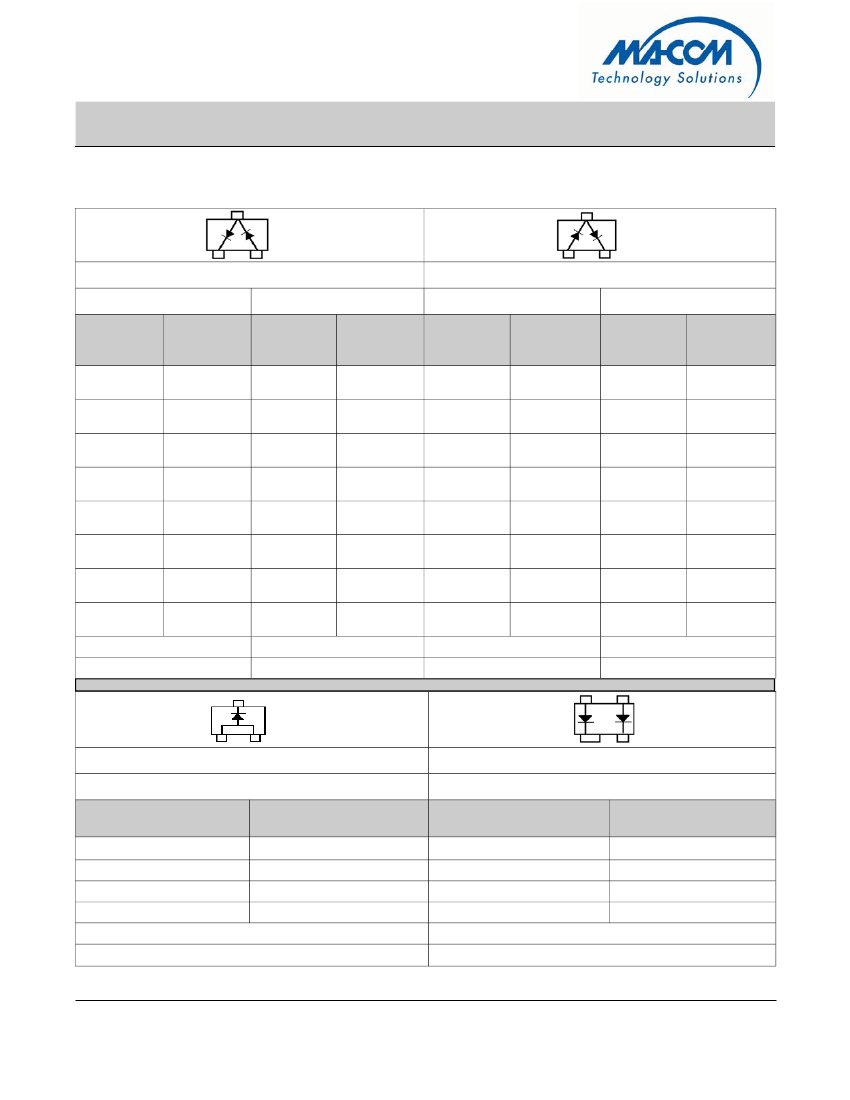

The diodes are come in various chip configurations and

are available as single diodes, series tees (ST), series tee

reverse (STR), common cathode pairs (CK), common

anode pairs (CA), and unconnected pairs in the respective

featured packages.

M/A-COM’s PIN diodes are available in the SOT-23 (case

style 287), the SOT-143 (case style 1068), the SOT-323/

SC-70 (3L) (case style 1146), the SOD-323 (case style

1141), and the SC-79 (case style 1279) packages. These

packages are supplied on tape and reel for automatic pick

and place assembly. The tape and reel suffix designation

is a “T” at the end of the part number.

Absolute Maximum Power Ratings @ 25 °C

Parameter

Operating Temperature

Storage Temperature

Junction Temperature

Reverse Voltage

Forward Current

Absolute

Maximum

-65°C to +150

°C

-65°C to +125

°C

+ 175

°C

Voltage Rating (See Table)

150 mA DC

1. Operation of these devices above any one of these

parameters may cause permanent damage.

ADVANCED:

Data Sheets contain information regarding a product MA-COM Technical Solutions is

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

considering for development. Performance is based on target specifications, simulated results, and/

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

or prototype measurements. Commitment to develop is not guaranteed.

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

PRELIMINARY:

Data Sheets contain information regarding a product MA-COM Technical Solutions

Visit www.macom.com for additional data sheets and product information.

has under development. Performance is based on engineering tests. Specifications are typical.

Mechanical outline has been fixed. Engineering samples and/or test data may be available. Commit-

MA-COM Technical Solutions and its affiliates reserve the right to make changes to the

ment to produce in volume is not guaranteed.

product(s) or information contained herein without notice.
