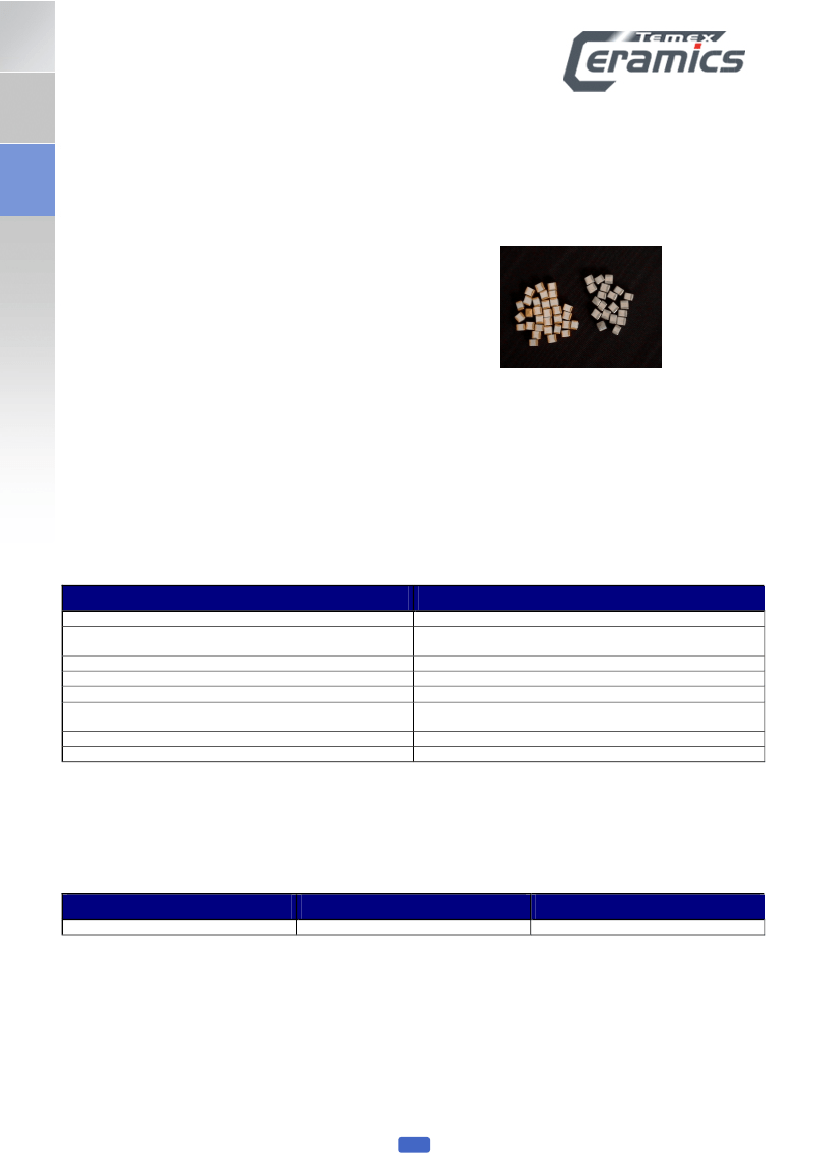

CHB Series
RF & Microwave Capacitors, RoHS Compliant
D
ESCRIPTION
Low ESR, Ultra High-Q
Highest working voltage in class - 1'500V
Porcelain Capacitors
Laser Marked (optional)
High Self-Resonance Frequencies
A
PPLICATIONS
•
•
•
•
Cellular Base Station Amplifiers
Industrial
Medical (MRI)
Scientific
C
IRCUIT APPLICATIONS
•
•
•
DC to RF Conversion
Matching Networks
Tuning, Coupling and DC Blocking
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
I. E
LECTRICAL SPECIFICATIONS
Parameter
Capacitance
Tolerances
Working Voltage (WVDC)
Temperature Coefficient
Insulation Resistance
Dielectric Withstanding
(test voltage applied for 5 seconds)
Aging
Piezo Effects
Value
0.1 to 1'000 pF
A, B, C, D below 10 pF
F, G, J, K, M above 10 pF
see Capacitance Value chart
100 +/-30ppm/° -55° to +125°
C,
C
C
6
10 MΩ min
2.5 x WVDC for WVDC
≤
500V
1.5 x WVDC for 500V < WVDC
none
none
NB: the temperature range for the CHB up to 100pF is upgraded from +125° to +175°
C
C.
II. M
ECHANICAL SPECIFICATIONS
Parameter
Case Size
Value
B
Comment
1111
NB:
- all the terminations are backward compatible and lead-free.
- the non-magnetic terminations are all Magnetism-free Rated.
MR
certified®
ITAR
Free
®
1
CHB.doc - Ed.31
CHB Series
RF & Microwave Capacitors, RoHS Compliant
Termination Type
Standard (tin-plated nickel)
Code
S
CHB
AVAILABLE
Non-magnetic (tin-plated copper)
C
AVAILABLE
III. E
NVIRONMENTAL SPECIFICATIONS
Parameter
Life Test
Moisture Resistance Test 1
Moisture Resistance Test 2
Value
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
2'000 hours, +125°
C
at 2.0 x WVDC (standard WVDC range)
240 hours, 85% relative humidity at +85°
C
(ESA/SCC n°
3009)
56 days, 93% relative humidity at +40°
C
0V, 5V, WVDC
IV. O

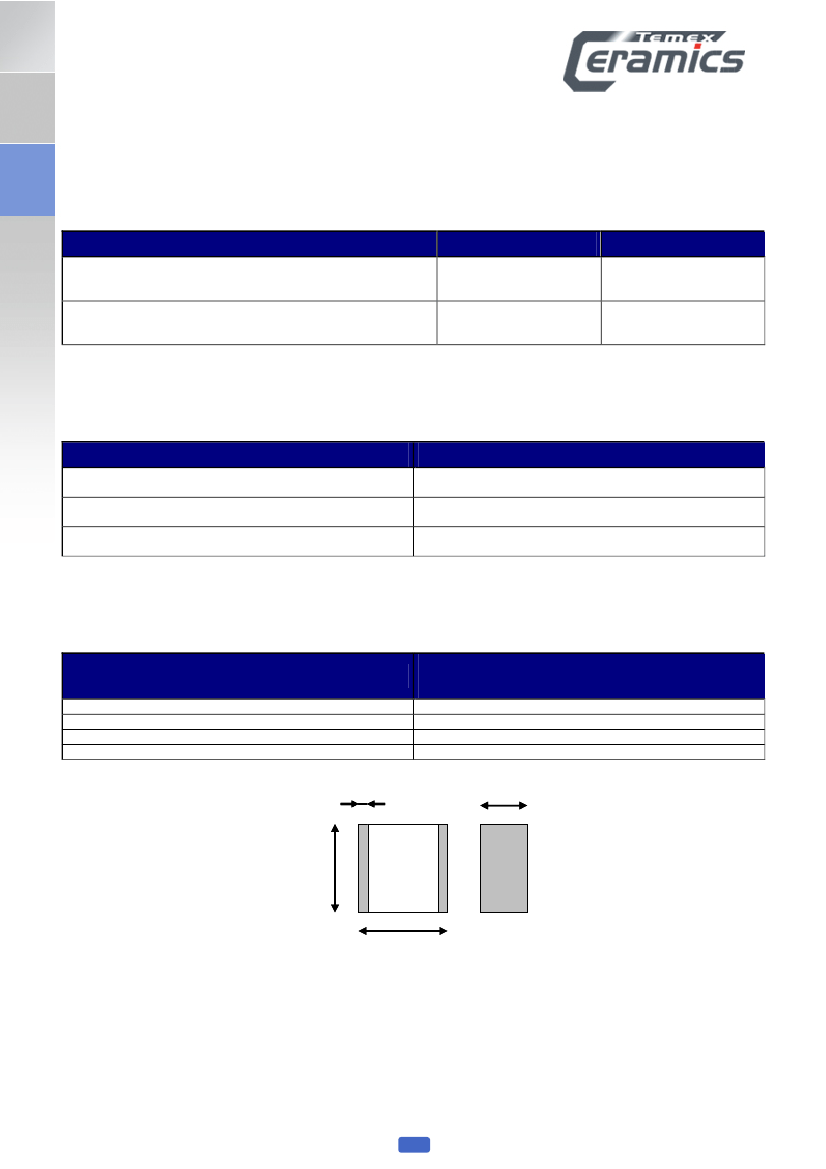

UTLINE DIMENSIONS
Parameter
Length (L)
Width (W)
Thickness (T)
End-Band (e)
B
(1111)
2.80 ±0.40mm
2.80 ±0.40mm
2.60 mm (max.)
0.40 ±0.25mm
e
T
W
L
2
CHB.doc - Ed.31
CHB Series
RF & Microwave Capacitors, RoHS Compliant
V. H
OW TO ORDER
501
CH
B
100
J
S
L
E
ROHS
voltage
dielectric
case size
capacitance
tolerance
code
A=±0.05
pF
B=±0.1
pF
C=±0.25
pF
D=±0.5
pF
termination
code
please refer
to
Mechanical
Specification
chart
mechanical
code
please refer
to
Mechanical
Configuration
chart
marking
code
“L” means
laser
marking
requested
tape and
reel
“E” means
horizontal
orientation
the RoHS
tag is not
part of the
reference
please refer
to Volt.Code
given in
Capacitance
Values chart
please refer to
Cap. Code
given in
Capacitance
Values chart
500=50V
101=100V
201=200V
301=300V
501=500V
601=600V
102=1KV
152=1.5KV
F=±1%
G=±2%
J=±5%
K=±10%
leave
blank if no
tape and
reel
requested
NB: for capacitance values lower than 10pF, tolerances A, B, C and D apply. For capacitance values
equal to or higher than 10pF, tolerances F, G, J and K apply;
VI. T
APE AND
R
EEL
The following chart gives the number of components per reel.
CHB
Parts per Reel
1’000
3
CHB.doc - Ed.31
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
leave blank if
no
mechanical
requested
leave
blank if no
marking
requested
“X” means
vertical
orientation
tag added
at the end
of P/N for
information
CHB Series
RF & Microwave Capacitors, RoHS Compliant
VII. C
APACITANCE VALUES
Value (pF)
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
Cap. Code
0R1
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
130
150
160
B
(1111)
Standard
Extended
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
1 000
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
151
161
181
201
221
241
271
301
331
361
391
431
471
511
561
621
681
751
821
911
102
Value (pF)
Cap. Code
B
(1111)
Standard
Extended
500V
1500V
500V
1500V
300V
1000V
200V
600V
100V
300V
50V
NB: special values, tolerances, higher WVDC and matching available, please consult factory.
Dielectric withstanding test is done at 1.8 x WVDC for Extended Range values
≥
820pF.
4
CHB.doc - Ed.31
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
CHB Series
RF & Microwave Capacitors, RoHS Compliant
VIII. M
ECHANICAL
C
ONFIGURATIONS

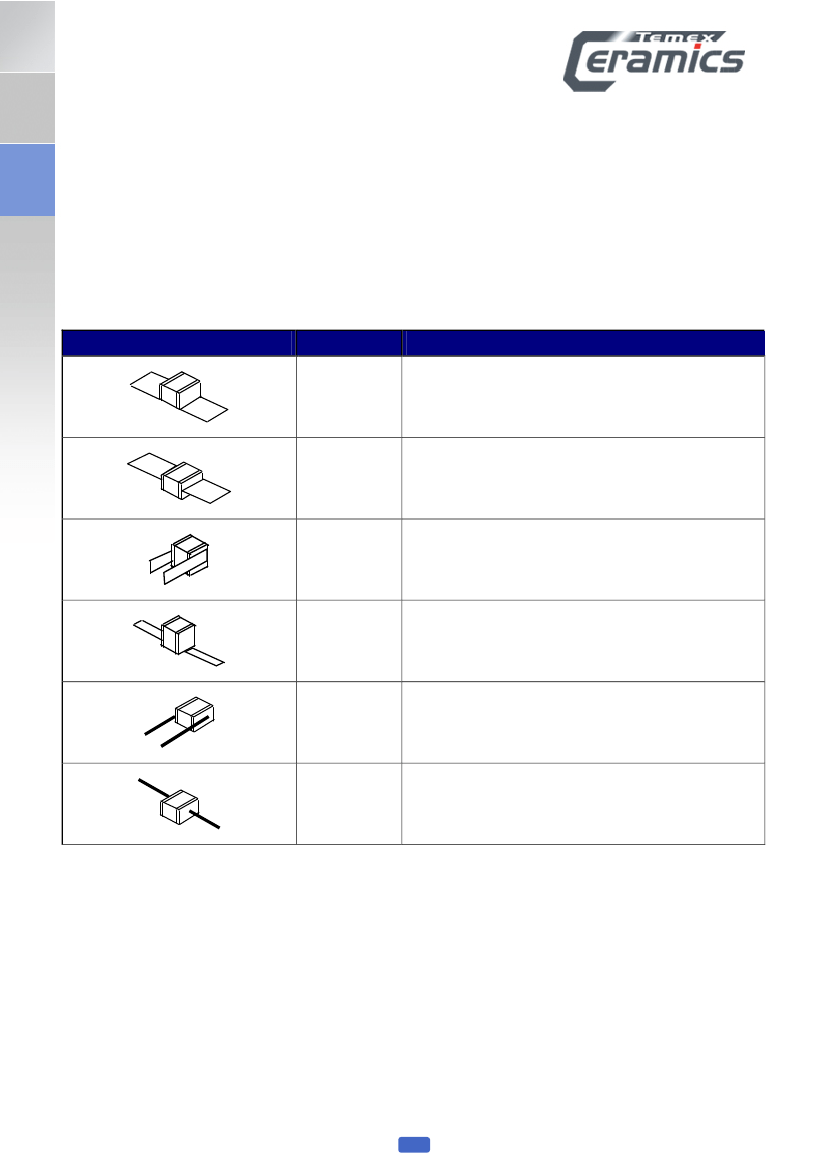

VIII.1. Lead/Ribbon and Wire Types
Configuration Type
Code
Description
1
Micro-strip Ribbon
2
Axial Ribbon
3
Radial Ribbon
5
Narrow Micro-strip Ribbon
6
Radial Wire
7
Axial Wire
NB: when coding ribbons or wires for the description of the part, the termination has to be mentioned
for MR
certified
types to ensure that only non-magnetic materials are used.
Examples :
501 CHB 470 J1L
501 CHB 470 JC1L
any termination material could be used
only non-magnetic termination materials could be used
5
CHB.doc - Ed.31
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
