2207S-06SG-635 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2207S-06SG-635

2207S-06SG-635: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Socket,; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerNeltron Industrial Company Ltd; Environmental Compliance

Download Datasheet Parametric View All

2207S-06SG-635 Overview

Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Socket,

2207S-06SG-635 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145154607219
Reach Compliance Code	compliant
body width	0.157 inch
subject depth	0.25 inch
body length	0.256 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
Plug contact pitch	0.079 inch
Match contact row spacing	2 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2 mm
Rated current (signal)	2 A
Guideline	CUL,UL,TUV
Terminal length	0.094 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

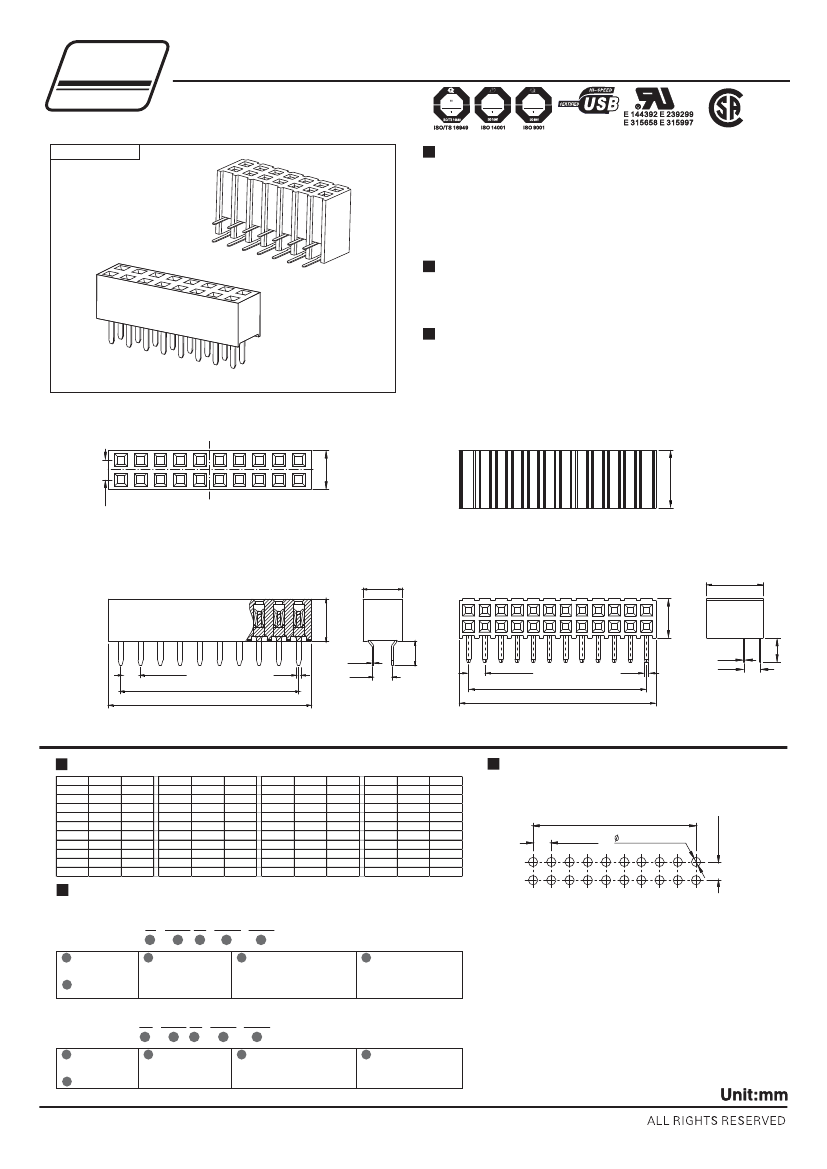

2207S-06SG-635 Preview

Neltron

Connectors

RoHS Compliant

2207S(R)Series

2.00mm PCB Socket Double

Rows Straight & R/A Type

TUV

SUD

TUV

SUD

TUV

SUD

Specifications

1. Current Rating: 2.0A AC/DC.

2. Voltage Rating: 250V AC/DC.

3. Contact Resistance: 20m ohm. max.

4. Insulation Resistance: 1000M ohm. Min.

5. Withstanding Voltage: 500V AC for one minute.

6. Operating Temperature Range: -40°C to +105°C.

2207

R-X

Material and Finish

1. Insulator: High Temperature M aterial (UL94V-0) .

2. Contact: Phosphor Bronze.

3. Plating: Gold Plated.

Feature

2207S

-XXG

1. Design for Home Appliances, Aviation Electronics,

Automobile Electronics and Computer(PC) Peripherals.

4.00

2.00

7.20

4.00

7.20

4.30

4.85

2.40

0.20

2.00±0.05

Dim.A±0.10

Dim. B ±0.20

0.50

2.00

2.00±0.05

Dim.A±0.10

Dim. B ±0.20

0.50

0.20

2.00

P/N: 2207S-XXG

P/N: 2207R-XXG

Engineering Dimension

Circuits

Dim. A

2.00

4.00

6.00

8.00

10.00

12.00

14.00

16.00

18.00

20.00

Dim. B

4.50

6.50

8.50

10.50

12.50

14.50

16.50

18.50

20.50

22.50

Circuits

Dim. A

22.00

24.00

26.00

28.00

30.00

32.00

34.00

36.00

38.00

40.00

Dim. B

24.50

26.50

28.50

30.50

32.50

34.50

36.50

38.50

40.50

42.50

Circuits

Dim. A

42.00

44.00

46.00

48.00

50.00

52.00

54.00

56.00

58.00

60.00

Dim. B

44.50

46.50

48.50

50.50

52.50

54.50

56.50

58.50

60.50

62.50

Circuits

Dim. A

62.00

64.00

66.00

68.00

70.00

72.00

74.00

76.00

78.00

Dim. B

64.50

66.50

68.50

70.50

72.50

74.50

76.50

78.50

80.50

Recommended PCB Layout

2.00±0.05

0.80±0.05 HOLE

Ordering Information

P/N: 2207S(R)-XXG

2207S-XXG-XX-XX

S: Straight Type

Double Rows

Insulator Height

40=4.00mm,635=6.35mm

710=7.10mm,935=9.35mm

Blank: Standard Type

G:Gold Plated

T: Tin Plated

SG: Selective Gold

Dip Length

12=1.20mm

16=1.60mm

32=3.20mm

Blank: Standard Type

No. Of Contacts

2207R-XXG-XX-XX

R: Right Angle

Double Rows

Insulator Height

53=5.30mm

Blank: Standard Type

G:Gold Plated

T: Tin Plated

SG: Selective Gold

Dip Length

24=2.40mm

Blank: Standard Type

No. Of Contacts

2017-2026

2.00±0.05

Dim.A±0.10

3.00

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
