5138-26TB/N: DescriptionD Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size216KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

5138-26TB/N Overview

D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Plug

5138-26TB/N Parametric

Parameter Name	Attribute value
Objectid	306937746
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.638 inch
body length	1.541 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Rated current (signal)	3 A
Guideline	UL
Shell surface	TIN
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

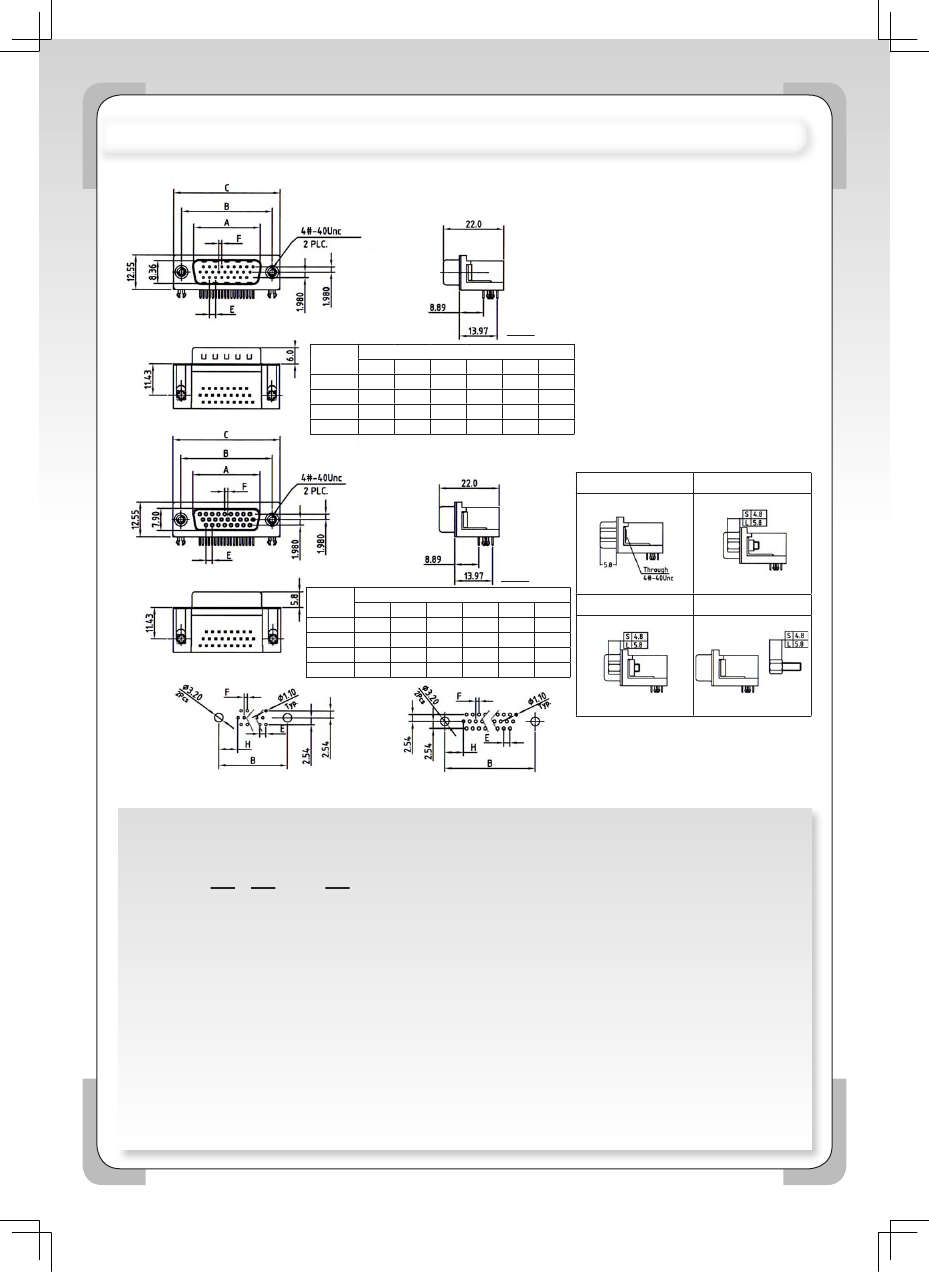

D-SUB. HIGH DENSITY CONNECTOR RIGHT ANGLE TYPE

WITH 4 PRONGED BOARDLOCKS (STANDARD: 8.89MM)

Current Rating:

3.0 Amperes

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

SPECIFICATIONS

5137

No. of

Contacts

15

26

44

62

A

16.92

25.25

38.96

55.42

Dimensions(mm)

B

C

E

F

24.99 30.81 2.29 1.145

33.32 39.14 2.29 1.145

47.04 53.04 2.29 1.145

63.50 69.32 2.41 1.205

H

7.04

6.88

7.00

MATERIALS

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

N

(BLANK)

5138

No. of

Contacts

15

26

44

62

A

16.33

24.66

38.38

54.84

Dimensions(mm)

B

C

E

F

24.99 30.81 2.29 1.145

33.32 39.14 2.29 1.145

47.04 53.04 2.29 1.145

63.50 69.32 2.41 1.205

H

7.04

6.88

7.00

NJ

NH

Recommended P.C.Board Layout

(15 POSITION)

Recommended P.C.Board Layout

(26, 44, 62 POSITION)

ORDERING INFORMATION:

P/N 5 1 x x - x x T B / x x

1

2

3

1. CONNECTOR TYPE:

"37" MALE

"38" FEMALE

2. NO. OF CONTACTS:

15, 26, 44, 62, 78

3. MOUNTING OPTION:

" " LOCKED SCREWS (4.8MM)

"N" WITHOUT SCREWS (5.8MM)

"NH" LOOSE SCREWS (4.8MM)

"NJ" ASSEMBLED SCREWS (4.8MM)

C0067
