173-2-006-0-STF-LS0: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking; CategoryThe connector The connector; File Size942KB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

173-2-006-0-STF-LS0 Overview

Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking

173-2-006-0-STF-LS0 Parametric

Parameter Name	Attribute value
Objectid	308710340
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
body width	0.165 inch
subject depth	0.11 inch
body length	0.236 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Dielectric withstand voltage	700VAC V
insulator material	POLYETHYLENE
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.098 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	6

Preview

Download Datasheet

View All

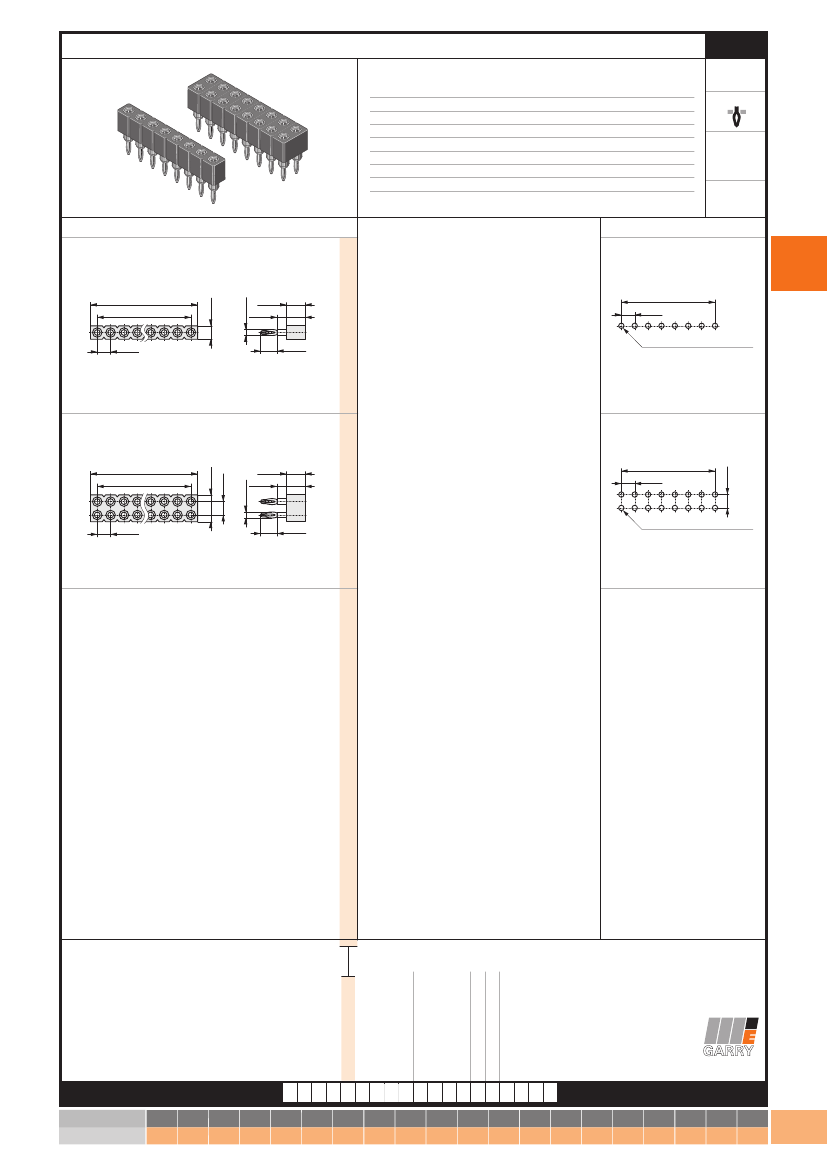

Female Header Press Fit with Turned Contacts 2,00 mm

Rated current

3,0 A

Rated voltage

150 V

RMS

/ V

DC

Withstand voltage

500 V

RMS

for one minute

Material contact

Copper alloy

Material clip

Berylium copper

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

Series

173

pitch

termination

mating pin

size

max.

pincount

2,00

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

ø 0,40-0,65

☐

0,50

Variation

All dimensions in mm.

PCB Layout

050 / 100

Product

group

ø0,91

n x 2,00

(n-1) x 2,00

2,00

2,80

4,20

2,50

2,20

1

(n-1) x 2,00

2,00

finished: ø0,70+0,09/-0,06

drilled: ø0,80±0,02

4

4,20

2,00

ø0,91

(n/2) x 2,00

(n/2-1) x 2,00

2,80

4,20

2

2,50

2,00

finished: ø0,70+0,09/-0,06

drilled: ø0,80±0,02

No. of contacts *

(002,... - 100)

* No. of contacts:

Variation 1 = 002 - 050

Variation 2 = 004 - 100

Clip style

Plating contact

Plating clip (F,H)

Clip style:

Plating:

S = 4 finger clip T = Sn

F = Au

H = Au 0,75 µ

Variation (1,2)

www.mpe-connector.de

Order code:

Mating series

see page

173-?-???-0-ST?-LS0

3-25 3-26 3-27 3-28 3-29 3-30 3-31 3-32

150 152 151 337 332 333 161 169

2,00

(n/2-1) x 2,00

2,00

4-21
