2402-132-CS-D-K8 datasheet, PDF

2402-132-CS-D-K8: DescriptionBoard Connector, 132 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size259KB，3 Pages; ManufacturerEaton

Download Datasheet Parametric View All

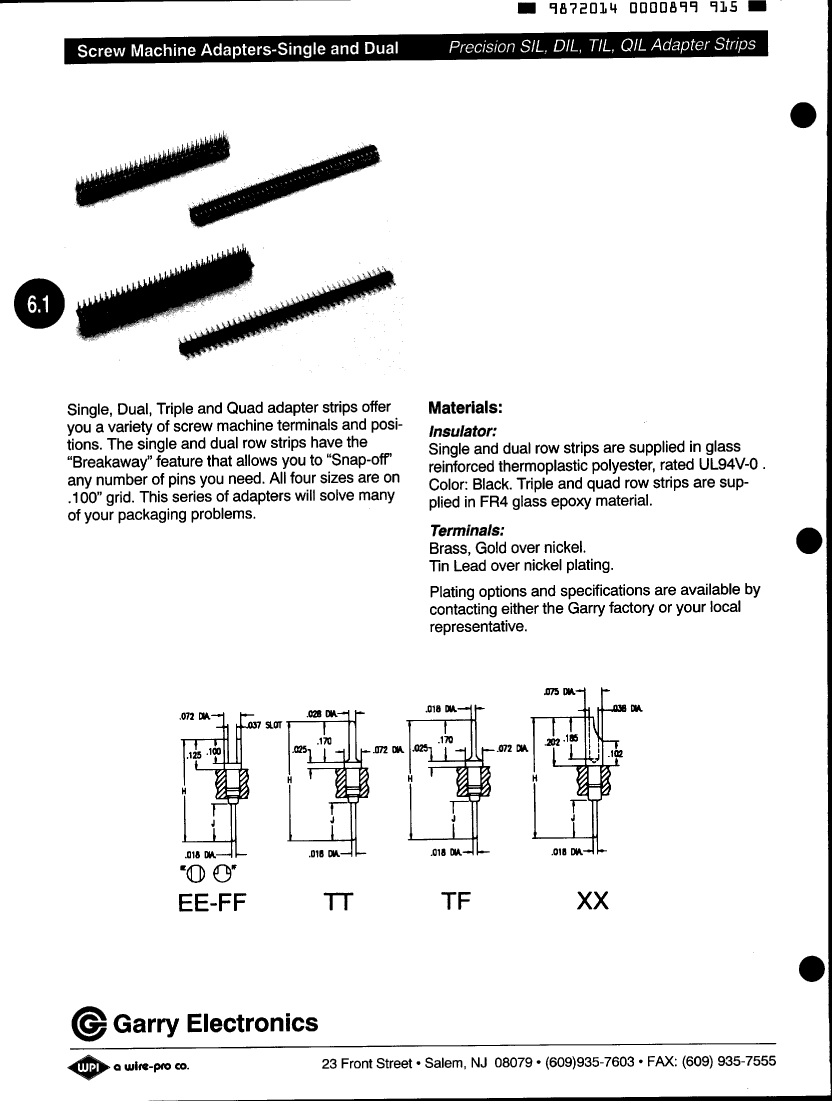

2402-132-CS-D-K8 Overview

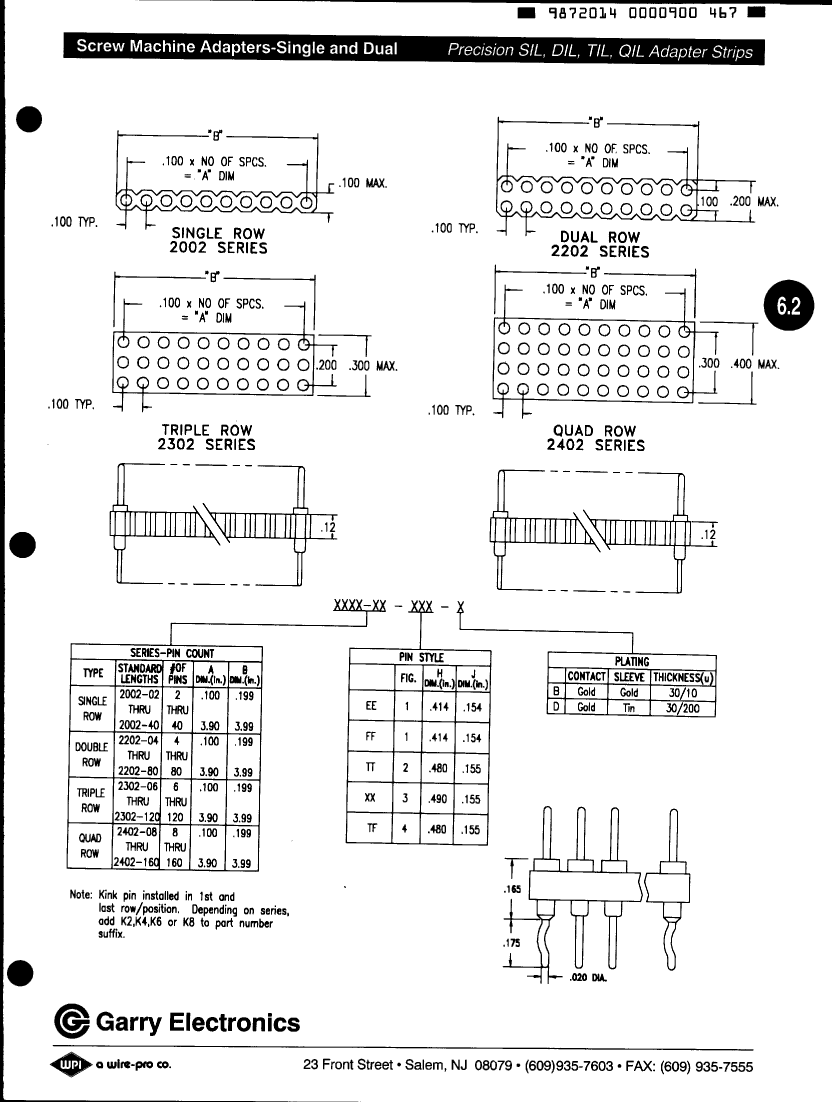

Board Connector, 132 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Black Insulator, Plug

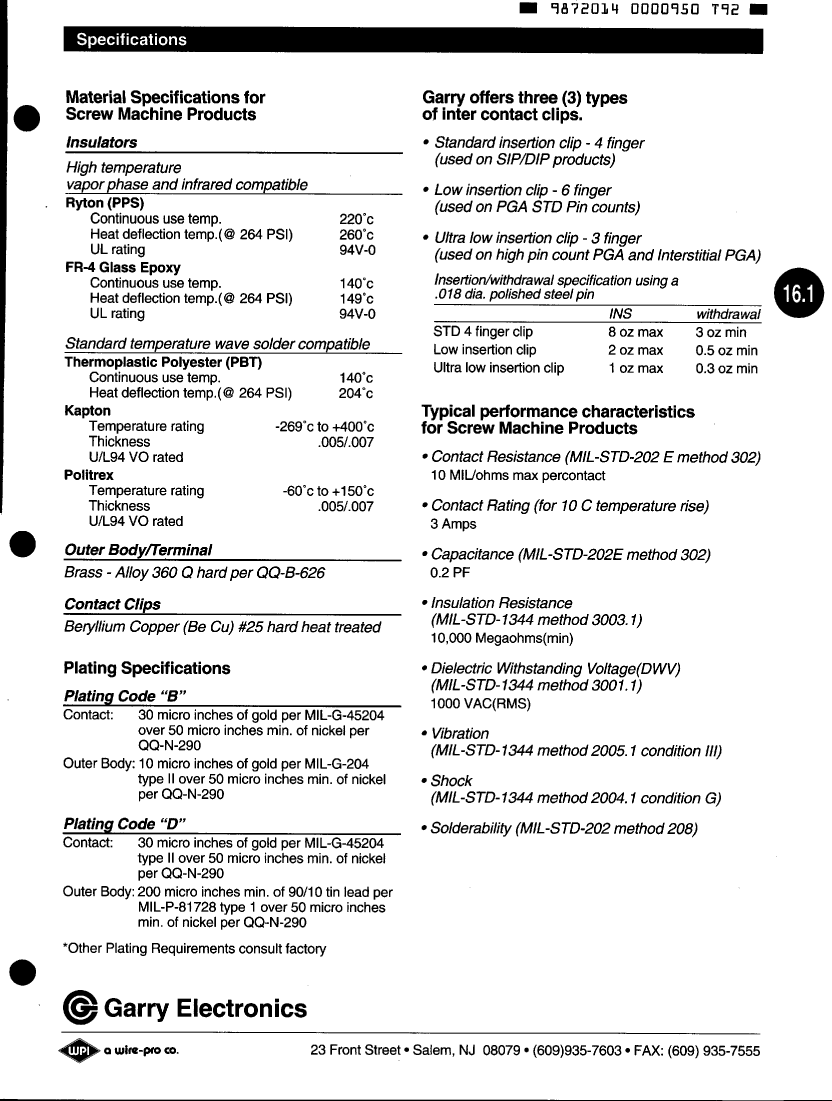

Parameter Name	Attribute value
Objectid	1225130228
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
body width	0.4 inch
subject depth	0.12 inch
body length	3.299 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.224 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED EPOXY
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	149 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	132
Evacuation force-minimum value	.834 N
