Reed Sensors

Firecracker > 59021

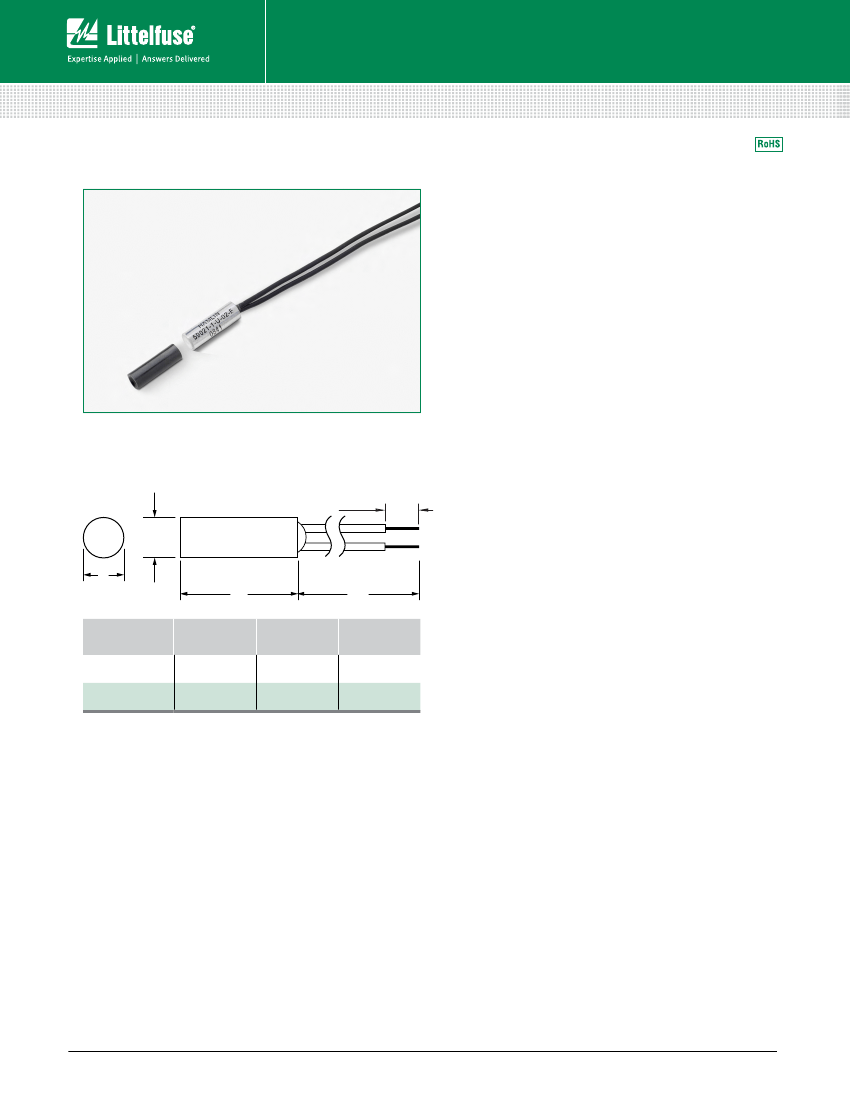

59021 Aluminium Miniature Firecracker Reed Sensor + 57020 Actuator

Description

The 59021 Firecracker Reed Sensor is a miniature cylindrical reed sensor with a

robust aluminium body 15.24mm x 5.10mm (0.600” x 0.201”) with a normally

open contact. It is capable of switching up to 170Vdc at 10W. It has a variety of

cable lengths and connector options. It functions best with the 57020-000

actuator.

Note: The 57020 Actuator is sold separately.

Features

• Two-part magnetically operated

proximity sensor

• Aluminium body

• Normally open contact

• Customer defined sensitivity option

• Choice of cable length and

connector

Dimensions

Dimensions in mm (inch)

6.35 NOM.

(.250)

Benefits

• Hermetically sealed, magnetically

operated contacts continue to

operate long after optical and other

technologies fail due to

contamination

• Quick and easy to install

• No standby power requirement

• Operates through non-ferrous

materials such as wood, plastic or

aluminium

Applications

Nom.

• Position and Limit Sensing

• Security Systems

• Level Sensing

• Linear Actuators

Max.

57020 Actuator

59021 Sensor

Max.

15.24 (.600)

5.10 (.201)

300±10.00

(11.81±.393)

Revised: 12/11/17

Specifications are subject to change without notice.

littelfuse.com
