5472DM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5472DM

5472DM: DescriptionJbar-Kbar Flip-Flop, 1-Func, Master-slave Triggered, TTL, CDIP14,; Categorylogic logic; File Size66KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5472DM Overview

Jbar-Kbar Flip-Flop, 1-Func, Master-slave Triggered, TTL, CDIP14,

5472DM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	JBAR-KBAR FLIP-FLOP
Humidity sensitivity level	2A
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
Certification status	Not Qualified
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Trigger type	MASTER-SLAVE
Base Number Matches	1

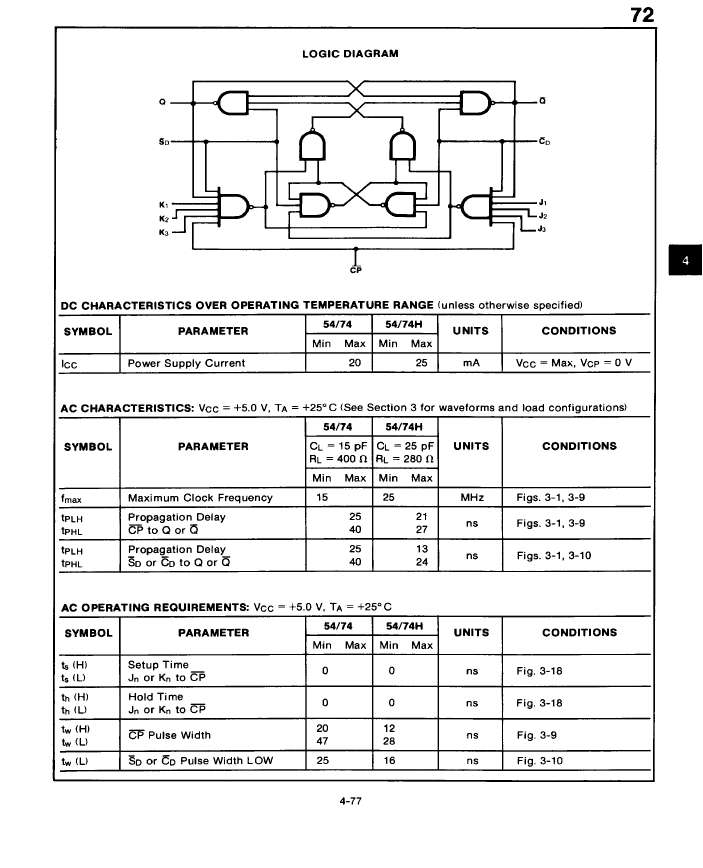

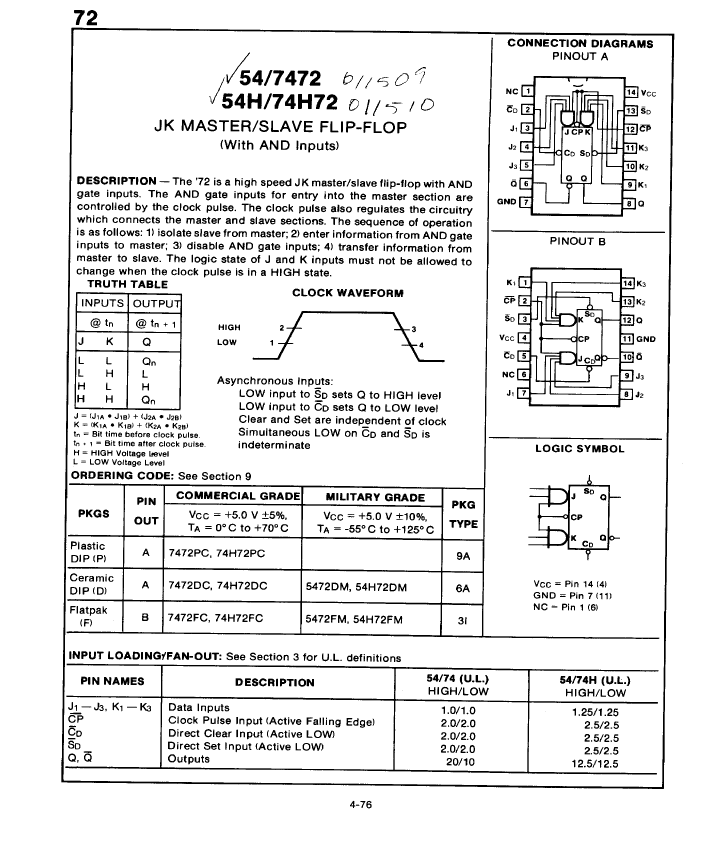

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

5472DM Related Products

	5472DM	7472FC	7472DC	7472PC	54H72DMQB
Description	Jbar-Kbar Flip-Flop, 1-Func, Master-slave Triggered, TTL, CDIP14,	Jbar-Kbar Flip-Flop, 1-Func, Master-slave Triggered, TTL, CDFP14,	Jbar-Kbar Flip-Flop, 1-Func, Master-slave Triggered, TTL, CDIP14,	Jbar-Kbar Flip-Flop, 1-Func, Master-slave Triggered, TTL, PDIP14,	J-K Flip-Flop, TTL/H/L Series, 1-Func, Positive Edge Triggered, 2-Bit, Complementary Output, TTL, CDIP14, CERAMIC, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	compliant	compliant	unknown	unknow
JESD-30 code	R-XDIP-T14	R-XDFP-F14	R-XDIP-T14	R-PDIP-T14	R-CDIP-T14
JESD-609 code	e0	e0	e0	e0	e0
Logic integrated circuit type	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	JBAR-KBAR FLIP-FLOP	J-K FLIP-FLOP
Number of functions	1	1	1	1	1
Number of terminals	14	14	14	14	14
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	125 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	NOT SPECIFIED
Trigger type	MASTER-SLAVE	MASTER-SLAVE	MASTER-SLAVE	MASTER-SLAVE	POSITIVE EDGE
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	-
Maker	Fairchild	-	Fairchild	Fairchild	Fairchild
Humidity sensitivity level	2A	2A	2A	2A	-
package instruction	-	DFP, FL14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
