251B12F153B6NB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 251B12F153B6NB

251B12F153B6NB: DescriptionRES,TAPPED,COMPOSITION,15K OHMS,5WVDC,20% +/-TOL,4439 CASE; CategoryPassive components The resistor; File Size65KB，2 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

251B12F153B6NB Overview

RES,TAPPED,COMPOSITION,15K OHMS,5WVDC,20% +/-TOL,4439 CASE

251B12F153B6NB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1176272605
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
structure	Rotary
Manufacturer's serial number	251(FTRIM)
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package height	5.1 mm
Package length	11.1 mm
Package form	PCB Mount
Package width	10 mm
Rated power dissipation(P)	0.01 W
resistance	15000 Ω
Resistor type	POTENTIOMETER
rotation angle	180 deg
series	251(F TRIM)
size code	4439
Tolerance	20%
Operating Voltage	5 V

Preview

Download Datasheet

View All

Series 251

Long life, 9mm

diameter, composition

element, variable

resistor

Features

• 1 million cycle life

• Miniature 9 mm size

• Multiple rotation angles available

• Low rotational torque

• Sturdy insert molded PC terminals

• Bushing mount or shaftless available

• Tap available

Electrical and Mechanical Specifications

Resistance Range

10 K ohms through 200 K ohms

Resistance Tolerance

Standard: ± 20%

Special: ± 10% and ± 30% available

Resistance Taper

Linear ± 5%

Insulation Resistance

100 megohms minimum @ 250 VDC

Operating Temperature

-10°C to +70°C

Rotational Torque

3 to 10 gf-cm

Rotational Life

1,000,000 cycles

Power Rating

0.01 watt at 50°C derated to no load at 85°C

Maximum Operating Voltage

Maximum 50 VAC or 5 VDC

Angle of Rotation

Total Rotation - With Shaft: 180°

No Shaft: 360°

Effective Rotation: 38°, 40°, 50°, 60°,

70°, 85°, 90° or 110° available

(Typical joystick control use.)

Materials

Housing: UL 94V-2

Shaft / Bushing: UL 94V-2

Base UL flame class 94HB

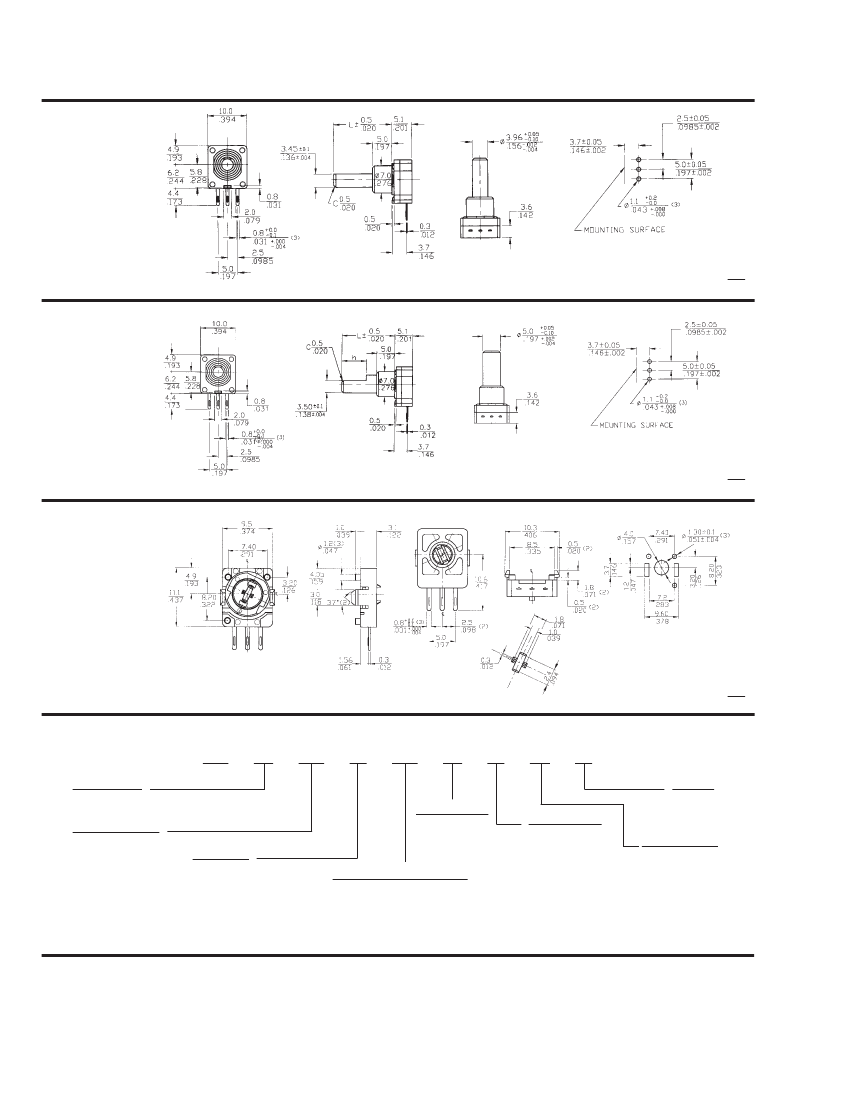

Shaft Information

Flatted, molded shaft

Diameter: 3.96 mm or 5.0 mm,

depending on shaft trim

Mounting Information

Bushing mount (unthreaded)

Diameter: 7.00 mm

Length: 5.00 mm

Tap Available

4° angle at 50% rotation optional

Other taps available - consult CTS

Technical Data Sheet 1251

CTS CORPORATION /

MANUFACTURER OF RELIABLE ELECTRONIC COMPONENTS
