Features
•
•
•
•
•
•
Designed to saftely store both reels and Rail/DIP tubes in the same bin box
Available in open style with better loading from above
Available in closed style with better loading from front
May be used for storing, kitting, or transporting during work-in-process operations
Shipped knocked-down; easy to assemble
Made in America
Made in America
-
---------
--
--
--
D
Item No.
37130
37132
RoHS Compliance Statement
None of the following materials are
intentionally added in manufacturing
this product: lead, mercury, cadmium,
hexavalent chromium, polybrominated
biphenyls (PBB) or polybrominated
diphenyl ethers (PBDE) as outlined in
the Directive 2002/95/EC Article 4.1.
See Protektive Pak Inc. letter on-line at
ProtektivePak.com.
Size O.D. - L x W x D
Open: 18 x 2 x 9
Open: 18 x 4 x 9
Open: 18 x 6 x 9
Open: 24 x 2 x 9
Open: 24 x 4 x 9
Open: 24 x 6 x 9
Closed: 24-3/8 x 2-11/16 x 15-1/4
Closed: 24-3/8 x 4-11/16 x 15-1/4
37134
37131
37133
37135
37610
37611
SPECIFICATIONS
Properties
Electrostatic Decay
Surface Resistance
Surface Resistance, Low R.H. Cut-off
High-Voltage Discharge Resistance
Static Shielding
Charged Device Model (CDM) Safety
Corrosivity
Antistat Transfer
Water & Isopropyl Alcohol Extraction
Tests for Antistat Permanence
Sloughing Test
Typical Values
0.01 seconds at 72°F and 11.8% R.H.
10E6 - 10E8 ohms/sq. after 11 days at 68°F and 12% R.H. for surface. 10E3 - 10E4
ohms/sq. for buried shielding layer
4% R.H.
Failure rate 0/5 (no oxide damage in five consecutive tests)
99.9% attenuation at 10kV; 99.6% attenuation at 30kV
RTG >10E7 ohms at 86% R.H. or less
Contains 1-3 ppm reducible sulfur
No transfer
Surface resistance 10E8 - 10E9 ohms/square at 74°F
and 36% R.H.
Negligible surface damage at 10 cycles and <5% of surface damage at 200
cycles in Taber Abrasion Test. No conductive particles abrased from surface
Complete recyclability of package
Biodegradation in or on moist soil
Conductivity from wall to wall as well as across surface to assure permanence
of the antistatic property
Indefinite
--
--
--
W
-
--
--
--
L
Test Procedures/Method
FED-STD-101, Method 4046
ASTM D257
Rockwell International Test Report of December 20, 1991
Rockwell International Test Report of December 20, 1991
EIA 541, appendix E, capacitive probe test
Rockwell International Test Report of December 20, 1991
FED-STD-101, Method 3005 for reducible sulfur
Rockwell International Test Report of January 8, 1992
Rockwell International Test Report of January 8, 1992
ASTM D4060 at 70 rpm with CS-17 abrasive-coated wheels and
1000 grams load
Rockwell International Test Report of January 8, 1992
Rockwell International Test Report of January 8, 1992
Rockwell International Test Report of January 8, 1992
Recyclability
Biodegradability
Volume Conductivity
Shelf Life

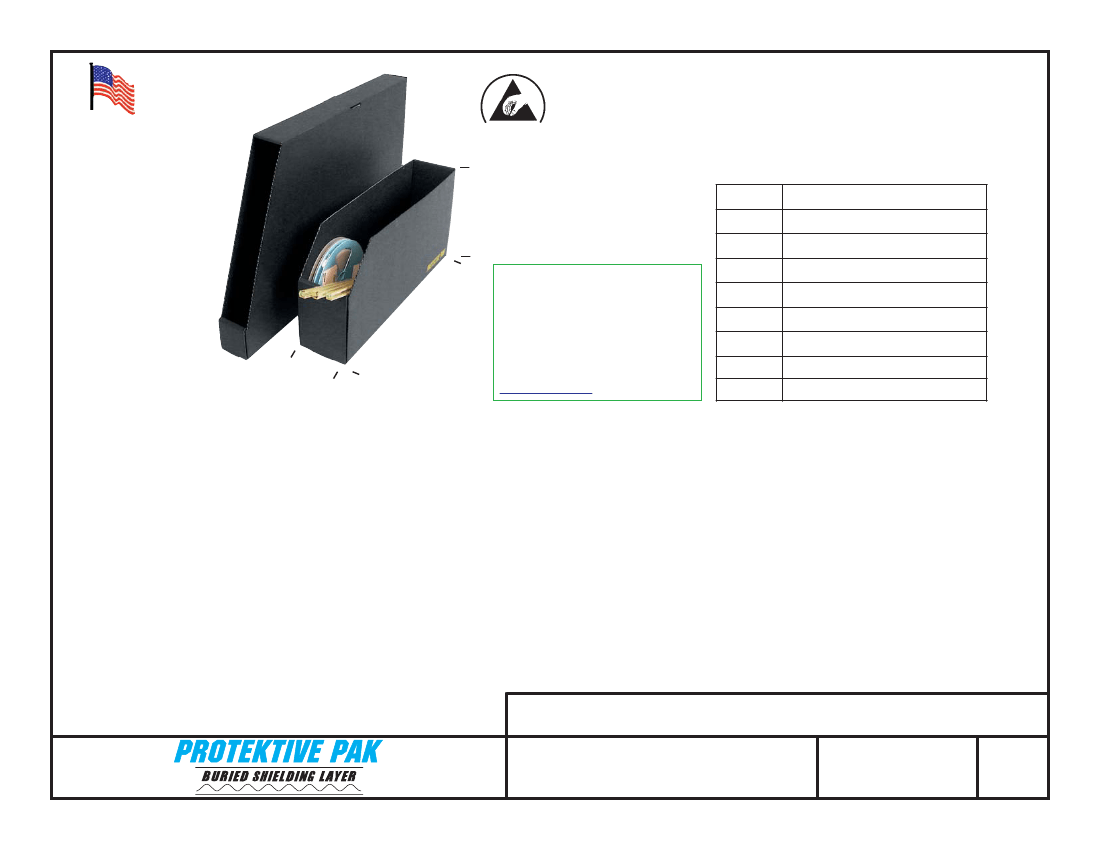

REEL/DIP TUBE BIN BOXES
PROTEKTIVE PAK
13520 MONTE VISTA AVENUE, CHINO, CA 91710
PHONE (909) 627-2578, FAX (909) 363-7331
ProtektivePak.com
© 2007 DESCO INDUSTRIES INC.
Employee Owned
DRAWING NUMBER
37130
DATE:
November
2007
