508036B: DescriptionGPS Antenna, 30dB Gain,; CategoryWireless rf/communication Radio frequency and microwave; File Size286KB，1 Pages; ManufacturerSmiths Group

Download Datasheet Parametric Compare View All

508036B Overview

GPS Antenna, 30dB Gain,

508036B Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
application	WIRELESS/SPACE/DEFENSE/SATCOM
Characteristic impedance	50 Ω
Gain	30 dB
Omnidirectional	YES
polarization	RHCP
RF/Microwave Device Types	GPS ANTENNA
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

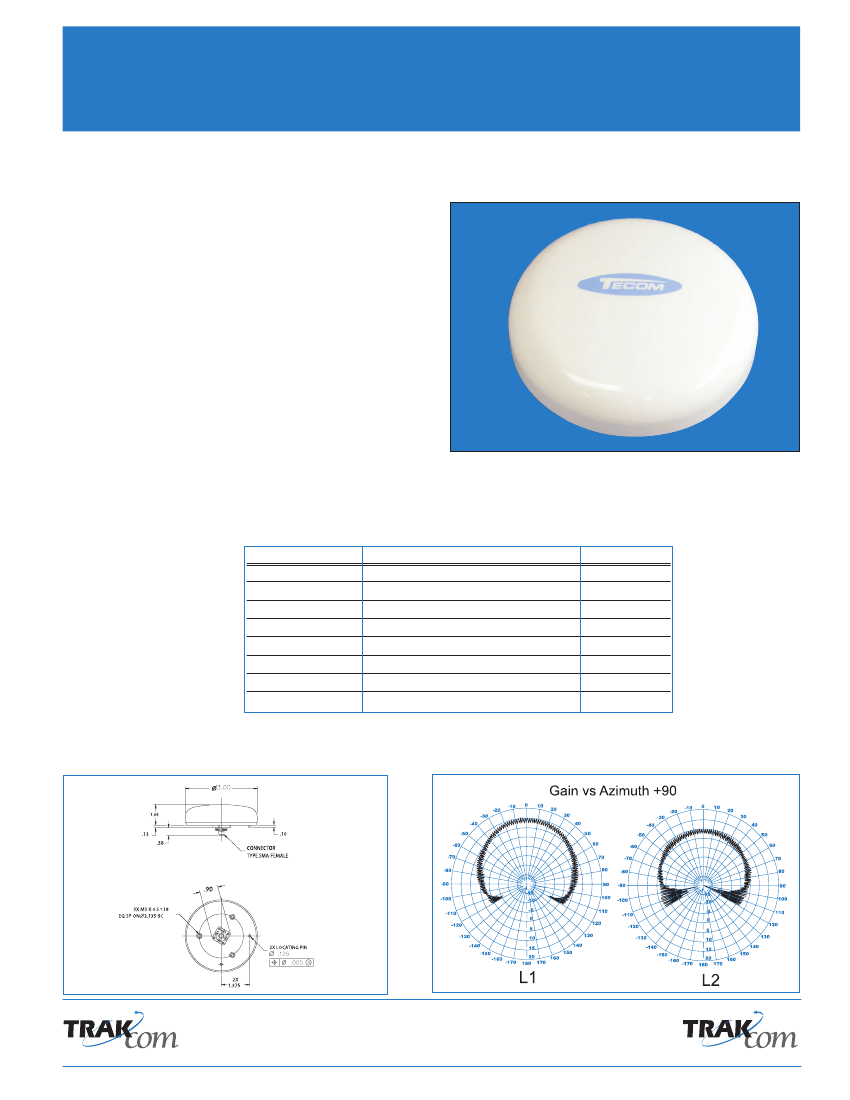

Omnidirectional Antenna

GPS Dual Frequency

Model: 508036B

Application - WIRELESS

w

SPACE

w

DEFENSE

w

SATCOM

w

Precision Location

w

Timing and Tracking of Signals

w

Telemetry

w

Aircrafts

w

Ships

w

Ground Vehicles

w

Low Profile

w

Robust Performance in Severe Environments

w

Preamplifier Low Noise

w

High Gain

w

Low Noise

w

Broad Beamwidth

Benefits

Features

Specifications

Parameter

Specification

Frequency

1.575

VSWR

2.0:1

Gain

+30 @ Zenith, -7.0 @ Horizon

Beamwidth

100% Nominal

Polarization

RHCP

Impedance 3db

50

Connectors

Type SMA Female

Weight

0.15

Unit

GHz

-

dB

Degrees

-

Ohm

-

Kg

Drawing

Test Data

TECOM Industries Inc.

9324 Topanga Canyon Blvd., Chatsworth, CA 91311-5728

Phone: 818-341-4010

w

Fax: 818-718-1402

E-mail tecom@trak.com

w

www.trak.com

Specifications subject to change without notice
