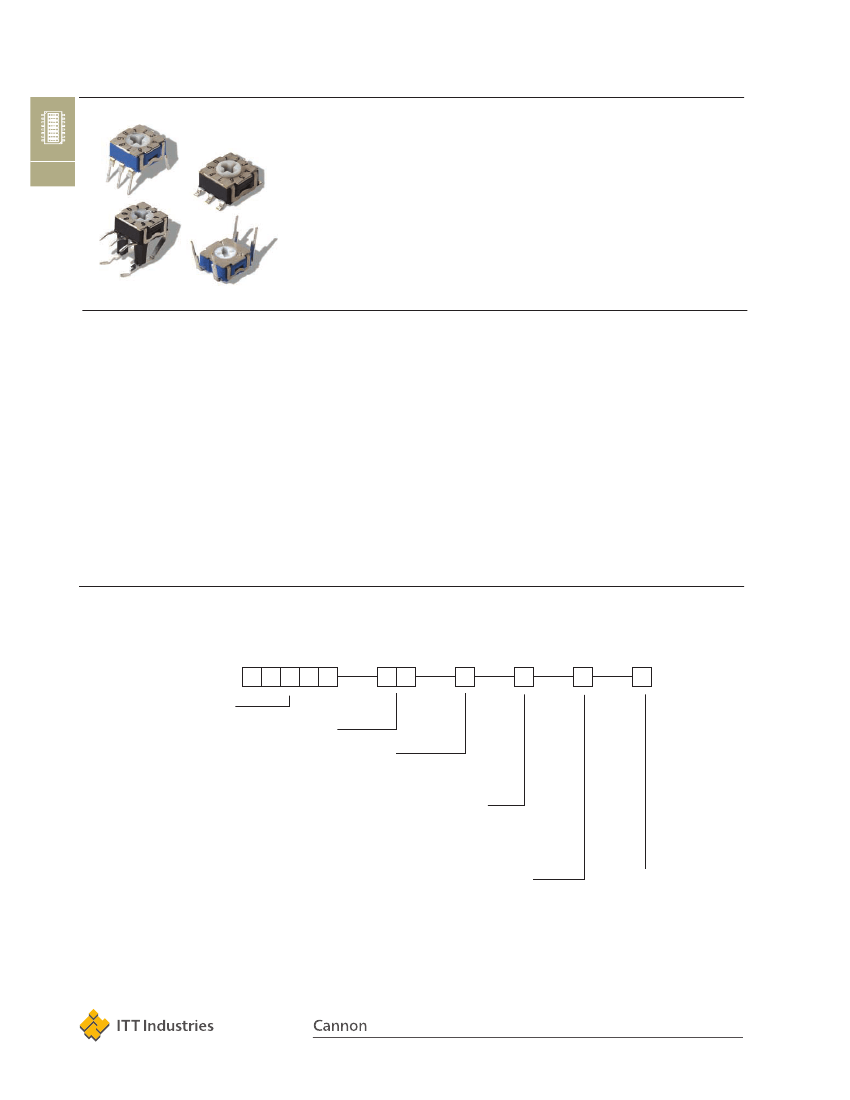

C&K RTE Series
Low Profile Rotary DIP Switches
Features/Benefits
Typical Applications
•
Timers, automation
components
•
Computer and peripherals
•
Alarms, access control
•
Instrumentation
•
Process-sealed - withstands
soldering and cleaning
•
Thru-hole and surface mount
models
•
Miniature size with robust
stainless steel cover
•
Rotary SPDT, SP3T, SP4T
functions
•
Rotary binary-decimal and
hexadecimal coding
Specifications
CONTACT RATING:
Gold: 100 mA max. 10µ A min. 30 V DC max.
Silver: 100 mA max. 1 mA min. 50 V DC max.
MECHANICAL LIFE: RTE02/03: 1,500 actuations;
RTE04/10/16: 20,000 actuations
CONTACT RESISTANCE: 100 mΩ max. intial;
150 mΩ after life
INSULATION RESISTANCE: RTE02/03: 10
13
Ω
min.
RTE04/10/16: 10
10
Ω
min. intial
DIELECTRIC STRENGTH: RTE 02/03: 500 Vrms;
RTE 10/16; 300 Vrms
OPERATING TEMPERATURE: -25°C to 85°C.
STORAGE TEMPERATURE: -40°C to 85°C.
SEALING: Totally sealed
PACKAGING: N or R terminations in tube.
V termination in box. G termination in reel, 750 pieces
per reel. G termination with flush actuator, 1250
pieces per reel.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
H
DIP
DAMP HEAT RESISTANCE: 21 days at 40°C, 93% RH
SALT MIST RESISTANCE: 96 hours
Materials
COVER & BASE: Thermoplastic PPS
ACTUATOR: PA Thermoplastic
KNOB: Thermoplastic
MOVABLE CONTACTS: Brass, gold or silver plated.
STATIONARY CONTACTS: Brass, gold or silver plated.
TERMINALS: Totally sealed (insert molded)
O-RING: Silicone
How To Order
Our easy Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete list-
ing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.
R T E

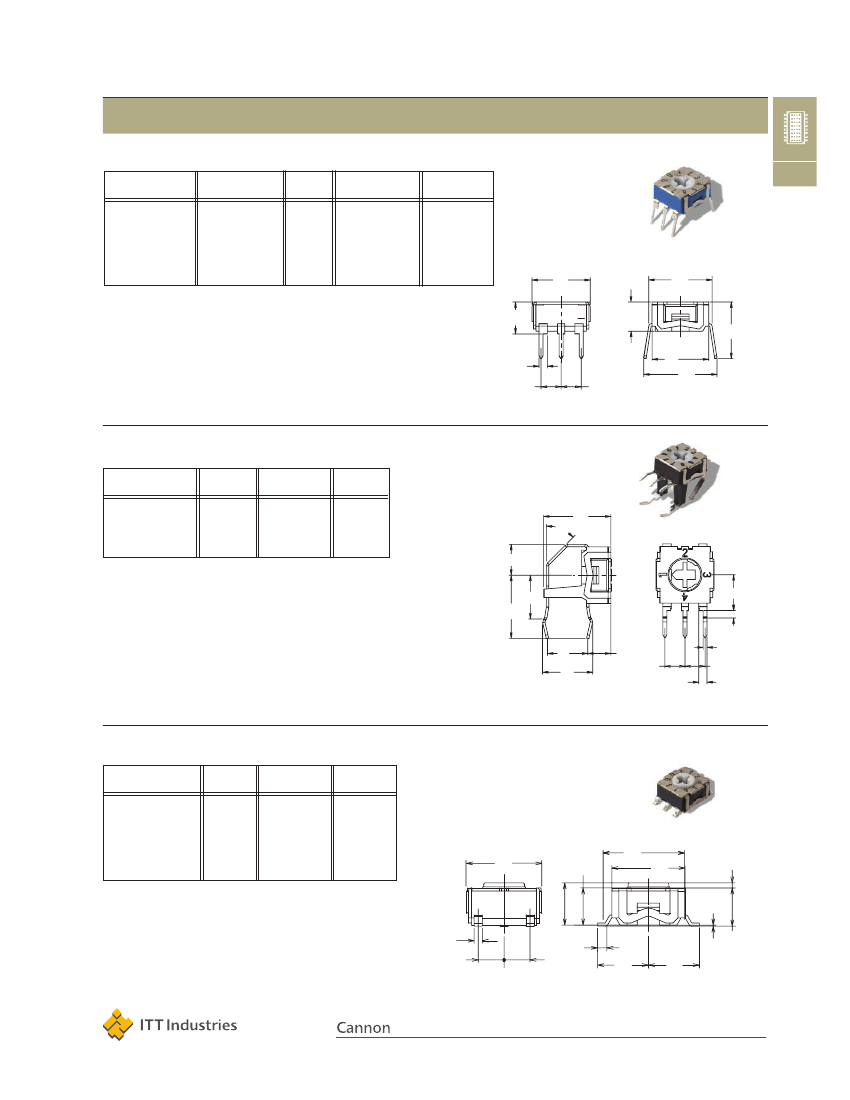

Number of Positions
RTE02
2 position
RTE03
3 position
RTE04
4 position*
RTE10
10 position
RTE16
16 position
ESD Protection
0
without
1
with**

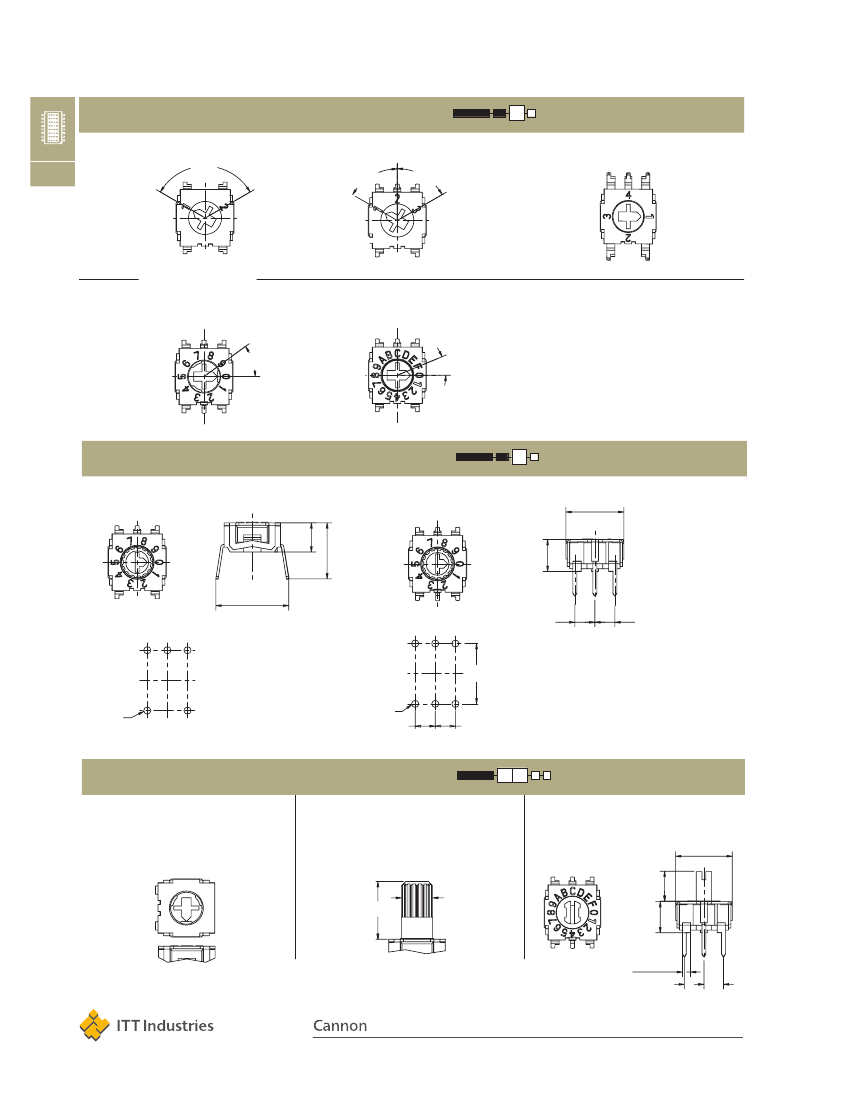

Actuator
0
Flush, screwdriver slot
1
Extended shaft ****
2
Shaft for button ***

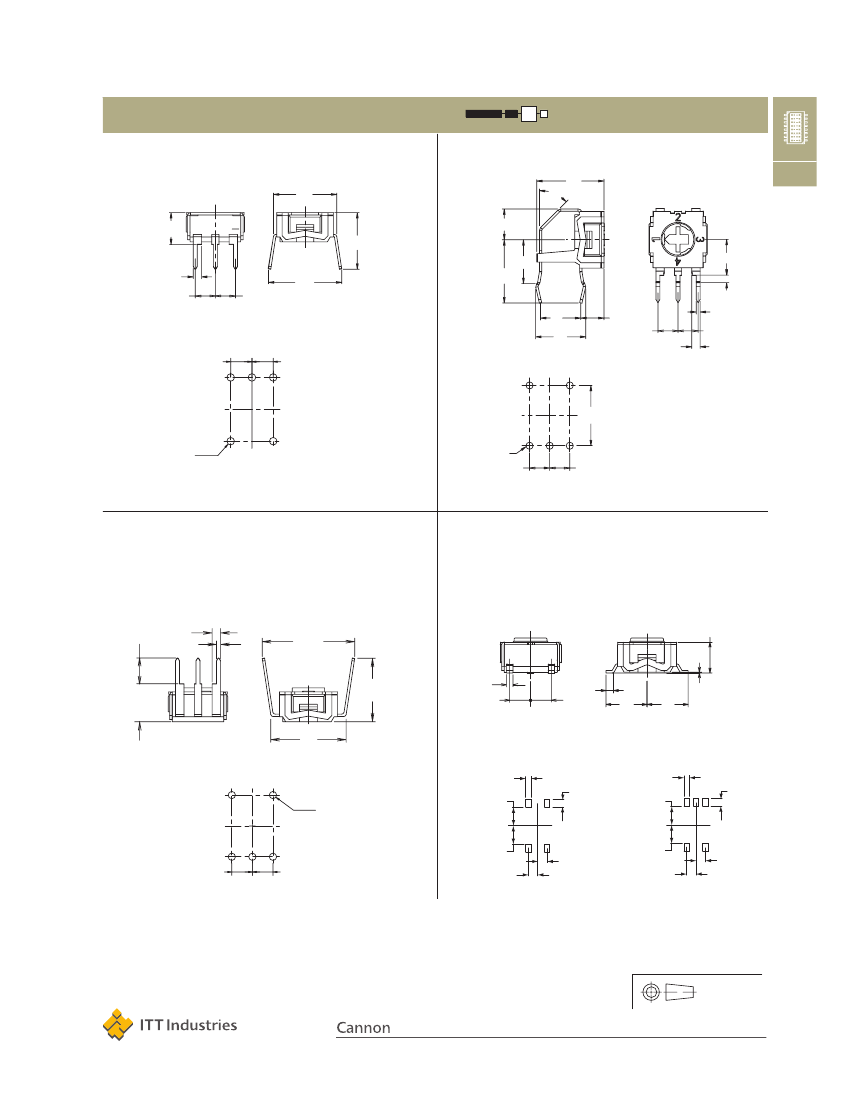

Terminations
N
Thru-hole
V
Right angle, thru-hole
R
Reverse, thru-hole
G
Surface mount
Switch Function
0
Single pole
1
BCD code
2
BCD complement code
3
Gray code
4
Hexadecimal code
Contact Material
3
(STD), Gold
1
Silver
* RTE04 version only available with screw driver slot acuator "0"
** ESD protection only available with N or R terminations.
*** Buttons ordered separately.
**** Not available in surface mount.
Dimensions are shown in inch (mm )
Dimensions subject to change
H-16
www.ittcannon.com
C&K RTE Series
Low Profile Rotary DIP Switches

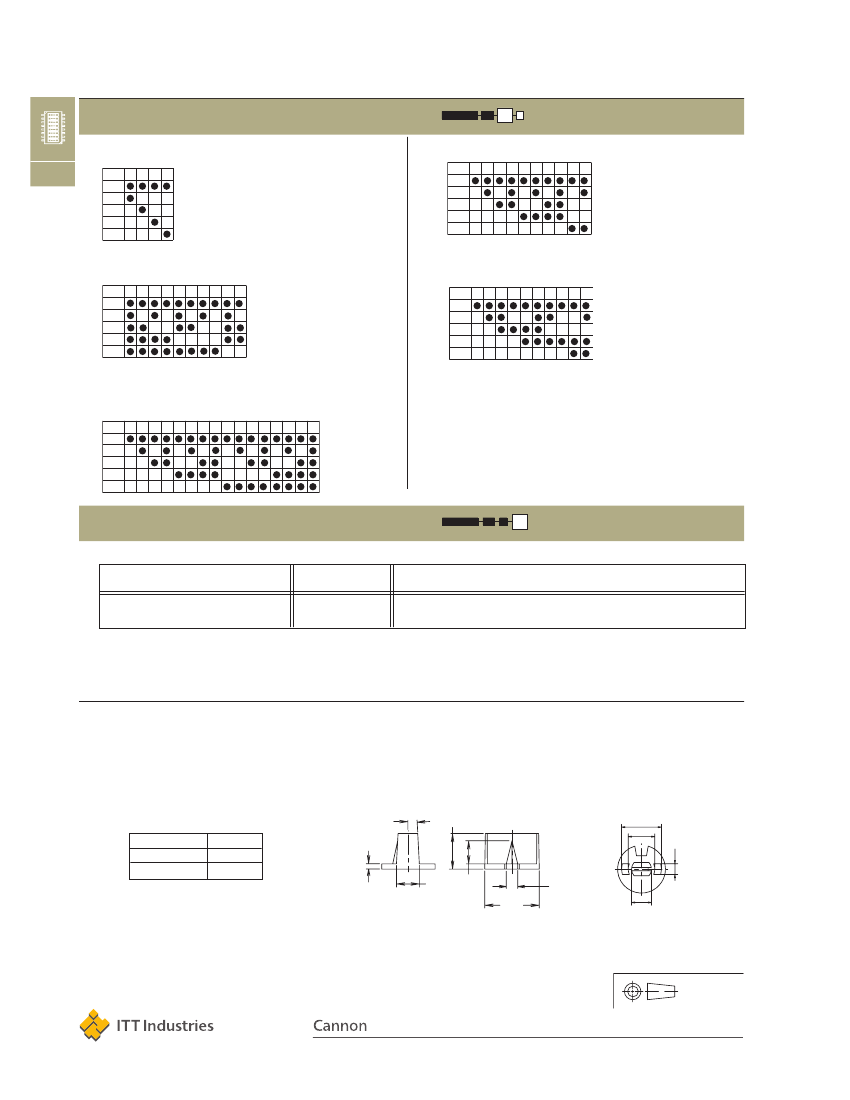

SWITCH FUNCTION
0
SINGLE POLE
POS. 1 2 3 4
C
1
2
3
4
1
BCD CODE
POS. 0 1 2 3 4 5 6 7 8 9
C
1
2
4
8
H
DIP
2
BCD COMPLEMENT CODE
POS. 0 1 2 3 4 5 6 7 8 9
C
1
2
4
8
3
GRAY CODE
POS. 1 2 3 4 5 6 7 8 9 10
C
1
2
4
8
4
HEXADECIMAL CODE
Other codes available by request.
POS. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
C
1
2
4
8
CONTACT MATERIAL
OPTION
CODE
CONTACT
MATERIAL
GOLD
SILVER
TERMINAL
PLATING
TIN
TIN
100 mA max.
100 mA max.
RATING
3
(STD.)
10µ A min.
1 mA min.
30 V DC max.
50 V DC max.
1
Buttons Available
Buttons are ordered separately, shipped in bulk.
Part Number
BTN RTE 40
BTN RTE 50
BTN RTE 90
Color
Red
Green
Black
.028
(0,7)
3˚
.185
(4,7)
.23 (6)
.15 (4)
.06 (1,6)
.118
(3,0)
.118
(3,0)
.059
(1,5)
ø.283
(7,2)
.11 (3)
Third Angle
Projection
Dimensions are shown in inch (mm )
Dimensions subject to change
H-20
www.ittcannon.com
