35CGQ100 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 35CGQ100

35CGQ100: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 100V V(RRM), Silicon, TO-254AA,; CategoryDiscrete semiconductor diode; File Size253KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

35CGQ100 Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 100V V(RRM), Silicon, TO-254AA,

35CGQ100 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	S-XSFM-P3
Reach Compliance Code	compliant
ECCN code	EAR99
application	POWER
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.11 V
JEDEC-95 code	TO-254AA
JESD-30 code	S-XSFM-P3
JESD-609 code	e0
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	70 µA
surface mount	NO
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

TECHNICAL DATA

DATA SHEET 5232, REV. -

SHD125484

SHD125484P

(35CGQ100)

HERMETIC POWER SCHOTTKY RECTIFIER

Low Reverse Leakage, Very Low Voltage Drop

DESCRIPTION:

A 100 VOLT, 35 AMP, POWER SCHOTTKY RECTIFIER IN A HERMETIC TO-254 PACKAGE.

MAXIMUM RATINGS

RATING

PEAK INVERSE VOLTAGE

MAXIMUM DC OUTPUT CURRENT (With Cathode Maintained @ T

=100

C, 50% duty cycle) (SINGLE) Total Current Limited by Die.

MAXIMUM DC OUTPUT CURRENT (With Cathode Maintained @ T

=100

C, 50% duty cycle) (COMMON CATHODE). Current Limited by Device.

MAXIMUM NONREPETITIVE FORWARD SURGE CURRENT

(t = 8.3ms, Sine) (per leg)

MAXIMUM JUNCTION CAPACITANCE (V

=5V) (per leg)

MAXIMUM THERMAL RESISTANCE (Junction to Mounting Surface,

Cathode) (per leg)

MAXIMUM OPERATING TEMPERATURE RANGE

MAXIMUM STORAGE TEMPERATURE RANGE

Weight (typ)

ALL RATINGS ARE @ T

= 25 C UNLESS OTHERWISE SPECIFIED.

SYMBOL

PIV

FSM

MAX.

100

150

UNITS

Volts

Amps

1000

1.25

-65 to + 150

9.3

C/W

Top

Tstg

ELECTRICAL CHARACTERISTICS

CHARACTERISTIC

MAXIMUM FORWARD VOLTAGE DROP, Pulsed (per leg)

= 25 C, I

= 15A

= 30A

= 35A

= 125 C, I

= 15A

= 30A

= 35A

= -55 C, I

= 15A

= 30A

= 35A

AXIMUM REVERSE CURRENT (I

@ 100V PIV) (per leg)

= 25 C

= 125 C

0.07

SYMBOL

MAX.

0.79

1.01

1.11

0.71

0.92

0.99

0.76

0.98

1.08

UNITS

Volts

PHONE (631) 586-7600 FAX (631) 242-9798 www.sensitron.com sales@sensitron.com

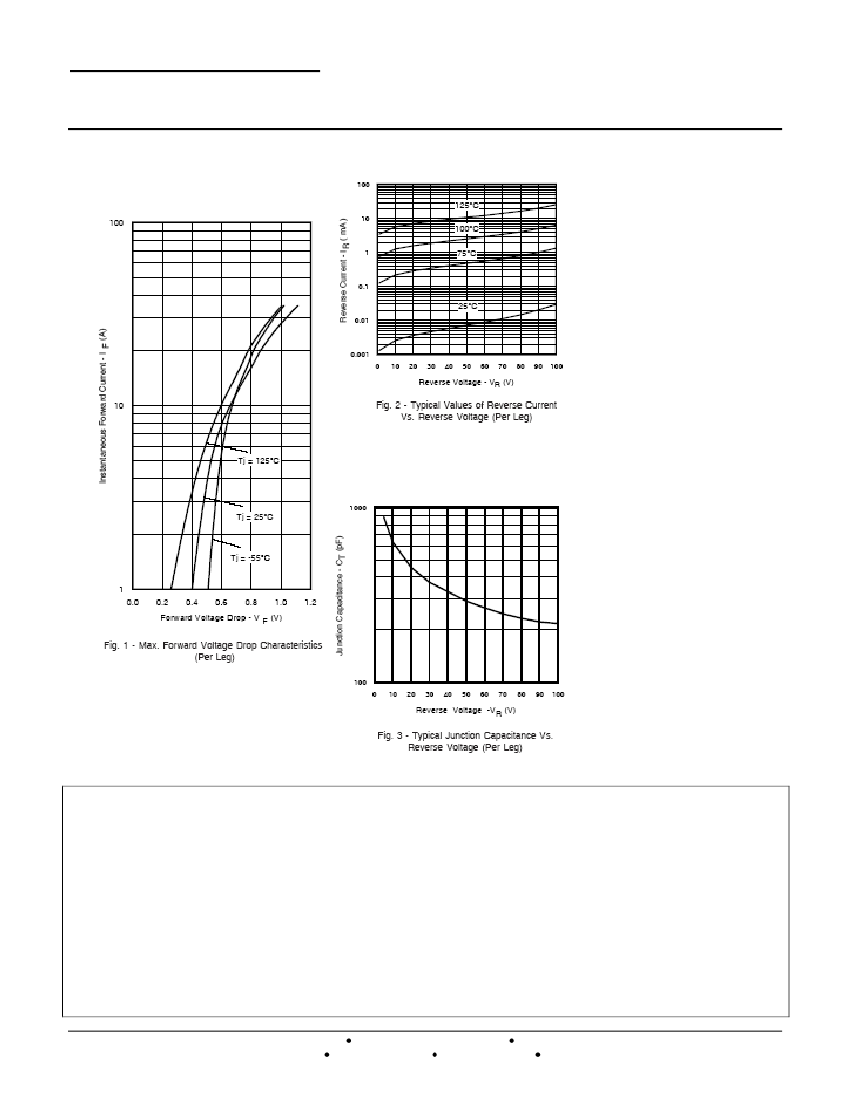

SENSITRON

SEMICONDUCTOR

TECHNICAL DATA

DATA SHEET 5232, REV. -

SHD125434

SHD125434P

(35CGQ100)

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product

characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version of the

datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment, medical

equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by means of users’

fail-safe precautions or other arrangement .

3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during operation of

the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual property claims or any

other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from use at

a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of Sensitron

Semiconductor.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will hinder

maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third party. When

exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and regulations.

PHONE (631) 586-7600 FAX (631) 242-9798 www.sensitron.com sales@sensitron.com

35CGQ100 Related Products

	35CGQ100	SHD125484P
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 100V V(RRM), Silicon, TO-254AA,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 100V V(RRM), Silicon, TO-254AA,
Is it Rohs certified?	incompatible	incompatible
package instruction	S-XSFM-P3	S-XSFM-P3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	POWER	POWER
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.11 V	1.11 V
JEDEC-95 code	TO-254AA	TO-254AA
JESD-30 code	S-XSFM-P3	S-XSFM-P3
JESD-609 code	e0	e0
Maximum non-repetitive peak forward current	150 A	150 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	100 V	100 V
Maximum reverse current	70 µA	70 µA
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
