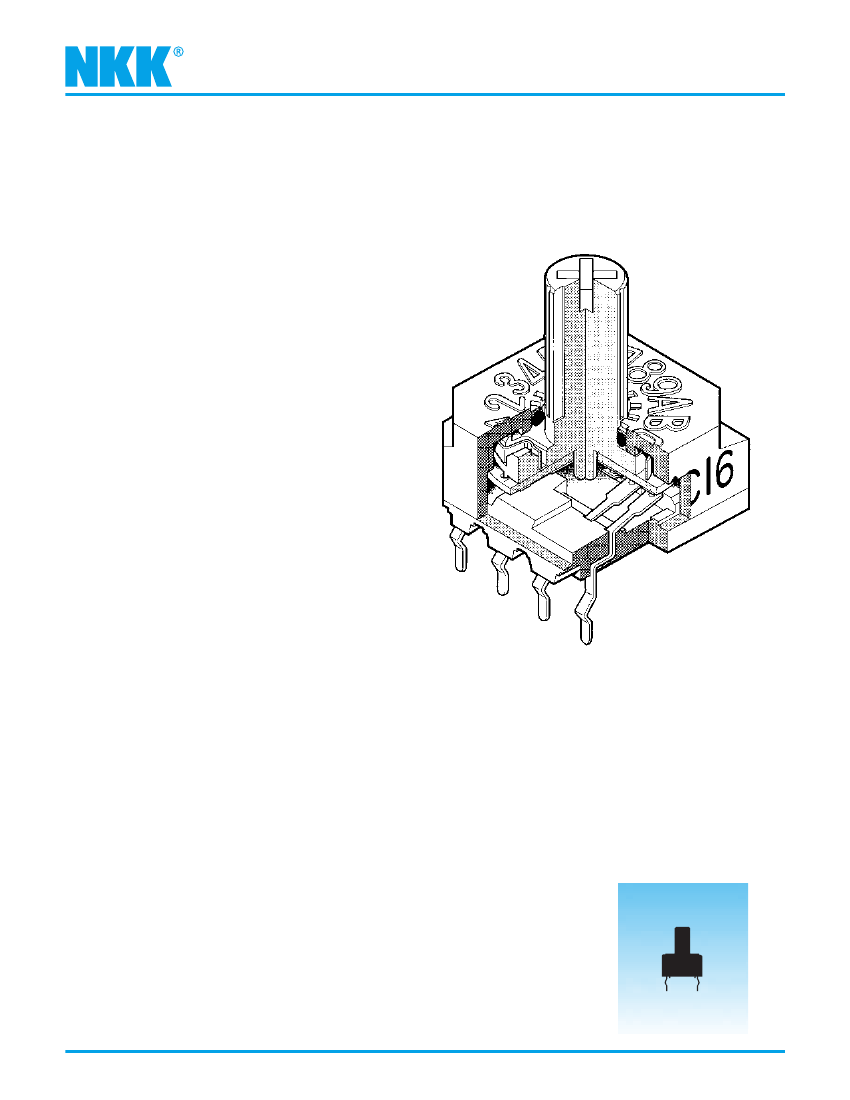

10mm Washable DIP Rotaries
Series DR
Distinctive Characteristics
Highly visible legends and choice of screwdriver, shaft, or
dial adjusted actuators provide trouble-free code setting.
Knob actuator also available.
Detent mechanism gives crisp, positive action for
accurate switch setting.
Sealed construction prevents contamination and
allows automated soldering and washing.
Optional panel seal mount available in
the DRA model which can be installed
with behind-panel o-ring for protection
against splashed or sprayed liquids.
Real or complement code setting
identified by color-keyed actuator.
Crimped terminals ensure secure PC mounting
and prevent dislodging during soldering.
Self-wiping contacts assure contact reliability and continuity.
Compact dimensions and low profile allow high density mounting
and close stacking of PC boards.
Ultrasonically welded case, o-ring sealed actuator, and insert molded
terminals seal out flux and other contaminants.
Actual Size
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435
www.nkkswitches.com
8-03
10mm Washable DIP Rotaries
Series DR
General Specifications
Electrical Capacity (Resistive Load)
Switching Rating:
Nonswitching Rating:
100mA @ 5V DC
100mA @ 50V DC
Other Ratings
80 milliohms maximum for all 4 contacts closed
30 milliohms maximum for 1 contact closed
Insulation Resistance:
1,000 megohms minimum @ 250V DC
Dielectric Strength:
250V AC minimum for 1 minute minimum
Mechanical Life:
20,000 detent operations minimum
Electrical Life:
20,000 detent operations minimum
Note: A detent operation is one actuator position operation or stepping.
20,000 detent operations = 1,250 cycles for hexadecimal devices or
2,000 cycles for decimal devices. A cycle is one 360° rotation.
Nominal Operating Torque:
80 ~ 320 grams-cm (1.1 ~ 4.4 ounce
•
in)
Contact Timing:
Shorting (Avoid possible false signal by turning off power before switching.)
Contact Resistance:
Materials & Finishes
Shaft & Bushing (DRA only):
Actuator:
Housing & Case:
O-rings:
Base:
Movable Contact:
Stationary Contacts:
Terminals:
Brass with nickel plating
Glass fiber reinforced polyester (PBT) (UL 94V-0)
Glass fiber reinforced polyester (PBT) (UL 94V-0)
Nitrile butadiene rubber
Glass fiber reinforced polyester (PBT) (UL 94V-0)
Copper with gold plating
Phosphor bronze with gold plating
Phosphor bronze with gold plating
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
-25°C through +75°C (-13°F through +167°F)
90 ~ 95% for 96 hours @ 40C° (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 3 right angled directions, with 3 shocks in each direction)
Installation
Mounting Torque for DRA:
Knob Installation Force:
Soldering Time & Temperature:
Process Seal:
1.47Nm (13.0 lb
•
in) for double nut; .686Nm (6.08 lb
•
in) for single nut
39.2N maximum (8.82 lbf) for DRA model; 29.4N maximum (6.61 lbf) for DRF/DRF2 models
3 seconds @ 350°C manual soldering or 5 seconds @ 270°C solder pot
See Supplement Index (page Z2) for specific processing data.
Standards & Certifications
Flammability Standards:
UL Recognition
or CSA Certification:
UL 94V-0 rated actuator, housing, case, & base
The DR series rotaries have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435
www.nkkswitches.com
8-03
10mm Washable DIP Rotaries

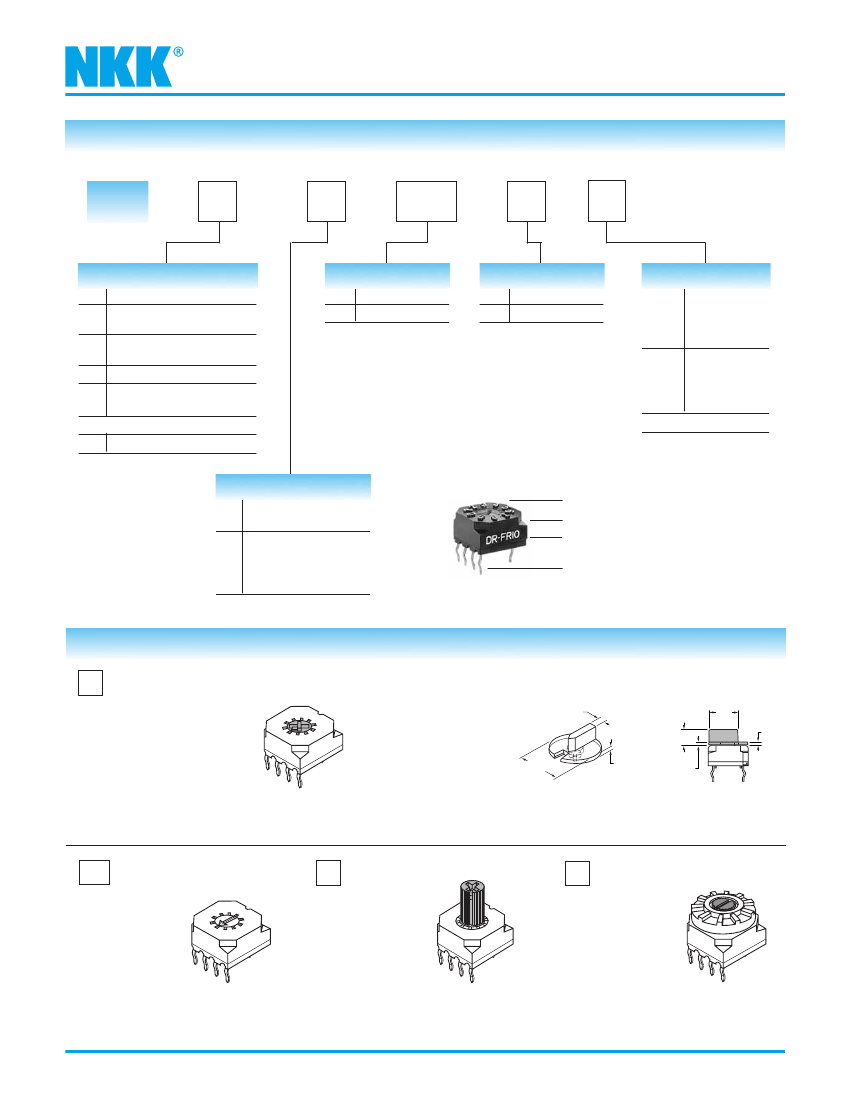

TYPICAL SWITCH ORDERING EXAMPLE
Series DR
DR
ACTUATORS
F
F2
K
S
A
F
R
10
16
10
POSITIONS
Decimal
Hexadecimal
P
H
P
PC TERMINALS
Straight
Right Angle
BRACKETS
No
Code
No Bracket
(supplied
w/standard
hardware)
With Bracket
(order
hardware
separately)
PCB Mount
Screwdriver Actuated
with White Dot Indicator
Screwdriver Actuated
with Arrow Indicator
Shaft Actuated
Dial Actuated (for
straight terminals only)
Panel or PCB Mount
Knob Actuated
B
DESCRIPTION FOR
TYPICAL ORDERING EXAMPLE
For
DRA
model only
DRFR10P
CIRCUITS
R
Real Coded
(Orange Actuator)
Complement Coded
(White on F2 actuator
& Red on all other
actuators)
Screwdriver Actuated
Decimal Actuator Positions
Real Code
Straight PC Terminals
C
ACTUATORS
F
Screwdriver Actuated
with White Dot
Indicator
1
2
34
5
AT4061
Optional Snap-in Knob
for "F" Actuator
R10
(2.0)
.079
(7.5)
.295
(4.1)
.161
(0.8)
.031
67
Adjusted with a flat or Phillips
tipped screwdriver or Snap-in
Knob AT4061.
Install knob before mounting on PCB for right angle type; it should not be removed once mounted.
When mounting, align slit in knob with white pointer on actuator.
F2
Screwdriver Actuated with
Arrow Indicator
1
2
34
5
12
D
2
R-F
C10
Actuators are fully rotational and operate either clockwise or counterclockwise.
Actuator Colors: Orange for real coded devices. Red for complement coded devices, except arrow actuated (F2) which is white.
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435
www.nkkswitches.com
8-03
8
9
8
9
Adjusted with
a flat tipped
screwdriver.
0
0
8
9
0
Polyamide
Black knob with
clear flange
(10.0) Dia
.394
(0.8)
.031
-F
DR
(0.9)
.035
K
Shaft
Actuated
34
5
S
67
Dial
Actuated
o
3
Adjusted by hand
or with a flat or
Phillips tipped
screwdriver.
D
R
R-K
10
Adjusted by hand
or with a flat
tipped
screwdriver.
67
1
2
-S
DR
C10
10mm Washable DIP Rotaries

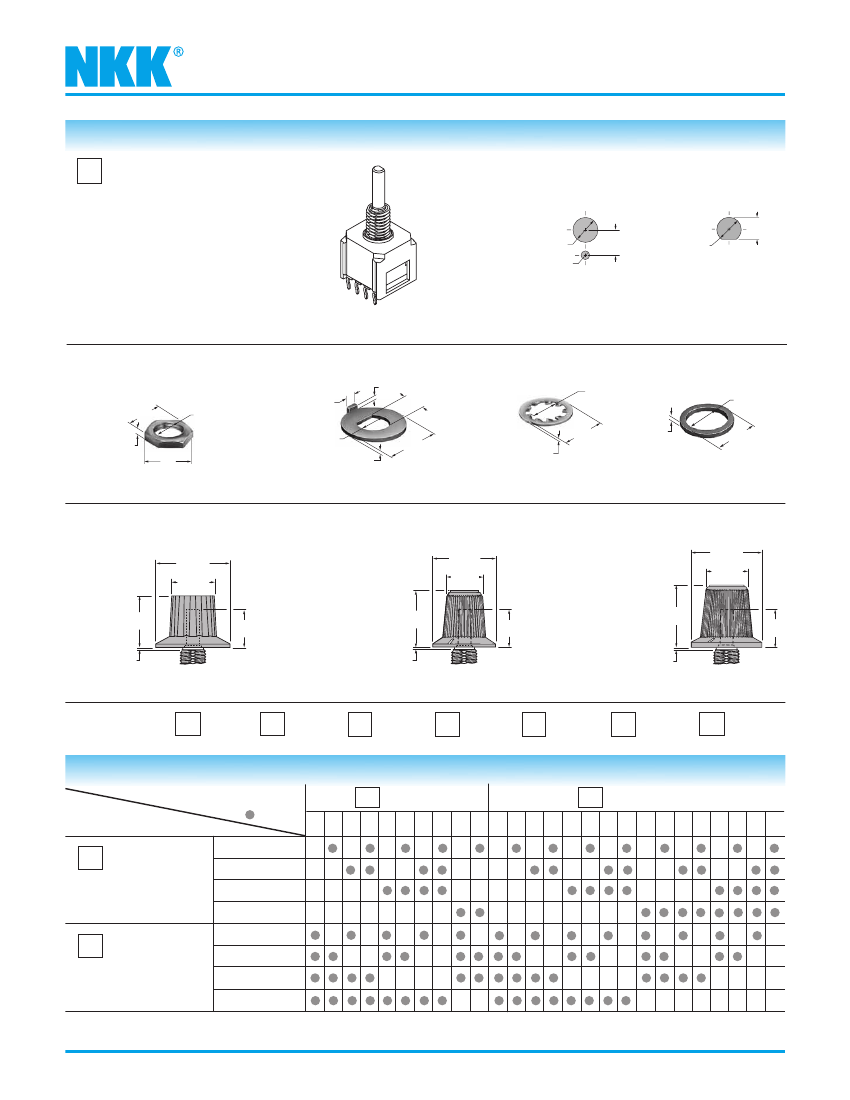

ACTUATORS (CONTINUED)
A
Knob
Actuated
Panel Mounting
With Locking Ring
Series DR
Panel Mounting
With D-flat
(5.6)
.220
(6.2) Dia
.244
Knobs AT433, AT4103, and AT4104
(shown below) are available and can be
ordered separately.
(6.5) Dia
.256
(2.2) Dia
.087
(6.5)
.256
Actuators are fully rotational and operate either clockwise or counterclockwise.
Maximum Effective
Panel Thickness:
1.5mm (.059")
Maximum Effective
Panel Thickness:
2.3mm (.091")
AT513M
(2 supplied)
Metric Hexagon Nut
Nickel/
Brass
(1.5)
.059
AT515M
(1 supplied)
Locking Ring
(2.0)
.079
(0.9)
.035
(5.5)
.217
AT509
(1 supplied)
Lockwasher
Steel with
Chromate/
Zinc
(6.4) Dia
.252
AT085
(Optional)
O-ring
(7.5) Dia
.295
(1.0)
.039
(8.0)
.315
M6 P0.75
Steel with
Chromate/
Zinc
(6.2) Dia
.244
(0.8)
.031
(9.0)
.354
(12.0) Dia
.472
(10.2) Dia
.402
(0.5)
.020
(9.5) Dia
.374
Hardware can be ordered separately for bracketed models.
AT433
Plain Black
Polyacetal
Black only
(13.0)
.512
(19.0) Dia
.748
(11.0) Dia
.433
Nitrile
Butadiene
Rubber
AT4103
Small Color Tipped
Polyester Base: Black
Polyamide Tip Colors:
A, B, C, E, F, G, H
(9.5)
.374
AT4104
Large Color Tipped
(16.0) Dia
.630
(9.5) Dia
.374
Polyester Base: Black
Polyamide Tip Colors:
A, B, C, E, F, G, H
(9.5)
.374
(18.0) Dia
.709
(11.0) Dia
.433
(14.3)
.563
(15.8)
.622
(9.5)
.374
(0.5)
.020
(0.5)
.020
(0.5)
.020
All actuator knobs must be ordered separately.
Color Codes:
A
Black
B
White
C
Red
E
Yellow
F
Green
G
Blue
H
Gray
TRUTH TABLES (CIRCUITS & POSITIONS)
Actuator Position
= on
Terminal No. (Output)
10
Decimal
16
Hexadecimal
F
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 A B C D E
R
Real Coded
Model Numbers:
DRFR, DRKR,
DRSR, DRAR
1
2
4
8
1
2
4
8
Terminal numbers are actually on switch.
C
Complement
Coded
Model Numbers:
DRFC, DRKC,
DRSC, DRAC
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435
www.nkkswitches.com
8-03
10mm Washable DIP Rotaries

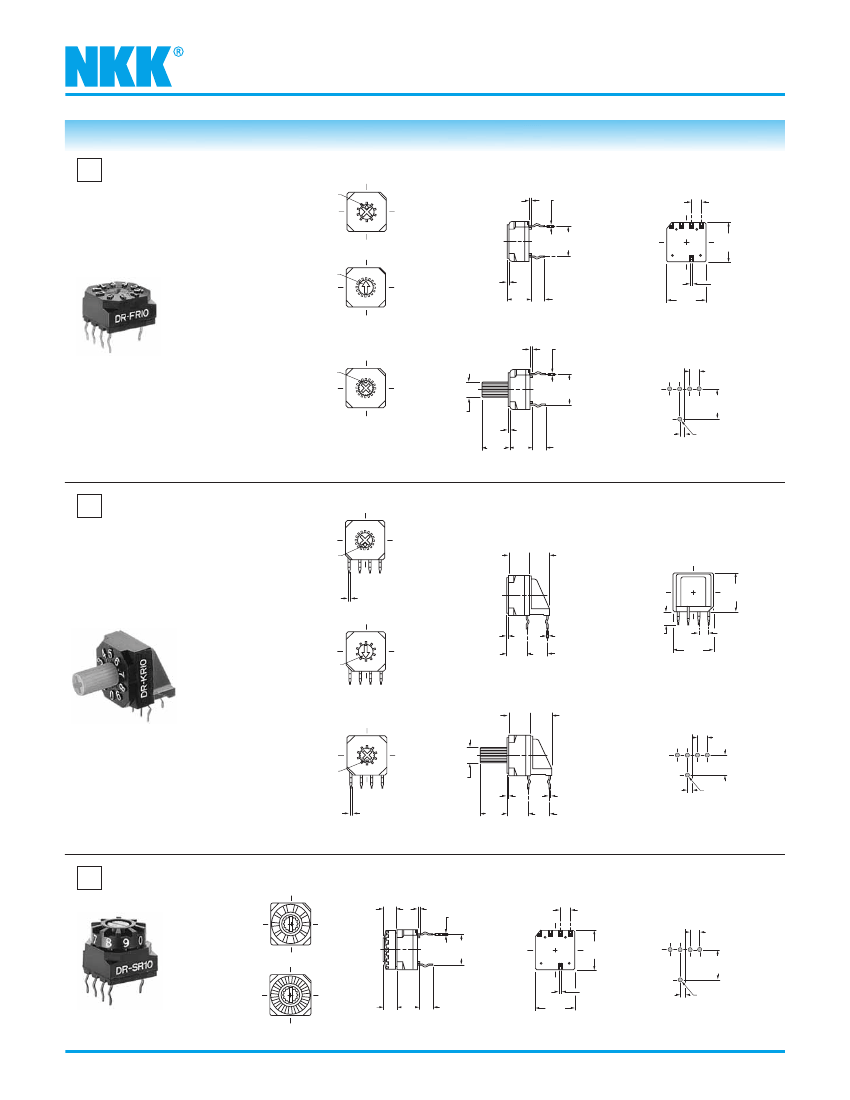

TYPICAL SWITCH DIMENSIONS
P
Straight PC Terminals
Dot for
Setting
78
Series DR
9
01
23
(0.5)
.020
(0.2) Typ
.008
8
4
2
1
(2.54) Typ
.100
Screwdriver
Actuated
Arrow
for Setting
CD
E
F
0
1
2
7
89
AB
Notch
for Setting
DRFR10P
H
Right Angle PC Terminals
3
456
7
89
Screwdriver
Actuated
(0.5) Typ
.020
(3.3)
.130
(0.5) Typ
.020
DRKR10H
P
Straight PC Terminals
(3.0)
.118
123 4 5 67
Dial
Actuated
(3.4)
.134
DRSR10P
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435
www.nkkswitches.com
9
01
Shaft
Actuated
23
Notch
for Setting
9
01
Arrow
for Setting
23
E
F
0
1
2
Dot for
Setting
456
78
456
7
89
Shaft
Actuated
CD
E
F
0
1
2
AB
456
(7.62)
.300
C
(10.0)
.394
(0.3)
.012
(5.9)
.232
(3.3)
.130
(10.0)
.394
(0.5) Typ
.020
3
456
(0.5)
.020
(0.2) Typ
.008
C
L
1
2
4
8
(2.54) Typ
.100
(7.62)
.300
(0.8 ~ 1.0) Dia Typ
.031 ~ .039
3
456
(7.62)
.300
(3.8) Dia
.150
(7.0)
.276
(0.3)
.012
(5.6)
.220
(3.3)
.130
C
(1.27)
.050
AB
CD
(5.1)
(5.1)
.201
.201
(10.0)
.394
4 8
C
1 2
(0.3)
.012
(4.9)
.193
(0.2) Typ
.008
(5.08)
.200
(10.0)
.394
(2.54) Typ
.100
(5.1) (5.1)
.201 .201
C
L
1
2
C
4
8
(2.54) Typ
.100
(5.08)
.200
(0.8 ~ 1.0) Dia Typ
.031 ~ .039
78
(3.8) Dia
.150
(0.3)
.012
(7.0)
.276
(4.6)
.181
(0.2) Typ
.008
(5.08)
.200
(1.27)
.050
(0.5)
.020 (0.2) Typ
.008
(7.62)
.300
8
4
2
1
(2.54) Typ
.100
C
L
1
2
4
8
(2.54) Typ
.100
(7.62)
.300
(0.8 ~ 1.0) Dia Typ
.031 ~ .039
C
(10.0)
.394
C
(5.6)
.220
(3.3)
.130
(10.0)
.394
(0.5) Typ
.020
(1.27)
.050
8-03
