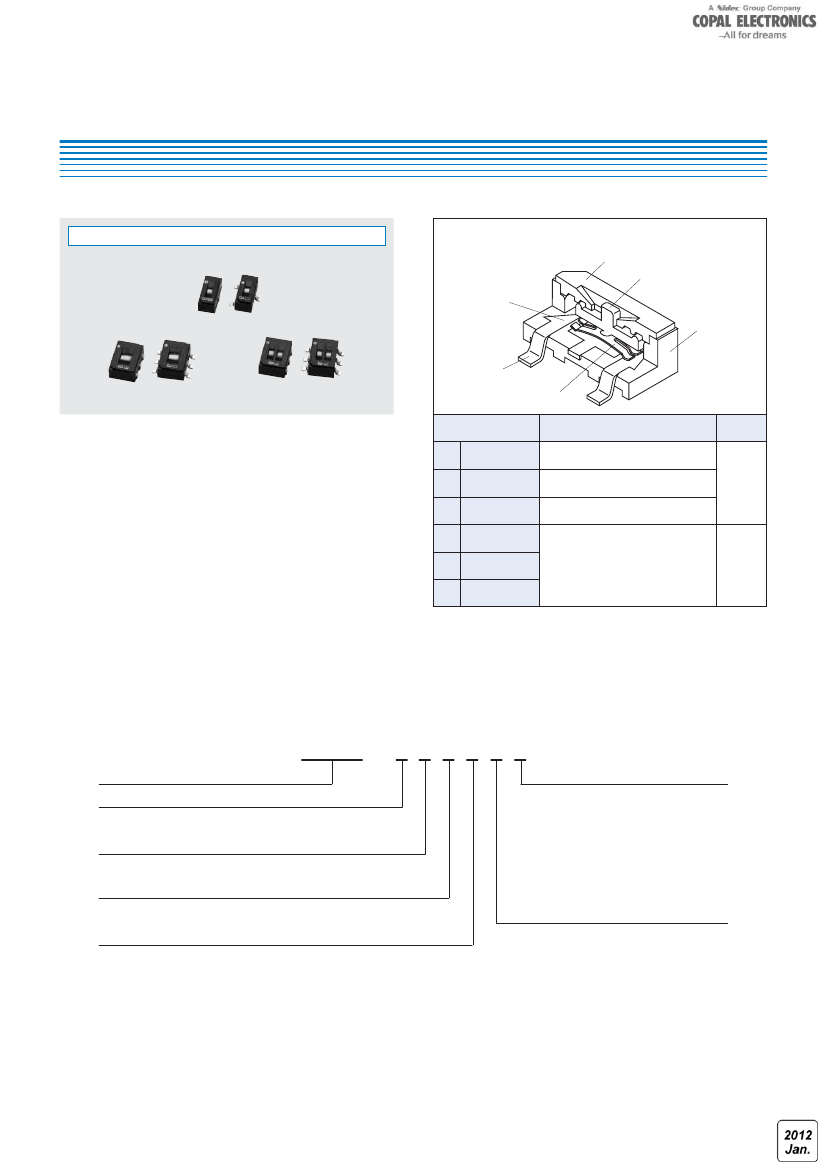

Compatible with most automatic pick & place machinery
●
Compact and space saving SMD type
●
Excellent contact stability by twin Gold-plated contact
●
Low profile design of 2.5 mm
①
②
③
④
⑤
⑥
Cover
Slider
Housing
Slider contact
Fixed contact
Terminal pin
Copper alloy, Gold-plated
—
■
PART NUMBER DESIGNATION
C A S - 1 2 0 T B 1
Series name
No. of poles
1
：
1 pole
(SPDT)、
2
：
2 poles
(2PDT)
D
：
Dual
(Dual SPDT)
Structure
1：
Non-washable type (Without seal tape)
Standard type
2：
Non-washable type (With seal tape)
Blank : Washable type (With seal tape)
No. of contacts
2
：
2 contacts
Setting position
0
：
Top setting
Shape of terminal
A
：
J-hook
B
：
Gull wing
Form of packaging
T
：
Taping (Reel)
Blank
：
Bulk in plastic bag
SPDT : Single Pole Double Throw
2PDT : Two Poles Double Throw
※Please
refer to the LIST OF PART NUMBERS when placing orders.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
SLIDE SWITCHES (SMD)
CAS
■
LIST OF PART NUMBERS
No. of
poles
No. of
contacts
Setting
position
Form of
packaging
Non-washable type (Without seal tape)
Non-washable type (With seal tape)
Pieces in
package
A
(
J-hook)
CAS-120TA1
CAS-120A1
CAS-220TA1
CAS-220A1
CAS-D20TA1
CAS-D20A1
B
(
Gull wing)
CAS-120TB1
CAS-120B1
CAS-220TB1
CAS-220B1
CAS-D20TB1
CAS-D20B1
A
(
J-hook)
CAS-120TA2
CAS-120A2
CAS-220TA2
CAS-220A2
CAS-D20TA2
CAS-D20A2
B
(
Gull wing)
CAS-120TB2
CAS-120B2
CAS-220TB2
CAS-220B2
CAS-D20TB2
CAS-D20B2
Taping
1000pcs./reel
100pcs./pack
1000pcs./reel
100pcs./pack
1000pcs./reel
100pcs./pack
1
Plastic bag
Taping
2
2
Top setting
Plastic bag
Taping
Dual
Plastic bag
No. of
poles
No. of
contacts
Setting
position
Form of
packaging
Washable type (With seal tape)
A
(
J-hook)
CAS-120TA
CAS-120A
CAS-220TA
CAS-220A
CAS-D20TA
CAS-D20A
B
(
Gull wing)
CAS-120TB
CAS-120B
CAS-220TB
CAS-220B
CAS-D20TB
CAS-D20B
Pieces in
package
Taping
1000pcs./reel
100pcs./pack
1000pcs./reel
100pcs./pack
1000pcs./reel
100pcs./pack
1
Plastic bag
Taping
2
2
Top setting
Plastic bag
Taping
Dual
Plastic bag
※Verify
the above part numbers when placing orders.
Taping version can be supplied only in reel unit.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
SLIDE SWITCHES (SMD)
CAS
■
STANDARD SPECIFICATIONS
Operating temp. range
−
40 ~ 85 °C
Storage temp. range
Sealing
Net weight
Washable type available with seal tape
Approx. 0.05g (CAS-120)
Approx. 0.08g (CAS-220/D20)
■
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
Contact resistance
Insulation resistance
Dielectric strength
DC50 V 100 mA
DC6 V, 100 mA DC24 V, 25 mA
DC20 mV 1
μA
50 mΩ maximum
1000 MΩ (DC100 V) minimum
AC500 V, 60 s
■
MECHANICAL CHARACTERISTICS
Operating force
Stop strength
Solderability
0.5 ~ 5 N {0.05 ~ 0.51 kgf}
10 N {1.02 kgf}, 60 s
245
±
3 °C, 2 ~ 3 s
Reflow：255 °C (Peak temperature)
（Please
refer to the profile below）
■
ENVIRONMENTAL CHARACTERISTICS
Vibration
Shock
Load life
Humidity
High temp. exposure
Low temp. exposure
Thermal shock
Amplitude 1.5 mm or Acceleration 98 m/s
2
,
10-500 Hz, 3 directions for 10 cycles each
490 m/s
2
, 11 ms
6 directions for 3 times each
Continuous load 2000 cycles,
DC6
±
0.5 V, 100
±
10 mA
−10
~ 65 °C, Relative humidity 0 ~ 96 %,
24 h for 10 cycles
85 °C, 96 h
−
40 °C, 96 h
−
40 (0.5 h) ~ 85 °C (0.5 h), 5 cycles
Soldering heat
Manual soldering：350
±
10 °C, 3 ~ 4 s
Shear (Adhesion)
Substrate bending
Pull-off strength
5 N {0.51 kgf} 10 s
Width 90 mm, bend 3 mm, 5 s, 1 time
5 N {0.51 kgf} 10 s
{ } : Reference only
〈
Reflow profile for soldering heat evaluation
〉
(°C)
250
Temperature
200
150
100
50
Peak : 250
+5
0
°C
Over 230
°C
180
°C
150
°C
Pre Heating Zone
90
±
30 s
30
±
10 s
Heating time
Soldering Zone
Reflow : two times maximum
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
COPAL ELECTRONICS
SLIDE SWITCHES (SMD)
CAS
■

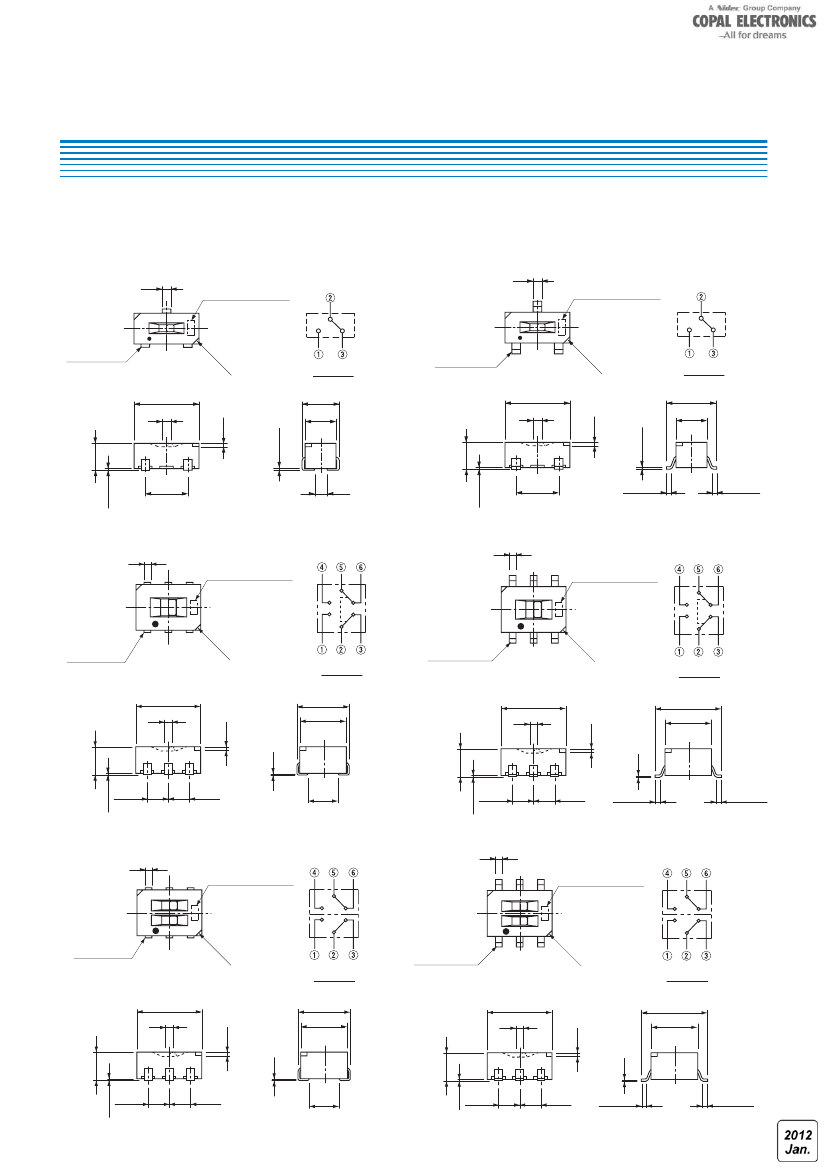

OUTLINE DIMENSIONS
●
CAS-120A1
3 – 0.6
+0.1
–0.05
Production date code
C
Unless otherwise specified, tolerance :
±
0.3 (Unit : mm)
●
CAS-120B1
3 – 0.6
+0.1
–0.05
Production date code
C
C
2–
Terminal No.1
C
2–
5
0.
Terminal No.1
Schematic
2.8
+0.3
0
5.4
5
0.
Schematic
4.2
0.3
0.3
5.4
Stroke 0.6
2.5 max.
2.5
0.15
+0.1
–0.05
2.5 max.
Stroke 0.6
2.5
0.15
+0.1
–0.05
0.4 min.
●
CAS-220A1
6 – 0.6
+0.1
–0.05
0
0.1
–0.1
3.5
●
CAS-220B1
–0.05
6 – 0.6
+0.1
C
Production date code
Production date code
0
0.1
–0.1
1.1
3.5
0.4 min.
C
2
–
C
5
0.
2
–
C
5
0.
Terminal No.1
C
Schematic
4.2
+0.3
0
3.9
Terminal No.1
C
Schematic
5.6
3.9
5.4
Stroke 0.6
0.3
2.5 max.
5.4
Stroke 0.6
2.5 max.
0.3
0.15
+0.1
–0.05
0
0.1
–0.1
0
–0.1
1.75
1.75
2.5
1.75
1.75
0.4 min.
0.15
+0.1
–0.05
0.4 min.
●
CAS-D20A1
6 – 0.6
+0.1
–0.05
●
CAS-D20B1
–0.05
6 – 0.6
+0.1
C
Production date code
Production date code
0.1
C
2
–
C
2
–
Terminal No.1
C
0.
5
5
0.
C
Schematic
4.2
+0.3
0
3.9
Terminal No.1
C
Schematic
5.6
3.9
5.4
Stroke 0.6
0.3
2.5 max.
5.4
Stroke 0.6
2.5 max.
0.3
0.15
+0.1
–0.05
0
0.1
–0.1
0
–0.1
1.75
1.75
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
0.1
2.5
1.75
1.75
0.4 min.
0.15
+0.1
–0.05
0.4 min.
COPAL ELECTRONICS
SLIDE SWITCHES (SMD)
CAS
■
RECOMMENDED P.C.B. PAD OUTLINE DIMENSIONS
●
CAS-120
A type
1.6
(Unit : mm)
3 –1
B type
1.3
3 –1
0.7
0
2.6
0
1.6
3.5
1.3
3.5
●
CAS-220 • D20
A type
1.6
6 –1
B type
1.3
6 –1
2.1
0
4
0
1.6
1.3
1.75
1.75
1.75
1.75
Note) The zero point is the center of mounting.
■
Specifications are subject to change without notice. Specifications in this catalog are for reference. The formal specification sheets will be submitted upon request.
