Double-level terminal block - PTTBS 1,5/S WH/U-BK/O-RD - 3214662
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

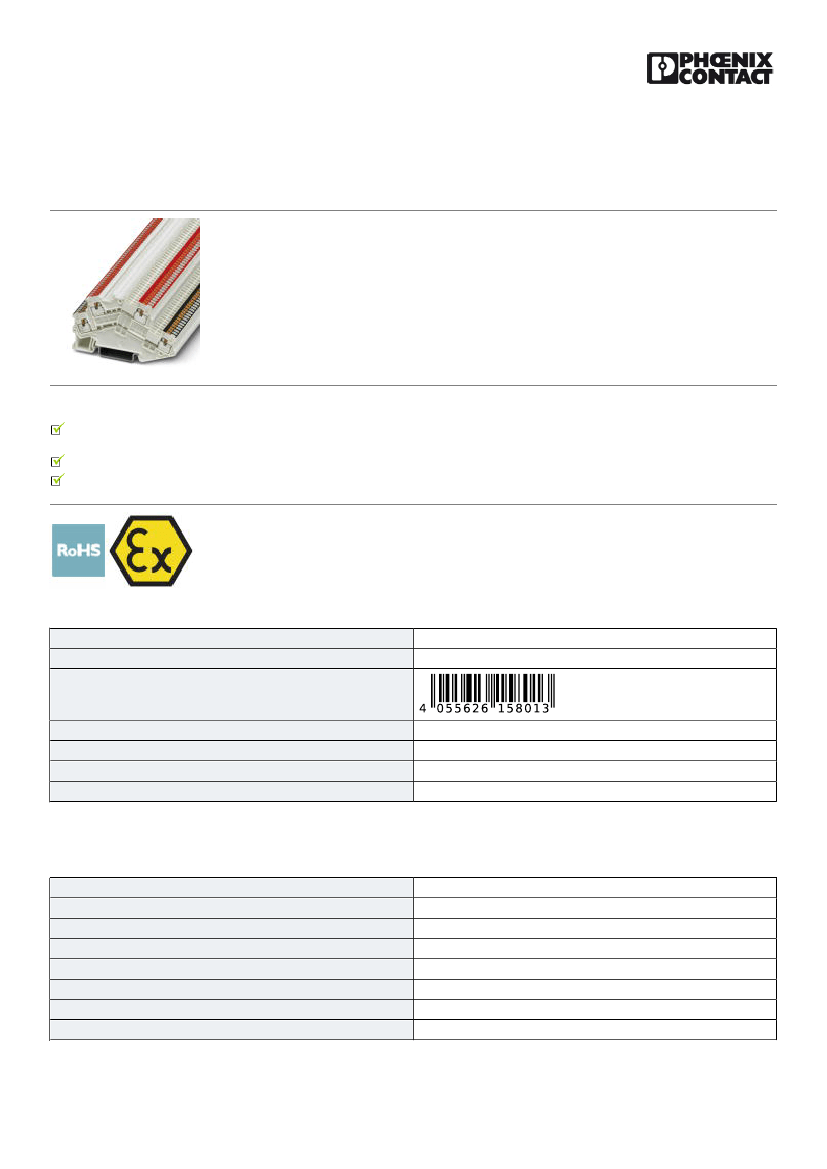

Double-level terminal block, for KNX bus in building installation, connection method: Push-in connection,
cross section: 0.14 mm² - 1.5 mm², AWG: 26 - 14, width: 3.5 mm, color: white, mounting type: NS 35/7,5, NS
35/15
Your advantages
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free
wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4055626158013
8.220 g
85369010
Poland
50 pc
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Overvoltage category
2
4
1.5 mm²
white
PA
V0
6 kV
III
01/23/2019 Page 1 / 21
https://www.phoenixcontact.com/in/products/3214662
Double-level terminal block - PTTBS 1,5/S WH/U-BK/O-RD - 3214662
Technical data
General
Insulating material group
Maximum power dissipation for nominal condition
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
Open side panel
I
0.56 W (the value is multiplied when connecting multiple levels)
IEC 60947-7-1
16 A
16 A
500 V
Yes
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
3.5 mm
78.8 mm
48.2 mm
55.7 mm
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Internal cylindrical gage
Push-in connection
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
26
14
0.14 mm²
0.14 mm²
1 mm² Using the AI-S 1-8 TQ ferrule, Order No. 1200293, is
recommended
8 mm ... 10 mm
A1 / B1
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
01/23/2019 Page 2 / 21
https://www.phoenixcontact.com/in/products/3214662
Double-level terminal block - PTTBS 1,5/S WH/U-BK/O-RD - 3214662
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141121
27141121
27141120
27141100
27141100
27141120
27141120
27141120
ETIM
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
BV / GL / LR / NK / EAC
Ex Approvals
IECEx / ATEX
Approval details
BV
http://www.veristar.com/portal/veristarinfo/generalinfo/
approved/approvedProducts/equipmentAndMaterials
39980/A0 BV
GL
http://exchange.dnv.com/tari/
2040111 HH
01/23/2019 Page 3 / 21
https://www.phoenixcontact.com/in/products/3214662
Double-level terminal block - PTTBS 1,5/S WH/U-BK/O-RD - 3214662
Approvals
LR
http://www.lr.org/en
12/20038 (E3)
NK
http://www.classnk.or.jp/hp/en/
14ME0912
EAC
RU C-
DE.AI30.B.01102
Accessories
Accessories
Crimping tool
Crimping pliers - CRIMPFOX CENTRUS 6S - 1213144
Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm² … 6 mm², also for
TWIN ferrules up to 2 x 4 mm², automatic cross section adjustment, lateral insertion, equipped with fall protection
Crimping pliers - CRIMPFOX CENTRUS 10S - 1213154
Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm² ... 10 mm², also for
TWIN ferrules up to 2 x 4 mm², automatic cross section adjustment, lateral insertion, equipped with fall protection
Crimping pliers - CRIMPFOX CENTRUS 6H - 1213146
Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm² … 6 mm², also for
TWIN ferrules up to 2 x 4 mm², automatic cross section adjustment, lateral insertion, equipped with fall protection
01/23/2019 Page 4 / 21
https://www.phoenixcontact.com/in/products/3214662
Double-level terminal block - PTTBS 1,5/S WH/U-BK/O-RD - 3214662
Accessories
Crimping pliers - CRIMPFOX CENTRUS 10H - 1213156
Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 and 4, from 0.14 mm² ... 10 mm², also for
TWIN ferrules up to 2 x 4 mm², automatic cross section adjustment, lateral insertion, equipped with fall protection
Crimping pliers - CRIMPFOX 10S - 1212045
Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar
according to DIN 46228 Part 4, 0.14 mm² ... 10 mm², unlockable pressure lock, lateral entry
Crimping pliers - CRIMPFOX 6H - 1212046
Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar
according to DIN 46228 Part 4, 0.14 mm² ... 6 mm², unlockable pressure lock, lateral entry
Crimping pliers - CRIMPFOX 2,5-M - 1212719
Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar
according to DIN 46228 Part 4, 0.25 mm² ... 2.5 mm², lateral entry, trapezoidal crimp
Crimping pliers - CRIMPFOX 6-M - 1212720
Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar
according to DIN 46228 Part 4, 0.25 mm² ... 6.0 mm², lateral entry, trapezoidal crimp
01/23/2019 Page 5 / 21
