6628-0-58-80-18-27-10-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 6628-0-58-80-18-27-10-0

Preview

6628-0-58-80-18-27-10-0: DescriptionPCB Terminal, ROHS COMPLIANT; CategoryThe connector terminals; File Size109KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

6628-0-58-80-18-27-10-0 Overview

PCB Terminal, ROHS COMPLIANT

6628-0-58-80-18-27-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	6628-0-58-80-18-27-10-0
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

PR

E

CI

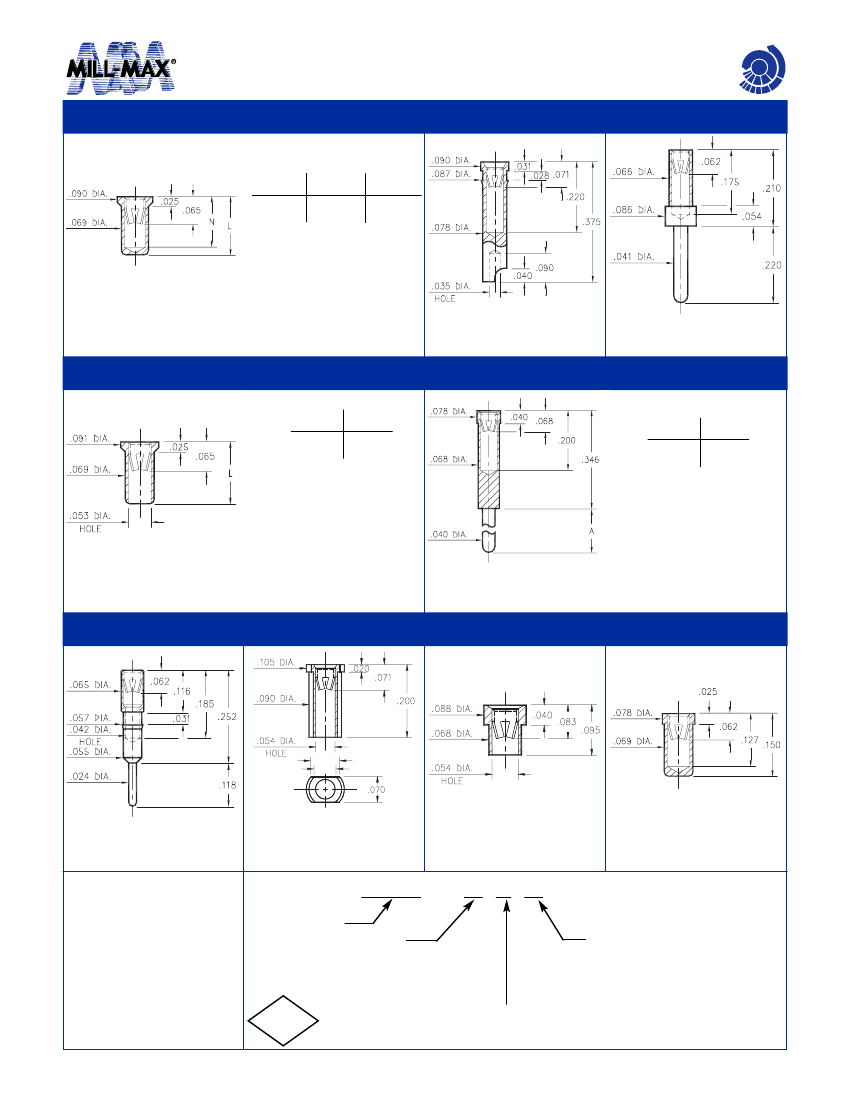

PIN RECEPTACLES

for .037” - .043” diameter pins

M

ON

S

I

CHI

A

PINS

NE

D

0331/9353

Basic Part

Number

Length

L

Depth

N

7405

3450

0331-0

9353-0

.150

.170

.127

.147

X3XX-X-15-XX-18-XX-10-0

Solder mount in .071 min.

mounting hole

7405-0-18-XX-18-XX-10-0

Press-fit in .084 mounting hole

3450-0-15-XX-18-XX-04-0

Solder mount in .043 min.

mounting hole

9354/7406

Basic Part

Number

Length

L

0319

7406-0

9354-0

.120

.170

Basic Part

Number

Length

A

0319-0

0319-1

.240

.280

XXXX-0-15-XX-18-XX-10-0

Solder mount in .071 min.

mounting hole

0319-X-15-XX-18-XX-04-0

Solder mount in .042 min.

mounting hole

1313

6628

3520

8331

.078

.057

6628-0-18-XX-18-XX-10-0

1313-0-15-XX-18-XX-04-0

Press-fit in .056 mounting hole

Surface mount

Also available on 12mm wide carrier

tape: 3,700 parts per 13” reel.

Order as: 6628-0-58-XX-18-XX-10-0

3520-0-15-XX-18-XX-10-0

Solder mount in .070 min.

mounting hole

8331-0-15-XX-18-XX-10-0

Solder mount in .071 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 1X - XX - 18 - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200μ” TIN/LEAD OVER NICKEL

80

200μ” TIN OVER NICKEL

15

10μ” GOLD OVER NICKEL

RoHS

SPECIFY CONTACT FINISH:

01

200μ” TIN/LEAD OVER NICKEL

80

200μ” TIN OVER NICKEL

27

30μ” GOLD OVER NICKEL

2002/95/EC

CONTACT

#18

CONTACT (DATA ON PAGE 222)

w w w. m i l l - m a x . c o m

151

516-922-6000
