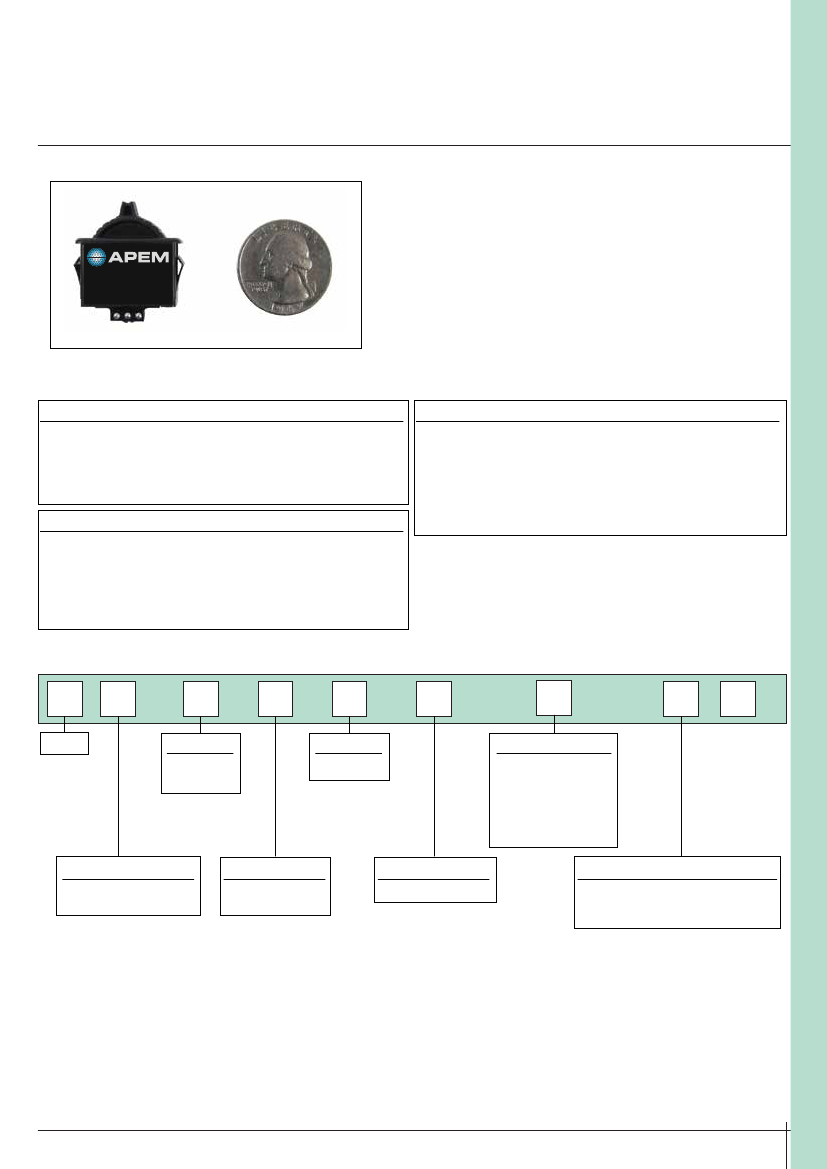

Proportional miniature control wheel
Distinctive features and specifications
CW series
CW series
www.apem.com
Miniature design
Ideal for joystick, armrest and panel mounting
Proportional output
Self-centering, single axis actuator
Snap-in mounting
Actual size
MECHANICAL
•
•
•
•
Mechanical Angle of Movement: ±45°
Expected Life: 3 million cycles
Mass / weight: 18.25g ± 5.0g (0.64oz ± 0.18oz)
Lever Action (Centering): Spring centering
ENVIRONMENTAL
•
•
•
•
•
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
EMC Immunity Level: EN61000-4-3
EMC Emissions Level: EN61000-6-3:2001
ESD: EN61000-4-2
•
•
•
•
•
•
ELECTRICAL
Resolution: 1.22mV
Supply Voltage Range: 5.00V± 0.250VDC
Reverse Polarity Max: -10V
Overvoltage Max: 20V
Output Impedance:
2Ω
Return to Center Voltage Tolerance: ± 200mV initial
NOTES:
Exact specifications are subject to configuration.
All values are nominal.
CW
SERIES
0
Tab Shape
0
1
No Tab
Tab 1
Mounting
1
Snap-in
Output Options
00
01
02
03
99
0V to 5V
0.25V to 4.75V
0.5V to 4.5V
1V to 4V
PWM¹
Wheel Shape
A
B
Ribbed Wheel (no tab)
Smooth Wheel
Actuator Color
BK
GY
Black
Gray
Centering Option
A
Standard spring
A
B
Termination
2.54mm (.100”) Pitch Male Header
2.54mm (.100”) Pitch Male Header
with 10” 22AWG Mating Harness
NOTE:
1 - Contact factory for PWM configuration.
Note: The company reserves the right to change specifications without notice.
APEM
www.apem.com

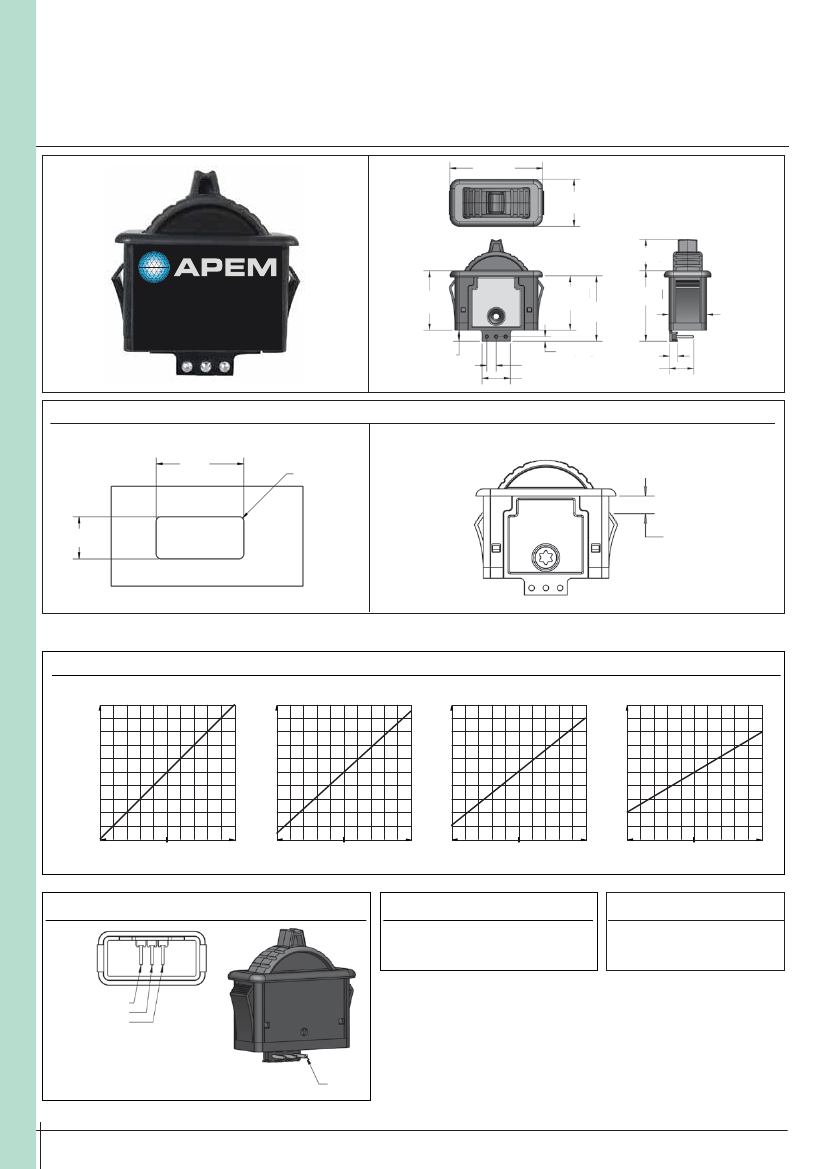

CW series
Overview
Proportional miniature control wheel
24.90
(0.98)
12.70
(0.50)
8.40
(0.33)
CW series
www.apem.com
15.90
(0.63)
14.60
(0.575)
17.60
(0.693)
18.90
(0.74)
10.20
(0.40)
3.00
(0.12)
2.50
x 2plcs
(0.10)
7.60
(0.30)
1.30
(0.05)
2.30
(0.09)
6.60
(0.26)
MOUNTING OPTIONS
PANEL CUTOUT
22.73
(0.895)
R 1.27
(0.05)
MAX
PANEL THICKNESS
10.67
.420
(0.42)
3.175 ±0.508
(0.125) (0.02)
NOTE: Dimensions are in mm/(inch).
VOLTAGE OUTPUT OPTIONS
5.0
4.5
OUTPUT VOLTAGE (V)
OUTPUT VOLTAGE (V)
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
MIN
TRAVEL (º)
MAX
OPTION 0
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
MIN
OPTION 1
OUTPUT VOLTAGE (V)
5.0
4.5
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
4.0
OPTION 2
OUTPUT VOLTAGE (V)
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
OPTION 3
TRAVEL (º)
MAX
MIN
TRAVEL (º)
MAX
MIN
TRAVEL (º)
MAX
TERMINALS
OPTIONAL MATING HARNESS
1
• Wire type: 22AWG 25cm PTFE
• Connector: Molex 0050579503
WIRING SPECIFICATION
• Red: Power (5V)
• Black: Ground
• Blue: Signal
Pin 1 - 5V power (RED)
Pin 2 - Ground (BLACK)
Pin 3 - Signal (BLUE)
NOTES:
1.
The CW Series is fitted with a three terminal
SAMTEC (TLW-103-05-T-S) 2.54mm header.
An optional 22AWG Mating Harness may be specified
from the “Terminal” category of the Option Selection Guide.
–
Images shown are for illustration purposes only.
Pin 1
Note: The company reserves the right to change specifications without notice.
