5-435470-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 5-435470-7

5-435470-7: DescriptionDIP SW ASSY-BLK LP ACT-2POS; CategoryMechanical and electronic products switch; File Size145KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-435470-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-435470-7	-	-	View	Buy Now

5-435470-7 Overview

DIP SW ASSY-BLK LP ACT-2POS

5-435470-7 Parametric

Parameter Name	Attribute value
Brand Name	Alcoswitch
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	142 weeks 5 days
Other features	LOW PROFILE
body width	9.65 mm
body height	7.37 mm
Body length or diameter	7.11 mm
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	2
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	SLIDE DIP SWITCH
Termination type	SOLDER
Base Number Matches	1

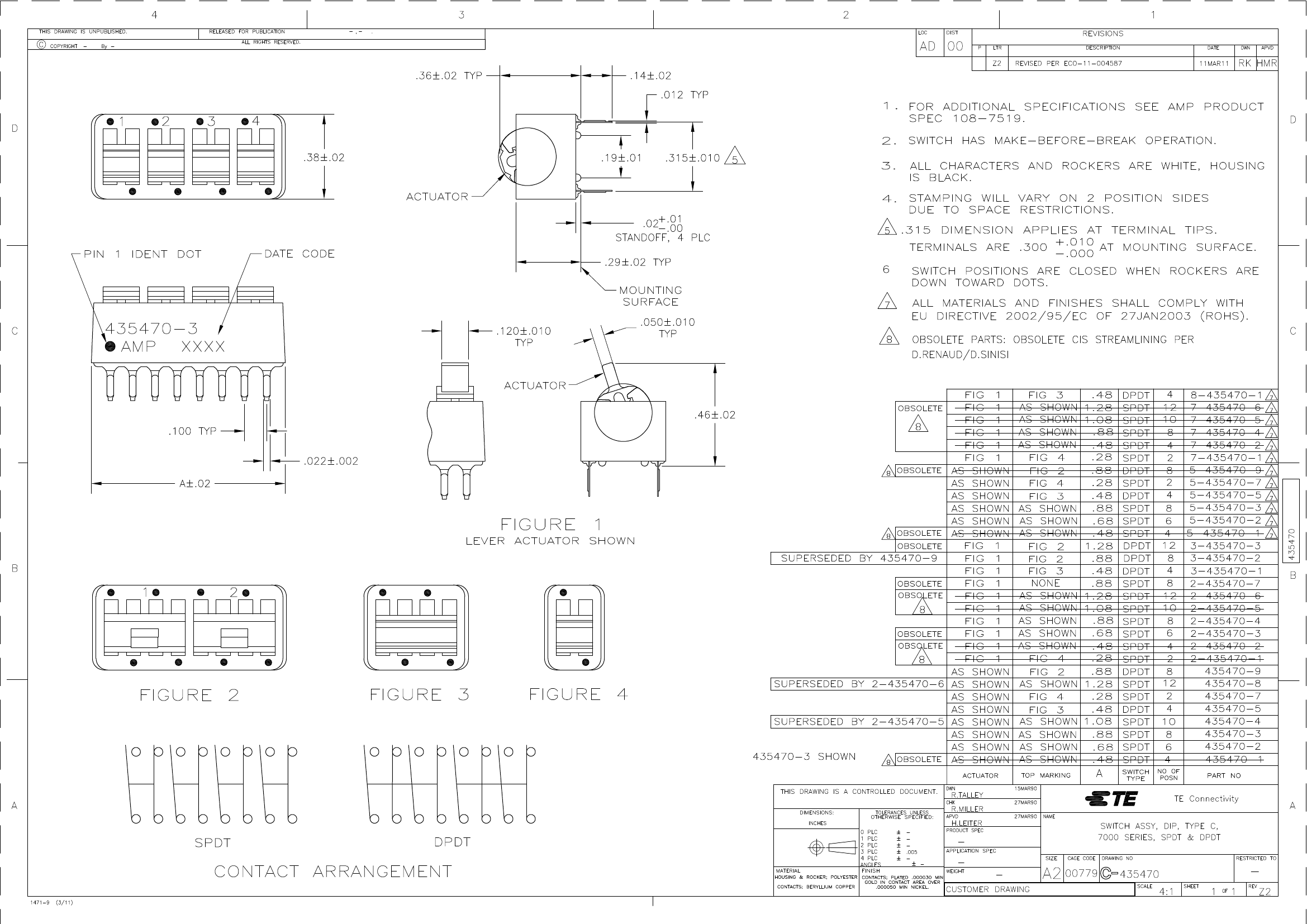

Preview

Download Datasheet

View All

5-435470-7 Related Products

	5-435470-7	2-435470-4	435470-9	3-435470-1	435470-5	5-435470-5	435470-7	8-435470-1	435470-3
Description	DIP SW ASSY-BLK LP ACT-2POS	DIP SW ASSY-BLK MPMT-8POS	DIP SW ASSY-BLK MPMT-8POS	DIP SW ASSY-BLK MPMT-4POS	DIP SW ASSY-BLK MPMT-4POS	DIP SW ASSY-BLK LP ACT-4POS	DIP SW ASSY-BLK MPMT-2POS	DIP SW ASSY-BLK EXT ACT-4POS	DIP SW ASSY-BLK MPMT-8POS
Brand Name	Alcoswitch	Alcoswitch	Alcoswitch	Alcoswitch	Alcoswitch	Alcoswitch	Alcoswitch	Alcoswitch	Alcoswitch
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible	incompatible	conform to	incompatible	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW PROFILE	EXTENDED LEVER	LOW PROFILE	EXTENDED LEVER	LOW PROFILE	LOW PROFILE	LOW PROFILE	EXTENDED LEVER	LOW PROFILE
body width	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm
body height	7.37 mm	9.14 mm	7.37 mm	7.37 mm	7.37 mm	9.14 mm	11.68 mm	9.14 mm	11.68 mm
Body length or diameter	7.11 mm	22.3 mm	22.35 mm	12.19 mm	12.19 mm	12.2 mm	7.11 mm	12.19 mm	22.3 mm
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE
Number of switching segments	2	4	8	4	4	1	1	1	4
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
switch function	SPDT	SPDT	DPDT	DPDT	DPDT	DPDT	SPDT	DPDT	SPDT
Switch type	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
package instruction	ROHS COMPLIANT	-	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Factory Lead Time	142 weeks 5 days	-	142 weeks 5 days	29 weeks	142 weeks 5 days	-	-	-	142 weeks 5 days
Objectid	-	1580060069	-	-	-	1580060092	1580060084	1580060108	1580060081
Samacsys Description	-	DIP SW ASSY-BLK MPMT-8POS	-	-	-	Dip Switch DPDT 1 Position Through Hole Rocker Actuator 25mA 24VDC	DIP SW ASSY-BLK MPMT-2POS	DIP SW ASSY-BLK EXT ACT-4POS	DIP SW ASSY-BLK MPMT-8POS
Samacsys Manufacturer	-	TE Connectivity	-	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Samacsys Modified On	-	2020-10-04 19:49:56	-	-	-	2024-04-21 12:30:39	2021-10-25 09:48:00	2020-10-04 19:49:56	2020-10-04 19:49:56
Actuator color	-	WHITE	WHITE	WHITE	WHITE	-	WHITE	WHITE	WHITE
Actuator length	-	0.17 inch	0.07 inch	0.17 inch	0.07 inch	-	0.07 inch	0.17 inch	0.07 inch
Actuator material	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Actuator type	-	TOP LEVER	PADDLE	PADDLE	PADDLE	TOP LEVER	TOP LEVER	TOP LEVER	TOP LEVER
Body color	-	BLACK	BLACK	BLACK	BLACK	-	BLACK	BLACK	BLACK
center contact material	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Center contact plating	-	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Maximum contact current (AC)	-	1.5 A	-	-	-	1.5 A	1.5 A	1.5 A	1.5 A
Maximum contact current (DC)	-	1.5 A	0.025 A	0.025 A	0.025 A	1.5 A	1.5 A	1.5 A	1.5 A
Contact (DC) maximum rated R load	-	1.5A@50VDC	0.025A@24VDC	0.025A@24VDC	0.025A@24VDC	-	0.025A@24VDC	0.1A@24VDC	0.025A@24VDC
Contact function	-	ON-OFF	ON-OFF	ON-OFF	ON-OFF	-	ON-OFF	-	ON-OFF
Contact resistance	-	0.1 mΩ	0.1 mΩ	0.1 mΩ	0.1 mΩ	-	0.1 mΩ	0.1 mΩ	0.1 mΩ
contact time	-	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	-	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK
Maximum contact voltage (DC)	-	50 V	24 V	24 V	24 V	50 V	50 V	50 V	50 V
Dielectric withstand voltage	-	500VDC V	500VDC V	500VDC V	500VDC V	-	500VDC V	500VDC V	500VDC V
Electrical life	-	7000 Cycle(s)	7000 Cycle(s)	7000 Cycle(s)	7000 Cycle(s)	-	7000 Cycle(s)	7000 Cycle(s)	7000 Cycle(s)
End contact material	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
End contact plating	-	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Shell material	-	GLASS FILLED POLYESTER	-	-	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Insulation resistance	-	100000000000 Ω	100000000000 Ω	100000000000 Ω	100000000000 Ω	-	100000000000 Ω	100000000000 Ω	100000000000 Ω
insulator material	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER
Number of positions	-	8	-	-	-	4	2	4	8
Maximum operating temperature	-	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB hole count	-	16	16	8	8	-	4	-	16
method of packing	-	TUBE	-	-	-	TUBE	TUBE	TUBE	TUBE
Terminal length	-	0.14 inch	0.14 inch	0.14 inch	0.14 inch	0.14 inch	0.14 inch	0.14 inch	0.14 inch
Terminal material	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
