ALD2721SBXXXX: DescriptionALD2721SBXXXX amplifier basic information: ALD2721SBXXXX is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are, ALD2721SBXXXX amplifier core information: The minimum operating temperature of the ALD2721SBXXXX is and the maximum operating temperature is 70 °C. Its maximum average bias current is 0.00024 µA How to simply check the efficiency of an amplifier? Looking at its slew rate, the ALD2721SBXXXX has a nominal slew rate of 0.7 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the ALD2721SBXXXX gain becomes 0.707 times the low-frequency gain is 700 kHz. The nominal supply voltage of the ALD2721SBXXXX is 2.5 V, and its corresponding nominal negative supply voltage is -2.5 V. The upper limit of its supply voltage is 13.2 VALD2721SBXXXX. The input offset voltage is 150 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of ALD2721SBXXXX: ALD2721SBXXXX has 14 terminals. Its terminal position type is: DUAL. Total pins: 14 ALD2721SBXXXX amplifier additional information: Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDSO-G14. The ALD2721SBXXXX packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The ALD2721SBXXXX package pin formats are: SMALL OUTLINE. Its terminal forms are: GULL WING.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size518KB，10 Pages; ManufacturerALD [Advanced Linear Devices]; Alternative parts：ALD2721SBXXXX

Download Datasheet Parametric Compare View All

ALD2721SBXXXX Overview

ALD2721SBXXXX amplifier basic information:

ALD2721SBXXXX is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are,

ALD2721SBXXXX amplifier core information:

The minimum operating temperature of the ALD2721SBXXXX is and the maximum operating temperature is 70 °C. Its maximum average bias current is 0.00024 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the ALD2721SBXXXX has a nominal slew rate of 0.7 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the ALD2721SBXXXX gain becomes 0.707 times the low-frequency gain is 700 kHz.

The nominal supply voltage of the ALD2721SBXXXX is 2.5 V, and its corresponding nominal negative supply voltage is -2.5 V. The upper limit of its supply voltage is 13.2 VALD2721SBXXXX. The input offset voltage is 150 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of ALD2721SBXXXX:

ALD2721SBXXXX has 14 terminals. Its terminal position type is: DUAL. Total pins: 14

ALD2721SBXXXX amplifier additional information:

Its temperature grade is: COMMERCIAL. The corresponding JESD-30 code is: R-PDSO-G14. The ALD2721SBXXXX packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The ALD2721SBXXXX package pin formats are: SMALL OUTLINE.

Its terminal forms are: GULL WING.

ALD2721SBXXXX Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	,
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.00024 µA
Nominal Common Mode Rejection Ratio	90 dB
Maximum input offset voltage	150 µV
JESD-30 code	R-PDSO-G14
Nominal Negative Supply Voltage (Vsup)	-2.5 V
Number of functions	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Nominal slew rate	0.7 V/us
Supply voltage upper limit	13.2 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	700 kHz
Base Number Matches	1

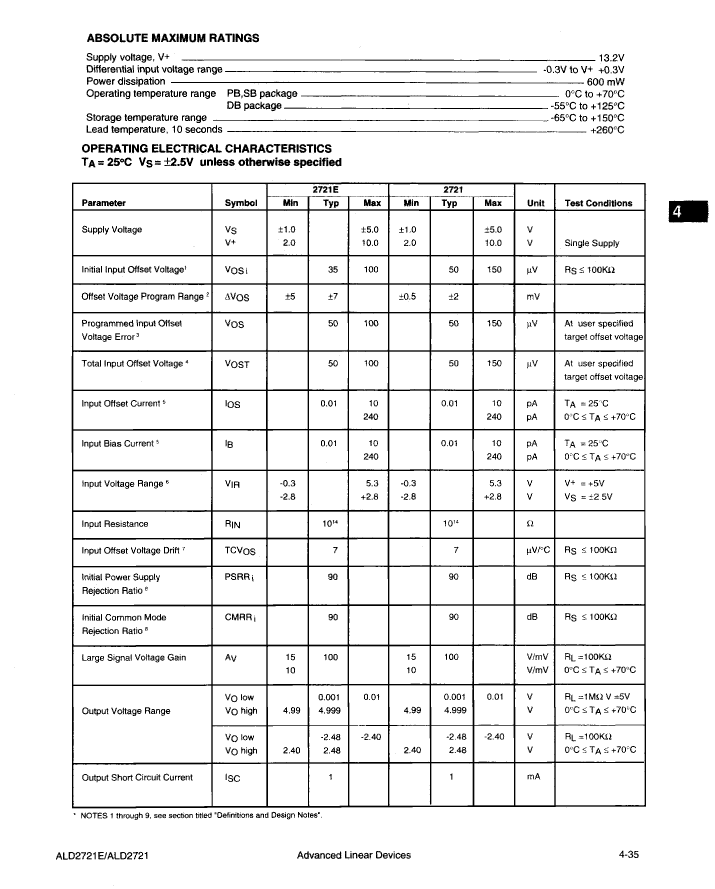

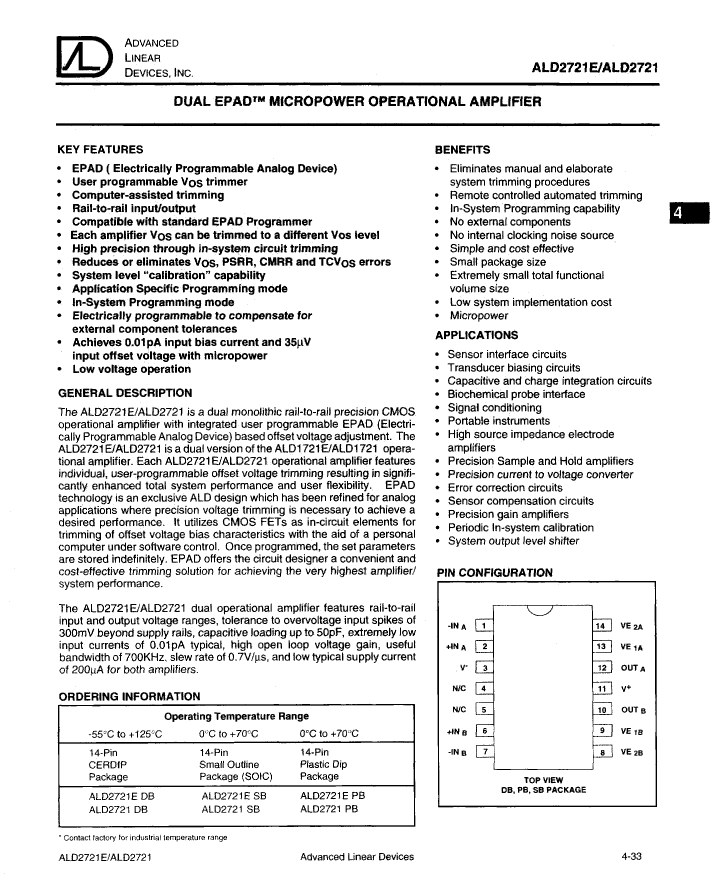

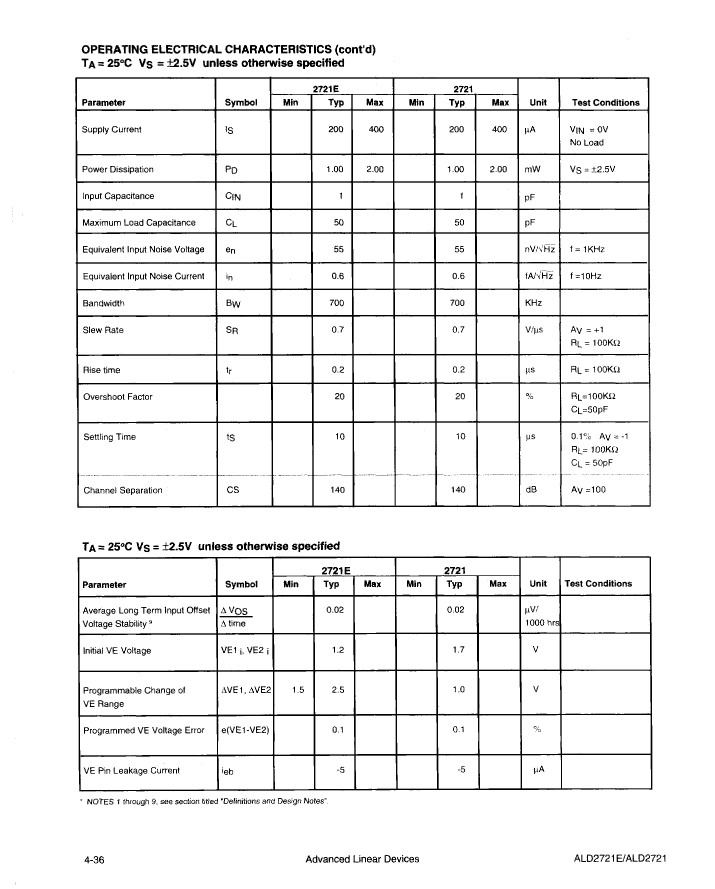

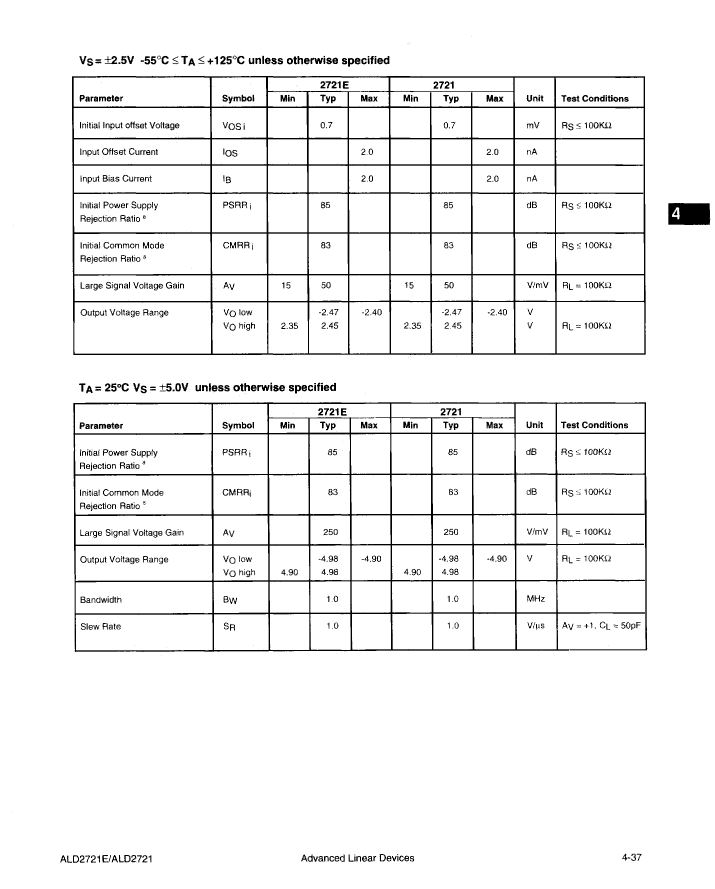

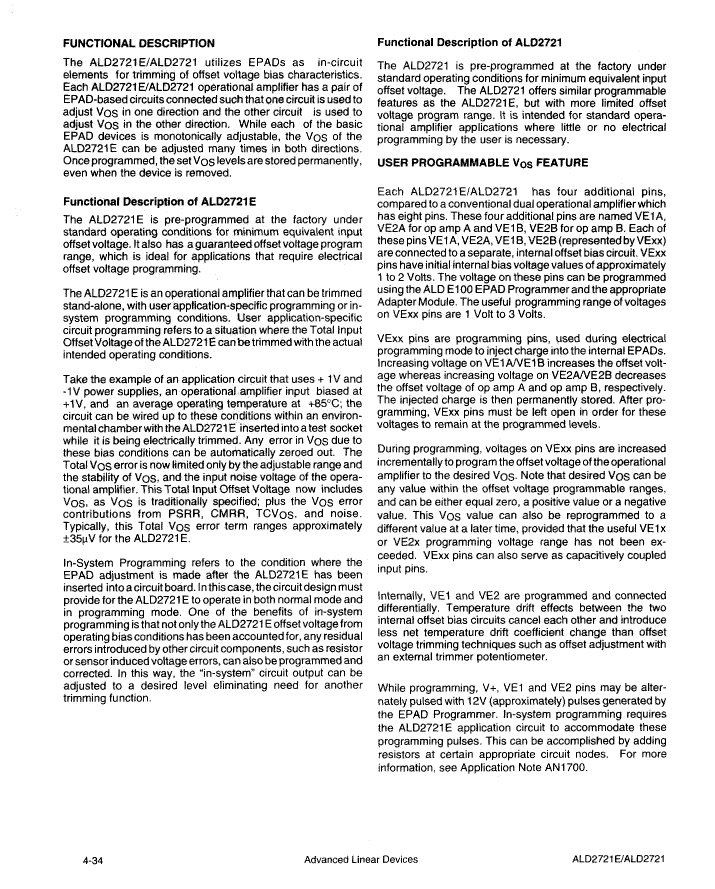

Preview

Download Datasheet

View All

ALD2721SBXXXX Related Products

	ALD2721SBXXXX	ALD2721EDBMXXXX	ALD2721ESBXXXX	ALD2721DBMXXXX	ALD2721EPBXXXX	ALD2721PBXXXX
Description	Operational Amplifier, 2 Func, 150uV Offset-Max, CMOS, PDSO14	Operational Amplifier, 2 Func, 100uV Offset-Max, CMOS, CDIP14	Operational Amplifier, 2 Func, 100uV Offset-Max, CMOS, PDSO14	Operational Amplifier, 2 Func, 150uV Offset-Max, CMOS, CDIP14	Operational Amplifier, 2 Func, 100uV Offset-Max, CMOS, PDIP14	Operational Amplifier, 2 Func, 150uV Offset-Max, CMOS, PDIP14
Parts packaging code	SOIC	DIP	SOIC	DIP	DIP	DIP
Contacts	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.00024 µA	0.002 µA	0.00024 µA	0.002 µA	0.00024 µA	0.00024 µA
Nominal Common Mode Rejection Ratio	90 dB	83 dB	90 dB	83 dB	90 dB	90 dB
Maximum input offset voltage	150 µV	100 µV	100 µV	150 µV	100 µV	150 µV
JESD-30 code	R-PDSO-G14	R-CDIP-T14	R-PDSO-G14	R-CDIP-T14	R-PDIP-T14	R-PDIP-T14
Nominal Negative Supply Voltage (Vsup)	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V	-2.5 V
Number of functions	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	70 °C	125 °C	70 °C	125 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal slew rate	0.7 V/us	0.7 V/us	0.7 V/us	0.7 V/us	0.7 V/us	0.7 V/us
Supply voltage upper limit	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V	13.2 V
Nominal supply voltage (Vsup)	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Nominal Uniform Gain Bandwidth	700 kHz	700 kHz	700 kHz	700 kHz	700 kHz	700 kHz
Base Number Matches	1	1	1	1	1	1
