3-1775015-0 datasheet, PDF - EEWORLD Datasheet

3-1775015-0: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,30 CONTACTS,PIN,0.031 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL; CategoryThe connector The connector; File Size174KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

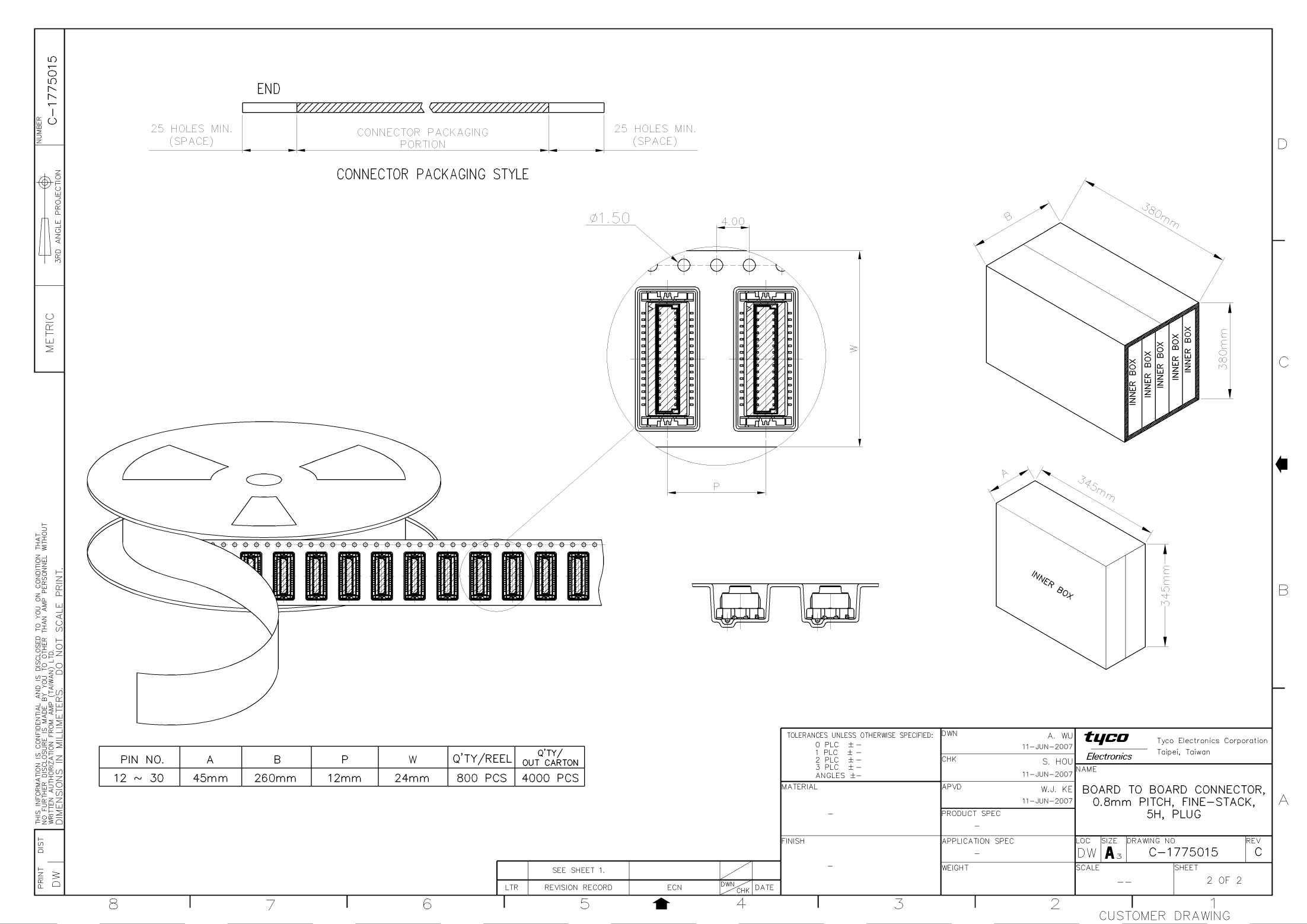

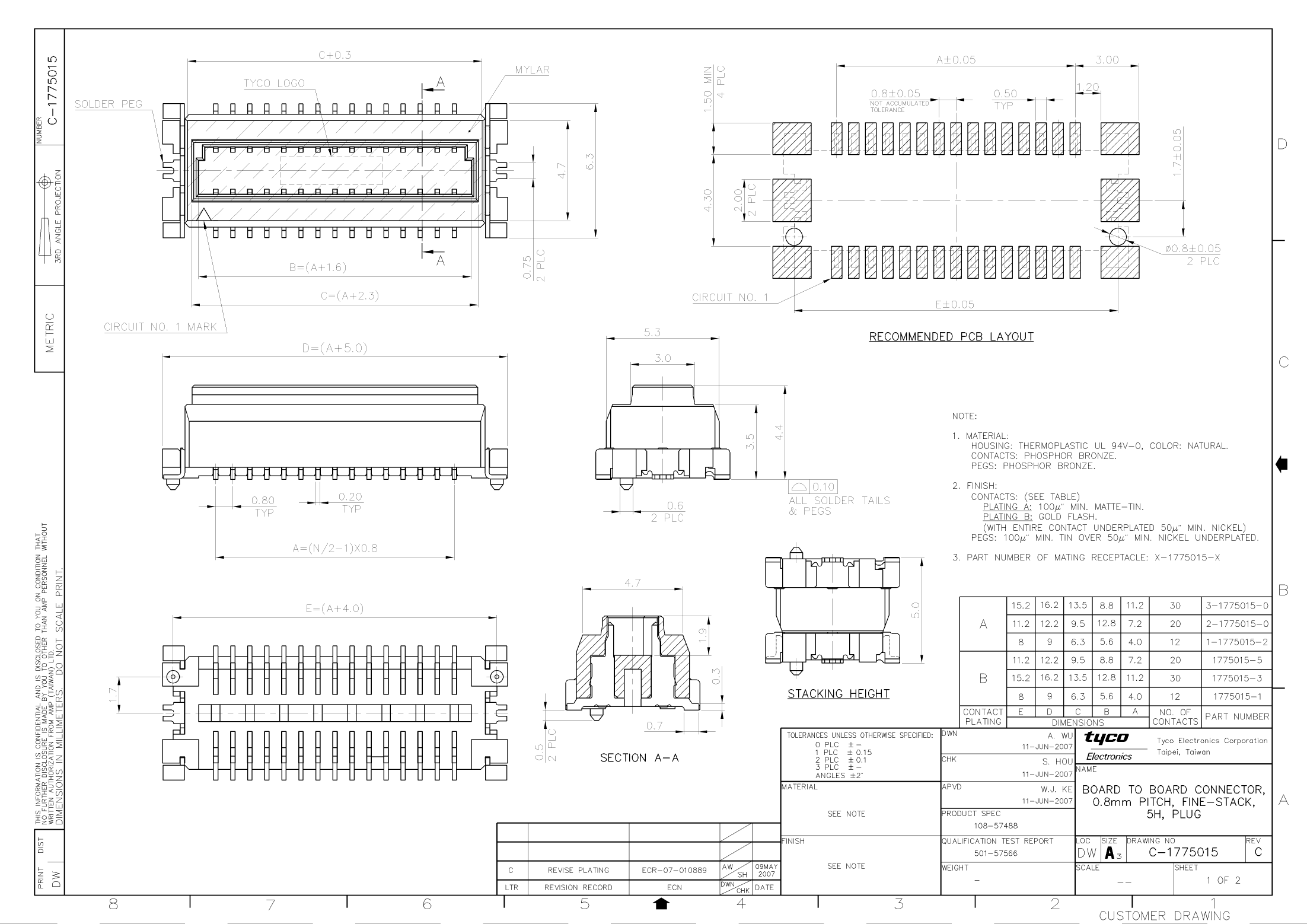

3-1775015-0 Overview

HEADER CONNECTOR,PCB MNT,PLUG,30 CONTACTS,PIN,0.031 PITCH,SURFACE MOUNT TERMINAL,LOCKING,NATURAL

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	TE Connectivity
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.248 inch
subject depth	0.173 inch
body length	0.638 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Dielectric withstand voltage	700VAC V
Durability	20 Cycles
maximum insertion force	1.4456 N
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
Manufacturer's serial number	1775015
Plug contact pitch	0.031 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.7912 mm
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
Evacuation force-minimum value	.1946 N
Base Number Matches	1
