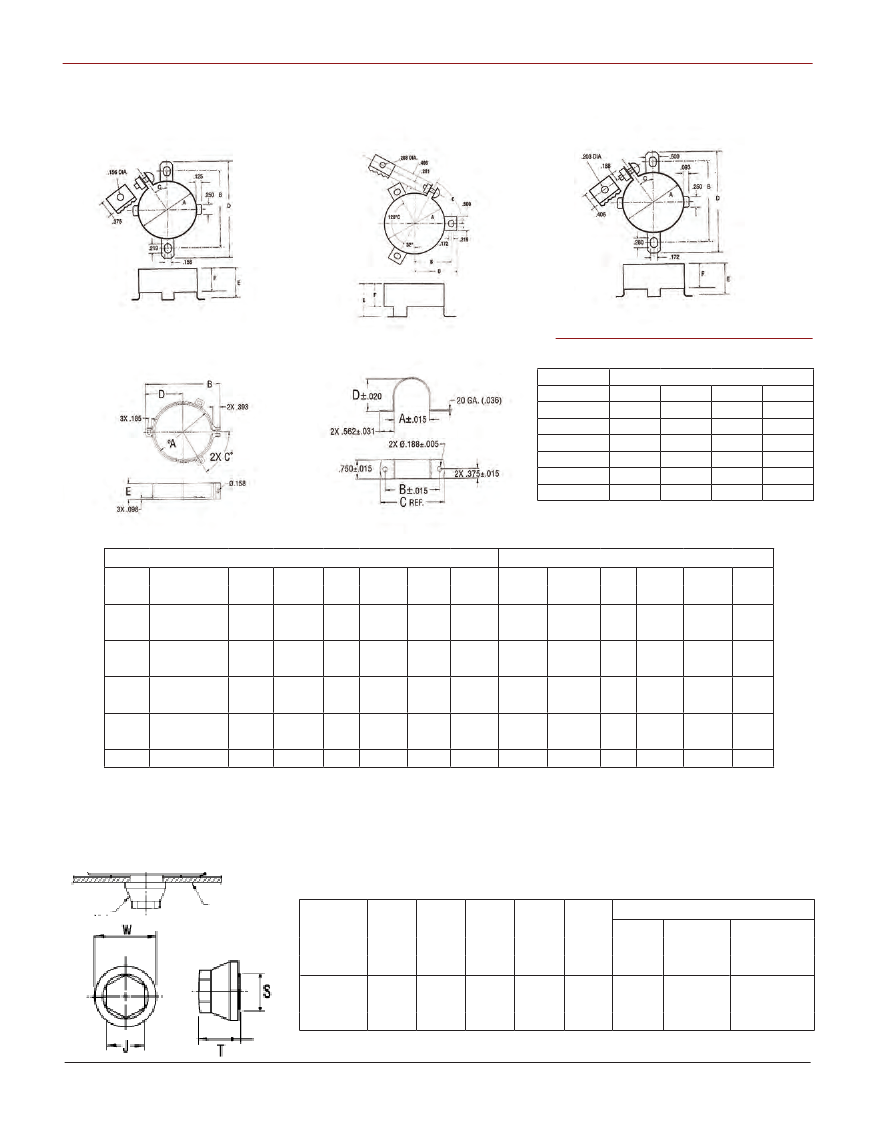

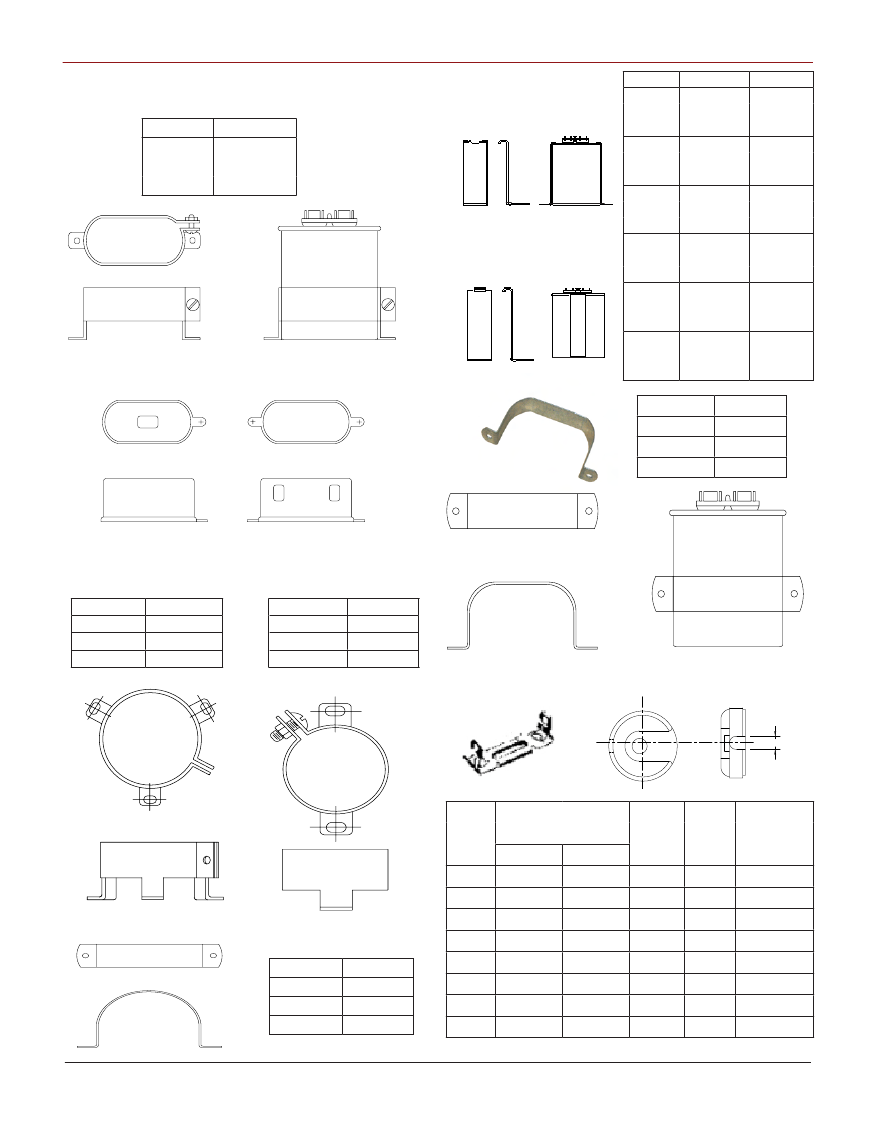

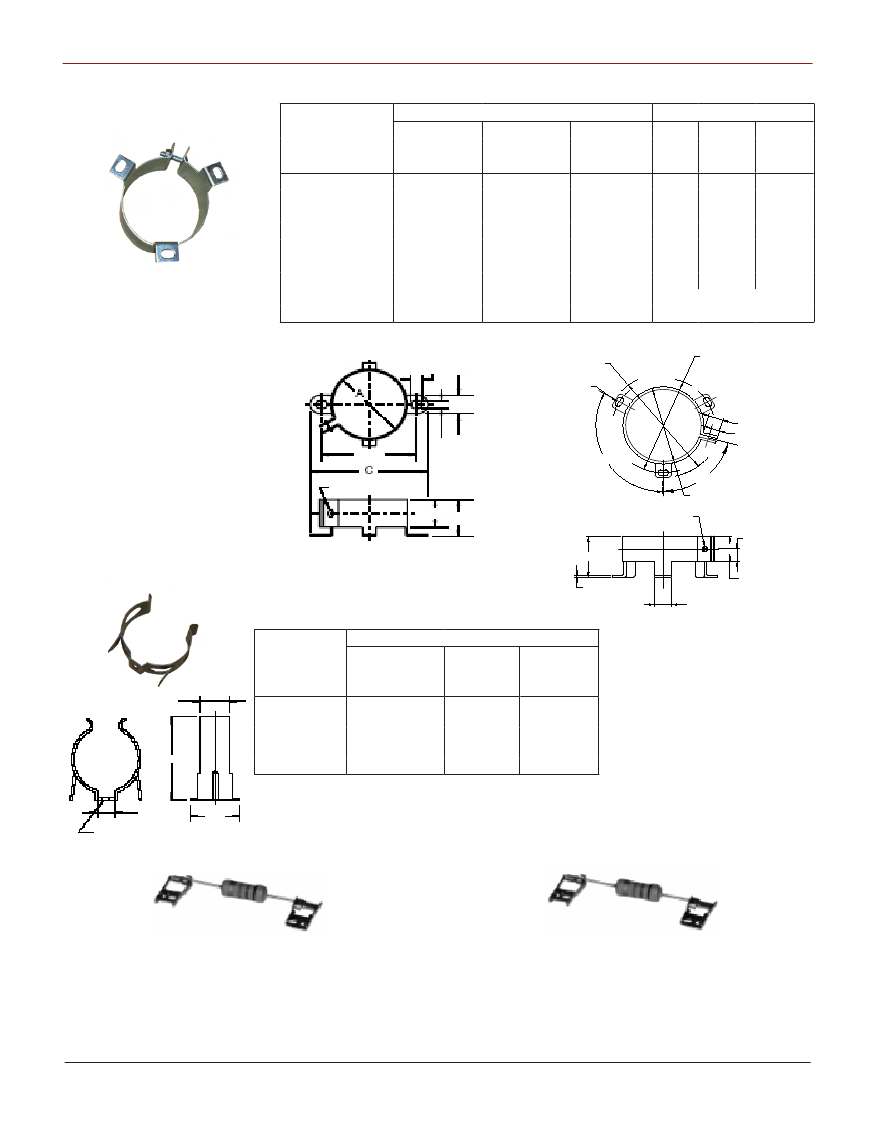

Capacitor Hardware
Type VR Vertical Mounting Clamp
Catalog Part Number
Diameter
of Part to be
Mounted
1" to 1-1/16
1-3/8" to 1-7/16
1-1/2" to 1-9/16
1-3/4" to 1-13/16
2" to 2-1/16
2-1/2" to 2-9/16
3" to 3-1/8
Screw
Nut
Without
Screw & Nut
VR1B
VR3B
VR4B
VR6B
VR8B
VR10B
VR12B
VRSCREW
VRNUT
Unassembled
Screw & Nut
Included
VR1
VR3
VR4
VR6
VR8
VR10
VR12
—
—
Assembled
with
Screw & Nut
VR1A
VR3A
VR4A
VR6A
VR8A
VR10A
VR12A
—
—
1"
1-3/8"
1-1/2"
1-3/4"
2"
2-1/2"
3"
1-7/16"
1-25/32"
1-15/16"
2-1/4"
2-1/2"
3"
3-7/16"
1-7/8*"
2-7/32"
2-11/32"
2-9/16"
2-13/16"
3-5/16"
3-13/16"
A
B
C
Dimensions
9/16" long 6-32 thread NC-2A
Standard hex nut to fit screws
CDE VR mounting clamps may be
used to mount any cylindrical ca-
pacitor with a 1” to 3” diameter
that is to be mounted in a verti-
cal position. Material is 1010 CRS,
commercial grade #4 temper ASI
scale. Parts are finished with .0001
(nominal) zinc chromate plating.
Use for mounting CG types, PSU, SF
and MPF types. Material thickness
is .035”
VR1, 3 & 4
.219”
.375”
C ±0.01”
0.176” x 0.281”
±0.016 (3 places).
VR6, 8,10 & 12
B Mtng ±0.03”
B Mtg
2 Holes
.1561” Dia.
.156”
120 º ±3 º
(3 Places)
.562” .750”
B Mtng ±0.03”
Ø 0.201” ±0.005”
0.18
75 º
A ±0.016”
0.34
8” ±
4” ±
0.01
6
0.01 ”
6”
Type TH Horizontal Mounting Clip
0.375”±0.016”
1.125” ±0.016”
0.035”
0.075” ±0.016”
0.500” ±0.016”
Dimensions in Inches
Nominal Dia.
Catalog
.*
340” except TH25 is .590”
of Part to be
Mounted
.375
.625
.875
1.000
1.375
A
.250
.312
.312
.312
.312
B
.47
.72
1.00
1.06
1.50
Part Number
TH13
TH17
TH21
B
TH23
TH25
.135” Dia
Hole
A
These clips, though designed for
capacitors, have varied applica-
tions to retain many cylindrical
components. They are used ex-
tensively in the electrical and elec-
tronic industries to hold spindles,
condensers, capacitors, tubes,
rods and conduit. Clips have phos-
phate and oil finish.
Material thickness TH13 thru TH17
is .016”. TH21 thru TH25 is .020”
.594”
ACR15KT Motor Start Resistor Kit
ACR220KT Motor Run Resistor Kit
15K Ohm 2 watt bleeder resistors for AC motor start applica-
tions. Saves relay switch contacts and capacitor, particularly in
capacitor start applications. 1/4” quick connect terminals elimi-
nate need for soldering.
ACR15K:
Pack of 10, 15K Ohm 2 watt bleeder resistor without quick con-
nect terminals.
220K Ohm 1 watt bleeder resistors for AC motor run applica-
tions. Saves relay switch contacts and capacitor, particularly in
capacitor run applications. 1/4” quick connect terminals elimi-
nate need for soldering.
ACR220K:
Pack of 10, 220K Ohm 1 watt bleeder resistor without quick con-
nect terminals.
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Capacitor Hardware
