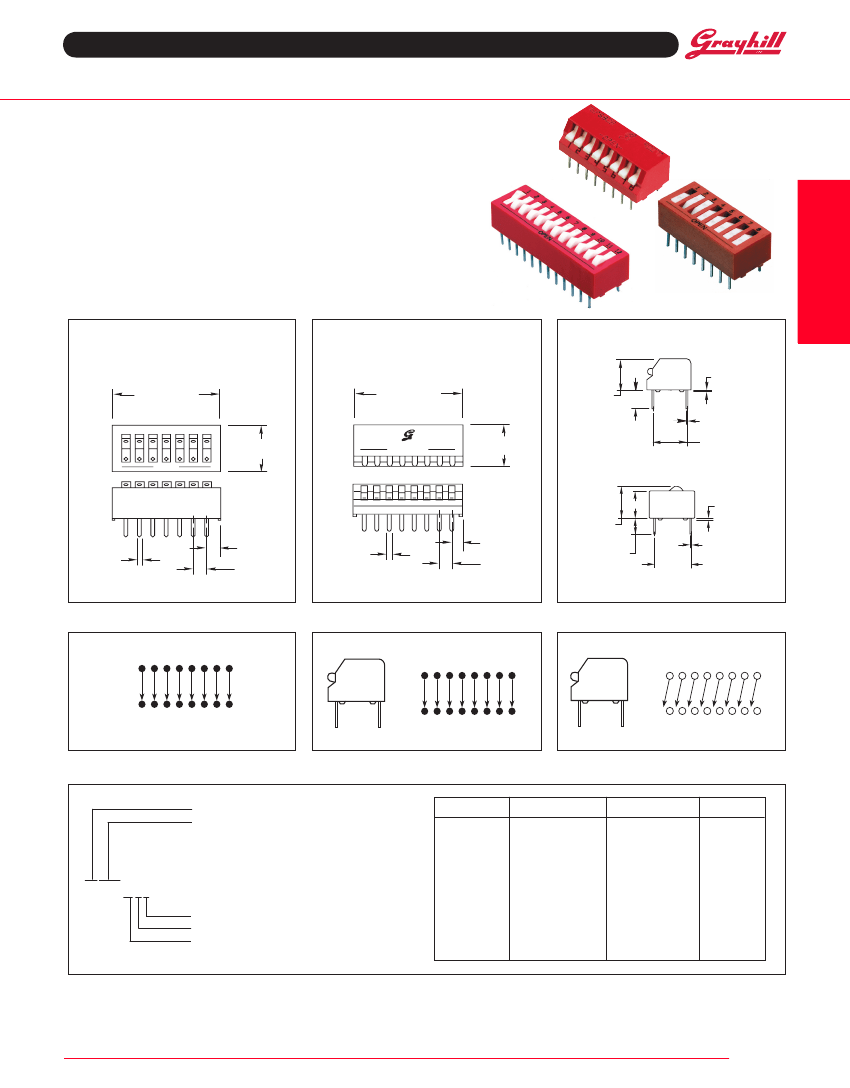

Thru-Hole DIP Switches
SeRIeS 76
SPST Rocker
FeATuReS
• Raised and Recessed, Rocker
and PIANO-DIP
®
Styles
• Sealed Base Standard
• Spring and Ball Contact
• Top Tape Seal Option
DIP Switches
DIMeNSIONS
in inches (and millimeters)
PIANO-DIP
®
end Views
Rocker and Recessed Rocker
B = .156 ± .010
(3,96 ± 0,25)
TYPICAL
.020 + .005 –.000
(0,51 + 0,13)
LENGTH
± .010 (±0,25)
SEE ORDER INFO.
1
2
3
4
5
6
7
LENGTH
± .010 (±0,25)
SEE ORDER INFO.
.281 ± .010
(7,14 ± 0,25)
TYP.
.380 ± .010
(9,65 ± 0,25)
B
.012 ± .001
(0,30 ± 0,03)
.300 + .030 –.000
(7,62 + 0,76)
A = .272 ± .010
(6,91 ± 0,25)
A
.020 + .005
–.000
(0,51 + 0,13)
.012 ± .001
(0,30 ± 0,03)
.300 + .030 –.000
(7,62 + 0,76)
.380 ± .010
(9,65 ± 0,25)
OPEN
OPEN
Rocker
1
2
3
4
5
6
7
8
C
L
C
L
.020 ± .002
(0,51 ± 0,05)
See also end view.
.090 ± .005
(2,29 ± 0,13)
.100 ± .005
(2,5 ± 0,13)
.020 ± .002
(0,51 ± 0,05)
See also end view.
.090 ± .005
(2,29 ± 0,13)
.100 ± .005
(2,5 ± 0,13)
.295 + .000
–.020
(7,49 –0,51)
.156 ± .010
(3,96 ± 0,25)
TYP.
C
L
C
L
For recessed rockers, delete .295 dimension.
cIRcuITRy
Styles 76SB and 76RSB
Style 76PSB
UP IS OPEN (OFF)
Styles 76PRB
UP IS CLOSED (ON)
Typical circuit diagram with actuator
in the closed position.
Actuator shown in the down position.
Actuator shown in the down position.
ORDeRING INFORMATION
Series
Switch Style: SB = Raised Rocker
RSB = Recessed Rocker
PSB = Piano-DIP (Up is Off)
PRB = Piano-DIP (Up is On)
76RSB04ST
T
= RoHS compliant
Sealed*: S = Tape Seal
Number of Positions:
02 through 10, 12
No. of Pos.
2
3
4
5
6
7
8
9
10
12
Length (Inches)
0.280"
0.380"
0.480"
0.580"
0.680"
0.780"
0.880"
0.980"
1.080"
1.280"
Length (Metric)
7,1 mm
9,7 mm
12,2 mm
14,7 mm
17,3 mm
19,8 mm
22,4 mm
24,9 mm
27,4 mm
32,5 mm
No./Tube
35
27
21
18
15
13
12
10
9
8
*A top tape seal is required for switches that are machine
soldered or heavily cleaned after hand soldering. To order top
seal versions, add "S" to the Grayhill part number.
Available from your local Grayhill Distributor.
For prices and discounts, contact a local Sales Office,
an authorized local Distributor or Grayhill.
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
Thru-Hole DIP Switches
SpeCIFICATIOnS: Standard Styles
Ratings
Mechanical Life: Operations per switch position
Make-and-break Current Rating: Operations
per switch position at these resistive loads
1 mA, 5 Vdc; 50 mA, 30 Vdc; or 150 mA, 30 Vdc:
10 mA, 30 Vdc; or 10 mA, 50 mVdc:
10 mA, 50 mVdc; or 25 mA, 24 Vdc; or 100 mA, 6 Vdc:
Contact Resistance: Initially:
After life, at 10 mA, 50 mVdc, open circuit:
Insulation Resistance:
Minimum, at 100 Vdc between adjacent closed
contacts and also across open switch contacts
Initially (Mohms):
After life (Mohms):
Dielectric Strength: Minimum voltage (AC,
RMS) measured between adjacent closed
contacts and also across open switch contacts.
lnitially:
After life:
Current Carry Rating: Maximum rise of 20°C
Switch Capacitance: At 1 megahertz
Operating Temperature Range:
Storage Temperature Range:
76
2,000
78
2,000
90B
2,000
2,000
—
—
≤
30 mΩ
≤
100 mΩ
2,000
—
—
≤
30 mΩ
≤
100 mΩ
—
2,000
2,000
DIP Switches
≤
20 mΩ
≤
100 mΩ
5,000
1,000
5,000
1,000
5,000
1,000
750 V
500 V
5A
2 pF
-40°C to + 85°C
-55°C to + 85°C
750 V
500 V
4A
2 pF
-40°C to + 85°C
-55°C to + 85°C
500 V
500 V
3A
2 pF
-40°C to + 85°C
-55°C to + 85°C
Mechanical Ratings
Soldering Information
Series 90 MIDIp and Series 76 recessed rocker
(76RSB style) sealed switches have been tested
to eIA Standard RS-448-2. Similar performance
can be expected from other sealed Series 76
and 78 DIp switches.
Solderability:
per MIL-STD-202, Method 208
Resistance to Soldering Heat:
76RSB:
passes eIA Standard using two, four, and six
second soldering time. 90: per MIL-S-83504,
six second test.
Fluxing:
per eIA RS-448-2 with flux touching
switch body.
Cleaning:
76, 78 and 90 series tape sealed
products: passes immersion test using water/
detergent. Acceptable solutions include 1-1-1
trichlorethane, freon, (TF, Te, or TMS), isopropyl
alcohol, detergent (140°F maximum). Terpene
acceptable for Series 90 only. Solutions which are
not recommended include acetone, methylene
chloride, freon TMC.
Materials and Finishes
Vibration Resistance:
per Method 204, Test
Condition B, 1 mS opening (10 mS allowed)
Mechanical Shock:
per Method 213, Test
Condition A. 1 mS opening (10 mS allowed)
Thermal Shock Resistance:
per specification;
no failures; passes contact resistance.
Terminal Strength:
per specification
Thermal Aging:
1,000 hours at 85°C; no failures.
Environmental Ratings
Meets all requirements of MIL- S-83504.**
Where Grayhill performance is superior, the MIL
spec is listed in parentheses.
Moisture Resistance:
per MIL-STD-202,
Method 106.
Shorting Member (Ball):
Brass, gold-plated
over nickel barrier.
Base Contacts:
Copper alloy, gold-plated
over nickel barrier.
Terminals:
Copper alloy, matte tin plated over
nickel barrier.
Non-Conductive Parts:
Thermoplastic
(UL94V-O)
Potting Material:
epoxy, 76,78 only.
Protective Cover:
76,78, only-polycarbonate.
Tape Seal:
76, 78: polyester film
90:
polyimide film
Tape Seal Integrity:
passes gross leak test
using 125°C flourinert for 20 seconds minimum.
Reference MIL-STD-202, Method 112.
