ST and SC
™
Quick-Cure
™
Connectors
®
®
FEATURES
M
ethode
®
908 Series ST
®
and 308 Series SC Connectors
are designed and manufactured to
meet EIA/TIA FOCIS Intermateability
specifications.
The Methode ST
®
& SC Quick-Cure™
system combines Methode’s patented
polymer ferrule technology with a
proven rapid cure adhesive. Quick-
Cure™ terminations take two minutes
or less, yielding low-loss results with
lab-tested reliability. The polymer
ferrule has a pedestal tip that
supports the fiber during polishing,
eliminating the need for an epoxy
bead. The pedestal tip prevents
inadvertent fiber breakage resulting in
reduction of polishing time and scrap.
The anaerobic adhesive used in the
Quick-Cure™ process cures in twenty
(20) seconds at room temperature.
Methode ST
®
and SC Quick-Cure™ con-
nectors terminate with the same tools as
all other Methode connectors. Quick-
Cure™ adhesive can be ordered sepa-
rately or as part of a consumables kit.
Methode’s Universal Polishing Disk
accommodates SC, ST
®
, FC, duplex SC
and FDDI Connectors. This unique
tool can handle up to four (4) ST
®
or SC
connectors at one time.

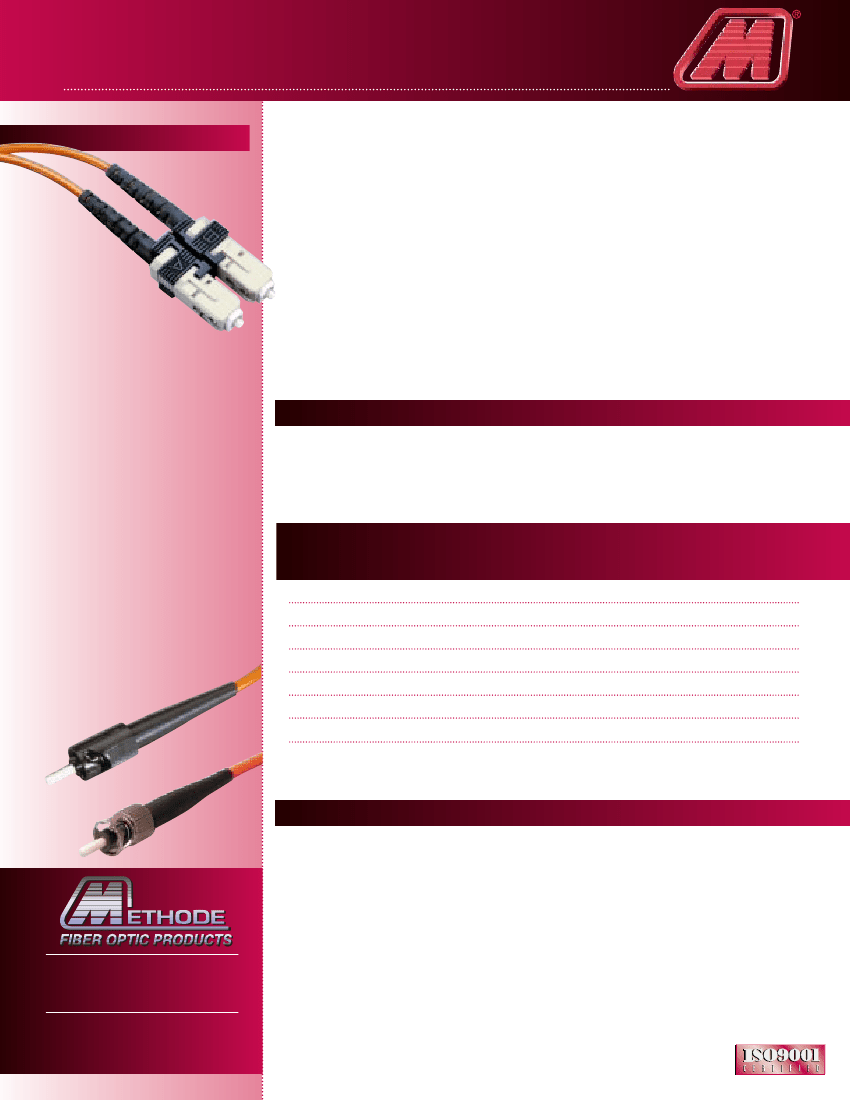

Duplex Polymer
SC Multimode
w/clip D3-208-3
s
Available in ST
®
and SC connector styles
Terminates in two
minutes or less
Cures in 20 seconds
without heat
No Cleaving Required
Terminates with standard
tools
Meets ISO/IEC 11801 and
TIA 568A performance
standards
Boot Options for 3.0 mm
and 900 micron diameter
cable
Optional dust cover with
lanyard stays with the
connector
Polymer Nut
ST
®
Multimode
Connector R3-002-3
s
s
PERFORMANCE CHARACTERISTICS
s
Insertion Loss*:
≤
0.2 dB
s
Durability:
s
Temperature Range:
s
s
≤
0.1 dB (500 cycles)
Operating:
-20° to 70°C
Storage:
-40° to 80°C
*Typical at 850 nm wave length using 62.5/125 micron fiber
s
CONNECTOR
(125 MICRON MULTIMODE)
ST
®
Polymer Nut
ST
®
Metal Nut
SC Simplex
SC Simplex
SC Duplex
Dust Cover w/ lanyard
SC Duplex Clip
PART
NUMBER
R3-002-3
R3-H01-3
D3-004-3
D3-204-3
D3-208-3
900-111-2006
308-107-3092
BODY
COLOR
Black
Black
Black
Beige
Beige
Black
Black
s
s
Individually packaged, pre-assembled: add “-B” suffix to part number for bulk
packaging. Please contact Methode for part numbers of connectors with other body and boot color options
Metal Nut
ST
®
Multimode
Connector R3-H01-3
MATERIALS
s
SC
s
Both ST
®
and SC
7444 W. Wilson Avenue
Chicago, IL. U.S.A. 60656
708.867.9600 Fax: 708.867.9621
800.323.6858
www.methode.com
– Grip & Plug Body: Thermoplastic
(reinforced, flame retardant)
– Rear Body: Metal Alloy, Nickel
Plated
s
ST
®
– Nut: Zinc Alloy, Nickel Plated or
Precision-Molded Reinforced
Composite Polymer
– Body: Reinforced Composite
Polymer
– Crimp Sleeve: Brass, Tin Plated
– Boot: Thermoplastic Rubber
(Flame Retardant)
– Dust Cover: Vinyl
– Ferrule: Polymer
FM2003
ST and SC
Quick-Cure Connectors
®
®
™
™
CONNECTORS
SC Connectors
SC Simplex w/900
µm
boot

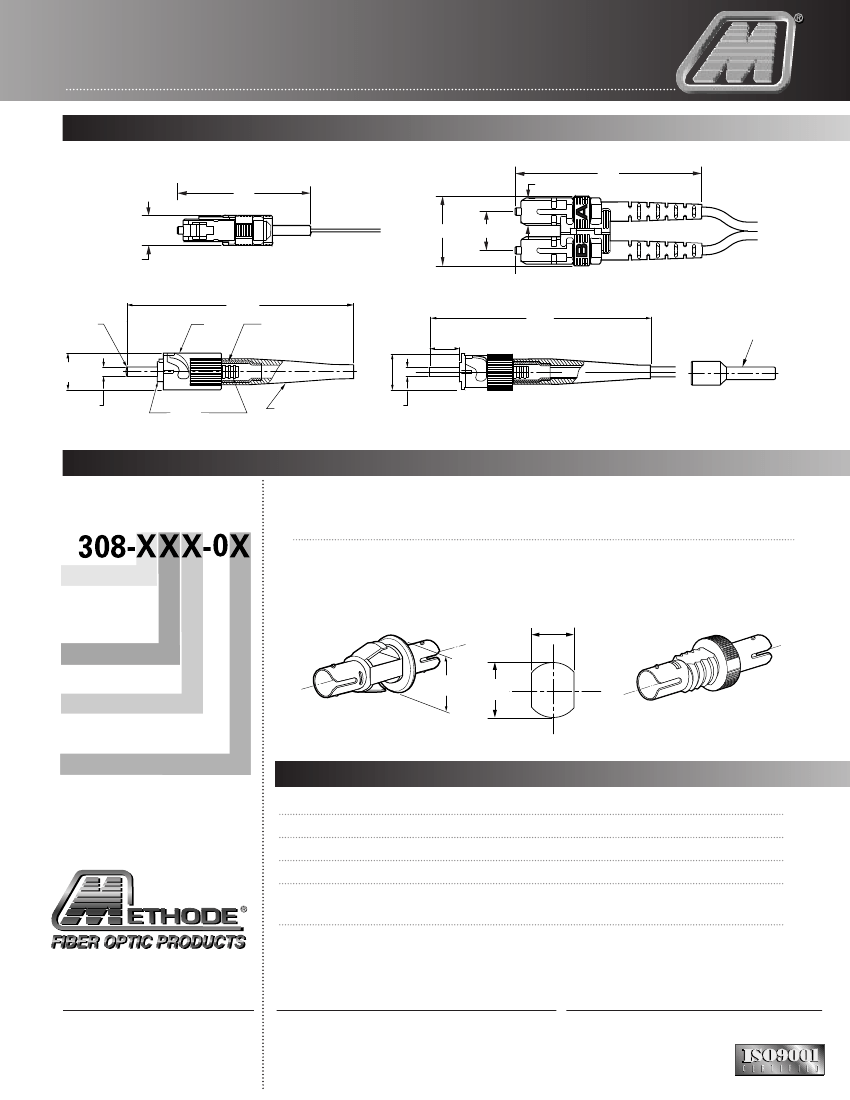

(Side View)
1.70
(43.18)
0.90 (22.86) 0.5 (12.7)
900 Micron Boot
SC Duplex with Clip
0.35 (8.89)
2.43
(61.72)
0.38
(9.75)
P/N D3-004-3
2.355
(59.82)
Crimp Sleeve
Grip
ST
®
Connectors
Ferrule
Dimensions: inches (mm)
P/N D3-208-3
0.31
(7.92)
.384
(9.75)
2.37
(59.82)
900
µ
m Boot
0.38
(9.75)
.098
(2.5)
Connector
Body
Strain Relief Boot
.098
(2.5)
P/N: R3-002-3
P/N: R3-H01-3
COUPLINGS
SC Coupling and SC
Adapter Part Number
Color
1-
2-
3-
7-
NTT Blue
Black
Beige
Green
ST COUPLINGS
ST
®
Threaded Coupling, Metal Body,
Nickel Plated
ST
®
Snap-In Coupling Polymer Body,
Black
SLEEVE
Polymer
Phosphor Bronze
Zirconia
Polymer
Phosphor Bronze
Zirconia
.307
(7.8mm)
PART NUMBER
908-213-01
908-313-01
908-113-01
908-206-03
908-206-02
908-206-01
Individually packaged. Add “-B” suffix to part number for bulk packaging
Style
2 - Simplex
4 - Duplex
0.55
(13.97)
.380
(9.7mm)
Hybrid SC to...
0 - SC
4 - FC
7 - FC/APC
9 - ST
®
ST
®
Snap-In Coupling
Minimum
Panel Cutout
ST
®
Threaded Coupling
Max. Panel Thickness = 0.70 (17.8)
Alignment Sleeve Material
1 = Zirconia Ceramic
2 = Phosphor Bronze
3 = Polymer (Standard)
CONNECTOR TERMINATION TOOLS & ACCESSORIES
Universal Termination Kit without oven
Universal Polishing Disk
Universal Crimp Tool
Quick-Cure™ Anaerobic Adhesive
Quick-Cure™ Anaerobic Consumables Kit
500 terminations
including 500 ST
®
Polymer Connectors
