CXA1611M datasheet, PDF - EEWORLD Datasheet

CXA1611M: DescriptionFM/AM RADIO; CategoryAnalog mixed-signal IC Consumption circuit; File Size303KB，17 Pages; ManufacturerSONY; Websitehttp://www.sony.co.jp

Download Datasheet Parametric Compare View All

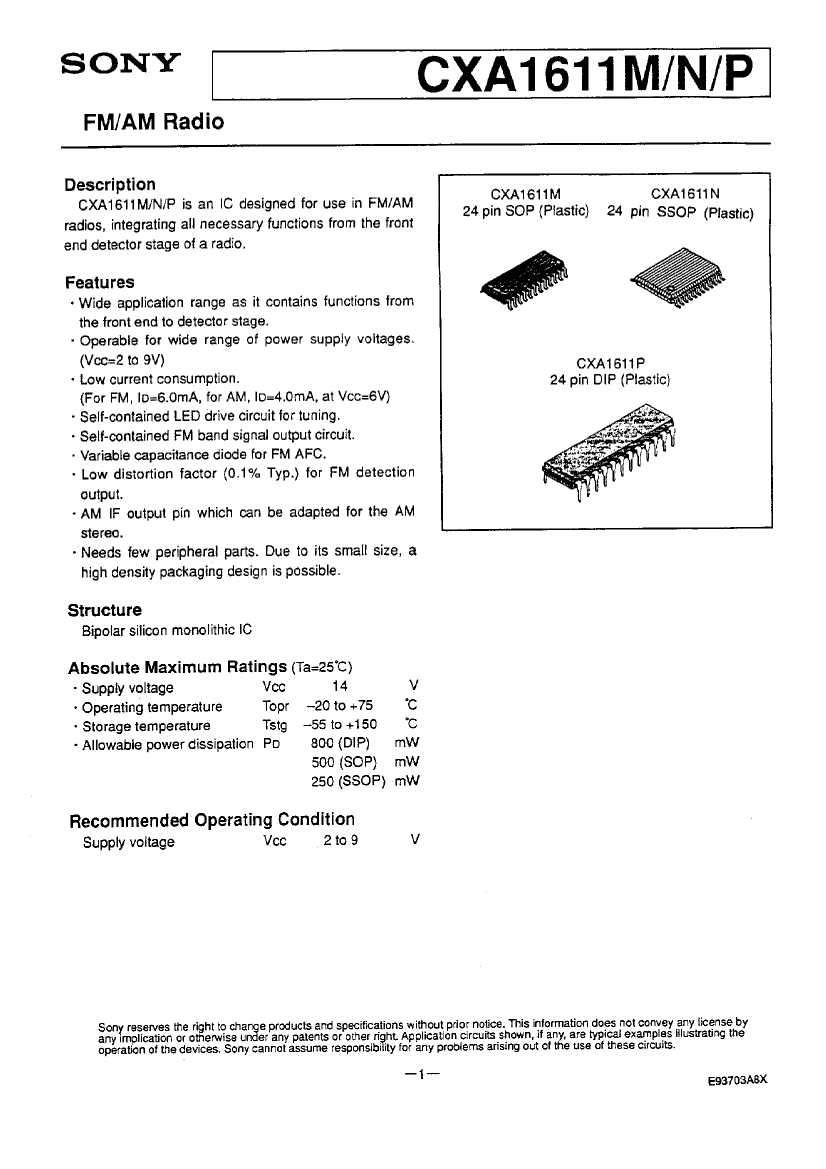

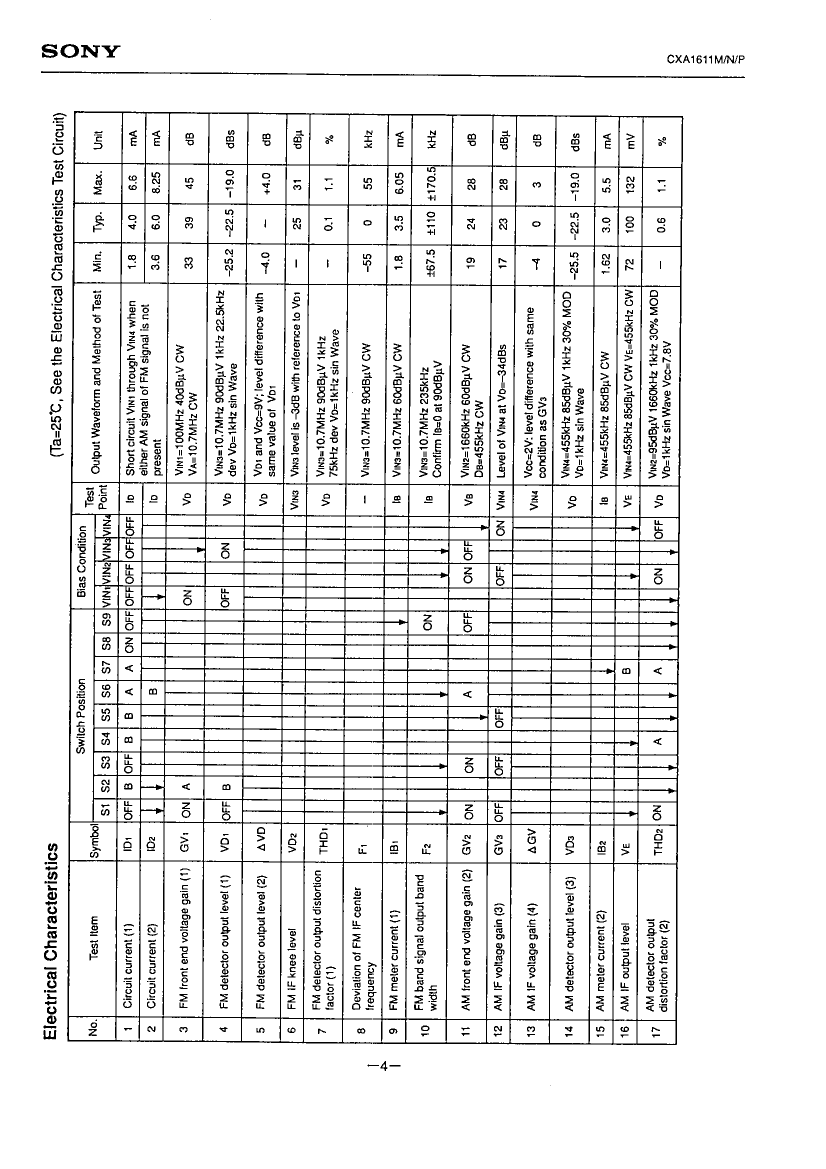

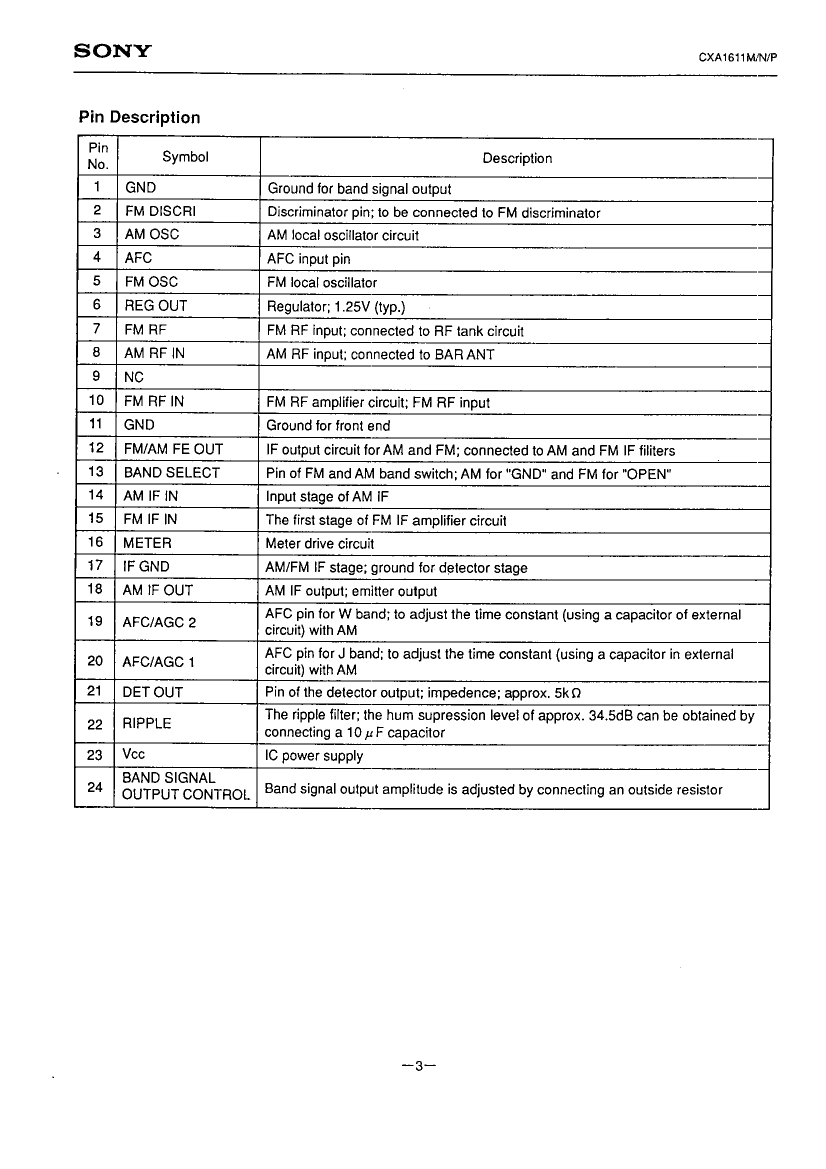

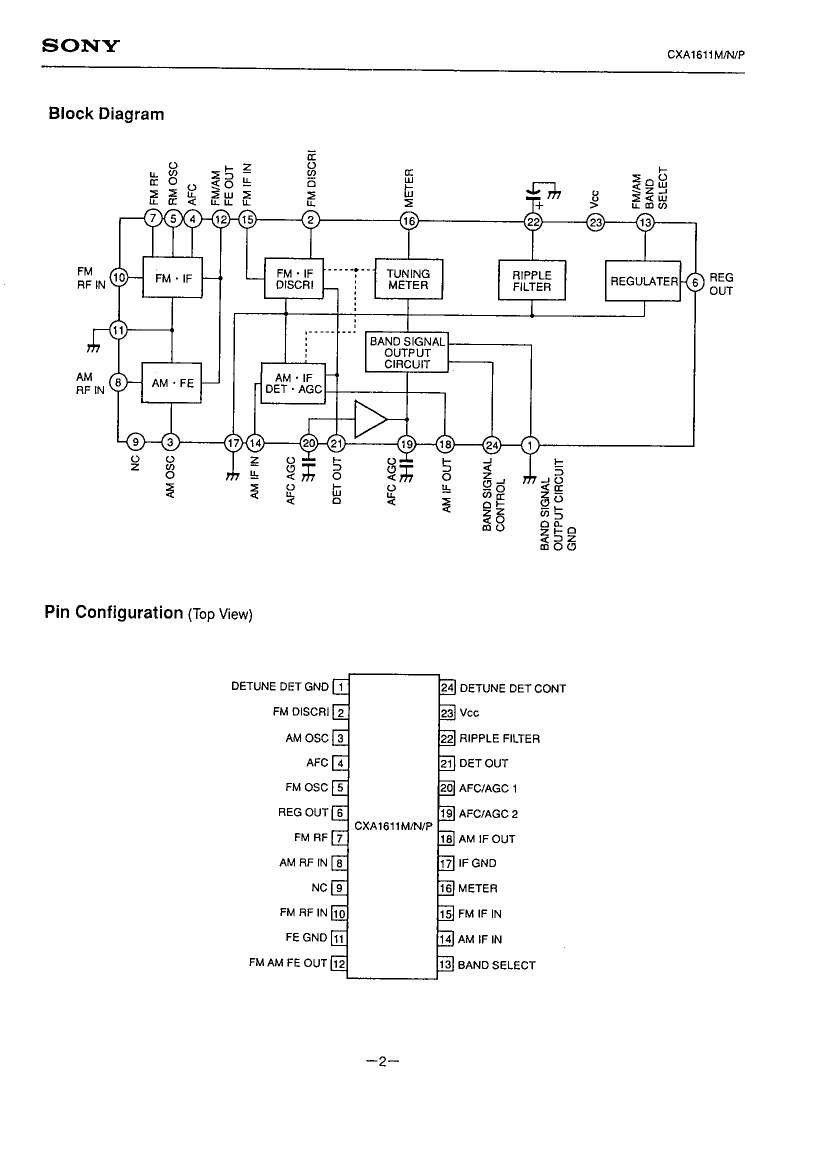

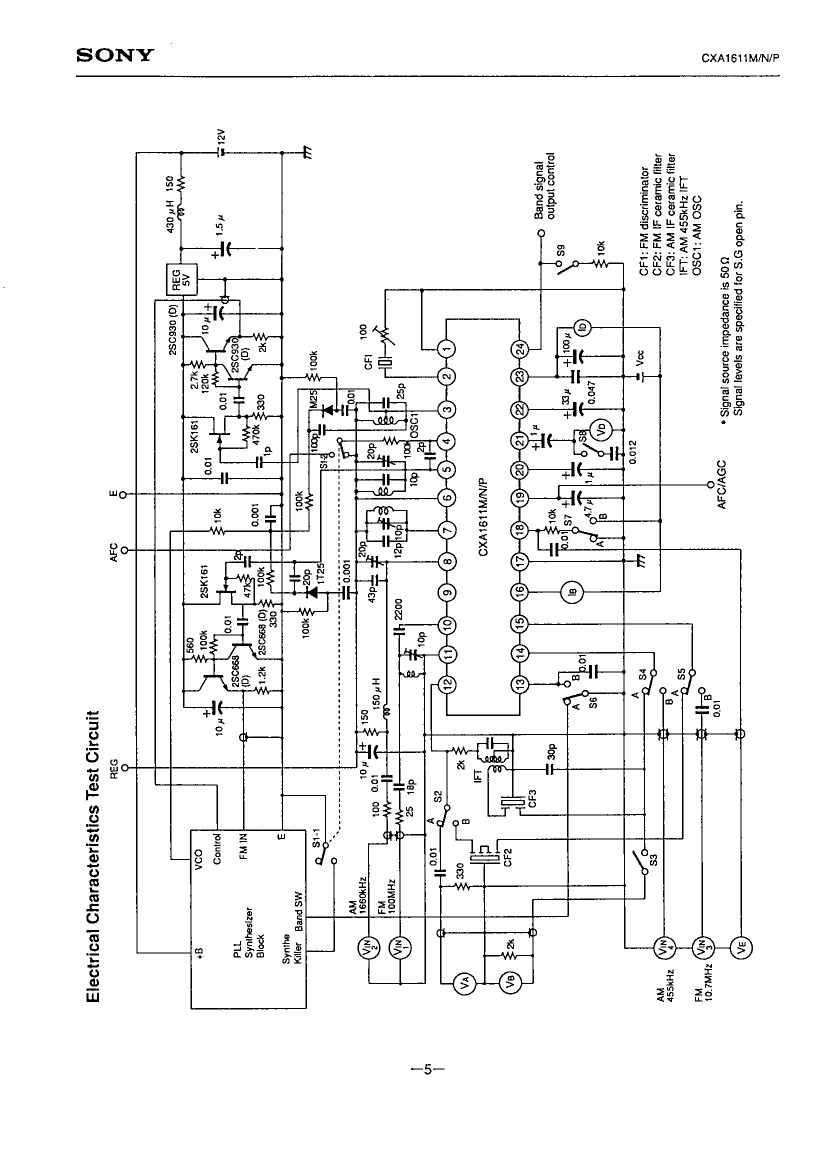

CXA1611M Overview

FM/AM RADIO

Parameter Name	Attribute value
Maker	SONY
Parts packaging code	SOIC
package instruction	SOP,
Contacts	24
Reach Compliance Code	unknow
Commercial integrated circuit types	AUDIO SINGLE CHIP RECEIVER
Demodulation type	AM/FM
harmonic distortion	0.6%
JESD-30 code	R-PDSO-G24
length	15 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.25 mm
Maximum slew rate	8 mA
Maximum supply voltage (Vsup)	9 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm

	CXA1611M	CXA1611P	CXA1611N
Description	FM/AM RADIO	FM/AM RADIO	FM/AM RADIO
Maker	SONY	SONY	SONY
Parts packaging code	SOIC	DIP	SSOP
package instruction	SOP,	DIP,	LSSOP,
Contacts	24	24	24
Reach Compliance Code	unknow	unknow	unknow
Commercial integrated circuit types	AUDIO SINGLE CHIP RECEIVER	AUDIO SINGLE CHIP RECEIVER	AUDIO SINGLE CHIP RECEIVER
Demodulation type	AM/FM	AM/FM	AM/FM
harmonic distortion	0.6%	0.6%	0.6%
JESD-30 code	R-PDSO-G24	R-PDIP-T24	R-PDSO-G24
length	15 mm	30.2 mm	7.8 mm
Number of functions	1	1	1
Number of terminals	24	24	24
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	LSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.25 mm	4.1 mm	1.45 mm
Maximum slew rate	8 mA	8 mA	8 mA
Maximum supply voltage (Vsup)	9 V	9 V	9 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V
surface mount	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
width	5.3 mm	10.16 mm	5.6 mm
