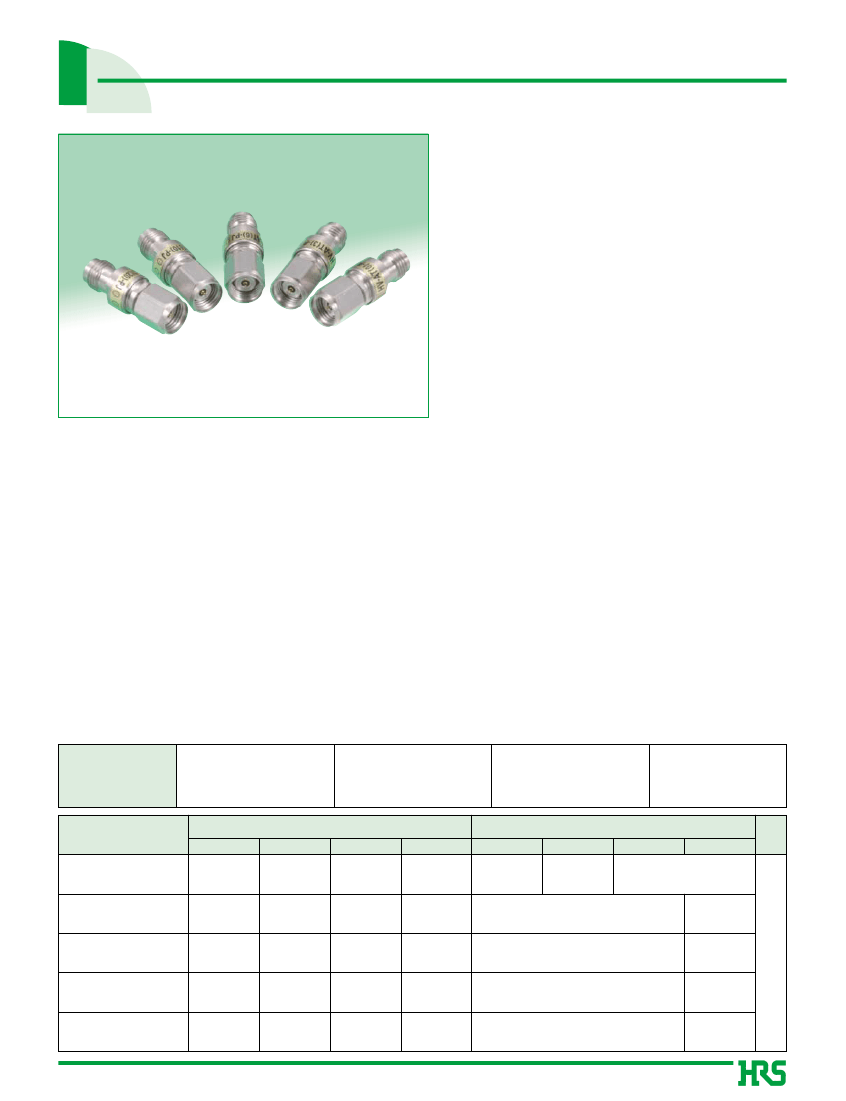

DC to 65 GHz, HV Connector Attenuators
HV-AT Series
s
Overview
Small, lightweight and low V.S.W.R makes it ideally
suited for the widely used high frequency
transmission applications.
Frequency bandwidth and high reliability is achieved
by the use of resistance substrate on the extremely
thin board, to form a suspended line.
HRS unique resistance substrate design and center
conductor connection assures consistent and stable
performance in changing temperature environments.
s
Features
1. Low V.S.W.R.
1.4 (Typical DC to 65 GHz)
s
Applications
* Optical transmission devices
* Network analyzers
* BERTS (Bit Error Ratio Testing Systems)
* FWA (Fixed Wireless Access)
* Measurement applications requiring transmission
frequencies of up to 65 GHz.
2. Space-saving design
Overall dimensions: 9 mm dia. x 24.64 mm long.
3. Lightweight
Total weight: 5.86 g.
4. Mating compatibility
Will mate with corresponding V Connector
T M
or
1.85mm connector. (Note)
5. RoHS compliant
All components and materials comply with EU
Directive 2002/95/EC.
Note: V Connectors is a registered trademark of Anritsu Corporation.
s
Specifications
Rating
Frequency range
Characteristic impedance
Power
Weight
Attenuation (dB)
DC~18GHz 18~26.5GHz 26.5~40GHz 40~65GHz
HV-AT(0)-PJ
+0.4
00
+0.0
DC to 65GHz
50ø
1W CW (At 65ç)
5.86g
Operating temperature range
Operating relative humidity
-10ç to +65ç
90% max.
Part No.
V.S.W.R. (Max)
DC~18GHz 18~26.5GHz 26.5~40GHz 40~65GHz
1.35
1.4
1.55
RoHS
00
+0.5
+0.0
00
+0.8
+0.0
00
+1
+0.0
HV-AT(3)-PJ
03
+0.6
– 0.4
03
+0.7
– 0.4
03
+0.9
– 0.4
03
+1.5
– 0.4
1.4
1.55
HV-AT(6)-PJ
06
+0.7
– 0.3
06
+0.8
– 0.3
06
+0.9
– 0.3
06
+1.5
– 0.3
1.4
1.60
YES
HV-AT(10)-PJ
10
+0.3
– 0.7
10
+0.4
– 0.7
10
+0.6
– 0.7
10
+1.5
– 0.7
1.4
1.60
HV-AT(20)-PJ
20
+0.7
– 0.3
20
+0.9
– 0.3
20
+1.1
– 0.3
20
+1.3
– 0.3
1.4
1.60
2006.5
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Item
Specification
Conditions
1.Vibration
2.Shock
No electrical discontinuity of 1µs sec. max.
No damage, cracks, or parts dislocation.
No electrical discontinuity of 1µs sec. max.
No damage, cracks, or parts dislocation.
No damage, cracks, or parts dislocation.
Frequency 10 to 55 Hz, single amplitude of 1.5mm, 3 axis,
duration of 2 hours.
Acceleration of 490m/s
2
, sine half-wave waveform,
3 cycles in each of the 3 axis.
Temperature: -55ç
/
15ç to 25ç
/
125ç
/
15ç to 25ç
Duration (Minutes): 30
/
2 to 3
/
30
/
2 to 3
100 cycles
48 hours at 125ç
48 hours at -55ç
5% salt water solution, 48 hours at 35ç
3.Temperature cycle
4.High temperature exposure No damage, cracks, or parts dislocation.
5.Low temperature exposure No damage, cracks, or parts dislocation.
6.Corrosion resistance
No corrosion
s
Materials and Finishes
Components
Shell
Coupling
Insulator
Male contact
Female contact
Attenuation element
Material
Stainless steel
PTFE (Polytetrafluoroethylene)
Brass
Berylium copper
Metal film
Finish
Passivated
––––––––
Gold plated
Gold plated
––––––––
s
Ordering information
HV - AT (
ππ
) - PJ
1
2
3
4
1
Series name
2
AT
3
Attenuation
4
Connector type
: HV Series
: Attenuator
: 0 … 0 dB
: PJ … Plug · jack
s
Plug-Jack type Atteuator
(24.64)
8HEX
(Ø9)
M7∞0.75-6G
M7∞0.75-6H
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
s

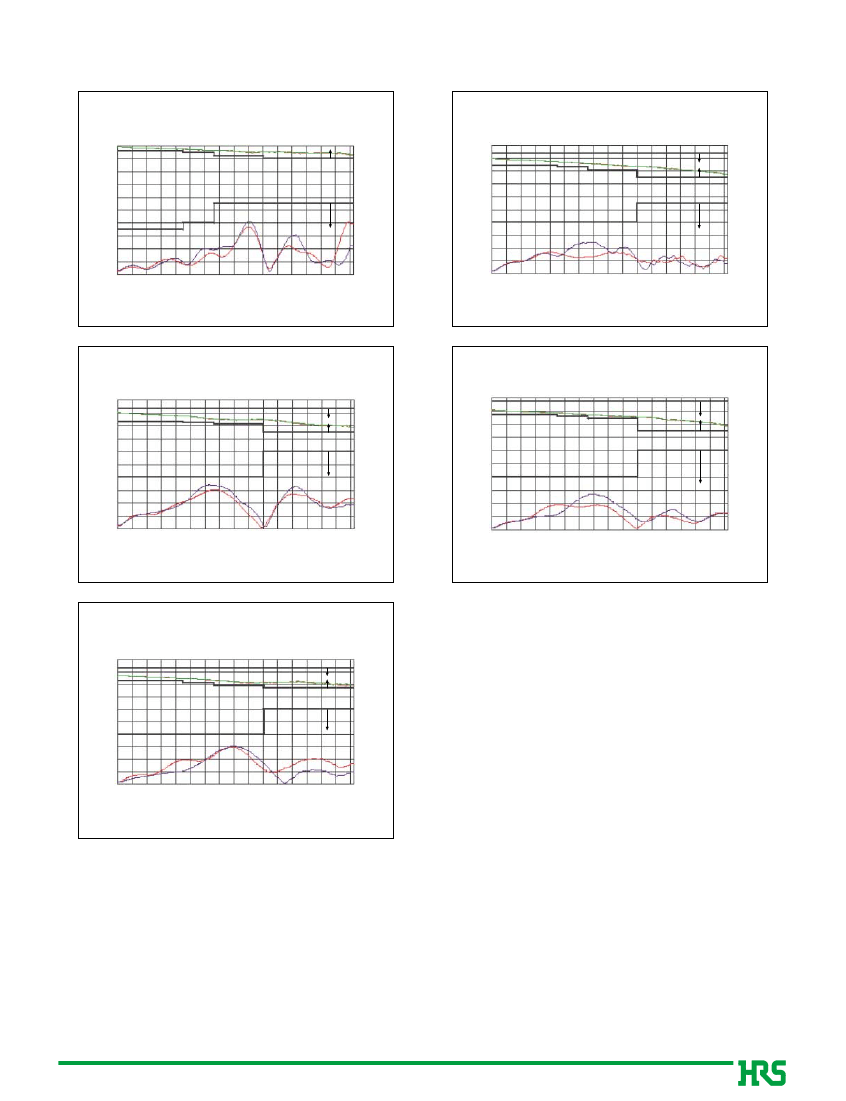

Typical data
0dB
0
-1
-2
-3
-4
-5
-6
-7
-8
-9
-10
0
20
40
FREQUENCY(GHz)
60
2.0
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1.0
-2
-3
-4
-5
-6
-7
-8
-9
-10
-11
-12
0
3dB
2.0
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1.0
20
40
FREQUENCY(GHz)
60
ATTENUATION(dB)
ATTENUATION(dB)
V.S.W.R.
6dB
-5
-6
-7
-8
-9
-10
-11
-12
-13
-14
-15
0
20
40
FREQUENCY(GHz)
60
2.0
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1.0
-9
-10
-11
-12
-13
-14
-15
-16
-17
-18
-19
0
10dB
2.0
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1.0
20
40
FREQUENCY(GHz)
60
ATTENUATION(dB)
ATTENUATION(dB)
V.S.W.R.
20dB
-19
-20
-21
-22
-23
-24
-25
-26
-27
-28
-29
0
20
40
FREQUENCY(GHz)
60
2.0
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1.0
ATTENUATION(dB)
B
