"A" Type Plugs
154-1010
"A" Type Plugs
3
1
2
4
Shield Metal
Contact
Insulator
Cover
2

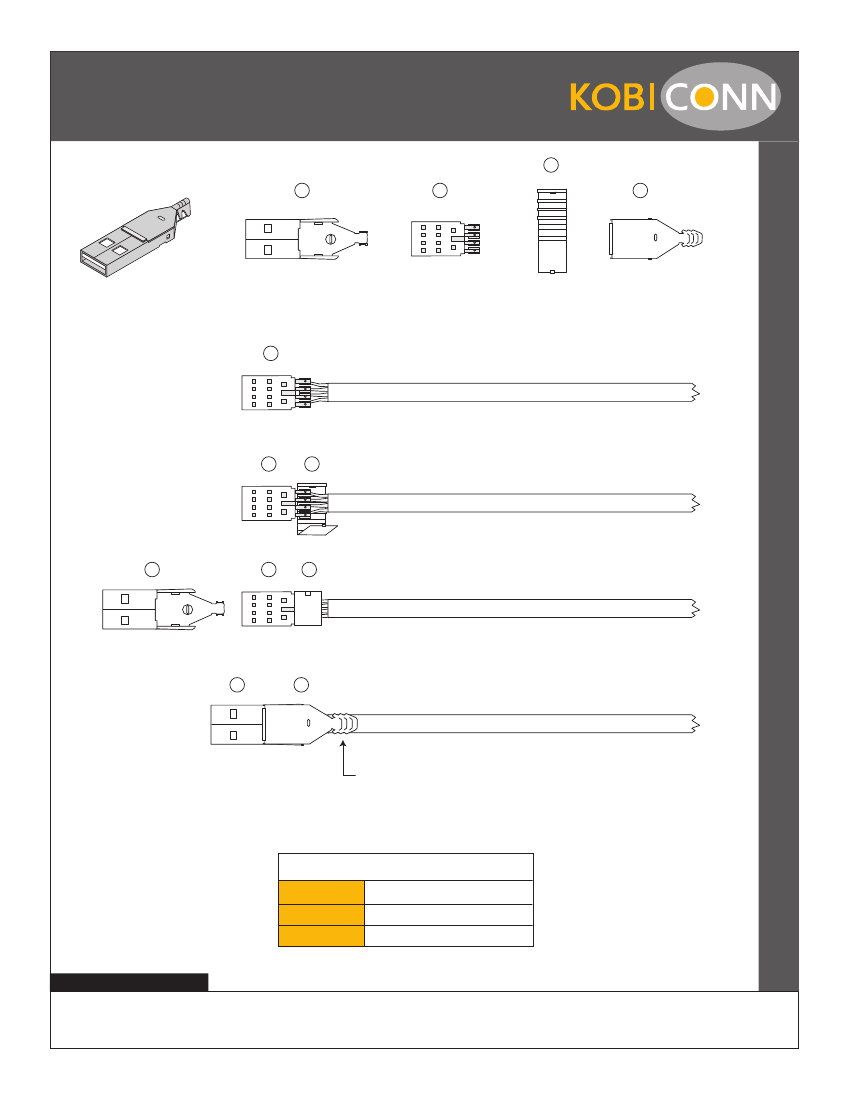

Cable out side jacket stripped 10mm. Inner jacket stripped 3mm.
Solder to the wires on terminals.
2
3
Put insulator on soldering area.
2
3
1
Close the insulator, keep contact part this
direction and slide it into shield metal.
1
4
Assemble cover on.
Crimp on this area with hand pliers.
MATERIAL SPECIFICATIONS
Body:
Contacts:
Insulator:
Steel nickel plated
Copper alloy gold plated
PBT + GF
154-1010
Date Last Revised: 10-15-05
Available from Mouser Electronics
1-800-346-6873
www.mouser.com
KC-
300641
